Einleitung

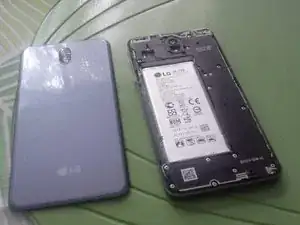

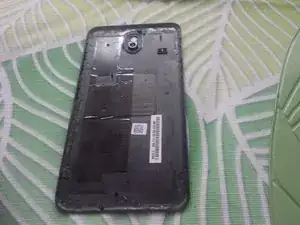

  1. SHhoDMT6pKyYuqpe
    SHhoDMT6pKyYuqpe
    BYSwfABA6LMuGePB
    FeTEF2gRloZ3LwKJ

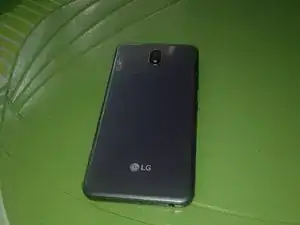

    • Use a spudger to open the back panel and disconnect it from the phone.

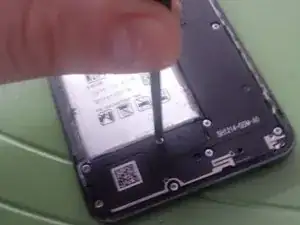

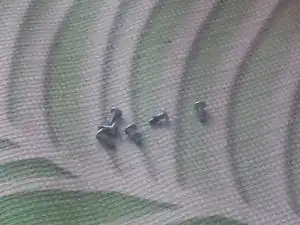

  2. ajYIVCPk63jDGQtN
    ajYIVCPk63jDGQtN
    UCtGCyNpbeyX5kV2
    • Unscrew all 16 screws holding the back panel cover on to the phone

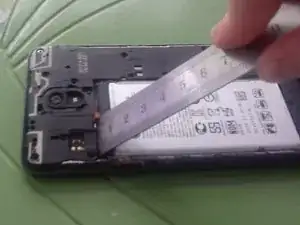

  3. EPShKZRJvAqRUGhN
    EPShKZRJvAqRUGhN
    DZIM2SXGdDYdWJ5p

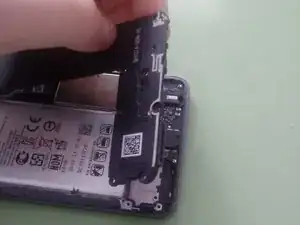

    • Apply adequate force to the back panel to remove it from the phone

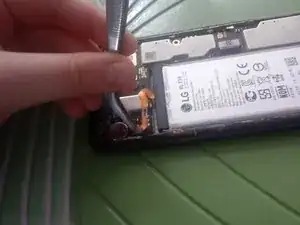

  4. L2qOQ3y4ORrDDjlS
    L2qOQ3y4ORrDDjlS
    mUsZtrMwEVsHkFyw
    r3TqJQmNJOpLN5Sa

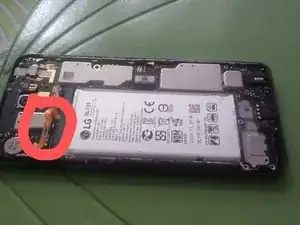

    • Disconnect the ribbon cable that connects the battery to the motherboard. I suggest you heat up the battery first because of the glue and not do what i did. Use spudger to pry up the battery from the device.

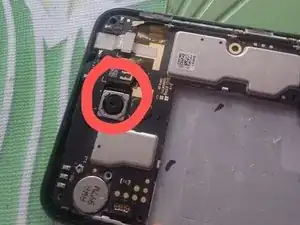

  5. KJXXgwaDNuCZDDlN
    KJXXgwaDNuCZDDlN
    K31FqtLpPXV1TdCu

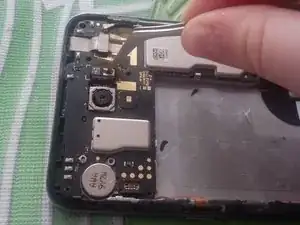

    • Disconnect the back camera from the motherboard by disconnecting the connector from the motherboard

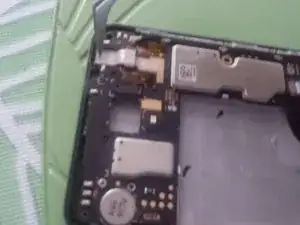

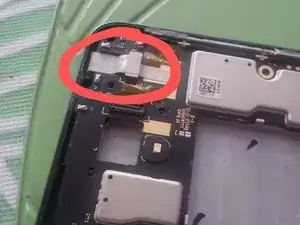

  6. YxuPVVYWs5PsZVI1
    YxuPVVYWs5PsZVI1
    5wCfdSSHfKPsMQPT
    • Disconnect the front camera from the phone by disconnecting the ribbon cable from the front camera attached to the motherboard.

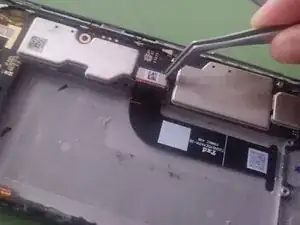

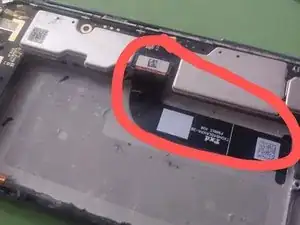

  7. r6X1clriQHDdTcup
    r6X1clriQHDdTcup
    pCuq1sKDMAWRBdgr
    • Disconnect the display ribbon cable from the motherboard.

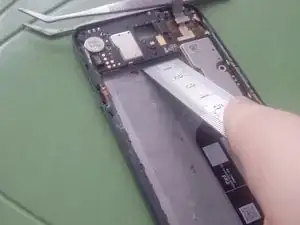

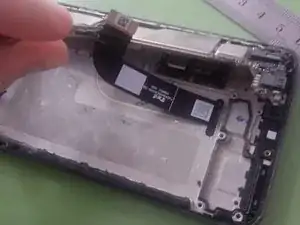

  8. pMTcFxYDGqH1sEUY
    pMTcFxYDGqH1sEUY
    HOmirKBWCEox5nTU
    • To remove the motherboard apply adequate pressure because there will be some resistance. Try to avoid as much thermal paste as you can.

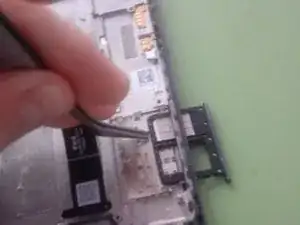

  9. yfYye2DCGqltPULF
    yfYye2DCGqltPULF
    TYWPf3QZyh6McchT

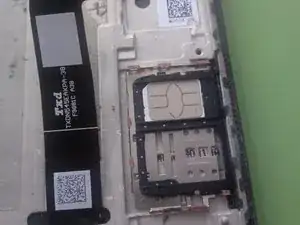

    • To remove sim card just push it out the side. The sim card will be in the holder.

  10. VnmWNkFULZu3Zucd
    VnmWNkFULZu3Zucd
    utXwIUSuckeQKO32

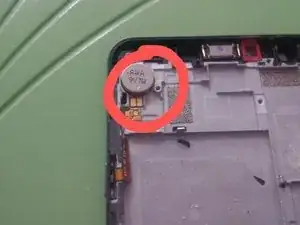

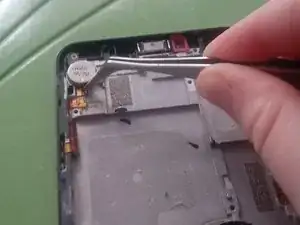

    • Disconnect the ribbon cable holding down the vibrator motor then remove it.

  11. aWHD1JdLGJRC2bQL

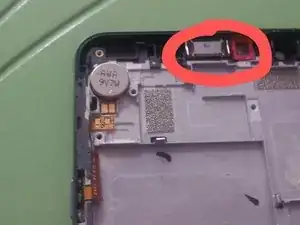

    • Remove the speaker at the top of the phone.

  12. rITcEQSiQEJEYqsZ
    rITcEQSiQEJEYqsZ
    RqNgqiGnMI1ISlIO

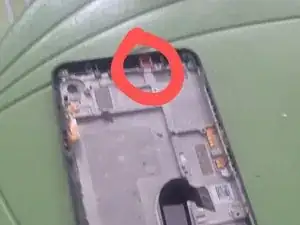

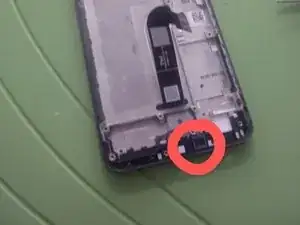

    • Remove microphones

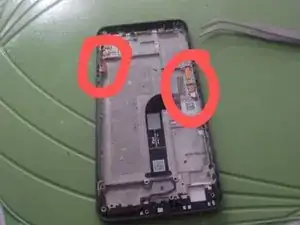

  13. PHYGuwHO1aGP5aRw
    PHYGuwHO1aGP5aRw
    NGMI2YhptscbdCqj

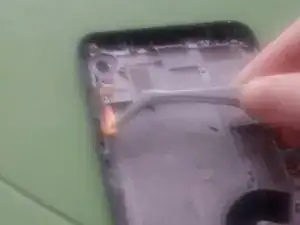

    • Remove the side buttons by disconnecting the ribbon cables on each one.

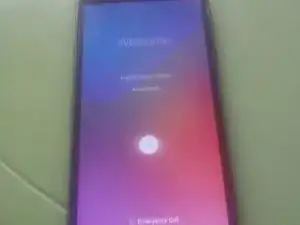

  14. 44j3ceJT1AHdaFms
    • Follow the steps backwards in order to reassemble the phone.

    • Be sure to clean the sim card with compressed air or else it wont work
