Einleitung

  1. pVaP1seceZiTjZO2
    • Remove the back plate and battery

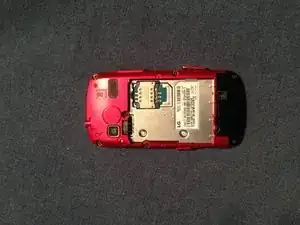

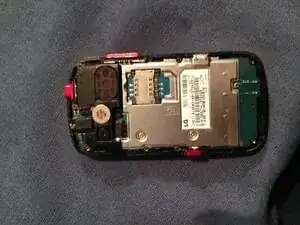

  2. ORk1usQsbTFpoiNx
    ORk1usQsbTFpoiNx
    ViuaqNd3xl1vinRj
    • Remove the 7 Philips screws on the mid frame and un-clip it from the body

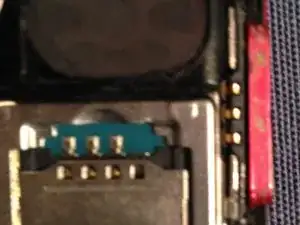

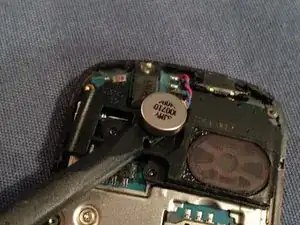

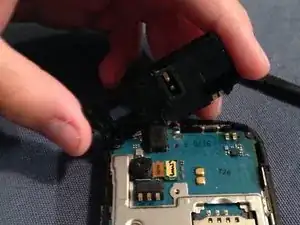

  3. ZPlRDBklLMq3cFe2
    ZPlRDBklLMq3cFe2
    V4qEc5WIHEWNgcOb
    XEVBlAjakiRjfyhy
    • Take out the volume rocker daughter board, the black speaker plastic and the vibrate motor.

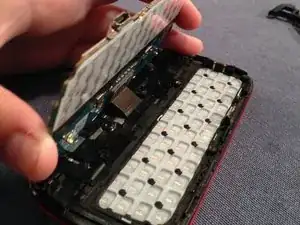

  4. 51sJFmRyI4EmOBT1
    • Remove the 2 Phillips screws and remove the motherboard

    • Remember there is a Ribbon cable under the motherboard

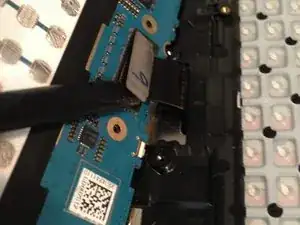

  5. Sn1KUTvDqBCsJiMQ
    • Remove the screen Ribbon cable and the keyboard

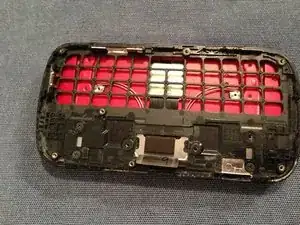

  6. bXI6XaKpZGuwcN4b
    • Remove the 4 Phillips screws holding in the keyboard plastic

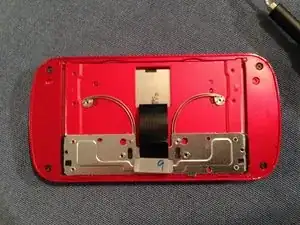

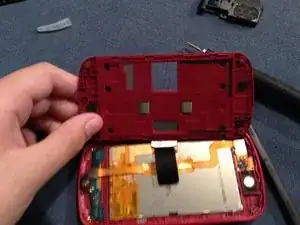

  7. bvhBKUYsp2AKEiRp
    bvhBKUYsp2AKEiRp
    ddL5UJHbWMMEpJtB
    • Remove 4 more Phillips screws and remove the back of the screen

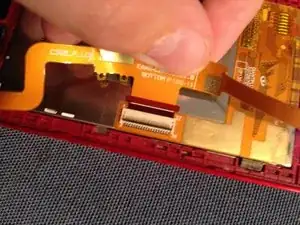

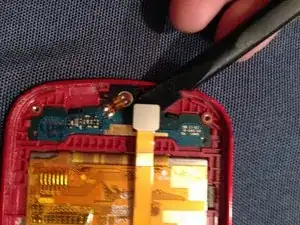

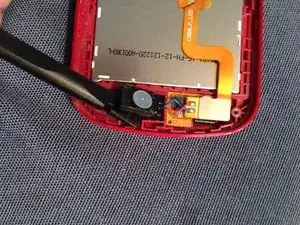

  8. uo6LHRXGuO6aQUW3
    uo6LHRXGuO6aQUW3
    M34oZ1ihEwZlxGQl
    tXevtPXdemAE1imv
    • Remove the bottom button, earpiece and screen ribbon cable

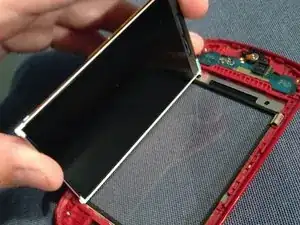

  9. Fui2eLUxpL1Uy1tE
    • After all of this you can remove the screen and conclude this teardown
