How to completely disassemble your tablet.

__________Video tutorial:__________

  1. y3G1Dsb4OAuD53jJ
    y3G1Dsb4OAuD53jJ
    Hoovb1xjDw5QU4XF
    IIFVYPGVqZN4lS3E

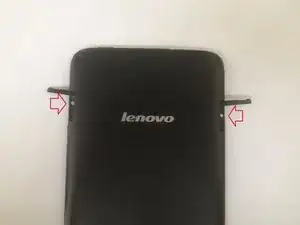

    • Unscrew the two Phillips screws under the memory card and the SIM card covers.

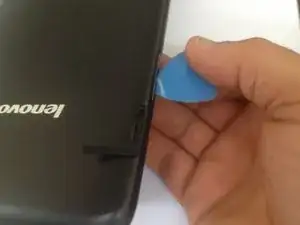

    • Use a plastic tool and remove the back cover.

  2. CVOBFADskcUCa1WX
    CVOBFADskcUCa1WX
    LmMevG2WOlOKJiqw
    2QI4E6OfdSHj5sxs

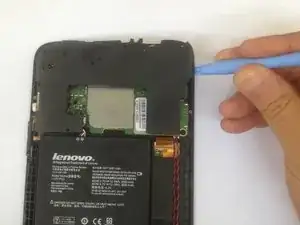

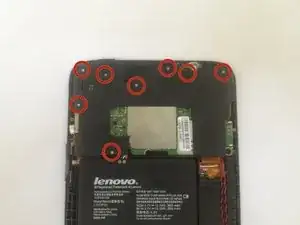

    • Unscrew the 8x screws and remove the mother board cover.

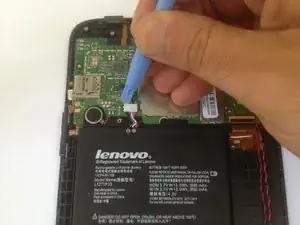

    • Disconnect the battery connector.

  3. CR5ISkeBQ62pSQTd
    CR5ISkeBQ62pSQTd
    PDnPYwrF2jsC1TJb
    gItZkBpK5CUCtE3r

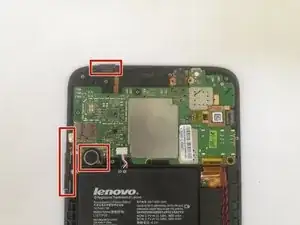

    • Volume Buttons, Power Button and Vibration motor

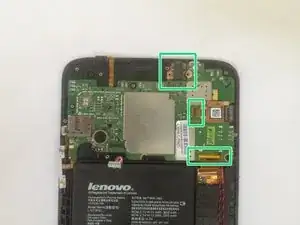

    • Audio Jack Connector, Touch Screen Flex Cable connector, LCD Display Flex Cable Connector.

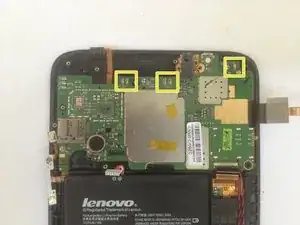

    • Wi-Fi Antenna Connector, Speaker Connector, GPS Antenna Connector.

  4. 5LQR26v2PaPpKgLB
    5LQR26v2PaPpKgLB
    JRnALcPeKbIKHjQS
    lTN2rwWlfaERLGOp

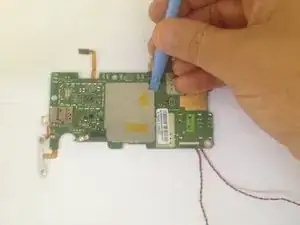

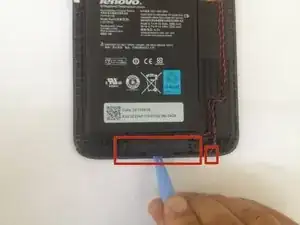

    • Remove the lower speaker and the microphone.

    • Unstuck the Power button, Volume buttons and Vibration motor from the middle frame.

    • Unhook the LCD Display and the Touch screen flex cables.

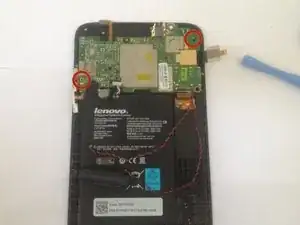

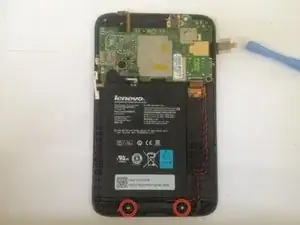

    • 2x Phillips screws securing the main board.

  5. kTrrYiHXUXFPU6PB
    kTrrYiHXUXFPU6PB
    6EgeBMrJ3jyMAPxV
    yZyLYdaIe1jFL1FP

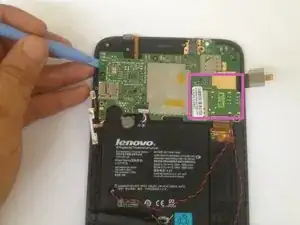

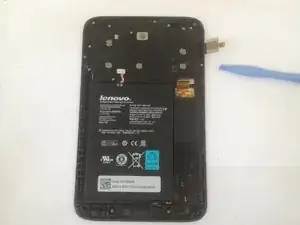

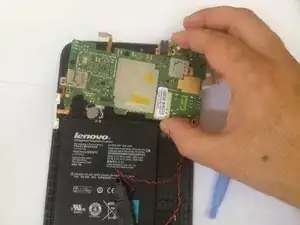

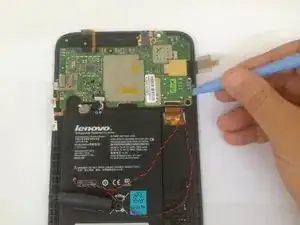

    • Remove the Logic board.

    • Be careful, the mother board is sticked to the front outer case.

  6. ILquuxxkWSDtPnZP
    ILquuxxkWSDtPnZP
    LoKpWpVkxUDuVC6y
    FEkAFsXXKPevZQtG

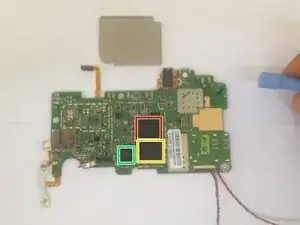

    • CPU - Mediatek, MT8317ATA

    • Memory chip - eMMC(16GB)+LPDDR2(1GB) - KMK3U000VM-B410

    • Power management chip - Mediatek MT6329BA

    • .

    • .

    • That's all.
