Hinges on my U41-70 were a bit loose, decided to look inside.

  1. temWX4gXSRTTxg3O
    temWX4gXSRTTxg3O
    ShOiFxeNsrU54YqF
    RLwbxleQk2WflIEl

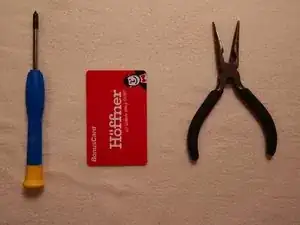

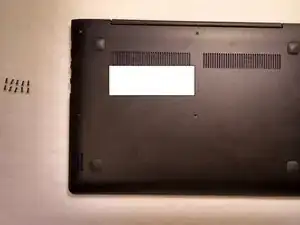

    • Remove 10 Phillips Screws

  2. fVCJ5yNJVRlXiAZx
    fVCJ5yNJVRlXiAZx
    LfBbPPcCE6iEgFmv

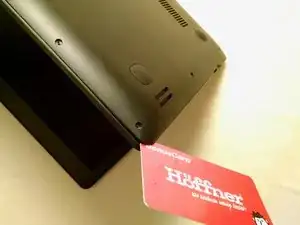

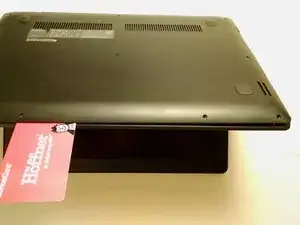

    • Use Plastic Card to loosen Plastic clips

    • Carefully work your way arround

    • The whole Backpanel is held in place by plastic clips around the left, right and front

  3. kqeJ4JBdItAa3vEj
    kqeJ4JBdItAa3vEj
    NYZdxhXm1VGKZLuP

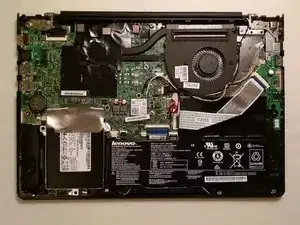

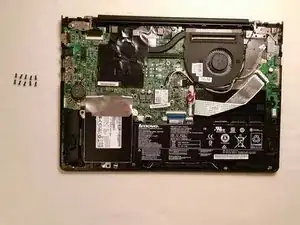

    • Remove Backpanel beginning at the front and working your way to the back

  4. auGi1H1W3JDukgAG
    auGi1H1W3JDukgAG
    scqOS1MpS3t3hXqo
    lGYlRGJrFTcErotm

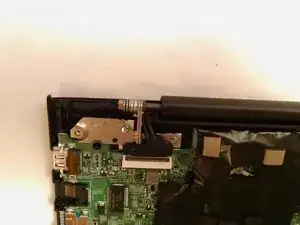

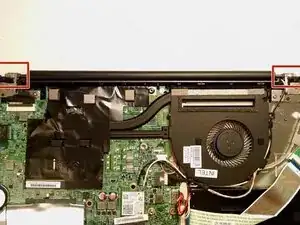

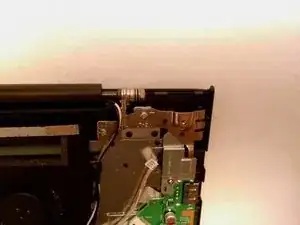

    • Locate Hinges at the back

  5. 6AX6bPxLnBtfTbnJ

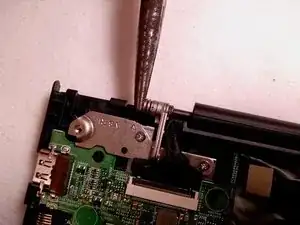

    • Use Pliers or Spanner to tighten

    • Righty- Tighty

    • Lefty- Loosy

    • Be careful not to tighten the bolts too strongly - you might later break the Plastic when trying to open the lid.
