How to take apart the M6013 Capacitor Meter

  1. aCEosJADXGyR3kcD
    aCEosJADXGyR3kcD
    2gykpBcOOLZvwQhK

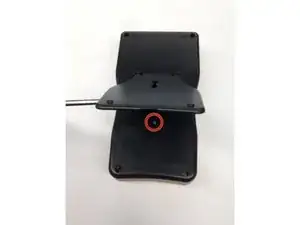

    • Remove the circled screw

    • Remove battery case and batteries

  2. 2iZUFsVi6fntKIZe
    2iZUFsVi6fntKIZe
    JqAuZeHVMqUO1tUr
    RIVr5qaPUJ5PbuCQ

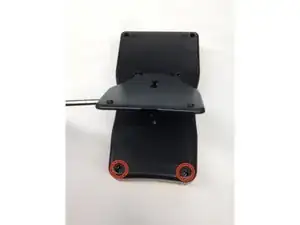

    • Remove circled screws

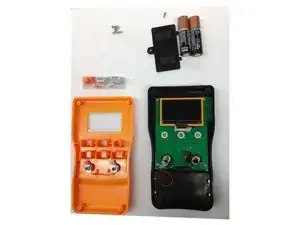

    • Pull case apart

    • Watch out for buttons, they will fall out easily.

  3. t3KZWb3vJbXKvoCq
    t3KZWb3vJbXKvoCq
    PU43dTOJHEd2YJpQ
    rkGgAX3k6pv6XEmK

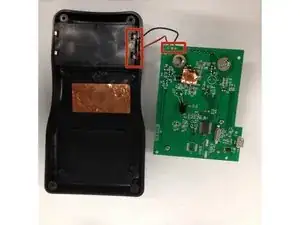

    • Remove circled screws

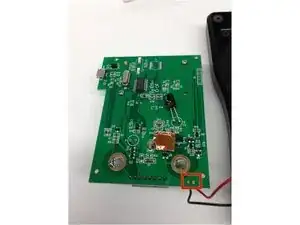

    • Be careful when removing the circuit board, the battery cable is still connected.

    • Unsolder the square locations either on the circuit board or the case to fully remove the circuit board

  4. 4lOp1kmyyRZqhW3R
    4lOp1kmyyRZqhW3R
    2OyAGTlGUSwPhWLg

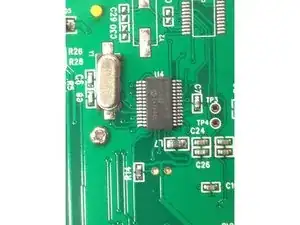

    • Location of microprocessor

  5. 3wlnsmJj3vBpaUD1
    3wlnsmJj3vBpaUD1
    nSDFl4LYCTsOAHkY
    • Remove the cable connector

    • Remove Display
