MSI Dual USB Port Bracket Teardown

Geschrieben von: samhnri
Veröffentlicht: 08/04/10
  • Kommentare: 0

MSI Dual USB Port Bracket Teardown

Veröffentlicht: 08/04/10

Teardown

Einleitung

This is a teardown of a dual USB port bracket with LED activity lights for a desktop computer. These brackets, which mount on any open expansion card slot on a computer chassis, add two USB ports to the back of a computer using a connection to a 9-pin USB header on a motherboard. This one came out of a desktop with an MSI motherboard.

  1. 3jJ2V2JjLwVU1VSA

    • This part of the bracket consists of the circuit board enclosed in a plastic housing, which we will tear down in the next step.

    • These connectors plug into the USB headers on the motherboard.

  2. wChETdHfNfvfKlEM
    wChETdHfNfvfKlEM
    KSdqRhdeNU2uZmMt

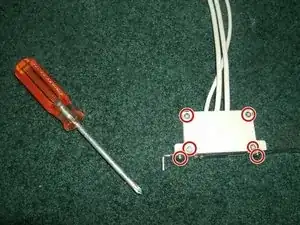

    • Use a Phillips #1 screwdriver to remove the four screws from the white casing and the two screws from the metal bracket.

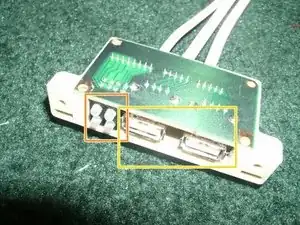

    • On the bottom of the circuit board, the pins that hold its components can cut skin.

    • The two USB 2.0 ports.

    • The four LED lights, which light up depending on the activity of the USB ports.

  3. vQ51XB4NcZsDPqBZ

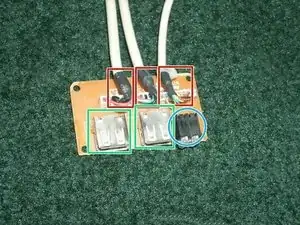

    • Raise the three connectors from the case and it's out!

    • The connectors highlighted in red lead to the wires that connect the bracket to the motherboard.

    • The two USB ports.

    • The LED activity lights.
