Mac Pro Early 2009 Teardown

Geschrieben von: zongo
Veröffentlicht: 26/05/11
  • Kommentare: 28

Mac Pro Early 2009 Teardown

Veröffentlicht: 26/05/11

Teardown

Einleitung

Mac Pro Early 2009 8 Core.

  1. VJyBCuWOvIL5UpVW

    • Ich habe den Mac Pro auseinander genommen.

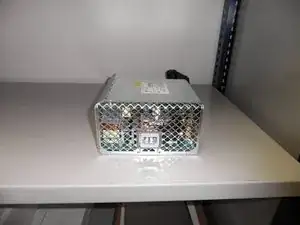

  2. UiuMJsiVhKSkIxlw

    • Das Netzteil hinzugefügt.

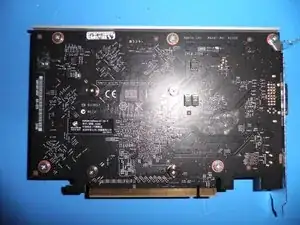

  3. t6eBTHVPOoLB5IKV

    • Die Rückwandplatine hinzugefügt.

    I believe the image in step 3 is the graphics card and not the backplane.

    tpisellijr -

    yeah this is the graphics card.

    Ssamydla -

  4. SDZRvRfb6fhyEnwJ

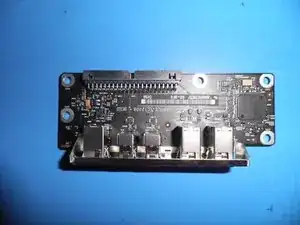

    • Die Frontplatine.

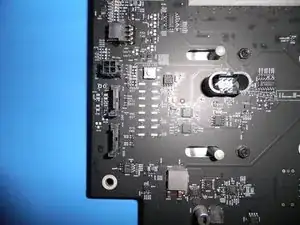

  5. V34YAlpdQTPp5YA6

    • Hier kannst du die LEDs des Mac Pro sehen und die DIAG_LED am Boden.

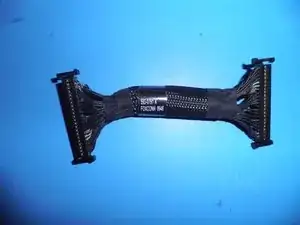

  6. 3F6UOFsl2H3Jxu4D

    • Das Kabel, das die Rückwandplatine und die Frontplatine verbindet.

  7. mpxU3BZjw1NwVPHE

    • Eine weitere Ansicht der Frontplatine.

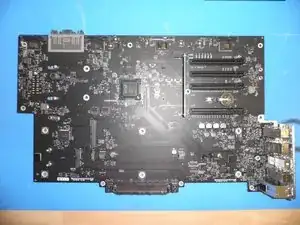

  8. DjWJ5qlyAordGyN2

    • Eine weitere Ansicht auf die Rückwandplatine.

  9. MVYFKlctSiRhmagd

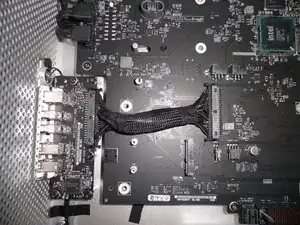

    • Hier sind die Rückwandplatine und die Frontplatine mit dem Kabel verbunden.

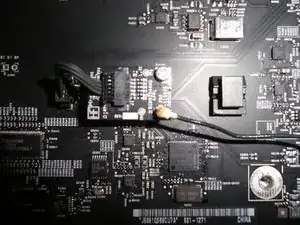

  10. MGjAMwMxebnuVnka

    • Die Bluetoothantenne wird mit dem Kabel mit der Rückwandplatine verbunden. Du musst vorsichtig sein und die Antenne auf jeden Fall anschließen, denn wenn keine Antenne angeschlossen ist wird die Rückwandplatine kurzgeschlossen.

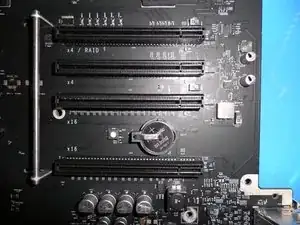

  11. NNA6D6x5dEcGGUvt

    • Eine Ansicht auf die PCI Steckplätze des Mac Pro Anfang 2009

  12. 4QKDOiQVc1GQllMG

    • Die Anschlusskabel des optischen Laufwerkes auf der Rückwandplatine.

  13. TNcxduv3NQMb1BC6

    • Hier sieht man die Einschalttaste, die mit der Frontplatine verbunden werden muss.

  14. vWkBXoZWdDhrEWHA

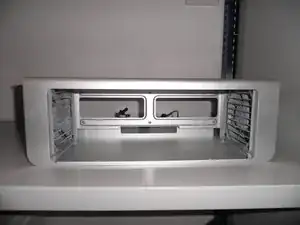

    • Prozessor-Gehäuse

  15. 2aQLSa64G612lEI4

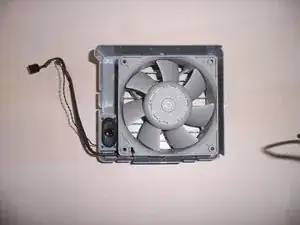

    • Der linke Lüfter des Prozessorgehäuse mit Lautsprecher.

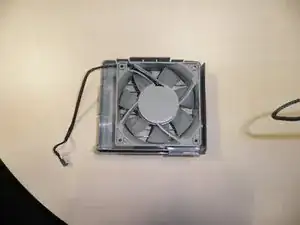

  16. FyoqS1h1e6tcnOi2

    • Der rechte Lüfter des Prozessorgehäuses. Beachte, dass er von zwei Klammern oben und unten zusammengehalten wird.

    What size are the fans?

    Luis Trejjo -

  17. sFFFFjqR5JGccIUM

    • Das Gehäuse mit Netzteil, Rückwandplatine, Frontplatine.

    At this point, will it start power up? with only PSU and Boards.

    I'm trying to troubleshoot 2010 PSU/Processor issue.

    Ssamydla -

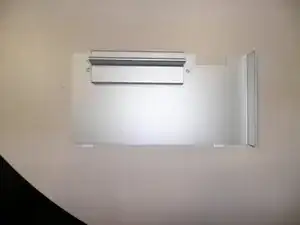

  18. jJTpY3S5XTocQLKU

    • Kleine Abdeckungen bedecken das Netzteilkabel und das Super Drive-Kabel.

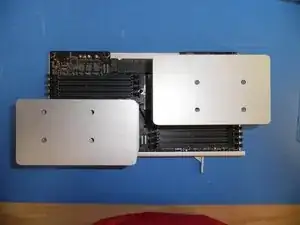

  19. DTbeRIGpOdKZB3yh

    • Prozessorkühlkörper des 8 Core.

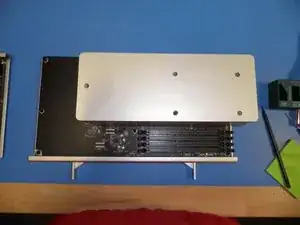

  20. TlcvcBLu3OVi5G4R

    • Kühlkörper eines 4 Core.

    hola, me podrían apoyar con decir cual es el desarmador que se utiliza para desmontar los procesadores, saludos

    atomo182 -

  21. gZHJVVSyKDyQVit6

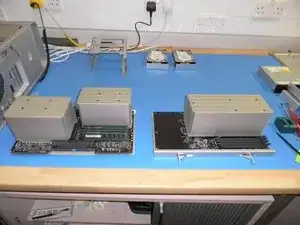

    • Hier kann man den Unterschied zwischen einem 8 Core und einem 4 Core gut erkennen.

  22. 3OX2FcIESENQi3VO

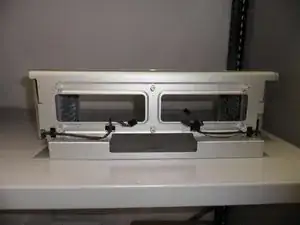

    • Prozessorgehäuse sowie linker und rechter Lautsprecher.

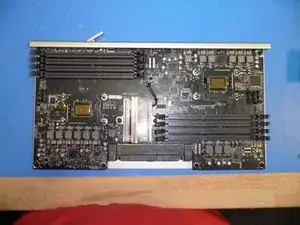

  23. Ww1QbkqpIDxJEXAs

    • Ein netter Blick auf das Prozessorboard eines 8 Core.

  24. 45qGLw4NkTpCurNk

    • CPU B auf dem Prozessorboard.

  25. KSZCMoY21oBsOrxT

    • CPU A auf dem Prozessorboard.

  26. w5YNEiUi2HtJu1SL

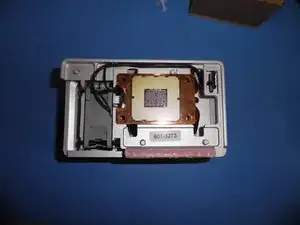

    • Prozessor und Kühlkörper.

  27. YAGg55pTPxGsrfjx

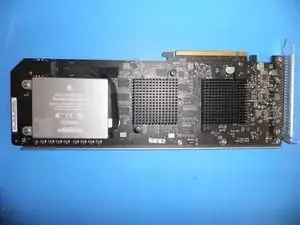

    • Raid-Karte für den Mac Pro Early 2009

  28. T1xICUiPVA6FSNWG

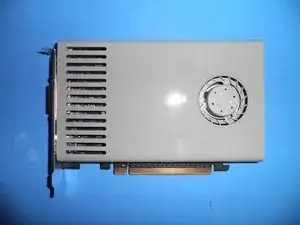

    • Grafikkarte.

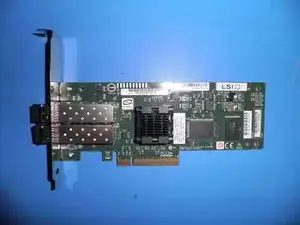

  29. XBj3JpmA1mPRB5i2

    • Fibre Channel Karte

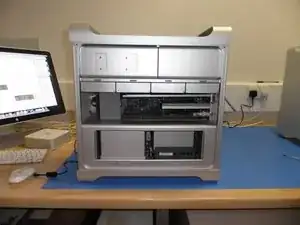

  30. mExWTnJQ65C3SpVk

    • Endlich ist er wieder zusammengebaut.
