Join us as we take a peek inside the 11.6" version of the all-new MacBook Air!

Want to stay up-to-date with the hardware world? Follow @ifixit!

We took this Air apart on October 21, 2010.

  1. UVUPaCv4AYnsJF6n
    • A new contender in the computer featherweight division has arrived!

    • We got our hands on the new MacBook Air 11" Late 2010, and judging from the picture on the box, it's thinner than we expected.

    • Technical specs on the thinnest Apple computer to date:

    • 1.4GHz or 1.6GHz Intel Core 2 Duo processor

    • 2GB DDR3 SDRAM (build to order option of 4GB)

    • 64GB or 128GB Flash Storage

    • NVIDIA GeForce 320M graphics processor

  2. LOZgosw3KtoQ3UVB
    LOZgosw3KtoQ3UVB
    rowpV2AI4vIVsVbF
    • We think this is absolutely awesome, and a couple of MacBook Air generations overdue.

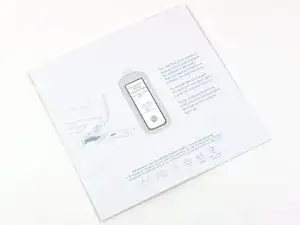

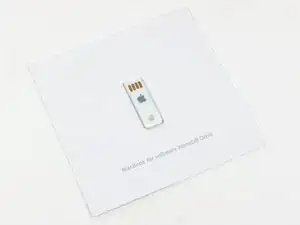

    • Compensating for the lack of an optical drive, the box includes a USB software reinstall drive. The drive is 8 GB total, and contains both Snow Leopard and iLife '11.

    • The drive is bootable by holding down the "C" key on startup, just like a normal DVD restore disc.

    • The USB drive appears to be read-only, but we haven't tried any serious hacking to prove otherwise.

  3. addeqwthssjr2Gr3
    addeqwthssjr2Gr3
    ys4ljlmUQCd2GHHY

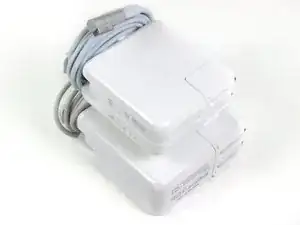

    • The new MacBook Air's Magsafe power adapter has the same 45W 3.1A 14.5V rating as the old model, but at a fraction of the size.

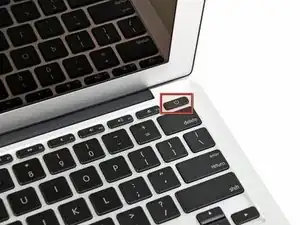

    • The power button is now integrated into the keyboard, instead of it being part of the upper case.

  4. KvLRCZKCZhBsnkbm
    KvLRCZKCZhBsnkbm
    KJRMXFKbiwbWORt5
    jmAx2Z2DvsoTtfd6

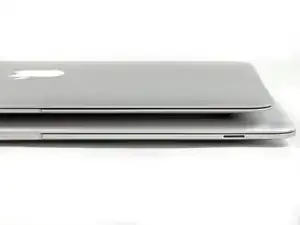

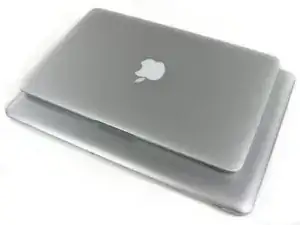

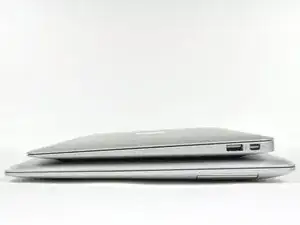

    • Measuring in at 11.8" wide and 7.56" deep and tapering off from .68" to .11" in height, the new MacBook Air looks a lot like a midget among dwarves compared to the old models.

    • A frontal view reveals the omission of the IR sensor and sleep LED.

    • The flip-open port door has been scrapped, and the new model manages to fit an extra USB 2.0 port along its right edge.

  5. QflXjHlRNNgQU1rh

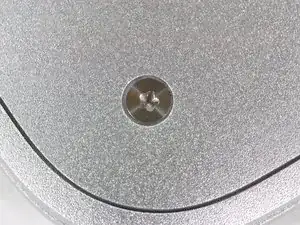

    • Apple apparently doesn't want you inside this thing. They decided to use 5-point "Pentalobe" security screws to attach the lower case.

    • For this teardown, we had to file a couple of flathead screwdrivers to take out the funky screws. We have since found the correct 5-point driver to fit it.

    • Here's a 1366x768 wallpaper version for the new MB Air owners out there. We won't tell where you got it from.

    Seems like something that iFixit could build and add to their 54 piece bit driver kit. Or, just sell the tip.

    plink53 -

    What is the actual TORX size of the 5-point screw?

    ranron -

    Those aren't security Torx -- there's no center pin. They're just 5-point Torx, branded "Torx Plus". They allow greater torque and lower wear (but mainly exist because the 6-point patent was expiring). They are a bit rarer, thanks to limited licensing, but not a tamper-resistant fastener at all.

    rmohns -

  6. 1HTU1RCpeGudOTPG
    1HTU1RCpeGudOTPG
    3NG2wxAekSlYhpoC
    • Drumroll please!

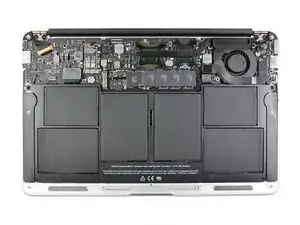

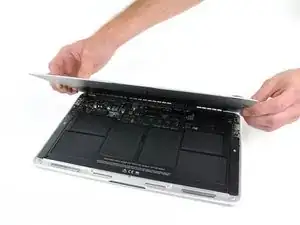

    • Lifting of the lower case after much struggling with those pesky case screws, we get our first look at the innards.

    • The inside of the MacBook Air is dominated by six individual lithium-polymer cells making up the 35 Wh battery.

  7. pynKjehNYLYypowI
    pynKjehNYLYypowI
    RmojUEfoIUcOPnPF
    2XYT1IOh2eBwP1yr

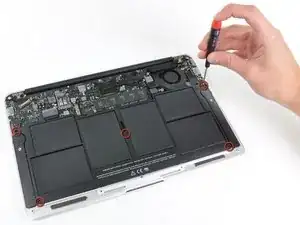

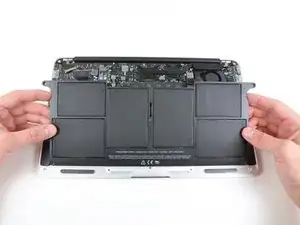

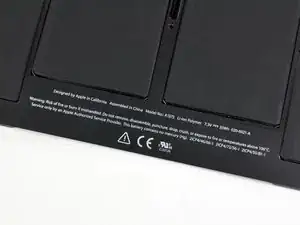

    • The large battery assembly is held in by five T5 Torx screws.

    • Apple claims that the battery will last up to five hours with active use, and up to thirty days in standby.

    • This battery is 35 watt-hours. Previous revisions of 13" MacBook Air machines have included 37 or 40 watt-hour battery packs. Since this Air has a smaller screen and lacks a spinning hard drive, we'd expect run time to be somewhat better than earlier Airs.

    I may have some problems with Apple's software as of late, but %@@&, their hardware is still very sexy.

    Nat Welch -

    Does that hole in the middle of the battery have the same dimensions as a dock connector?? Sure looks like one!

    Mike S -

    Be very, very careful not to scratch, puncture, press, damage, deform… actually just DO NOT touch the battery units. They are extremely fragile.

    jimbbo -

  8. 6YAVY1REY3n6DfAu
    6YAVY1REY3n6DfAu
    LknkqWKga2vIIUHD

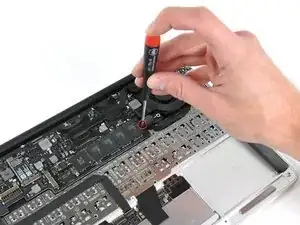

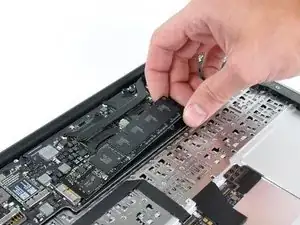

    • After another T5 Torx screw is removed, the 64GB flash storage board can be disconnected from the logic board. It would be easily user-replaceable if you disregard the strange 5-point Torx needed to get inside.

    • The Mini PCI Express form factor SSD drive is a completely custom part, and will probably only be available through Apple support services, thereby putting another nail in the coffin for user-serviceability.

    Is the socket the flash drive plugs into a standard mini-PCIe?

    cityzen -

    is the flash drive the same dimension in the 11" and 13" model? i.e. would it be possible to stick the 13" model's 256GB drive into an 11" model's slot and vice versa (and still be able to close the case...)?

    rcfa -

    Note: the Mini PCI Express SSD is not exclusive to Apple, in fact it was used on some early netbooks like the Asus EeePC 8 gb.

    Ivan Veloz -

    Looks like Toshiba is making these hard drives available independent of the MacBook Air: http://www.toshiba.co.jp/about/press/201...

    Bill Westerman -

  9. EwXnxRyfEywUEP4A
    EwXnxRyfEywUEP4A
    ibGgSVrKojukKDVn
    D1ZOQhUjgbSgkfFE

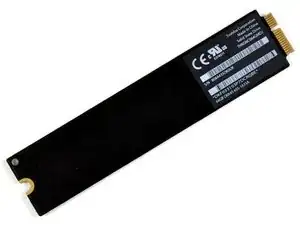

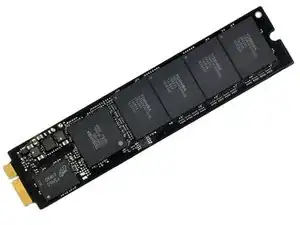

    • The mSATA SSD unit appears to be assembled by Toshiba and is model number THNSNC064GMDJ.

    • There are six main chips on this custom board:

    • Four Toshiba TH58NVG7D7FBASB 16GB flash chips which make up the total 64GB.

    • Toshiba T6UG1XBG Solid State Drive controller.

    • Micron OKA17 D9HSJ DDR DRAM cache.

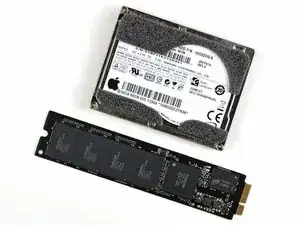

    • The new SSD is 2.45 mm thick compared to the platter-based 5.12 mm thickness of the old Air's drive. Being smaller in two of three dimensions definitely helps the new Air achieve a super-slim profile.

    • The SSD weighs in at a mere 10 grams, compared to the 45 grams of its spinning cousin.

    Will it be possible to remove and recover data from the "drive"? Is that a SATA connetion?

    J W -

    According to a poster over at Ars Technica, the board is a "Mini PCIe SSD". Are you able to validate that this is indeed the case?

    Andre Mas -

    Yes, you can tell just by looking at the connectors in and slots in the images above. In System Profiler this shows up under Serial-ATA and not PCI Cards.

    One reason for this is that it’s likely using the SATA passthrough first made popular by Asus. What isn’t known if this preserves the mini-PCIe interface or not, thus making 3rd-party mini-PCIe SSDs a simple task for manufacturers.

    http://en.wikipedia.org/wiki/PCI_Express...

    Nopw -

    The physical connection used by the SSD & Wifi cards appear to be Apple custom. They have fewer pins than mSata or mPCIe. You can compare here (for mSata): http://www.engadget.com/2009/09/21/toshi...

    Electrically, they are probably SATA & 1-lane PCIe (given the sparse number of pins, each connector is probably one OR the other, not both at the same time).

    cityzen -

  10. GmKJtHXtEJbt2e5J
    GmKJtHXtEJbt2e5J
    DPDsY1EndWLphIsK
    TqCZDPohaTfkyC4v

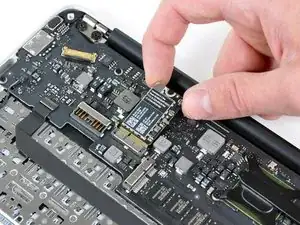

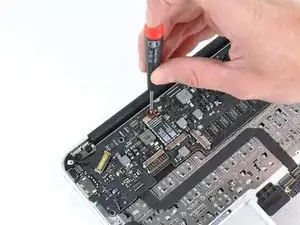

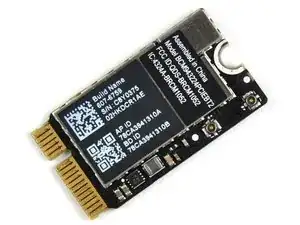

    • With the turn of a screw, out comes the wireless board.

    • Although it uses the newer Mini PCI Express form factor, the new MacBook Air uses the same Broadcom Wi-Fi/Bluetooth chip as the current lineup of MacBook Pros.

    • The model number is BCM943224PCIEBT2.

    The Wifi card look very repleceable, any guess about future tecnology steps in this area?

    What's the other connector just left of the WiFi card?

    nicolapitre -

    That's the battery connector. To the left of that is the display connector.

    cityzen -

    Mini PCI Express. I wonder can I get GPS for iAlert Anti Theft? Federal court accept Apple for want Google should more improve WiFi Access for Locator. That %*&% and poor locator.

    David Guitard -

  11. EGxKLDEImHNjHTbg
    EGxKLDEImHNjHTbg
    6BcpEdwubkwwTCew

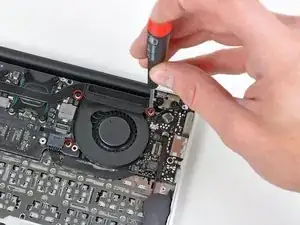

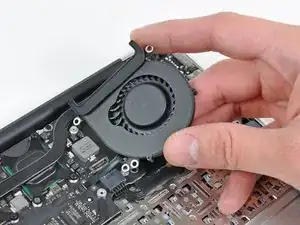

    • Three T5 Torx screws secure the fan to the upper case.

    • All of the cooling and ventilation in the MacBook Air is provided by the single squirrel cage fan.

    • It's thinner and tinier than the regular MacBook fans, just like everything else in this machine.

  12. ixjTudeHBSttIBKC
    ixjTudeHBSttIBKC
    nDLCEkve6SHHXWsD
    fnsoGTV2y6KRxqf5

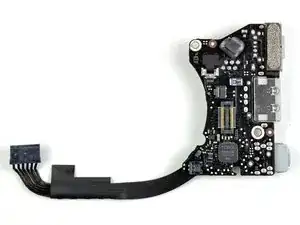

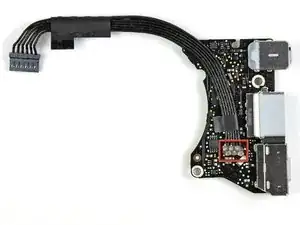

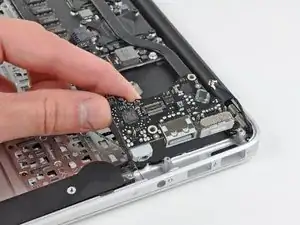

    • The MagSafe, USB port, and sound card are all part of one smaller board that connects to the logic board.

    • There's a blob of glue on the ribbon cable connection points that acts as an insulator. This may prevent some electrifying results from occurring should the contact points wear through the plastic sheeting and touch the aluminum case of the Air.

    • The Air sports a Cirrus Audio 4206ACNZ audio controller. We saw this same chip we found in the latest MacBook Unibody and Mac Mini

    The Glue on the ribbon cable is an extra restraint to supply support when handling the board or harness while assembling or disassembling the unit.

    On the opposite side glue surrounds a power transformer used in the DC circuit to subdue vibrational noise or hum from the resonant frequency of the component.

    Jeff Beck -

    I want to add the glue also helps inhibit cold solder joints from arising with vibration of the transformer or movement on the harness. Kind of a double duty for the application of glue or silicone in most circuits and near harnesses, jacks and other components that can receive stress in movement.

    Jeff Beck -

  13. goIBR1gQGSIXaTWX
    goIBR1gQGSIXaTWX
    SaY5rlPuZYdIHfb1

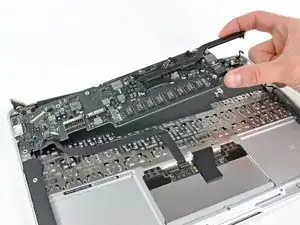

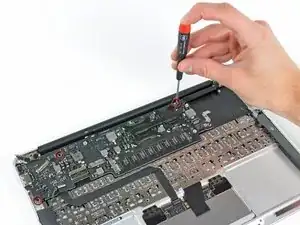

    • Three T5 Torx screws secure the ectomorphic logic board in place.

    • Like most recent Apple laptops, the heat sink comes out attached to the logic board. This is nice, as you'll only need to remove the heat sink and reapply thermal paste if you're replacing the logic board.

    • Unfortunately, like all previous MacBook Airs, the RAM is soldered to the logic board and is not upgradable. Apple does offer a 4GB RAM option at the time of purchase, but if you opt for only 2GB and decide you want more RAM later you'll be out of luck.

    • Our advice? Go for 4GB.

    Hi, is it possible for the memory card to be damage or become undetectable over time? My 4GB RAM became 2GB after many years. Could it be damaged? Able to repair?

    Lynn -

    i’m about to experiment with a mid 2010 mbp, planning to attempt to desolder all the things and jerryrig some custom inputs. anyone else had any luck with this?

    epic.liveson -

  14. 6mPMZ2SAe6qKJlrw
    6mPMZ2SAe6qKJlrw
    2AZQh3u5O1IJEAhV

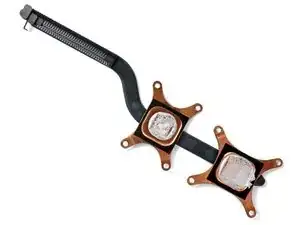

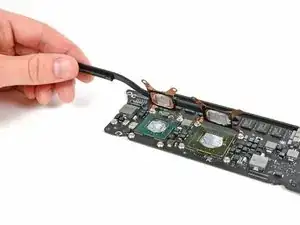

    • After removing eight T5 screws, the thermal paste on the CPU and GPU is the only thing remaining that affixes the heat sink to the motherboard.

    • The heat sink on the new MacBook Air is considerably smaller than all previous models. It weighs only 10 grams. Based on the tiny heat sink, it seems that the Ultra-Low Voltage 1.4 GHz Core 2 Duo CPU is a cool chip.

    THat is WAAAAAAY to much thermal paste, you oculd easy do with a quarter of that!

    deetex -

    Can upgrade the GPU?

    RICARDO -

    Nope, it is soldered to the board.

    Andrew Bookholt -

  15. POxSYUGpXHwopXCQ
    POxSYUGpXHwopXCQ
    4uUMRIPytboUt2Ti

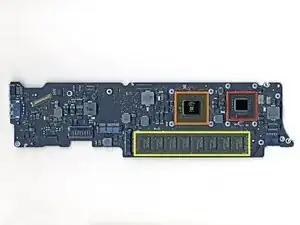

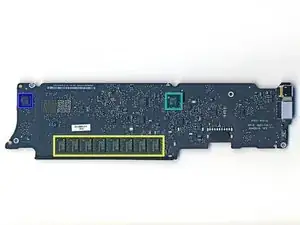

    • The logic board:

    • Intel Core 2 Duo 1.4 GHz processor

    • NVIDIA GeForce 320M graphics

    • 2GB of Elpida J1108EFBG-AE-F RAM

    • F2117LP 20H V

    • TPS 51982 TI 06K

    is it possible to to upgrade the ram chip for this Macbook Air?

    Mala chile -

  16. vD4fZgscCheF5sJW
    vD4fZgscCheF5sJW
    6QckAtMQFZaTQdOY

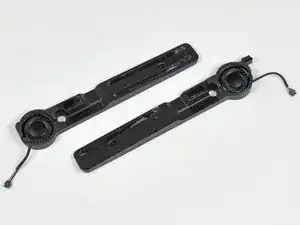

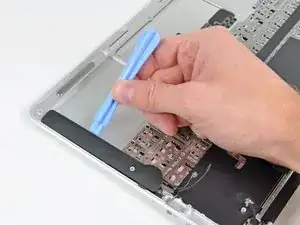

    • With the help of a plastic opening tool, the speakers come out next. These stereo units pump out... well... some mad wattage, probably around 1-2W.

    They sound pretty nice as for an ultrabook, though

    p0wer -

  17. YAXaDq3CYWNpQXga
    YAXaDq3CYWNpQXga
    KU6dMU5STR3nREoO

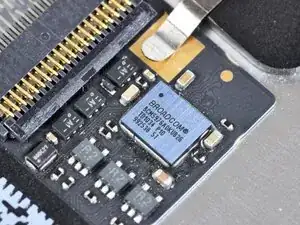

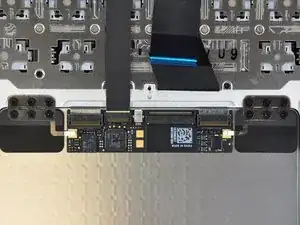

    • The back of the trackpad has a Broadcom BCM5976A0K chip on it as well as a Cypress CY8C24x94-24L PSoC chip.

    • The CY PSoC chip is likely responsible for the multi-touch capabilities on the trackpad as it has touch capability and has been found on many MacBook trackpads.

    • The board is cleverly grounded by little arms extending from the metal trackpad hinges.

    i am a new user mac so i feel lost, who can help me i'll apreciate.... i hope be one can help me

    cavar20 -

    i want to know how to drive this macbook air 13" help me please.... urgency

    cavar20 -

  18. FaPJxyYTToppVQy5
    FaPJxyYTToppVQy5
    XlYhMYDIkMCIn4fR

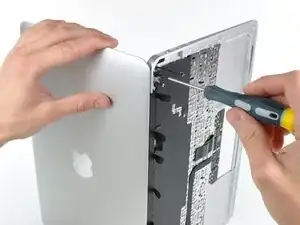

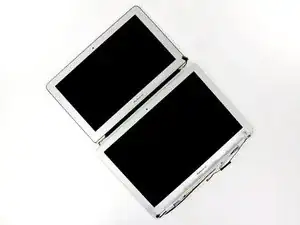

    • We can now remove the display from the lower case.

    • The 11.6" MacBook Air features a resolution of 1366x768. That's a few more pixels and noticeably more widescreen (16x9 vs 16x10) than the 1280x800 resolution of previous Air models.

    • The bigger display in the second picture is from the earlier generation MacBook Air. If you look carefully, you'll see that Apple's removed the microphone from the display assembly. The microphone now lives in the body of the computer, right next to the headphone jack.

  19. wuY3vqPVtNH5CJBY
    wuY3vqPVtNH5CJBY
    H6jvvZd4QLRQJoBi

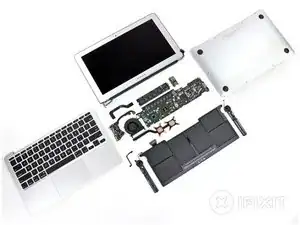

    • MacBook Air 11" Late 2010 Repairability: 4 out of 10 (10 is easiest to repair).

    • Once you manage to take off the bottom cover, all the parts are pretty easily replaceable.

    • Opening the bottom cover is quite difficult if you don't have the right screwdriver. It's clear that Apple didn't want people to open their machine.

    • All the components -- including RAM and hard drive -- are proprietary, meaning that no off-the-shelf parts will work in it without serious rigging.

    • If you're fortunate enough to have a more repairable Apple device, we've got you covered. We sell parts and tools to keep your Macs, iPods, and iPhones running smoothly.
