MacBook Air 13" Anfang 2015 Teardown

Geschrieben von: Sam Goldheart
Veröffentlicht: 11/03/15
  • Kommentare: 47

MacBook Air 13" Anfang 2015 Teardown

Veröffentlicht: 11/03/15

Teardown

Einleitung

Und wieder ist die Zeit gekommen: das MacBook Air ist aus dem Winterschlaf erwacht und begrüßt den Frühling mit ein paar technischen Neuerungen.

Apple versprach uns am Montag auf dem "Spring Forward"-Event Broadwell CPUs der neuen Generation mit verbesserter Grafik, Thunderbolt 2 und schnellerem Flash-Speicher. Sei dabei, wenn wir den Vorhang öffnen, um das zu überprüfen und schaue mit uns nach, was sich in den letzten elf Monaten geändert hat.

Auch das 11" MacBook Air ist aufgefrischt worden, also haben wir doppelte Teardown-Schicht. Hier findest du das 11" Air.

Der frühe Vogel fängt den Wurm, deshalb folge uns auf Instagram,Twitter und Facebook!

  1. CXUxBEAjFNuWfBLQ
    CXUxBEAjFNuWfBLQ
    gFgosPJbspyCBD5P

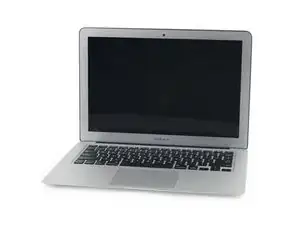

    • Riechst du es? Es duftet nach frischem Silizium. Das MacBook Air 13" Anfang 2015 enthält:

    • Den Intel Dual-Core i5 Prozessor der 5. Generation mit Intel HD Graphics 6000

    • 128 GB Flash-Speicher (wahlweise bis 512 GB)

    • 4 GB LPDDR3 RAM, konfigurierbar (aber nicht aufrüstbar) bis 8 GB

    • 13,3" 1440x900 Pixel Display (~128 ppi)

    • 802.11ac Wi-Fi

    • Thunderbolt 2

    • Doppelmikrofone

    how to configure to 8GB RAM? you have a part number SK Hynix LPDDR3 SDRAM 4 x 2 GB for 8 GB total ? I will repair it in my macbook

    Aleex PWTKLC -

  2. CpnWuK2LXDTW6ann
    CpnWuK2LXDTW6ann
    S2XIQNQM2ghNDDrh
    4WmsI4RkFURCrSdf

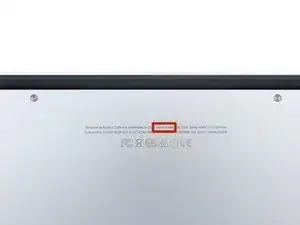

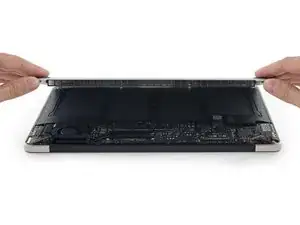

    • Dieses ganz neue 13" Air behält die bisherige Modellnummer A1466. Um es genau zu identifizieren, brauchst du die Seriennummer EMC (2925), oder das Modelljahr (2015).

    • Wenigstens ist es nicht A1278.

    • Auf der rechten Seite befinden sich der SDXC Einschub, der USB 3.0 Anschluss und der (ganz neue!) Thunderbolt 2 Anschluss. An der gegenüberliegenden Seite ist wie zuvor der MagSafe 2 Versorgungsanschluss, die Kopfhörerbuchse und ein weiterer USB 3.0 Anschluss. Dabei ist auch ein Doppelmikrofon, entwickelt um Hintergrundgeräusche zu unterdrücken.

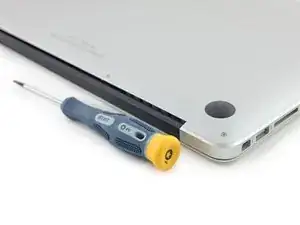

    • Ahh, mein alter Erzfeind Pentalobe.

    • Apple ist stur geblieben — die klassische Pentalobe hält den Durchschnittsbastler vom Inneren des Air fern.

    • Zum Glück haben wir genau dafür einen nützlichen Schraubendreher. Und schon... sind wir drin!

  3. BQdUMTer1CZ5keRN
    BQdUMTer1CZ5keRN
    nAIeXV2AryEUuJNj

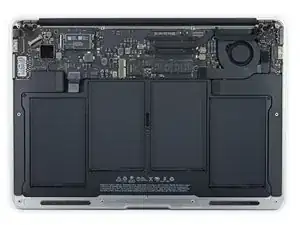

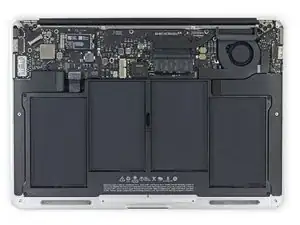

    • Eines davon ist das neue Anfang 2015 erscheinende MacBook Air, das andere stammt von Mitte 2013. Kannst du sagen, welches welches ist?

    • Auf den ersten Blick können wir das auch nicht. Dieses MacBook hält seine AirPort-Karten ziemlich gut bedeckt.

    • Das erste Bild zeigt das 2015er Modell und das zweite ist von unserem MacBook Air 13" Mid 2013 Teardown.

    • Verzweifle nicht, wenn du daneben lagst: wir werden die wesentlichen Unterschiede genau zeigen.

  4. NgTgpgWbbPFbnSo2
    NgTgpgWbbPFbnSo2
    5y2JyBhGdiVJAIXM
    EfPSsoveDbD561LC

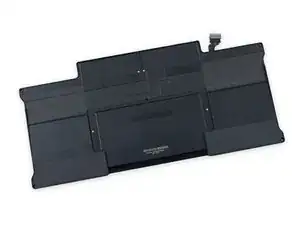

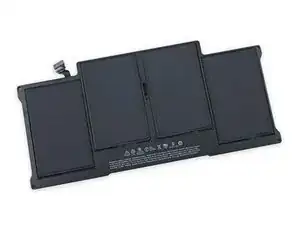

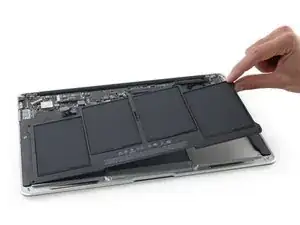

    • Auf zu unserer Lieblingsbeschäftigung am Air: dem Ausbau des Akkus. Dank dieses ordentlichen Kunstoffrahmens wird der Akku von fünf Schrauben festgehalten und nicht von Klebstoff— leicht zu reparieren, leicht zu recyceln.

    • Sieht für uns so aus, als ob Apple keinen Platz für einen Kunststoffrahmen verschwenden, sondern lieber mehr Akku haben wollte.

    • Wenn der Rahmen ganz verschwinden sollte, dann vermuten wir, dass auch diese Zellen verklebt sein werden, der Trend ist am Retina Pro ersichtlich.

    • Auch die technischen Daten des Akkus bleiben erhalten: das Air tritt weiterhin mit einem 7,6 V, 54 Wh, 7150 mAh Akku an. Dank der neuen Broadwell Chips vermuten wir bei gleicher Kapazität eine höhere Akkulaufzeit: jetzt bis zu 12 Stunden Surfen im Web oder Videowiedergabe.

    • Für alle Zahlenliebhaber: das sind 2 Wh und theoretisch eine Stunde mehr als der neue Dell XPS 13.

    Did anyone ever try to put a battery from one of the newer MBA models into (for example) a 2012 model? If only the capacity has changed, it shouldn't be a problem to put it and get an extended battery time or am I missing something?

    Martin Flow -

  5. CaI6oMKKODRLPRWP
    CaI6oMKKODRLPRWP
    dHlVkPhMstjuDQhQ
    JQZKPlTi6kTDvU2O

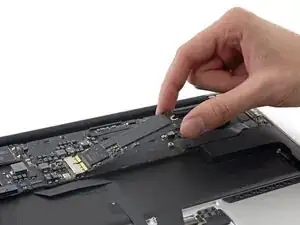

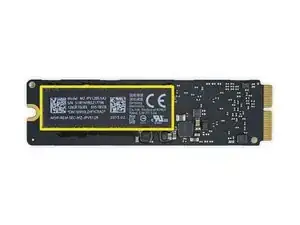

    • Der Flash-Speicher ist nach wie vor PCIe-basiert und bleibt glücklicherweise - zumindest vorerst - austauschbar. Wir holen ihn für eine nähere Inspektion heraus und finden folgendes:

    • Samsung S4LN058A01 PCIe 3.0 x4 AHCI Flashkontroller

    • Samsung K4E4E324ED 512 MB LPDDR3 DRAM

    • 8 x Samsung K9LDGY8S1D-XCK0 16 GB Flashspeicher (128 GB insgesamt)

    • Apple erzählt uns, dass dieser Bad Boy "...über einen schnelleren Flash-Speicher verfügt, der bis zu zwei Mal schneller ist als die vorherige Generation".

    • Wir haben einen kleinen Vergleichstest durchgeführt und es hat sich gezeigt, dass das nicht gelogen war. Nicht schlecht, Apple!

    Is this the same size as the mbp retina? looks like it is.

    iliketurtuls -

    is the pci ssd slot same as of mba 2015. can i swap 2014 ssd with 2015 one. i am planning to buy a new ssd for my 2014 mba

    tushar kundra -

    It'd be good to know if the new PCIe SSD is compatible with last year's model so I can upgrade my MBA as well.

    Huy Pham -

    there is a third-party manufacturer of this type of SSD ?

    Francesco -

    Hi, im wondering if Samsung SM961 M.2 2280 256 GB PCIe NVMe (MZVPW256HEGL-00000) will fix in to this macbook air 2016?

    tom -

    Same question. But it seems the slot is different. Now 2018.05, there is a Transcent serial meets.

    Peter Long -

  6. u1npKFRofURJRnxo
    u1npKFRofURJRnxo
    lyGiMWWZTWDLXPJC

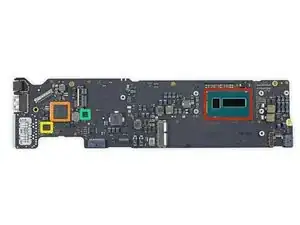

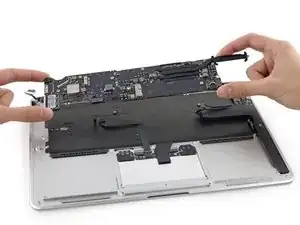

    • Wenn die schweren Teile entfernt sind, fangen wir das Logic Board auf, bevor es davon schwimmt. Wir drehen es um und finden das Herzstück von dem Ganzen:

    • 1.6 GHz Intel Core i5 5250U Prozessor mit integrierter Intel HD Grafik 6000

    • Intel DSL5520 Thunderbolt 2 Kontroller

    • GL3219 Genesys Logic SDXC Kontroller

    • LT3957 Linear Technologies invertierender Kontroller

    • Broadwell schrumpft die vorherige Architektur des MacBook Air (Haswell) — das bedeutet keine unmittelbare Leistungsverbesserung, aber ein neuer Herstellungsprozess macht die Transistoren kleiner und steigert die Energieeffizienz des Chips um 30%.

    • Im Gegensatz dazu bringt die integrierte Intel HD Graphics 6000 eine echte Leistungssteigerung der Grafikleistung (etwa 20 - 25% mehr gegenüber HD 5000).

  7. LxKGVf14hBj61V5K

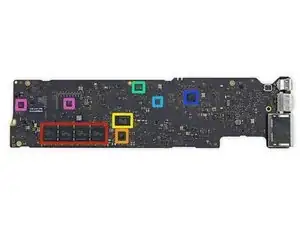

    • Auf der anderen Seite des Logic Boards befinden sich:

    • SK Hynix H9CCNNN8JTALAR LPDDR3 SDRAM 4 x 1 GB für insgesamt 4 GB

    • Broadcom BCM15700A2, ist wohl ein Multimedia Kontroller.

    • SK Hynix H5TC4G63CFR 4 Gb low power synchron DRAM

    • Macronix MX25L6473E serieller multi I/O 64 Mb Flashspeicher

    • Texas Instruments TPS51980A synchrone Leistungssteuerung

    • Texas Instruments/Stellaris LM4FS1EH SMC Kontroller

    • Intersil 958 26AHRZ N450MT und SMSC EMC1704-2 Strom/DC Leistungssensor mit Temperaturüberwachung

    so the 4 GB model works actually with 8GB of RAM? 4 regular and 4 low power like the smartphones?

    Daniel Rece -

    Review about nothing. The author did not indicate that there are models with an I7 processor and 8 Gb of memory. This is important because these models are relevant even now - they process all modern applications no worse than modern models. At a much lower cost. This is important - 8 GB of RAM because it is rsamayan and you cannot increase it, unlike an SSD drive, it can be replaced. I specifically buy motherboards with 8GB of memory on ebay to restore my clients' macbooks so that they do not pay extra money for a new macbook ....))

    Sorry for my google-translate English, I’m from Ukraine ;)

    Yur -

  8. gKaFKIHQH2EKRZBL
    gKaFKIHQH2EKRZBL
    Q1HBvID3JFLtPi2G
    1VBFLkoqR3FB1Dcy

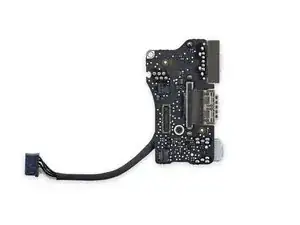

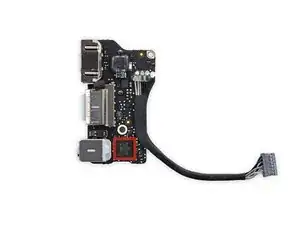

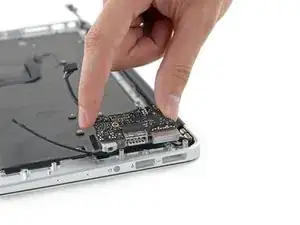

    • Der Trend zur Gleichartigkeit setzt sich fort, und das I/O Board ist fast identisch mit dem des MacBook Air 13" Mid 2013, bis hin zum Audio Codec IC:

    • Cirrus Logic 4208-CRZ HD Audio Codec, wahrscheinlich ähnlich wie das 4207

    Only rMBP received the touchpad update. It would make very little sense for Apple to update it on the Air as well given that the gap to rMBP is already so small.

    Dominykas Tautkus -

    this force trackpad is the same as on the Blackberry Storm 2 smartphone from 2010.

    Nick -

    so, should we all get BB's because they've always had excellent hardware?

    ...or should we stay the !&&* away because they're OS is so crappy, they're not even smartphones: they're just really expensive, high quality regular phones with kick-butt cameras (sorry I owned one, .. well two actually, and pretty much never was able to get on the internet. Now... well for get it: BlackBerries are great, don't get one; may they experience a tenth of the trouble they caused me and my business. Well that's being a little too harsh, A SIXTEENTH :( !

    Howard -

    That's all I need, a high-quality, regular phone, and a really-good camera. A key-pad with it is good, because a touch screen doesn't know when I touch it. Internet on a dinky-sized cel-phone screen? No thanks but Thanks a lot. I've got an MacBook for that.

    jimmy5 -

  9. iUejB4OfKlPD4Fex
    iUejB4OfKlPD4Fex
    lxWDWhtXwdSOptRQ

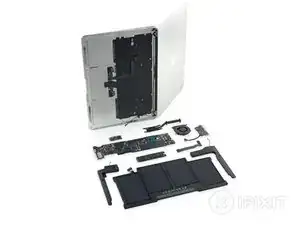

    • MacBook Air 13" Anfang 2015 Reparaturbewertung: 4 von 10 (10 ist am leichtesten zu reparieren).

    • Wenn du es geschafft hast, den Bodendeckel abzulösen, kannst du alle Bauteile recht einfach austauschen.

    • Proprietäre Schrauben erfordern den richtigen Schraubendreher.

    • Alle Bauteile - inklusive RAM und SSD - sind proprietär.

    • Wie bei den vorherigen Generationen ist auch bei diesem MacBook Air der größte Kritikpunkt die fehlende Aufrüstbarkeit. Der RAM ist immer noch auf das Logic Board gelötet und SSDs sind zwischen den Generationen nicht kompatibel.
