MacBook Core 2 Duo Rechargeable Battery Teardown

Geschrieben von: mayer
Veröffentlicht: 06/04/11
  • Kommentare: 6

MacBook Core 2 Duo Rechargeable Battery Teardown

Veröffentlicht: 06/04/11

Teardown

Einleitung

This teardown shows a complete disassembly of the rechargeable battery for the MacBook Core 2 Duo. This teardown shows how it's put together and all of the components that make up the battery.

  1. DOGEkv6Mx4YCUBch
    DOGEkv6Mx4YCUBch
    QoPGtdmasqMgrFZl

    • There are a total of 10 Torx T4 screws, five on each side.

  2. oMmnVbHLd4AK2HuZ
    oMmnVbHLd4AK2HuZ
    NAT3fg3e4tnQVsTm
    4aHh3msncDwR3LFk

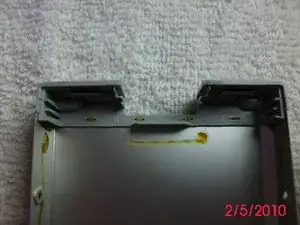

    • The metal bottom plate has some glue on it around the connector end. The opposite end can be lifted to help break it loose; it fits straight down.

    • Note the built in slots to hold the connector cards on the end.

    • The interior holds six battery packs; three stacks of two.

  3. MuwJqtvYueKyZSRr

    • Here you can see the stacks.

  4. 2CdgZEvIt4HnjpaQ
    2CdgZEvIt4HnjpaQ
    3LZnwccDtYW1IuRo
    1cXCANPXVFmUBpTJ

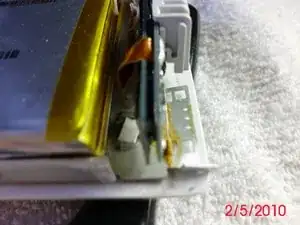

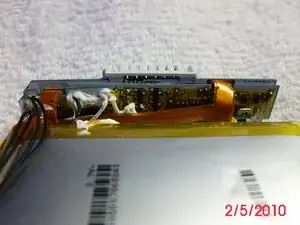

    • Here you can see the two connector boards.

    • The white paste looking stuff is where the battery pack broke open and leaked.

    The white stuff is not leakage, it's adhesive.

    tooki -

  5. oYd4LnBBaSyVMWhF
    oYd4LnBBaSyVMWhF
    eX22KZ1GM6spF32Q

    • Here's a side and top view of the connector boards.

Tinte & Feder

mayer

Mitglied seit: 05/01/10

679157 Reputation

5 Kommentare

For anyone who might need to know…

The pinouts on the aftermarket battery I have are labelled as follows…

P-, T, D, C, /, P+ This is reading right to left, holding the battery in front of you, right way up, with the pins facing towards you.

I interpret this to be, Power minus, Thermistor, Data, Clock, Switch, Power plus respectively.

The P- is connected directly to the negative of the battery. The P+ is not directly connected to the battery, but is connected via a solid state switch on the battery PC board.

Greg Lee -

The "white paste looking stuff" is not a from a ruptured battery.

There's pictures of other batteries with it, mine has it, it is normal - probably an afterthough to stop wiring going astray or shorting out.

Gaz Rybagz -

Anyone have the schematic for the lipo cells connection?

thevjfla -

I have a question about this batter & im hoping someone will let me know if it’s a bad one so I can avoid damage lol.

anyway here it is: I dropped water on an old macbook I had completely rewinding the motherboard. This happened years ago and I know there’s no salvaging the computer itself but right before the accident happened, I had sent it out to Apple for warranty repair (unrelated to the batter) and they swapped my battery for a brand new one. So anyway I have a brand new batter and I’m wondering if I can use it as a power source for some LED light I have. I didn’t know the controller was inside until I opened the battery up. Anyway now I’m thinking that if I can (I hope I can) I’d like to see how I would go about drawing power from it as well as charging it without having to put it onto a computer. Help anyone?

Manny O -

They are normal 3.7v li-ion polymer cells. Probably 2px3s (2 in parallel, 3 in series) So you could use them for lighting leds. There are hundreds of chargers/chargerboards for these kind of batteries on AliExpress or Ebay but you’ll probably need to do some soldering.

And of cause you need a driver for the leds if there is not already one included.

Maybe you can sell the battery. There are a lot of MacBooks with bad batteries out there ;)

Eduard van Raalte -
