In case you missed it, we tore apart the new MacBook Pro 15" Retina Display Mid 2012 last week. Inside, we found a whole mess of pretty, yet difficult to access components. In fact, the MacBook Pro with Retina display earned our lowest repairability score ever, with 1 out of 10 points.

What we didn't look at earlier, however, is the MacBook Pro's namesake: the Retina display. Apple claims that the Retina display in the MacBook Pro is the most stunning display to ever grace the lid of a notebook computer. "But at what cost?" we find ourselves asking. Being the repair-minded folks that we are, we feel that the only fair way to answer that question is to give this new display "the iFixit treatment": open it up and look! We may not be opthalmologists, but we are excited to be doing surgery on a Retina display. Join us as we investigate the intricacies of Apple's most stunning display.

Do you wake up in the middle of the night, tossing and turning in anticipation for iFixit's next teardown? Follow us on Twitter and get some rest. We'll keep you up to date with all the hottest gadget teardowns!

  1. TQ2TvZR1EKjPb3ix
    TQ2TvZR1EKjPb3ix
    vPRlZYfgxuKaKpsC

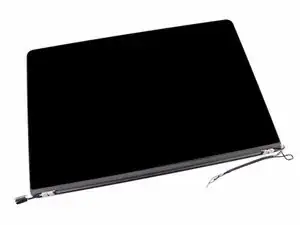

    • Here it is: the impenetrable fortress of pixels known as the Retina display.

    • Despite our initial apprehension about tearing down such an impressive (and expensive) piece of equipment, we are very curious to see for ourselves just how Apple managed to squeeze more than an entire HDTV inside a 15" display.

    • At first glance, it looks like a normal MacBook Pro display assembly with a skinnier bezel and no logo at the bottom.

  2. PfsUh3pgLho4lwwA

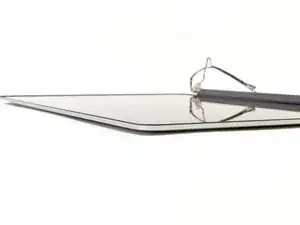

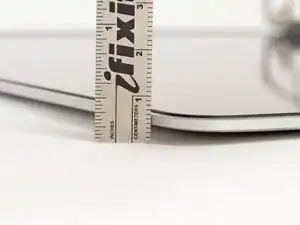

    • Would you call us crazy if we told you that the display assembly from the latest MacBook Pro is the same size as its predecessor?

    • You caught us; we lied. The new display is actually a fraction of a millimeter smaller than the old one. Neat!

    • At its fattest point, the display assembly is a hair over 7 mm thick, and all the way down to just over 3 mm at the edges.

    • What's astounding is that Apple's engineers managed to cram four times the pixels of the previous 15" MacBook Pro into a display assembly that is (nearly) the same size.

    • The big savings here is weight, not thickness. The Retina display weighs in at 673 grams, while a standard 15" MacBook Pro display tips the scale at 908 grams. That's a solid 25% weight savings!

    Apple didn't engineer the display, Samsung did. Put the credit where it belongs.

    Scott Wilkins -

    Any source for that? Last I heard Samsung was only one in a group of the companies handling the manufacturing, not the engineering, of the iPad Retina display.

    For this this one the manufacturing is stated as being LG Philips.

    Re engineering apparently there's stuff from Sharp, an Apple engineer and possibly others.

    Jose -

    It's a Sharp design, but not quite IGZO, I beleive. Apple probably did some work on it too.

    Samsung is just one of the manufacturers.

    Gan Solo -

  3. rTadmktXZf5bIaqP
    rTadmktXZf5bIaqP
    mkKagTvMqZW5BBGV

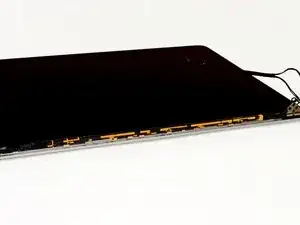

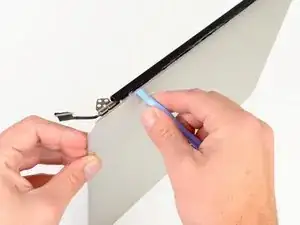

    • The disassembly begins pretty routinely. Like most Apple laptops, the clutch cover pries off fairly easily with a plastic opening tool.

    • But differences start popping up as soon as the clutch cover comes off. The array of antennas underneath the clutch cover looks a lot more involved than in previous generations.

    Is it possible to snap the clutch cover back in place, or do you have to glue it back on?

    Jstervil -

    Instead of prying the clutch cover off: Looking at the display from the front with the hinges at the bottom (Like you are using the screen.) Simply slide the cover to the right, all the way to the hinge. Then it may be removed without tools. Just lift the bottom. be carefull of the end covers. they are held in by a snap pin and a dab of adhesive tape. Install is reverse.

    Alan Richmond -

    Your technique worked well! Thanks!

    I also noticed the end covers.

    Louie -

    Hello, i’ve just try to repair this LCD (I hope), this plastic cover it’s very silly to remove, in this foto show a wrong way, there are inside a three little teeth, first remove two cap on beside (near metal joint), and second, simply translate (I don’t remember exactly) on the left, and the plastic cover go up very very simply. I hope this advice is appreciated!!!

    WestZed -

  4. GeOrpeJLfPFOeagQ
    GeOrpeJLfPFOeagQ
    xCRsUitEAVnCuaqy

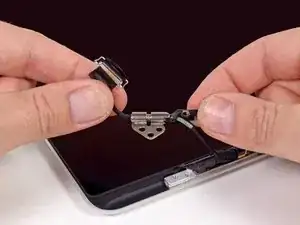

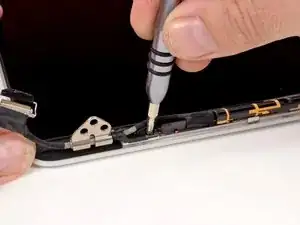

    • The left display hinge comes out with no issues, but good luck separating it from the display data cable.

    • Devices with cables fed through hinges can be a real bear to work on. None of that will be an issue with this machine, though, as the display hinge is pretty much sealed shut at the factory. Rather than routing the cable under a cable retainer -- as it's done in non-Retina MacBook Pros -- you just have to replace both cable and hinge together.

    • Don't think that the guys (and gals) who designed this machine are just out to get you. Routing the cables through the hinge is a way to save space and weight in the laptop.

    Hi guys,

    any chance to use a Macbook Pro's monitor on a normal pc graphics card? There has to be a adapter from the internal connector (as seen in step 4) to power and dvi/hdmi. I have a broken 2009 17" Macbook Pro. Display works and could be used as monitor elsewhere.

    Thanks

    Stefan H -

    Hi guys, do you have an idea what kind of screws are used to connect the hinge to the display assembly? These are missing in one of my colleagues MBP. Don't know how he did this but I would like to repair it. Is there a screw-set I can buy?

    Jurgen Imbrechts -

    Were you able to find it? I need to find those screws as well. Thanks!

    Yigit Sen -

    The screws are 4.8 mm long (total) and 2.4mm wide(the thread part). Torx T8H.

    Daniel Henderson -

    Slide the Black cover about a 1/4 inch to the right and then it pops off.

    I cut the black tape on the antenna holding the data connector.

    I removed two of the screws holding the antenna assembly down and lifted it enough to pull the data connector off.

    Chris Sandys -

  5. WvrZuMZ2wJOryHSu
    WvrZuMZ2wJOryHSu
    OfMv1FnUPx4aISwX

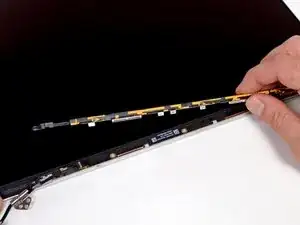

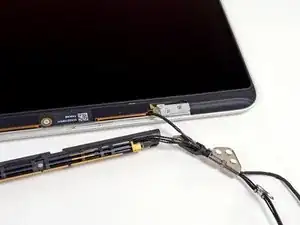

    • In the opposite corner we find another hinge that holds the antenna and FaceTime cables captive.

    • Again, if you need to replace these cables, the hinge has got to go, as well. That might not be so bad, but having to replace all of those cables just because a hinge breaks would be less than ideal.

    • Markings on the inverter board read LP154WT1 (SJ) (A1) GD. Given that the board is soldered to the rest of the display, it appears to be a display manufactured by LG Display.

    This is a good time to ask something that has puzzled me for a long time. What is the significance of the parenthesized sections of an LG Phillips display code? Here we have LP154WT1 (SJ) (A1) GD. I suspect that LP means LG Phillips, 154 is 15.4 inches, and W means Widescreen. Pretty simple. I'll ignore T1 and again ask, what does (SJ)(A1) stand for.

    Bottom line here is that I am trying to figure out whether screens with the same MAIN code but different "parenthesis codes" are interchangeable.

    Marty Swartz -

  6. SFafghtNfjCo3idO
    SFafghtNfjCo3idO
    AnqbODNAgPN1hHRR
    LBbVUTMtLETORObu

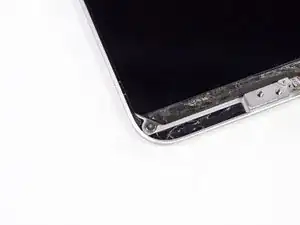

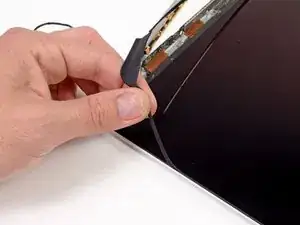

    • Things go back to being a little more familiar as we begin pulling off the rubber display gasket.

    • We were pleasantly surprised to find Phillips screws holding the Retina display in place. If you are trying to repair your Retina display and made it this far, you have earned the right to lay down your pentalobe and Torx bits and dust off your Phillips drivers.

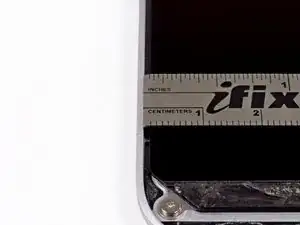

    • The 1 mm gap between the aluminum panel and LCD layers might not seem very large, but to dust and debris it's a gaping hole.

    How do I remove the gasket? The one on my MacBook is so old its literally falling apart in front of my eyes

    Inhumane Resources -

  7. QUB16igVht46lMPO
    QUB16igVht46lMPO
    ia5OYAERVSpVmpAO
    3YWjO2GrELLZuyET

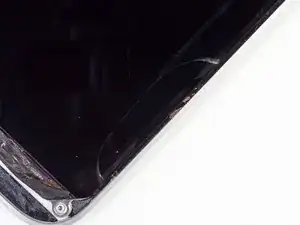

    • Q: What happens when you hand over a groundbreaking notebook display to a group of careful, highly trained technicians?

    • A: They break it.

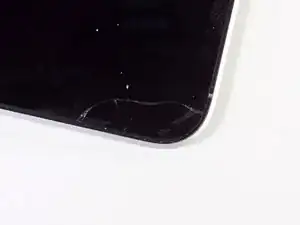

    • We were as careful as we could possibly be, but the glass on the Retina display is just too fragile.

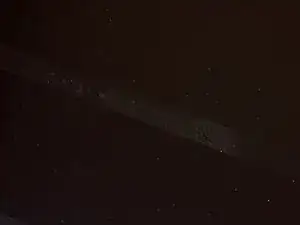

    • So, how badly did we break it? Well, upon closer inspection we noticed two very distinct lines running around the perimeter of the display, the inner of which was filled with tiny bubbles.

    • Could those be the LCs of our LCD?

    use a propane cartridge for filling a cigarette lighter and spray it underneath a display and it will slowly eat adhesive and will make your lcd free like a bird. :-D

    beware! dont spray it on any other electronic parts or it can be disasterous.

    butane will eat adhesive but not a foam which you must replace but dont know where to find it. i just used ESD protective textile to replace foam. and some industrial adhesive.

    simple: just dont open it! :-D it can be really messy to put together.

    james -

    Hi James, I'd be curious to know if you tried that tactic with this screen and/or how you'd make sure not to let the propane touch the LCD itself (or can it touch that without consequence, just not the electronics in the display?)

    Any advice would be much appreciated!

    cheers, Victor

    victormilton -

  8. dsjlIQX1JRvImkhI
    dsjlIQX1JRvImkhI
    IpsiasKyh6ZqGVSr
    xBxB5AMhlF2qjwqk

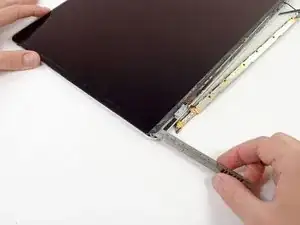

    • Once we got over the fact that obliterating the front panel of the display was the only way to get it out, we grabbed the skinniest tool we could find—an iFixit 6" ruler—and started prying.

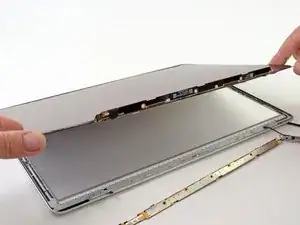

    • With the top and sides of the display panel freed, we were able to slide the shattered remains out of the display assembly.

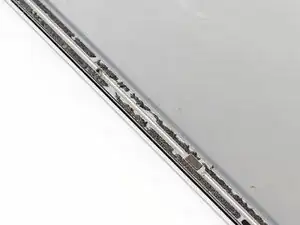

    • There were two thin strips of adhesive underneath the glass holding it in place, with a pattern that closely matched our trail of bubbles.

    • So, what's the lesson here? If you want a world-class laptop screen that doesn't take up much real estate, don't expect to be able to pop it out and back in at will.

  9. Ff6nRaKHDDMUo3SY
    Ff6nRaKHDDMUo3SY
    XJRmTlS1NpIUpnYe

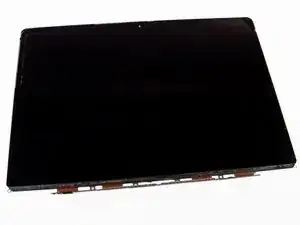

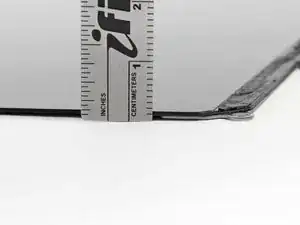

    • Unfortunately, the Retina display is not nearly as impressive when it's been beaten and broken, but it is still impressively thin.

    • The glued layers are about 1.5 mm thick, and that includes the metal mounting plates.

    • We need to clarify this before continuing with the teardown; Apple did not design and build a 1.5 mm thin LCD panel. They did, however, do something exceptional with the design of this display: rather than sandwich an LCD panel between a back case and a front glass, they used the aluminum case itself as the frame for the LCD panel and used the LCD as the front glass.

    • TL;DR: The entire display assembly is an LCD panel.

    I wouldn't call that exceptional any more than stupid as it makes the display much more fragile and apt to break under daily use. Exceptionally stupid. And definately not a first for using this style LCD panel construction.

    Scott Wilkins -

    "[...]they used the aluminum case itself as the frame for the LCD panel and used the LCD as the front glass."

    How does this differ from "normal" lcd without additional bulky glass?

    Like the matte version of MBP-early2009 I'm typing this?

    Toke Lahti -

    So does that mean the display is stronger or weaker than the previous macbook pro?

    tinyshot2k8 -

    2022 chiming in.. this design makes the screen more susceptible to damage, more expensive to replace, and impossible to repair other components like the back lights and camera without obliterating the lcd glass in the process.

    A. DuPree -

  10. rNDeYZ6G3CGQuIRM
    rNDeYZ6G3CGQuIRM
    fnONFDlN2HeCSES4

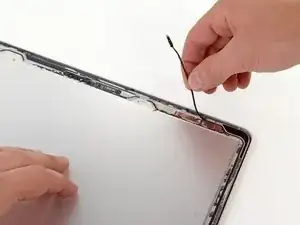

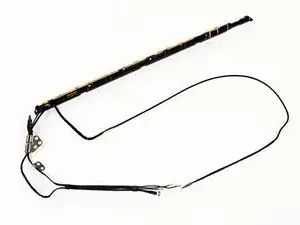

    • At last! With the LCD removed, we can remove the antenna and FaceTime cables from the display assembly.

    • The camera cable is routed along the outside edge of the display assembly, making replacement very difficult and costly. Thankfully the cameras fail very infrequently, if at all.

    • If the FaceTime camera were placed at the bottom of the display, it would likely be much easier to replace, but we wonder what kind of awkward side effects that would cause.

    • Disclaimer: iFixit does not believe that the FaceTime camera should be placed at the bottom of the display assembly. That is a silly idea.

    We all await that Apple build the camera right into middle of the screen itself.

    Andreas -

    Little did you know, Dell's XPS series was going to do exactly this...

    Sean -

  11. GSHJZuEAIGAPwiKj
    GSHJZuEAIGAPwiKj
    moKuWi3xDgFyYLBC
    JDQhXOK2L4CsNU2W

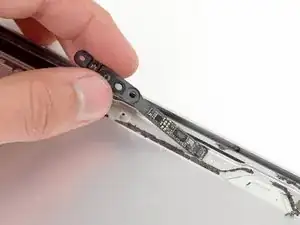

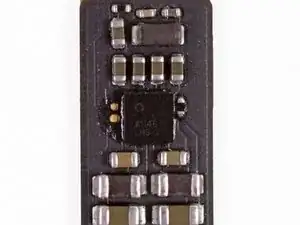

    • iSight, uSight, we all sigh at lame jokes. Anyway, iSight is a thing of the past. This MacBook Pro has a FaceTime camera, allowing you to video chat with your grandmother in full HD.

    • The camera board comes out easily enough, considering the work it took to get there.

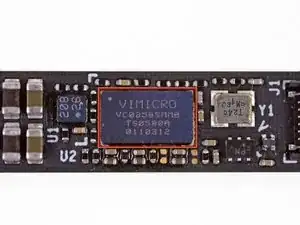

    • The camera interfaces with the rest of the computer via the Vimicro VC0358 USB camera interface IC.

    The strange detail about the web cam is that it has a connector to attach the cable. This would be logical design decision if it (the cam) could be a replaceable device, but since in order to get to it one would need to separate two parts glued together (this doesn't look like designed to be disassembled or couldn't be disassemble by design if you will). My conclusion is, that it's either a bug in design or this same part is used in other models where it can easily can be accessed/replaced (Apple just saving on making two different versions of the same part). Or... there is a way to separate the glued parts Apple know aware of...

    Bloob Box -

    The orange and silver bit to the left of the camera seems to be the ambient light sensor.

    dliu28 -

  12. DbOE4uWNGMl4cUxW
    DbOE4uWNGMl4cUxW
    wBdMiKZgxP633iHP

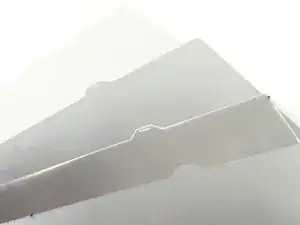

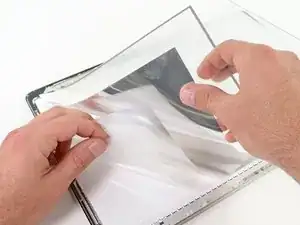

    • Underneath the top layer of the LCD, we find a series of films and sheets that manipulate light before sending it to the user's eye.

    • Warning, the explanation we're about to give is painfully abridged. If you want an easy-to-understand take on how LCDs work, check out "Bill The Engineer Guy's" teardown of an LCD monitor.

    • Diffuser and prism films evenly spread the light to create an even backlight for the display panel. A stationary polarizing sheet then works in conjunction with the liquid crystals to block or allow light for each pixel, all 5+ million of them.

    Does anyone know where one can buy a replacement set of these diffusor-sheets?

    Gaihumea -

    Did you ever find where to buy these sheets?

    Justin -

  13. cXDahMXqcXPmrBBS
    cXDahMXqcXPmrBBS
    DiqrnZnpVHRBqIZF
    1cAWbQaAQ1u4WQFk

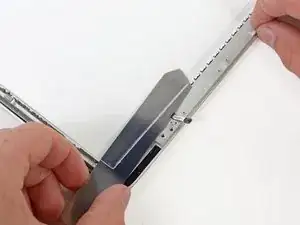

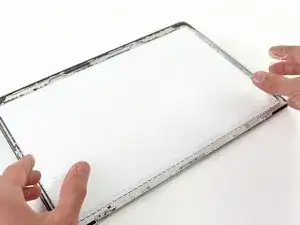

    • The light guide plate is held down by a small strip of mild adhesive—nothing like we saw before.

    • Erring on the side of caution, we proceded very slowly with our modified iSesamo opening tool and removed the plate.

    • Backlight bounces through the plate due to total internal reflection until it hits one of those tiny dots, which sends the light up and out of the front of the plate.

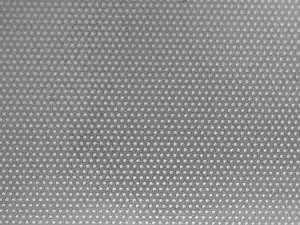

    • By the way, the third picture is an image of the grid found in the clear plastic plate being removed in the second picture. We had to coerce it a bit in Photoshop in order to make it show its grid.

  14. MOM2BEg4bdKdf6QW
    MOM2BEg4bdKdf6QW
    fqSwZEI1dumBjMl6
    UQ5EuW5vtjvGe6vu

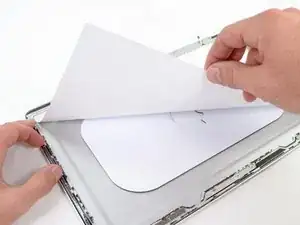

    • The plain-looking sheet of white paper serves as a uniform white background for the LCD's backlight.

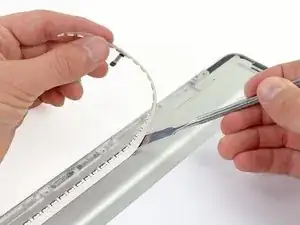

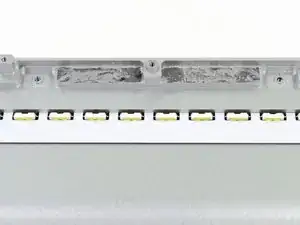

    • What else would you use to light an LED-backlit display? LEDs, of course!

    • A strip of 48 LEDs at the bottom of the display assembly provides all the light your Retina display needs.

  15. skHoMRHUNq4JRTwT
    skHoMRHUNq4JRTwT
    GGjmUQwXwlrFJAUy

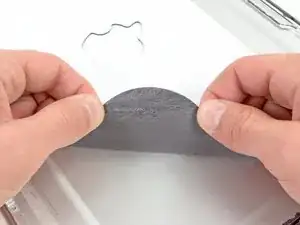

    • There's no real reason to pull the foam off the inside of the back case, but this is a teardown, so we're doing it.

    • We suspect that the foam is there to provide a flat, even surface for the LCD glass to brace against. But there is one thing that we do know about it: it is super sticky.

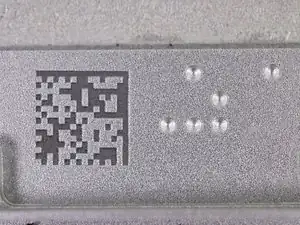

    • The bottom edge of the case has two features that we found pretty neat: a laser engraved data matrix code and a nifty arrangement of round indentations.

    • Upon further inspection and with the help of some keen-eyed readers, it appears that those dots form the pattern of a glider from Conway's Game of Life, the universal symbol for hackers.

    • That sixth dot to the right, though? Apparently, if you were to place that dot while playing, it would lead the glider into a state of death. Is Apple trying to send us a message?

    It looks like a Conway glider

    Dainius -

    That data matrix code says "DWN0100000573359". Most probably just a running number used in production to keep track of the part.

    olamartensson -

    That's not Braille, it's an invitation...

    Faisal Dhamani -

    I'd guess it's a manufacturing date code in binary.

    cityzen -

    x|0|x|0

    x|x|0|x

    0|0|0|x

    turns into

    x|0|0|x

    0|x|0|x

    x|0|x|x

    which does not move, but does not become extinct, which is aguably death, i guess...

    rudyt83 -

    Is the Macbook Pro Retina display an IGZO panel?

    Please support your answer with evidence. Thank you!

    George -

    x|0|x|x|0

    x|x|0|x|x

    0|0|0|x|x

    if you add the intentional extra space that they did it actually turns into a "Boat" Still life

    http://en.wikipedia.org/wiki/Conway's_Ga...

    much more confusing and certainly not as foreboding ;)

    Sean Suggs -

    id agree that i think the dots are actually a serial number of some kind:

    04404

    00220

    11110

    SN#:

    15734

    ive got one of those binary clocks on my desk at work:

    http://www.thinkgeek.com/homeoffice/ligh...

    Sean Suggs -

    Serial number and product date. Gees guys it ain't rocket science.

    Scott Wilkins -

    Question: So after having read your teardown carefully and analyzing the pictures it seems clear that the display assembly cannot/should not be taken apart in order to fix the facetime-camera etc.

    Now in case the actual display breaks (e.g. by closing the lid with the MacSafe plug under the screen), can anyone tell me whether it is possible/recommendable (for someone with proficient tinkering skills) to repair the assembly by just replacing the display?

    Both the display & the assembly have started appearing on several websites but the price difference is pretty significant at this point (USD 300 for the plain display, USD 800 for the assembly), thus my question.

    Thanks for any replies!

    Gaihumea -

    Can you post a picture, that shows off what is exacly below the foam? I'm curious how the plastic apple logo is set at aluminum case. Thanks.

    Kamil -

  16. mNCI5c6VeGKLmBFR

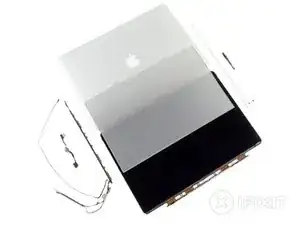

    • And there you have it, the Retina display from the new MacBook Pro.

    • Normally we would provide you with a repairability score at this point, but since this display is part of another device, that's not really appropriate.

    • What we can tell you is that if anything in the display assembly breaks, you'll need to replace the whole thing. It will be more expensive than just replacing the LCD inside a regular MacBook Pro, but it will also make the choice (of whether to replace just LCD or entire display assembly) very easy.

Walter Galan

685541 Reputation

28 Kommentare

I'm the president of Ophthalmology Interest Group at my medical school, and I always spelled "Ophthalmologist" wrong before this year. It has an L in the middle of it! In the first paragraph of this guide, there is a mess up of the spelling.

Krupa -

Any idea who actually manufactures the panel?

Chris McFaul -

So how does the logo get lit when the laptop is on, if it is sitting behing that foam sheet.....?

Spiros -

Look at step 15, and you'll see that the foam is cut out for the logo.

cityzen -

Mostly a glider, but if we add the one cell that apple did, the game enters a state of death (nothing moving at all)... Maybe it is a warning and less of an invitation...

Aaron Haun -

Is the Macbook Pro Retina display an IGZO panel?

Please support your answer with evidence. Thank you!

George -

Step 15 - could be Braille U - B - A or the contractions Us - But - A

Dan -

We may not be opthalmologists, but we are excited to be doing surgery on a Retina display.

opHthalmologists -- I am one.

Jon Dishler -

wow,thats really cool, but i will not risking destroying my Pro, maybe before u doing this u should take thousands of something cheap super slim pc like this http://t.co/5Y69c1FJ for exercises.

John Smith -

Has anyone at iFixit to do a Frankenstein move and put the Display into the Early and Late 2011 15 MBPs?

Phil -

The glider turns into a boat. A boat symbolizes a journey to the underworld. A final resting place. It's a tribute to Steve Jobs.

distantbeats -

Is the LCD PCB mounted under the inverter PCB, and bot of them in the hinge area? Are there any pictures of the LCD PCB?

RickO -

To the ifixit-crew:

Just out of curiosity, would it be possible to mod one of the 2012 "thick" MBPs, attaching the Retina display unit to it or does it have completely different size/connections?

I'd rather have a regular MBP with Retina display and am pretty frustrated with the lack of upgradeability of the new Retina MBP as much as it seems like all Apple products are becoming one way-use products. Thanks, Apple, the environment will like this (what a waste of resources)!

Simon -

Question: So after having read your teardown carefully and analyzing the pictures it seems clear that the display assembly cannot/should not be taken apart in order to fix the facetime-camera etc.

Now in case the actual display breaks (e.g. by closing the lid with the MacSafe plug under the screen), can anyone tell me whether it is possible/recommendable (for someone with proficient tinkering skills) to repair the assembly by just replacing the display?

Both the display & the assembly have started appearing on several websites but the price difference is pretty significant at this point (USD 300 for the plain display, USD 800 for the assembly), thus my question.

Thanks for any replies!

Gaihumea -

What did you do with step 7? Remove glass or screen itself?? my wifi antenna is bad so I need to replace it. I am afraid to replace it because i HAVE to remove screen which is fragile. My screen is new as replacement as well. Does there is any way to replace wifi antenna and camera wire without break screen? Thanks!!

Daniel Baroncelli -

Khernya vash obzor! Аргументируя наед: Когда я снимал пластмассовый кожух с дисплея действительно думая, что он на клипсах как это показано у вас, я испоганил край этого самого кожуха пока потом не додумался поискать еще в интернете инфы, и что бы вы думали? этот кожух просто смещается в бок и легко так выходит с полозьев! Нет бы объяснить на картинке по человечески, хрен там, пусть все себе маки уродуют!

Monompadin -

The article says that the back side of display is actually the aluminum case/lid. But the pictures on the step 14 suggest that there is one more plate mounted on the aluminum case or is it just me?

Anyone have an idea if this design means that small amount of pressure (like a cat jumping on the closed lid) on the lid could damage the lcd? Or it is not that sensitive?

skyline -

I was wondering about the same.

Kamil -

Could it be possible to swap a 13" MacBook Pro display (not the bezel with it) with a 13" MacBook Air display?

Raleigh Brecht -

Sorry, no...

EB Computers -

So is it technically possible to make the dead apple logo on the new MBP 2016 w/ toucbar lid, glow by any chance. ?

Open it and change the chromelogo into a glass one ?

Its killing me that my new mac doesnt glow :/

Mjs -

Apple says they need to replace my display as well as the rest due to “liquid damage”? I may be dense, but I seems a little impossible that liquid damage that only indicated on the, bottom left of the laptop by the fan, would make liquid appear in the top shell?

이안나이안나 -

Excuse me, my computer logo is broken and I don't want to change the half part. But I have a new logo. How should I change it?

moumou -

Obviousy this thread is seven years old. s don’t know if anyone will see this or care if they do. lolZ! I burned out the power from my mother board to my MacBook Pro display. I am wondering why I can’t just cut into the aluminum behind the screen to let ambient light in or if I can rig up external power to the led lights at the bottom.

Obviously an external monitor is the proper solution but it also ruins the portability of the laptop. Any ideas of how to do this or reasons why my idea won’t work?

Cutting into the aluminum casing behind the screen is going to be a very delicate process and a waste of energy if it won’t work.

qcdwalking -

As a trauma doc I can find shrapnel inside you,remove it, and get the most exquisite “machine “ working again UNLESS the spinal cord has been severed, for now function is gone.

99% of us ONLY want a dependable computer and care NOTHING for “retinal display.” We need a solid WORKING computer!

NOT a Lamborghini but a 1972 Ford! Easy to fix.

Third time this has happened and it’s in my home office…NEVER moved! Adaptor Cord still $30 despite a one star outta 5 star as it breaks so easily so I use white electrical tape to reinforce easily broken proximal port. Apple engineers REFUSE to change it.

Apple became 1st trillion dollar company for ripping off basic customers who NEVER need bells and whistles!

I hate APPLE!

Yes I’m a surgeon but am poor as I work where most ppl live on <$2/day. Work for food and tent.

I need a machine that works every day! Not some filigree delicate display!

This is BS!

Helen Eschenbacher -

hi .

I need your help please. can i put the display from macbook pro A1425 to A1502 . thank you.

AMS -

can this conversion done on the motherboard?

obimo suncity technology -
