The Macintosh IIsi was released in 1990.

  1. r1Cft2VV1RGPfyL4
    r1Cft2VV1RGPfyL4
    KKeUmPgMYaLdaiGt
    • Start by turning the computer around, and remove this #0 Phillips Screw.

    • There may or may not be a Phillips #0 screw here, depending on whether or not the computer has ever been serviced.

  2. DkSfMxh4aHLiqFXJ
    DkSfMxh4aHLiqFXJ
    PkSg1D2OL5ANuCOP
    NRNA5eL3FkOPxxln
    • Now lift these two clips, and slowly pivot the case up.

    • You can now seperate the top of the computer from the rest of the machine.

  3. 5hAjgV5WPGHNyPjB
    5hAjgV5WPGHNyPjB
    lIvVnRedMupNGEiS
    2NOTijyTohqq1j4n
    • The IIsi uses 4 30-Pin SIMMs (Installed in pairs of 2) for a maximum ram capacity of 65MB. It has 1MB soldered to the logic board as well.

    • Start with this SIMM. Push these 2 metal tabs outward, then push the ram forward. It can then be lifted out. You have to remove the SIMMs in order, starting with the one you just removed. You can then work your way through all of them.

  4. gSZuR24BYp5loblO
    gSZuR24BYp5loblO
    yAE43asQDMAPPTiY
    XrXdfYprpJNGI4SX
    • 1st Photo: The RAM Module

  5. 6jQ2GQ3WVi1eoess
    6jQ2GQ3WVi1eoess
    BOxZvNo5GIndG2XA
    BObAajFgQKpuQTHP
    • The Macintosh IIsi's hard drive is located ajacent to the ram and floppy drive.

    • Start by pushing these two tabs out, and lifting the drive up.

    • Then, flip the drive over, and remove the connection cables.

  6. ZvutJDQpxROL4nO3
    ZvutJDQpxROL4nO3
    imYG2jVW1MdH6Hpi
    KhqZD4A5Z3CLtAgr
    • The hard drive: A Quantum ProDrive LPS, made in 1990, and surprisingly, it still works!

    • This drive has an 80MB capacity, not very large by today's standards, but not bad way back then...

    • Believe it or not, hard drive construction hasn't changed much in the last 20 years. Other than a few new interfaces, the form factor, 3.5" width and 4-Pin 12V/5V power connector has stayed the same.

    How can a read that SCSI HDD today if the computer does not boot? Any way to connect externally to a PC?

    Charles -

  7. 6uWIE3nlkW2pCRfT
    6uWIE3nlkW2pCRfT
    kcqnxDXHExR4xu6e
    42LAcjGpQwAgv2Kx
    • The "SuperDrive" is mounted similarly to the hard drive, and positioned right next to it.

    • Push these two tabs out, and lift the drive up.

  8. hI4SlHgaOJpKXSfF
    hI4SlHgaOJpKXSfF
    OxgRi1TlIlDGtURK
    32OFT3DnmAXKYxll
    • Flip the drive so it is on top of the power supply, and remove the "Red-Ribbon" cable.

    • 1.44MB floppy drives need a ribbon cable with a red stripe on one side. 400KB floppy drives use a ribbon cable with a yellow stripe on one side. 800KB floppy drives can use a red, or yellow striped cable.

    • This drive was manufactured by Sony in 1990.

  9. 1UCQiPuD3stfXhHU
    • The fan recieves power from two contacts on the logic board and has no connector.

  10. wfYE1QMgfyMYx6Jh
    wfYE1QMgfyMYx6Jh
    WIUDHAmCbehQYa2j
    UsB4jrGapO2fK3yp
    • In all of the years that I have worked on this machine, I have found no good way to remove the fan.

    • The best way to start, is to push in here on the side of the fan.

    • Being careful not to exert too much force, try to push in, and wiggle the fan outward as such. (2nd Photo)

    • You can now lift the fan all the way out, and remove it.

    • The Fan Power Contacts on the Logic Board:

    There is no need to pull out the fan. Just take a knife and you can squeeze the tab in step 7

    Willy Kaiser -

    I wanted to second what Willy said; as far as I can tell one is intended to remove the PSU before the fan. You just jam something the right width in between so the PSU tab is depressed, pull it out, and after the PSU is out removing the fan is easy.

    Caleb Hansberry -

  11. dkZhRsuOQgULtYQo
    dkZhRsuOQgULtYQo
    4bW5ZEVfXUAunN1x
    • To remove the power supply, squeeze these two tabs and lift the front up.

    • On the back of the power supply, there is a tab that also must be pressed to remove the power supply fully. You can then lift it out all the way. A firm tug may be necessary to seperate the power connector.

  12. AEoAjoxZcfPhP4Hi
    AEoAjoxZcfPhP4Hi
    c65dbxBGsJkQ2GVk
    • Information on the power supply:

    • It was made by Sony in 1990, and uses a 10-Pin power connector.

    The power supply on mine is corroded. Cannot even do a re-cap. Any suggestions for an alternate power supply or where to buy a reasonably cost-effective replacement?

    Charles -

  13. VVnBQNZaWyl1YBpY
    VVnBQNZaWyl1YBpY
    pHEKFpoEGDxb6SWy
    hGgSUtITrK6e2R4u
    • The logic board is designed in a way, where it can be slid forward, then lifted out.

    • To remove the board, push these two tabs outward, and begin to slide the logic board away from the back (Port Side) of the computer.

    • Once the logic board clears the ports it can be lifted out.

  14. OYErdJaYBT1XisRx

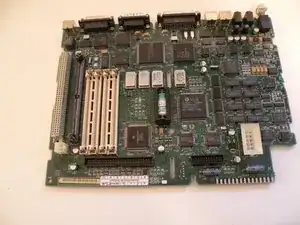

    • The Processor: 20Mhz Motorola 68030 model # MC68030RC20B

    • The Onboard RAM: 1MB Soldered the the logic board.

    • RAM Slots: 4 30-Pin DIMMs installed in pairs.

    • ROM SIMM Slot: If your computer doesn't have one if these (and it works) , it doesn't need one. If it has one, it needs it in order to boot.

    • PDS Slot: For Attaching a riser card containing a math co-processor. A PDS card can then be plugged into the riser card. PDS - Processor Direct Slot

    • Power Supply Connector: for direct connection to the power supply.

    • "VSLI" chip: This machine's equivalent of a "Northbridge" It manages RAM, PDS, and the external ports.

  15. HasTZIFrSQpxoOCD
    HasTZIFrSQpxoOCD
    TYr2HokeIVp1PrQT
    • The Macintosh IIsi, in pieces.
