Magic Mouse Teardown

Geschrieben von: Miroslav Djuric
Veröffentlicht: 20/10/09
  • Kommentare: 86

Magic Mouse Teardown

Veröffentlicht: 20/10/09

Teardown

Einleitung

We're wondering what's so magical about Apple's Magic Mouse... so we're going to look inside to find out!

Want up-to-the-minute updates? Follow @ifixit on twitter.

Wired and iFixit are hosting a Sony Teardown contest. Take apart anything made by Sony, take photos, and use our editor to post a teardown. You could win a PS3 or PSP Go!

  1. 1cMWmD3OvoXbOGfx
    1cMWmD3OvoXbOGfx
    pH11Gp6WYcThxfh4

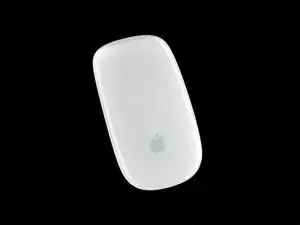

    • Ladies and gentlemen, children of all ages, welcome to the Wonderful World of Gadget Magic Teardown sponsored by iFixit.

    • We have a special guest tonight in the audience. From Cupertino, California, it is our pleasure to introduce the world's first mouse to use Apple's revolutionary Multi-Touch technology, the Magic Mouse.

    • Let us, at iFixit, be the first to welcome you, Magic Mouse, to the grandest stage of them all, please just stand there and let us admire you in all your infinite glory.

    I dub this teardown "Black Magic."

    Miroslav Djuric -

  2. ysOYA2aGfkNTZnef

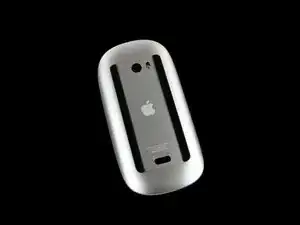

    • Now now Magic Mouse, no need to be modest, let us tell the audience a bit about yourself.

    • The Magic Mouse is composed of an aluminum base topped off with a smooth multitouch panel, giving it a lustrous buttonless appearance.

    • Unlike Apple's previous mouse, the Mighty Mouse, the Magic Mouse relies completely on gestures to enhance the user's experience.

    • Scroll in any direction with just one finger, swipe through web pages with just two fingers thanks to the powerful technology of momentum scrolling, where the speed is calculated by the rate of the gesture.

    • Oh Magic Mouse...you're so magical!

    Magic Mouse is not a Modest Mouse?

    Brady Cabe -

    Zitat von brady:

    Magic Mouse is not a Modest Mouse?

    so I am curious what you thought you would find? A pot of gold? Of coarse its a bunch of capacitive sensors...

    SteveO -

    Zitat von SteveO:

    so I am curious what you thought you would find? A pot of gold? Of coarse its a bunch of capacitive sensors...

    I agreee... LOL

    guee -

    Zitat von guee:

    I agreee... LOL

    Modest Mouse is a band, of course

    http://www.modestmousemusic.com/

    :)

    Brady Cabe -

    Zitat von brady:

    Modest Mouse is a band, of course

    http://www.modestmousemusic.com/

    :)

    :)) I know wat you talked,LOL, just for fun.

    Physicstoys -

    What's the black strip-like things on the bottom?

    ramcosca -

    Zitat von ramcosca:

    What's the black strip-like things on the bottom?

    Those are the friction-reducing gliders. They let the Magic Mouse slide effortlessly over smooth surfaces, such as a desk. Ordinary mice have "feet", and the Mighty Mouse has one long light-gray strip that goes around the entire base of the mouse.

    waffle911 -

  3. LmCPT5XTZK3ChUyM
    LmCPT5XTZK3ChUyM
    nfw1CpFNRgL2S3rx

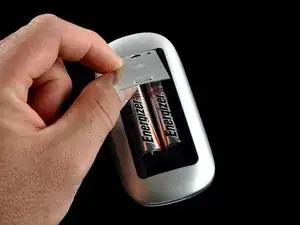

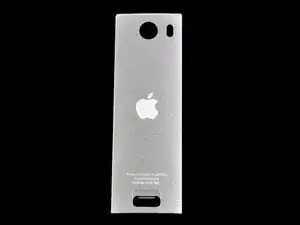

    • For our next trick, we will need a volunteer from the audience...yes, you, Magic Mouse...well come on up!

    • Ladies and gentlemen, the following teardown features stunts performed by professionals or under the supervision of professionals. Accordingly, iFixit must insist that no-one attempt to recreate or re-enact any stunt or activity performed on this teardown.

    • With the public disclaimer out of the way, we can now begin tearing down the Magic Mouse.

    • Batteries are included. They're plain ordinary Energizer alkalines. We're surprised Steve doesn't have Apple-branded batteries, maybe he's been too busy working on other things to notice...perhaps a tablet...maybe Steve...no...yes??

    I was wondering why didn't they come up with a wirelessly chargeable mouse? I hate those moments that the battery just died and you lose all the sensitivity. How is the power efficiency on this? Anyone tested?

    Jennyjiji -

  4. XXLitdpIFDyLSm1a
    XXLitdpIFDyLSm1a
    GCoY4pgInRBfSWOD

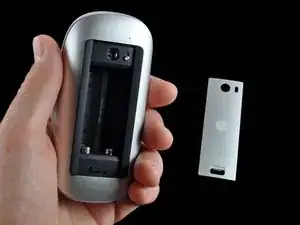

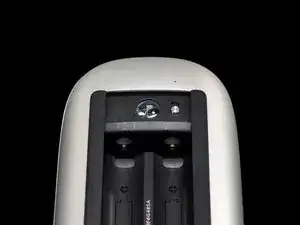

    • Alakazam! Wow, at $69, the Magic Mouse isn't cheap. You would think for $69 the Magic Mouse would actually be capable of performing magical acts.

    • To meet their earnings target for next quarter, Apple needs to sell about 164 million Magic Mice. (However, we've been told Apple sells some other products too). At that rate, it'll be about nine years before everyone in the world has a Magic Mouse.

  5. 6VqS63IcvwXGavcD
    6VqS63IcvwXGavcD
    KP1r5eEtiSAiQiu4

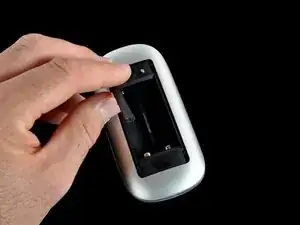

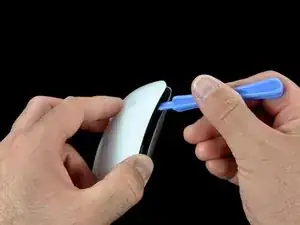

    • Let's get inside and find the magic amulet that gives the Magic Mouse its mighty powers. Not surprisingly, copious amounts of magical glue stand between us and our goal.

    • We used a Plastic Opening Tool to pry the mouse out of its shell.

    My two black gilders are very outworn. I stupidly used the mouse on a wooden surface without mousepad. Do you have any idea, where I can get replacement parts for this?

    mario -

    Yes - at the APPLE Store for $69 XD

    KönigT -

    I replaced one missing black glider (broke off and sucked by vaccuumcleaner I guess) by glueing two layers of CABLE TIES (tie wraps). I used cable ties 4.5x350mm which is the exact right width if you ask me. Two layers results in the same height. They slide like new.

    jkdk -

  6. jZg1NSBIIAGy4VxS
    jZg1NSBIIAGy4VxS
    YfiPr3Vr1hsNxioO

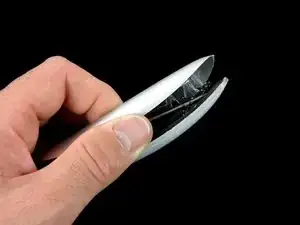

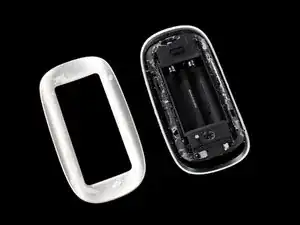

    • The glue didn't want to let go, but we overpowered it with a flick of our magic wand. Screws would have been a lot easier to get apart (and much nicer to put back together).

    • There's not much Aluminum in the mouse, we weighed just 10 grams. That's compared to 37 grams of plastic and 47 grams of batteries. Nearly half the mouse's weight comes from the two AA batteries.

    I used an iron scraper/palette or putty knife (you name it!) and inserted it in the gap from the end side ( logo!) to cautiously lever the aluminium cover off the plastic body. A plastic spudger seemed to weak for me to do this work.

    KönigT -

  7. jTOvjfftOYwbeSZh
    jTOvjfftOYwbeSZh
    AGSiPJBxVc1RXnMh
    uCDZQpCBwK2vMOMh

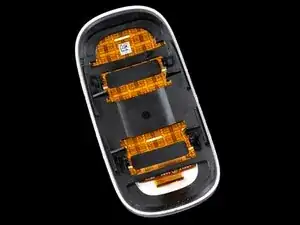

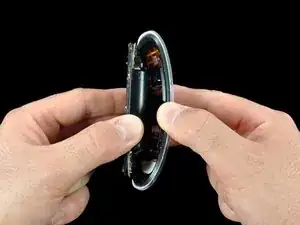

    • Open sarsaparilla! Open Saskatchewan! Open septuagenarian! Open saddle soap! ... OPEN SESAME! Now that was easy enough.

    • Here we receive our first glimpse of magic. (aka orange capacitive touch sensors).

    • The top of the mouse is connected to the main board and power via a single large ribbon cable.

    Is very very hard to reconnect the orange cable on magic mouse again!!!!

    rodrigoj6 -

    OMG, whatever you do don’t let that orange cable in the back get disconnected, It’s a complete PIA to reattach. I attempted to dislodge the black chassis in Step 9 hoping that it would give me a little more “slack” to reattach the orange cable and I ended up destroying my mouse. The black chassis is glued down and when I used my SlyPry on it I inadvertently cut through the sensors. Watch out because that orange cable can trip you up.

    Ben Hannam -

    impossible. you can not do it.

    Paul Wilson -

    Just did it :-)

    patrick -

    How? Theres not enough cable or space to work with?

    Tom Jackson -

    After a fair bit of fiddling I finally managed it. Here's my method:

    1. Snap the cover into place with three of the four plastic posts, leaving one open at the cable end. This ensures the cable is correctly aligned but gives a little clearance for access.

    2. Using very flat tweezers (preferably rubber coated) coax the cable into place. If you are having problems gripping the cable (it's very shiny) attach a thin strip of electrical tape across the width. Make sure it's well clear of contacts and socket!

    3. Snap the final post into its slot.

    Andrew -

    For easy removal and reconnection of the ribbon cable, have a look at https://youtu.be/2sk8pR3AmT4?t=3m28s (3:28), where it lifts the cable release from the connector with a paperclip. Do the opposite by pressing it down after you have inserted the cable back in.

    panchristo -

    How did you release the inner body out of its 4 hinges? GOT IT! First broke a plastic spudger on trying but then (under light control) used a small screw driver to lever the bolts on one side out of their hinges. This step is missing between steps 6 and 7.

    KönigT -

    Thank you!!! All of you - your comments helped me fix my Magic Mouse (especially koenigt as there definitely is a step missing in these instructions). I’m not sure how, but the black tape band across the orange connectivity thingies had slipped down, so the orange stuff could be seen when the batteries were removed. Opened up the mouse (with much fearful sighing and gurning), gently prised the band off and replaced it in the correct place (using tweezers), rebuilt the mouse AND IT WORKS!

    juliemountain -

    To get ribon back in easy - break off the plastic bit covering the folded up ribbon - this gives you more ribbon to easily slot back in

    Andy S -

    Beware the 4 hidden retainer clips around the battery bay. They are hard to see and you need to be careful not to break them.

    Also beware of the connecting cable at the "apple" end of the mouse.

    Sorry, but this step's instructions are terrible. Wish it was less "cute" and more helpful.

    aaron -

  8. q6K2JCPGGA2jKd1r

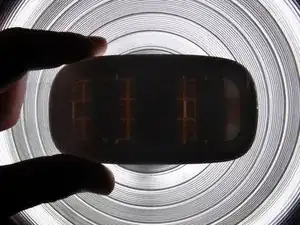

    • The top of the mouse is translucent. Maybe Apple should make a backlit mouse.

  9. YJS6xONJb2v1ttTw
    YJS6xONJb2v1ttTw
    UyyKmUFBEB5WBCOW

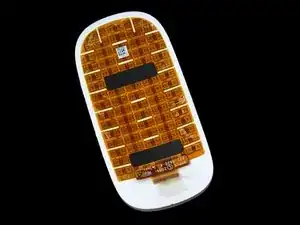

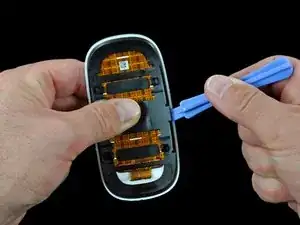

    • After prying up the black plastic internal frame, we finally get an unobstructed view of the sensors.

    • From the Apple logo up, the entire surface of the mouse is covered with capacitive touch sensors.

    Is that a QR code at the top? Do you have any idea of what it says?

    iDunno -

    Zitat von iDunno:

    Is that a QR code at the top? Do you have any idea of what it says?

    No, it's a datamatrix code. It's most likely for inventory/warranty tracking.

    mordac -

    Zitat von iDunno:

    Is that a QR code at the top? Do you have any idea of what it says?

    "Made in China".

    ryan1000000 -

    Did the transparent cover snap onto the black internal frame or was it glued glued?

    deannaiobbi -

  10. JCMUd5jxbG2LW1DH
    JCMUd5jxbG2LW1DH
    QcF5UsZHMJXaxt1d
    oCsEY4Syh66pIDIX

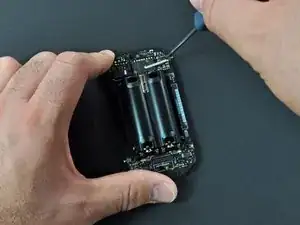

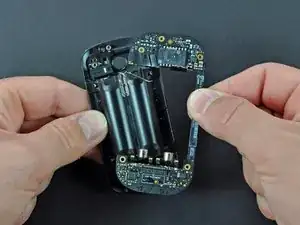

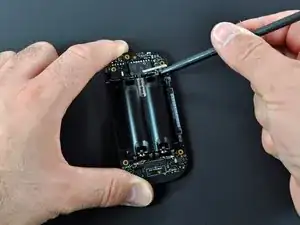

    • The brains.

    • The average mouse brain weighs .4 grams. The brains of the Magic Mouse weigh 9 grams. That means the Magic Mouse is 22.5 times smarter than your average mouse. Who knew?

    I would love to see a higher res picture of the last (separated) shot on this step, like step 11 which is mind-blowingly awesome resolution!

    Thanks for detailed teardowns, the step-by step is awesome (and you guys do such a great job, I am only opening one of these things when I don't expect to get them back together and working, I'll leave that to you when I have a problem.

    Keep it up (and you are fast!).

    McLuvnapple -

    you guys arent funny....at all.

    mrgarrison593 -

    Where's the clicking mechanism part?

    Ahmad Syarbini Mat -

  11. xgiYxWnmMGY6OuLL

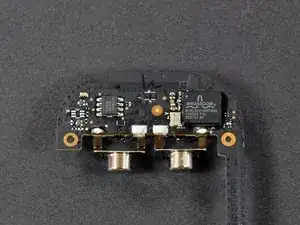

    • Here's the Broadcom BCM2042A4KFBGH chip that allows the Magic Mouse to talk to its host.

    • This is a BCM2042 "Advanced Wireless Keyboard/Mouse Bluetooth Chip."

    • According to Broadcom, "By integrating all components within today's mouse and keyboard into the BCM2042, low system costs can be achieved to approach the price points of legacy-wired mice and keyboards." Apparently Apple missed that memo.

    "By integrating all components within today's mouse and keyboard into the BCM2042, low system costs can be achieved to approach the price points of legacy-wired mice and keyboards." Apparently Apple missed that memo."

    Wow that typifies the bias strewn thought this teardown... Perhaps if they had built a mouse using the standard (inexpensive and not requiring significant R&D and engineering) couple microswitches and a optical chopper pair they could sell it for the $20-$40 that logitech sells it's wired mice.

    But that is not the case is it?

    Stick to the tech, haters benefit no one.

    Billster -

    Zitat von Billster:

    "By integrating all components within today's mouse and keyboard into the BCM2042, low system costs can be achieved to approach the price points of legacy-wired mice and keyboards." Apparently Apple missed that memo."

    Wow that typifies the bias strewn thought this teardown... Perhaps if they had built a mouse using the standard (inexpensive and not requiring significant R&D and engineering) couple microswitches and a optical chopper pair they could sell it for the $20-$40 that logitech sells it's wired mice.

    But that is not the case is it?

    Stick to the tech, haters benefit no one.

    Err, I hate to break it to you, but this has -one- microswitch, as well as a plain old optical chopper pair. nothing special about either of those. as far as "significant R&D and engineering" goes, capacitive tech has been around for ages, a simple array of sensors isn't anything novel.

    There really isn't anything in this that justifies the ridiculous price tag.

    Omega192 -

    Zitat von Omega192:

    There really isn't anything in this that justifies the ridiculous price tag.

    Except the idea, I did not se a lot of devices like this one before, did you?

    Exactly, and that justify the price (at least most of it…)

    Amos -

    I'm going to buy one. It is about the software and not the hardware.

    MBD -

    Zitat von Omega192:

    as far as "significant R&D and engineering" goes, capacitive tech has been around for ages, a simple array of sensors isn't anything novel.

    And yet multi-touch has never been properly implemented until recently, with Apple and a handful of other companies finally getting it right. Don't underestimate what went into it.

    There really isn't anything in this that justifies the ridiculous price tag.

    Okay, but here's Logitech's current Bluetooth laser offering, and it's $59.99

    http://www.logitech.com/index.cfm/mice_p...

    $9 for a multi-touch surface, with the ability for future expansion in gestures and features, like the trackpads, seems like more than a fair price. Bumping up to a USB darkfield laser is $20. There's nothing new or innovative in a darkfield laser by your standards, and yet it's double the price? Clearly there's a disconnect there.

    useruser -

    For that price i would have expected rechargeable batteries and a powered mousepad that transmits energy without contact to the mouse. That would truly have been 'magic'.

    Apple is already one of the worlds largest producers of e-waste and their production processes are not exactly 'green; either. Now add Aa batteries to that list. greenpeace will have a field day again ...

    iAmAppleFree -

    Zitat von iAmAppleFree:

    ... Apple is already one of the worlds largest producers of e-waste and their production processes are not exactly 'green; either. ...

    Do you have a current source for your incorrect enviro-slam? If you bother to take a look at Apple's Environment section of its website, you'll find comprehensive reports showing full life-cycle environmental impact reports. Something that is above and beyond the standard in the industry. Me thinks you were too quick and out of date (circa early 2007) with your slam.

    Besides, e-waste is insignificant in the global environmental scheme. Try finding a modern landfill with an e-waste leachate problem. You can't. The problem is in the recycling of the electronic components in third world countries. Not in burying the old products.)

    ReasonableGuy -

    Is there a loudspeaker in it? i wonder if I could get rid of the annoying clics, and get a totally silent mouse. The old mouse had a small loudspeaker. But no software to turn it off.

    magicmax -

    Zitat von iAmAppleFree:

    For that price i would have expected rechargeable batteries and a powered mousepad that transmits energy without contact to the mouse. That would truly have been 'magic'.

    Apple is already one of the worlds largest producers of e-waste and their production processes are not exactly 'green; either. Now add Aa batteries to that list. greenpeace will have a field day again ...

    Well...I guess you're not an Apple customer. I am and the #$5& with Greenpeace!

    vick1 -

    Zitat von ReasonableGuy:

    Do you have a current source for your incorrect enviro-slam?

    Here is your proof: most of apple's stuff (ipod,iphone and even some laptops are not designed to have a user replacable battery.) Throw away and buy new...

    @vick1. i hope not all apple users have your mentality.

    iAmAppleFree -

    just got my new iMac yesterday and love the mouse....but it IS loud when you click it!! hopefully will find a way to soften the sound

    suedan -

    I think that the PC people are slamming the magic mouse because they finally got an OS update from Win XP. Too bad PC still only uses buttons... suckers.

    Tigerfish -

    Zitat von Omega192:

    Err, I hate to break it to you, but this has -one- microswitch, as well as a plain old optical chopper pair. nothing special about either of those. as far as "significant R&D and engineering" goes, capacitive tech has been around for ages, a simple array of sensors isn't anything novel.

    There really isn't anything in this that justifies the ridiculous price tag.

    Do you know what an optical chopper pair are? They are an IR emitter/receptor pair used to track the scroll wheel rotation. I don't think this mouse has a scroll wheel (or a chopper pair)

    It's surface tracking (laser) does not use a chopper pair (no mouse does)

    I am a engineer (PLC electronics manufacturing) and I can tell you this is a big change (engineering and manufacturing wise) from a standard 3 button mouse. (and I note that the logitech CORDED mice using laser tracking run $25-$80 (bluetooth run $50 & $60) so the price seems dam reasonable.

    R&D Engineering and getting a production run up to speed (QC) all cost lots of money (trust me)

    I just get sick of (mostly poorly informed) people bashing innovative companies for having to recoup their R&D and production set up costs. If you can't (or don't want to) afford it, wait a year or two till it becomes commonplace and most of the R&D have been recouped, the price will undoubtedly drop a bit.

    Billster -

    Zitat von Billster:

    Do you know what an optical chopper pair are? They are an IR emitter/receptor pair used to track the scroll wheel rotation. I don't think this mouse has a scroll wheel (or a chopper pair)

    It's surface tracking (laser) does not use a chopper pair (no mouse does)

    I am a engineer (PLC electronics manufacturing) and I can tell you this is a big change (engineering and manufacturing wise) from a standard 3 button mouse. (and I note that the logitech CORDED mice using laser tracking run $25-$80 (bluetooth run $50 & $60) so the price seems dam reasonable.

    R&D Engineering and getting a production run up to speed (QC) all cost lots of money (trust me)

    I just get sick of (mostly poorly informed) people bashing innovative companies for having to recoup their R&D and production set up costs. If you can't (or don't want to) afford it, wait a year or two till it becomes commonplace and most of the R&D have been recouped, the price will undoubtedly drop a bit.

    The prices I see on Logitech's site are $80 and $100 for their Anywhere and Performance mice with Logitech Darkfield Laser Tracking™.

    For larger tear-down images, see http://www.cnblogs.com/lzhdim/news/2009/..., and don't worry if you cannot read the language (Chinese?). It includes the Magic Mouse and iMac tear-downs.

    doctordon -

    Zitat von iAmAppleFree:

    For that price i would have expected rechargeable batteries and a powered mousepad that transmits energy without contact to the mouse. That would truly have been 'magic'.

    Apple is already one of the worlds largest producers of e-waste and their production processes are not exactly 'green; either. Now add Aa batteries to that list. greenpeace will have a field day again ...

    Umm, dumbass, you can supply your own rechargeable AA batteries. I have 2 sets for my Mighty Mouse, one in the mouse and one at the ready.

    MrBubbles -

    The Broadcom chip does not seemed to do the job of capacitive sensing (finger touch sensing). There must be another chip that decode the touch sensor. Can you please post the picture for the back of the board? Or list the other chip's name. Thanks.

    Martin -

    Zitat von Billster:

    "By integrating all components within today's mouse and keyboard into the BCM2042, low system costs can be achieved to approach the price points of legacy-wired mice and keyboards." Apparently Apple missed that memo."

    Wow that typifies the bias strewn thought this teardown... Perhaps if they had built a mouse using the standard (inexpensive and not requiring significant R&D and engineering) couple microswitches and a optical chopper pair they could sell it for the $20-$40 that logitech sells it's wired mice.

    But that is not the case is it?

    Stick to the tech, haters benefit no one.

    You shouldn't complain. Here in Denmark, a Magic Mouse costs $106!!

    winggoat -

    Zitat von Omega192:

    Err, I hate to break it to you, but this has -one- microswitch, as well as a plain old optical chopper pair. nothing special about either of those. as far as "significant R&D and engineering" goes, capacitive tech has been around for ages, a simple array of sensors isn't anything novel.

    There really isn't anything in this that justifies the ridiculous price tag.

    Yes sure it "isn't anything novel" that's why no one has a product like this out yet...nothing novel...

    go buy yourself one of those fugly prototypes by microsoft sitting on some loser bozo's staffer's desk instead.

    John A -

  12. TcIwDRPZ4WfdvjJF

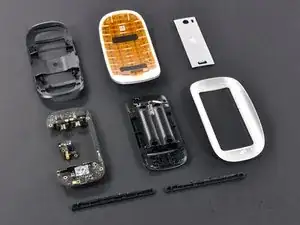

    • Magic Mouse, RIP. Another mouse killed in the name of science. We didn't break anything, but gluing it back together will be challenging. Update: We put it back together and it still works!

    • We'll be taking apart the iMac that came with our Magic Mouse next. Follow @ifixit on twitter and we'll keep you updated.

    "We'll be taking apart the iMac that came with our Magic Mouse next."

    I'm dying over here! Get on it!!!

    DUSTmurph -

    I am dieing! Take that chainsaw to the iMac!

    Toushi -

    Zitat von DUSTmurph:

    "We'll be taking apart the iMac that came with our Magic Mouse next." I'm dying over here! Get on it!!!

    Zitat von Toushi:

    I am dieing! Take that chainsaw to the iMac!

    Here you go.

    Kyle Wiens -

    So the little board is the power switch and has contacts to the main board? Does the firmware on the broadcom chip read the touch sensors or is there another MCU hidden somewhere, if so, what is it?

    mobbarley -

    What about pictures of the back of the board.

    BCBC -

    Well, thank you for taking my Twitter suggestion to heart so quickly. But I see an unidentified and unclose-upped chip there at the bottom of the board assembly...what might IT be..

    Jadawin -

    Out of curiosity, would like to inquire who is the manufacturer of the laser sensor. Can't see to see it on the pics.

    sdchew -

    I want an Apple mouse which uses an inductive pad to charge it. None of this environmentally unsound replaceable battery nonsense. How cool would that be? Make an inductive dock which can charge an iPhone, a laptop, a mouse, etc... now *that* would be doing something interesting.

    Diggsby -

    Can someone confirm if any part of the internal electronics is in contact with the aluminum bottom case, as i'm constantly getting a strange tingling feeling in my fingers when i use this mouse and it goes away if i take the batteries out.

    Rob C -

    Zitat von Rob C:

    Can someone confirm if any part of the internal electronics is in contact with the aluminum bottom case, as i'm constantly getting a strange tingling feeling in my fingers when i use this mouse and it goes away if i take the batteries out.

    OldNavy -

    Zitat von OldNavy:

    OK so I screwed up my first post ... this is for Rob C - don't touch the bottom. I don't get the tingle from mine.

    And for everyone else who has an issue with Apple "stuff" - if you want a Cadillac, you pay extra. Pretty simple. I've been using non-Cadillac equipment for the past 30 years. I finally made the switch and wonder, as do most switchers, why I waited so long. Cheers

    OldNavy -

    Zitat von OldNavy:

    By bottom I was referring to the whole aluminum part, which you have to hold to use it.

    the only explanation is that the outer case is somehow grounded and theres a tiny bit of static or something going though it.

    Rob C -

    Zitat von Rob C:

    Can someone confirm if any part of the internal electronics is in contact with the aluminum bottom case, as i'm constantly getting a strange tingling feeling in my fingers when i use this mouse and it goes away if i take the batteries out.

    Possibly the onset of Carpal-tunnel syndrome?

    sp33dwagon -

    Zitat von djLot3k:

    Possibly the onset of Carpal-tunnel syndrome?

    seriously though, just take it to the apple store they'll give you a replacement.

    sp33dwagon -

    Zitat von djLot3k:

    Possibly the onset of Carpal-tunnel syndrome?

    If it is using the same technology as the glass touch pad on the MacBook, then no you're not imagine the tingling. I have felt it too. I for one am amazed by the touch technology in the magic mouse and it is hands and feet above anything Logitech or MacAlly can come up with.

    Newton63 -

    The iMac that came with the magic mouse? I'd say the iMac is the main event.

    jsbrock -

    Can someone please tell me the easiest way to reconnect the touchpad strip to the motherboard?

    Ashley Deltor -

    “Update: We put it back together and it still works!”

    Apacholski -

    As per Ashley Deltor’s question - how about those rebuild instructions?

    Apacholski -

    Can you tell me which glue you used to glue it and put it back together?

    paolariv11 -

Tinte & Feder

Miroslav Djuric

156735 Reputation

17 Kommentare

Magic Mouse requires much more power draw from the 2 AA batteries than the Logitech M600 in that a same pair of batteries that were claimed by OS X as dead (under 5% charge on the upper right banner bar and system prompt for change of batteries) is still able to power Logitech M600 immediately taken out of Magic Mouse. In Logitech's product spec page, it states that it can be powered by a single AA battery and can last 6 months with a new pair. A Magic Mouse would probably only last a month and a half :(

Ye Wang -

Hey, I didn't get an iMac with my magic mouse!! WTF

grtessman -

Hi, where can I get a magic mouse 1 logic board?

Mine is defective, would like to replace it.

Thanks.

Paulo Lopes

paulorodlop -

Are there replacements for the two "skids" on the bottom of the Magic Mouse? I've noticed mine have actually worn down over time. It would be great to be able to pop-in a fresh pair.

Thorzdad -

Would like to know the current draw on the device - off, on idle, on in use

taaronson -

Although it looks super nice, this mouse is crap... loses connectivity very often and sucks battery power quickly... I switched to a little cheap Logitech three buttons, wireless mouse paying only a fraction of the price and it's such a mint!. It's a shame how apple quality has decreased so badly.

Glenn Ponder -

Mine has never lost connection. Batteries last for about a month.

Mal -

These mice have a typical problem of fragile battery contacts; causing problems with connectivity and wasted power. To improve this, cover the (+) tips of the battery with 2 sheets (less than 1cm squared) of of aluminum foil. Do not cover the sides of the batteries.

Now thats magic!

Filipe Almeida -

i am facing problem that my apple magic mouse is not working all function but i have a problem with pointer of mouse. its not working so i want to about any solution ? if i want to buy that circuit board so is it possible ? if yes so please provide link for the same so i will buy directly.

jayendramorabiya -

tu caso es idéntico al mío. las funciones que dependen de los gestos y eventos clic funcionan bien. Solo el puntero que no da arrastre. una ayuda por favor. gracias

Fredy Alvarez -

Only had two problems with mine. Micro-switch replacement and battery cover kept falling off. Never did cure the latter! Battery usage was excellent though.

Mal -

I dropped my mouse and wanted to see if it was repairable. Seeing that it was glued together I turned to iFixit for thoughtful and useful teardown instructions. Instead I got this silly and largely unhelpful attempt at humor. NOT at all what I’ve come to expect from IFixit

David -

My magic mouse has got problem aint scrolling on the mouse surface. Only working with right and left buttons now.

jamesngo -

Is there a schematic for the magic mouse? I opened my defective one and found a blown capacitor. But i son’t know the value of the capacitor.

Don’t even need the schematic if they can show me the layout of the components and their value on the board. This is near where the flex cable connects to the board. Pete

Pete Chisteckoff -

Really kind of obnoxiously overbearing with all the “ooo magic” references. Just, you know, get to the point?

Warren Adams-Ockrassa -

pessima idea: non si riesce a rimettere a posto!!!

Andy -

Is it possible to take the black glass top from a 2nd gen magic mouse and put it on a 1st gen magic mouse? I prefer the AA battery setup of the 1st gen, but I’d love a black version

Abe -
