Fall is a magical time, marked by harvest festivals, warm sweaters, and pumpkin-spiced everything. Apple decided to celebrate by releasing a new trackpad, the Magic Trackpad 2, bringing their Force Touch technology to desktops. We're wondering what's inside the magical new trackpad and if it's repairable. There's only one way to find out—with a teardown!

Looking for the rest of the 2015 Maccessory lineup? Check out the Magic Mouse 2 and Magic Keyboard teardowns!

Want to keep in touch with us? Track us down on Twitter, Instagram, or Facebook for more tech news.

  1. qoEflEZHaJZSunOF
    qoEflEZHaJZSunOF
    DwGJVl1VsW6aV1Uy

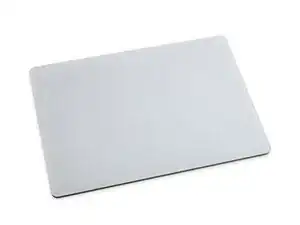

    • The jury's still out on just how magical this Trackpad really is, but here's what we know so far:

    • Dimensions: 0.43" × 6.3" × 4.52"

    • Bluetooth wireless connectivity

    • Internal lithium-ion battery

    • Lightning port (for charging and pairing)

    • Force Touch and Multi-Touch

  2. mV1P34nZkxC2KRyA
    mV1P34nZkxC2KRyA
    IOSns3ghYjldECjO

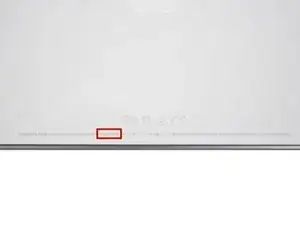

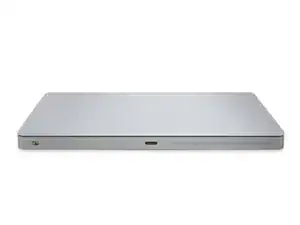

    • The rear of the new Magic Trackpad boasts a power switch, Lightning port, and a mysterious plastic bar. We're speculating this might be a break in the metal for an antenna, but we'll have to get inside to see!

    • The Lightning port serves a dual purpose—pairing with your Mac via USB, and charging the trackpad's integrated battery.

    • On the bottom of the device we find the new model number: A1535.

    So what does that mysterious plastic bar do?

    Philip S -

    I was just going to ask that…

    anthony.mitchell -

  3. hDhaIWKWalRxWLGD
    hDhaIWKWalRxWLGD
    1yjJDRHFhDWDkuXX
    1CkYZdtx2HOAAwpM

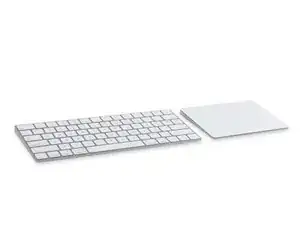

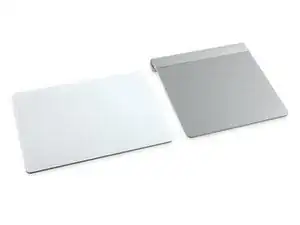

    • Let's compare notes and see what Apple has thought up for the Magic Trackpad 2.

    • Just like the new Magic Keyboard , the Magic Trackpad 2 takes full advantage of ditching those AAs to slim down the design—and to make the entire top surface trackpad-able.

    • This new "Magic" gen, like the old before it, has uniform styling for a coordinated desk.

    • At about an inch wider and a quarter inch deeper, the new device has around 6 square inches of additional tracking surface.

  4. uWuDoZ6tUpxRo62m
    uWuDoZ6tUpxRo62m
    mkMgbsPPkMNnYetc
    mkgsx1kO2BCRQRoK

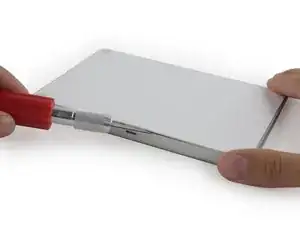

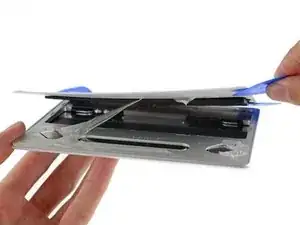

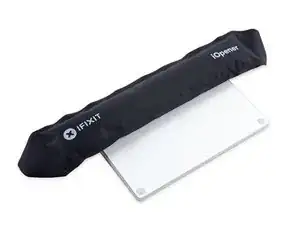

    • There's no easy way into the Magic Trackpad 2, so we set our iOpener to Stun to weaken the adhesive holding the trackpad together.

    • We know this drill. With our scimitar razor blade in hand, we (un)stick it to the intense adhesive holding the rear cover in place.

    • We slice, pry, and wiggle our way through the adhesive bit-by-bit.

    • Many Bothans opening picks died in the making of this teardown.

    • Once we find our way inside, we're greeted with something resembling Shelob's lair—a terrifying, sticky mess.

  5. Ak4m4Z2l5K2FqOwE
    Ak4m4Z2l5K2FqOwE
    kr1FoIneLDmUsyS2

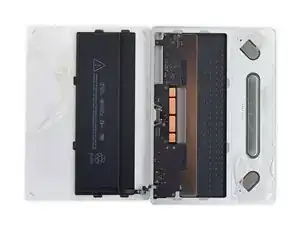

    • Upon opening, we realize the magic holding this trackpad together is really just oodles of tape doing what could probably be done with screws.

    • We find what appears to be a big iPhone battery adhered to the rear panel. But weighing in at 3.78 V, 7.65 Whr, this 2024 mAh Lithium-ion polymer battery falls short of the 2750 mAh battery in the 6s Plus.

    • Apple claims the integrated rechargeable battery reduces waste by eliminating the use of disposable AA's in the previous trackpad.

    • While this is certainly a laudable notion, responsible owners of the Magic Trackpad v1.0 used their own rechargeable AA's—saving waste and making the device more recyclable at the end of its lifespan.

    "allowing users to use their own rechargeable AA's saves waste and makes the device more recyclable at the end of its lifespan"

    Because most people are totally using rechargeable and not disposable batteries. /s

    olivicmic -

    True, I haven't used batteries in years. Everything I have is either AA or AAA or other type of rechargeable.

    Nice try Apple... welcome to 21st century.

    crus -

    It's clear that the real reason of irreplacable batteries is to reduce lifespan of Magic Trackpad 2, the same true for irreplaceble parts of latest MacMini's. We all loved Apple for customizability, but their greediness with latest products, will slowly make majority of user to prefer another products, when they realize it, it will be too late...

    ifr33t -

    This is an old post but this is clear BS. If we assume 300 charging cycles (a very conservative guess) and assume Apple's claims are true that one charge will last you about a month (probably true considering Apple usually doesn't lie about battery life) this leads to an assumed battery life of 300/12 = 25 freaking years. In 25 years you probably won't even remember that you ever owned this trackpad and you surely won't be using it anymore.

    Do some math before posting such accusations. Considering that tons of people use disposable batteries and that rechargeable batteries also have a certain life span before they need to be replaced this included battery is with 100% certainty going to be better for the environment. Also Apple will replace your Magic Trackpad 2 for $29 if your battery isn't holding a charge anymore. Yeah, totally greedy!

    Zunivolo -

    Zunivolo, batteries loose their capacity even if they aren’t used

    Surgie -

    I think the non-replaceable battery problem in the Magic Trackpad is blown out of proportion. I’ve had mine for a year and I’ve charged it maybe 6 times. The battery is going to last forever anyway. It uses roughly 2-3% a day with my usage pattern.

    r_jones -

    Hmmm, had my trackpad 2 for a number years (maybe 4), but just recently time between charges is has suddenly dropped to no more than a couple of days. battery shot and no way to replace? Not good.

    Mark Flinders -

    Same here! Had mine a few years, now only lasts a few days between charges. Only reason I am reading this page is because I want to replace the battery, not throw it away!

    Kai Kewley -

    After a reparation, would just like to share with you that information :

    I recently dismantle the Magic Trackpad 2 because he had any longer has a battery but it could still operate with the lighnting cable (the taptic engine no longer vibrates).

    So, I replaced the battery and I was able to notice by this simply change I refinded the feeling of the click and the noise emitted by the vibrations. So , I think the battery is necessery to the Magic Trackpad 2 fonction properly.

    PS : Take care when you when you remove the rear plastic part as not to damage (after it easy to put on back with some little glue).

    Guillaume Lion -

    Where can I order a replacement battery for my A1535?

    andrew -

  6. wdZKV42BMjsZteZW
    wdZKV42BMjsZteZW
    XIKERs4hZrOGPNyc
    d6aeAUES5SIf1YCC

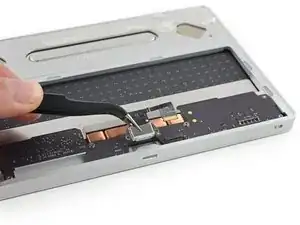

    • Casting the battery and rear panel aside, we turn our attention to the front panel and all of its goodies.

    • Be still, our hearts—this Lighting connector cable looks suspiciously unsoldered and removable.

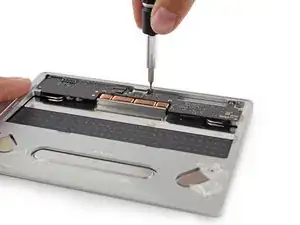

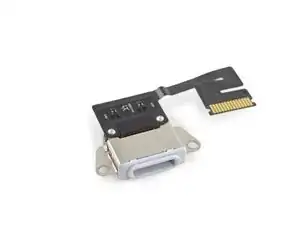

    • Sure enough, we flip the ZIF latch, remove the T3 screws, and voilà—the Lightning connector springs free!

    • That's good news for repair—a combined charging and data port suffers frequent use and can be a common point of failure.

  7. xl3WmB25TpFmSnMO
    xl3WmB25TpFmSnMO
    FO1TtwmeEaEUMfWx
    uC6PbCSEwHBEaU6d

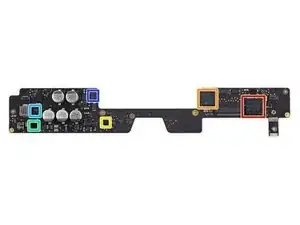

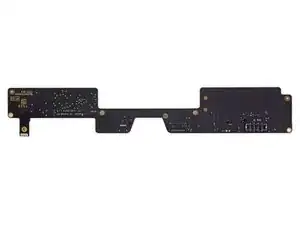

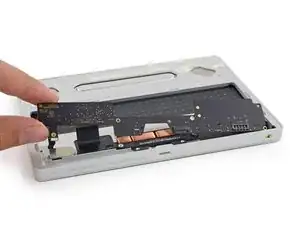

    • We pluck out the slender logic board to get a better view of its silicon. Here's what we find:

    • Broadcom BCM20733 Enhanced Data Rate Bluetooth 3.0 Single-Chip Solution

    • ST Microelectronics STM32F103VB 72 MHz 32-bit RISC ARM Cortex-M3

    • NXP 1608A1 Charging IC

    • Texas Instruments BQ24250C Single Input I2C/Standalone Switch-Mode Li-Ion Battery Charger

    • Intersil ISL656A Two-Phase PWM Controller

    • International Rectifier IRFH3702 Single N-Channel HEXFET Power MOSFET

    I'm kind of surpised that the Bluetooth chip is v3.0: Apple's specs say the Magic Trackpad is compatible only with Macs supporting v4.0.

    Dominic Dunlop -

    There weren't any Apple devices with Bluetooth 3.0; they went from 2.1 + EDR to 4.0.

    David Ebert -

    Yeah this has the same BCM20733 Bluetooth chip as the mouse and keyboard but yet Apple says it requires a Mac with BT 4.0?

    rgarjr -

    Yeah, so how are we supposed to take this? Is it only using Bluetooth 3? What about the FCC filings that suggest it's BT 4.2? It would be nice to know because I want to know if it's going to be a significant improvement over the Magic Trackpad 1, which I have lots of connectivity and signal interference issues with.

    Tevya Washburn -

  8. pygAHqWyM6qyNFQv
    pygAHqWyM6qyNFQv
    OrQyIKwptOTkaeRJ
    2AFFx4RFJMvI2H4q

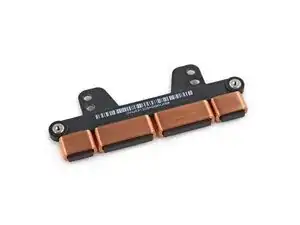

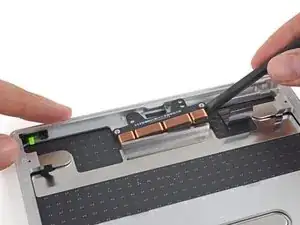

    • Prying out the Taptic Engine, we're disappointed that the only haptic feedback we get is the force of our spudger on the aluminum frame of the trackpad.

    • Resembling the Taptic Engines in both the Retina MacBook and MacBook Pro, this new Taptic Engine should bring a similar Force Touch experience to the Magic Trackpad 2.

    • These coils of copper wire form powerful electromagnets that push and pull against the steel bar mounted to the underside of the trackpad surface, causing the entire surface to rapidly and shortly buzz, simulating the sound and feel of a click.

  9. qKyDNMChFdnVa24t
    qKyDNMChFdnVa24t
    uSG2PgWDZsrudSB6

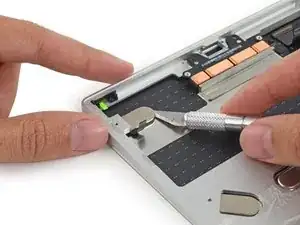

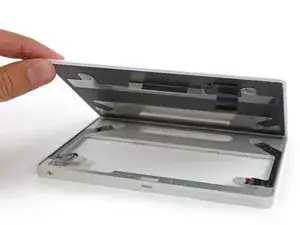

    • Just like other Force Touch implementations we've seen, the trackpad rests on four springy metal tabs, secured with clear adhesive pads.

    • The only way to separate the trackpad and get a closer look is to cut through the adhesive. Unfortunately, that's also the only way to replace a damaged trackpad surface.

    • With the glue cut, let's get a look at what was hiding between the aluminum trackpad frame and the trackpad surface.

  10. FAkDCQIErklGdyNR
    FAkDCQIErklGdyNR
    AC2FOkVvTisZphpH
    alBLKNAyJOPymgya

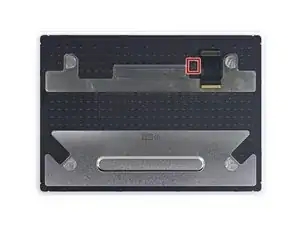

    • A single, elegant chip resides on the touchpad.

    • Broadcom BCM5976 Touch Controller (part of the same series of Broadcom touch controller chips used in many Apple devices)

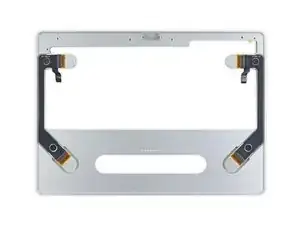

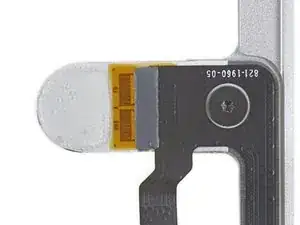

    • The strain gauges, mounted on each of the four spring tabs, are used to measure the force applied to the trackpad surface.

    • As you press down on the trackpad, the springs deflect, stretching the strain gauges and increasing their resistance. A microcontroller measures that resistance and determines the appropriate level of haptic Taptic feedback to deliver.

  11. FK3sekGZC3beZ1M2
    FK3sekGZC3beZ1M2
    TNNN6CXSYcZrJNoW
    • The Magic Trackpad 2 Repairability Score: 3 out of 10 (10 is easiest to repair)

    • The Lightning port and battery can be replaced independently of the logic board—if you can get the device open.

    • Replacing a damaged trackpad surface means cutting and reapplying the adhesive on the spring tabs.

    • Excessive use of strong adhesive makes it very difficult to remove the rear panel, hindering access to every internal component.

    • Without a service manual, it is difficult to open the trackpad without damaging internal components such as the battery and Taptic Engine.
