MasterLock 1500EDBX Teardown

Geschrieben von: Josh Thomas
Veröffentlicht: 03/05/13
  • Kommentare: 0

MasterLock 1500EDBX Teardown

Veröffentlicht: 03/05/13

Teardown

Einleitung

Just a good view of the internals, for those that love MSP430 chips

  1. xylc4qV6oSqXgbql
    xylc4qV6oSqXgbql
    QTYUCH5hRG5NmePj

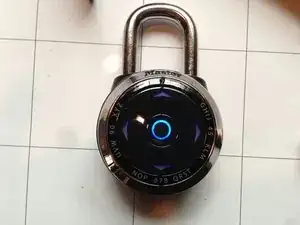

    • A new lock, now with more buttons and less spinning!

  2. dbKIxLBLUMBmSunj
    dbKIxLBLUMBmSunj
    k3C1DdbZMaCRTToC
    SUVakA1rHoBx1UJT

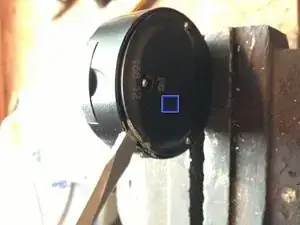

    • Prepare lock for spuding

    • Insert spudger and tap with hammer

    • Gently pry until the lock opens

  3. BCJMRknxHbo1RJmC
    BCJMRknxHbo1RJmC
    QtxQiNYqGYIXmWZu

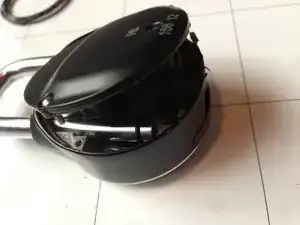

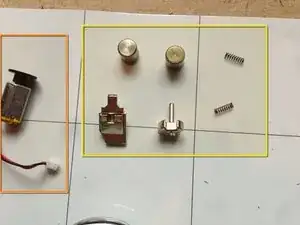

    • Open lock with mechanisms exposed

    • Vibrator

    • Locking mechanisms

  4. BDOFpoYDoWSUQYKy
    BDOFpoYDoWSUQYKy
    PLZXDFsMtp1ErnMi
    25r3vrMAhTVAHIZy

    • Complete internals of the lock

    • Main processing board

    • MSP430 based!

    • Servo that interacts with locking components

    • Reactive buttons and LEDs

  5. tKSgKNfo2LYGUvDp

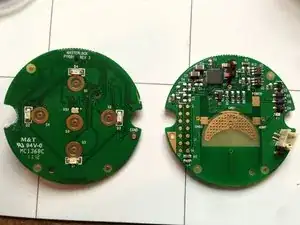

    • The real lock PCB

    • As a note, this device does not function as a lock once torn down. Repairability = 0.
