Mele F10 - USB Remote Teardown

Geschrieben von: Adam
Veröffentlicht: 01/05/13
  • Kommentare: 12

Mele F10 - USB Remote Teardown

Veröffentlicht: 01/05/13

Teardown

Einleitung

  1. fnUhHIaGAZFINvSw
    fnUhHIaGAZFINvSw
    upvkMRSLUyUhkT2N
    vJBg4X2vEiHh41Nu

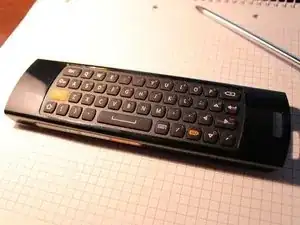

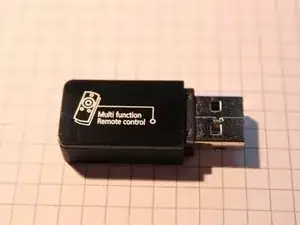

    • 2.4GHz wireless frequency

    • Max. control range: 30 meters

    • IR remote range: 10 meters

    • Built-in 500mAh battery

  2. SpdHIXqDMKHoYX1L
    SpdHIXqDMKHoYX1L
    OydNjSNyLbHiSPbX

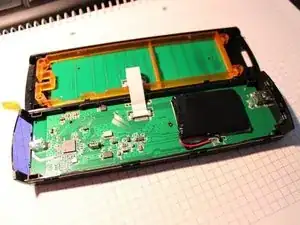

    • There is no screws. I have opened remote only by hands by bendig edges

  3. NYrHwOURJBr3iNMu
    NYrHwOURJBr3iNMu
    PPqDEeYbLbgBEybX
    HQ6uPZMPM5VX2HOB

    • OK! let see what parts we have inside

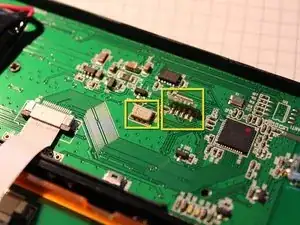

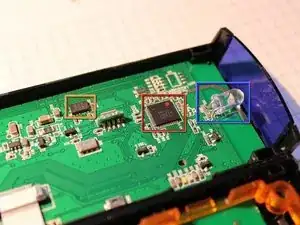

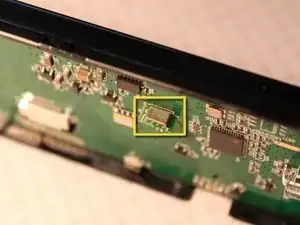

    • nRF24LE1 - Ultra-low Power Wireless System On-Chip Solution

    • ADXL345 - small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g

    • Two XV - 3700CB Ultra miniature size gyro sensor with high stability double output

    • IR TX diode

  4. 3XewrkBy3yTWrUCf
    3XewrkBy3yTWrUCf
    MdpRiRIfkPdCQxeo
    VFCGFLnJRAFp1EKV

    • More parts

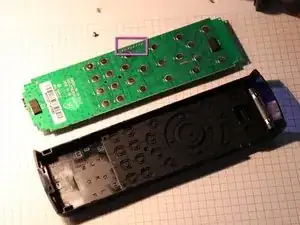

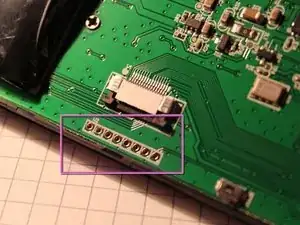

    • JTAG ?

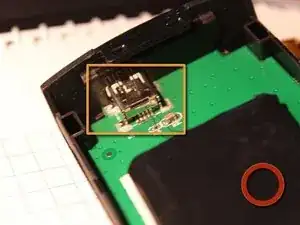

    • Mini-USB port - as far as I know can be used only to charging

    • 500mAh battery

  5. tB6PLCnBrTU3ZggP
    tB6PLCnBrTU3ZggP
    MDj56WLPASF5MNO2
    alspElcBvliXsjNe

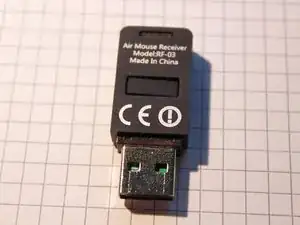

    • USB Receiver

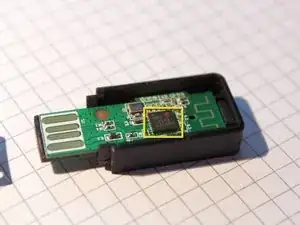

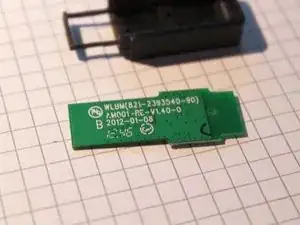

    • nRF24LU1 - Single Chip 2.4 GHz Transceiver with USB Microcontroller and OTP Memory
