Metrans MWT01 Qi Wireless Charger Teardown

Geschrieben von: Sean
Veröffentlicht: 31/03/13
  • Kommentare: 1

Metrans MWT01 Qi Wireless Charger Teardown

Veröffentlicht: 31/03/13

Teardown

Einleitung

  1. ytMGNfHQoGICdYiF
    ytMGNfHQoGICdYiF
    wJpGZHJp6DhPXaJB

    • Has an additional USB port for charging.

    • Input: 9V 1500mA

    • Output: 5V 1000mA

    • Frequency: 100-150kHz

    • USB output: 5V 1000mA

    • Size 145mm X 81mm X 10mm

  2. hWts4tWRJIxC24tm
    hWts4tWRJIxC24tm
    A6EEf5GIRDSnanEB

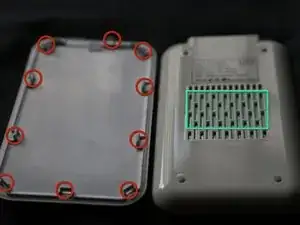

    • Top and bottom shells are separated by 10 plastic clips.

    • To open, insert plastic opening tool or plastic knife and push inward and towards the top shell.

    • Start from near the USB port and work your way around. The corners are pretty hard and the clips are pretty sturdy.

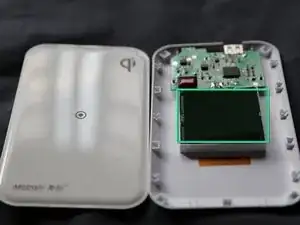

    • Viola! Its open!

    • Holes there are for ventilation for the coil

  3. UldPVPNrrbRYQLbh
    UldPVPNrrbRYQLbh
    ANNmtfNVHpmxni2R

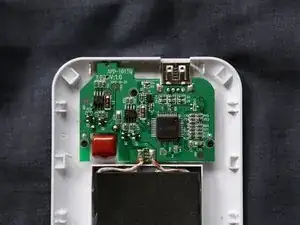

    pPvIeU5UpnkifWDL

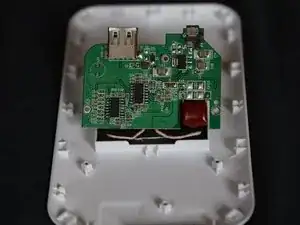

    • More pictures.

    • Coil is covered by a foam pad held down by a little glue.
