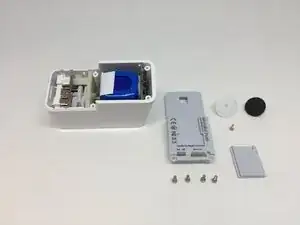

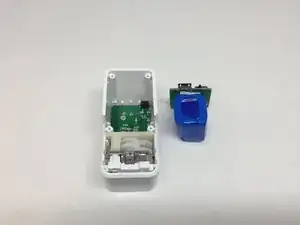

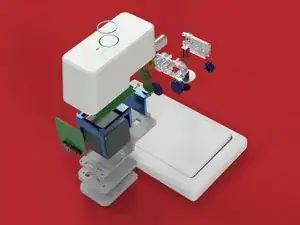

Removing the 4 Torx screws and 1 regular one beneath the black rubber pad shows us a gearbox, 2 PCBs and a battery

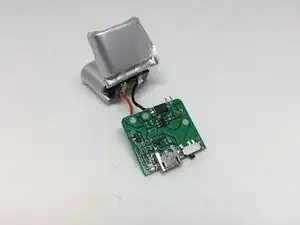

According to its specs, the MicroBot has a battery life of about one year. The battery is rechargeable, using a regular 5V charger with a micro USB connector.

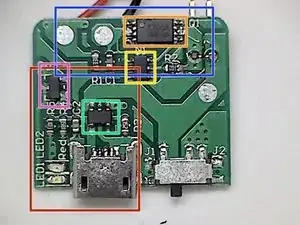

Battery charging circuit

Charging IC

Transistor to control the red and green LEDS next to the USB port, indicating whether or not the battery is fully charged

Battery protection circuit

These types of ICs are used to “sense” the current

When the specified current limit has been reached they trigger a switch that will break the current path to the battery. The switch that is triggered in this case is a Dual N-Channel Enhancement Mode Power MOSFET, in this case the 8205A

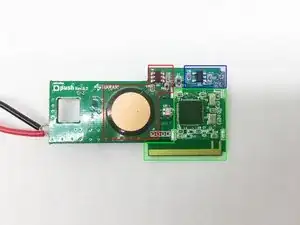

The capacitive touch button and matching circuitry (marked in red)

The big gold circle you see in the middle of the PCB is a capacitive touch button. It’s simply an exposed piece of copper

The TTP223B chip, this chip is a one-key touch pad detector that can detect the touch of a human finger on the touch pad. It does this by using the “Frequency Change” method

The bluetooth chip and antenna (I had to remove a metal shield to reveal the chip;)

The bluetooth chip, in this case the nRF51822 Nordic Semiconductors (It’s a 2.4GHz ultra low-power bluetooth chip built around a 32-bit ARM® Cortex™ M0 CPU)

To the right of the nRF51822, you can see two oscillators, one 16MHz and one 32.768kHz (marked in orange), which generate the clock waveforms for the CPU

On the bottom (marked in yellow) you see the antenna circuitry and the PCB antenna itself. As you can see, they did not use a balun chip, but instead created a matching network using some capacitors and inductors.

This circuit is located on the back of the PCB

I could not trace back the datasheets of the actual components used, but after probing the upper IC with an oscilloscope I noticed that this is also a voltage regulator. This one boosts the voltage from 2.5 volts back to 4 volts to power the motor and the motor controller

Motor driver

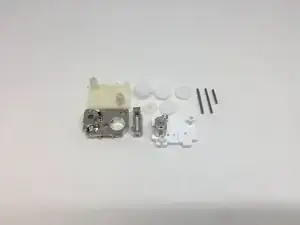

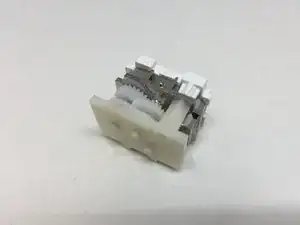

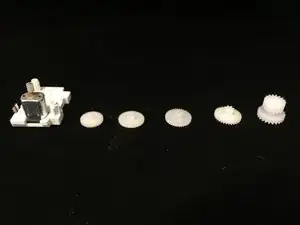

Opening up the gearbox was fairly simple: I just had to remove two screws to expose the gears and the motor

If we count all teeth of the gears we come up with a speed reduction of 948.41
