Earlier this week, we spent a day getting to know Microsoft's newest Surface device, the Studio. Today, in response to overwhelming public outcry (a few folks asked about it on our YouTube channel), we're cracking open its hockey puck co-star, the Surface Dial. Brace yourselves, "turn it up to 11" jokes are coming.

Don't miss out on the next device dissection. Follow us on Facebook, Instagram, or Twitter.

  1. dAIRVPuKKQYo5Jqo
    dAIRVPuKKQYo5Jqo
    S4DToUGqDe3aVBfZ
    aviHx3ATGQGGrnHh
    • Some features of the Surface Dial:

    • Bluetooth 4.0 LE

    • Compatible with Surface Studio, Surface Pro 4, Surface Book, and any PC running Windows 10 Anniversary Update

    • Two AAA batteries

    • Two input methods: spinny and clicky

    • Sticky rubber foot to grip onto the Surface Studio glass

  2. eFnKttcBvLpiaAZa
    eFnKttcBvLpiaAZa
    dOvRxjpqNGLSRCko
    nJm6Vf4YdtWJwGyf

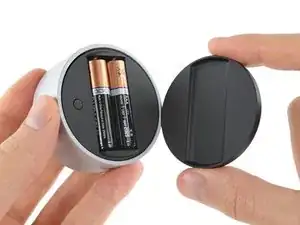

    • The rubber foot has no visible fasteners. In fact, it has invisible fasteners—it's held on with magnets, and pops off and back on with no glue, tools, or fatiguable plastic clips. Sweet!

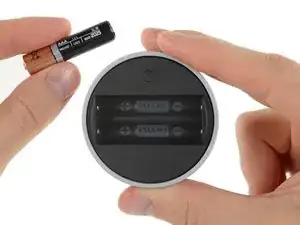

    • Inside are the two AAA batteries powering the puck—the included Duracells aren't rechargeable, but you could replace them with your own rechargeable cells when the time comes.

    • A sync button makes the only other feature in the Dial's entryway.

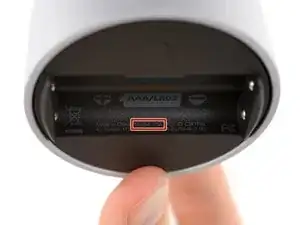

    • Microsoft hid the Dial's model number, 1756, behind the batteries.

  3. kAIwf1wGjSWohawY
    kAIwf1wGjSWohawY
    2UZLCR1L2KAOKAk2
    YmcOesMHVMBVXka1

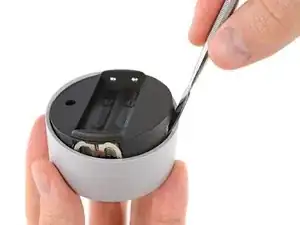

    • This Dial's solid construction is great (especially if it ends up sliding off your Surface) but also makes it a challenge to get into...

    • Some aggressive prying led to aggressive snapping which led to aggressive... well, let's just say the midframe didn't come out without a fight.

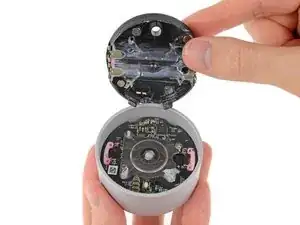

    • Removing the midframe/battery holder compartment, we get a peek at a sweet bearing, and some silicon!

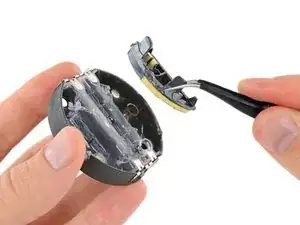

    • We also get to pop this (presumably Bluetooth) antenna off of the battery compartment.

    • Along for the ride are four magnets, evenly spaced around the battery frame. Not only do they secure that sweet magnetic cover, they also give the Dial a little extra grip on the Studio's screen to combat the ol' downward slide.

    The battery label sticker can be peeled off, from there an access port can pulled out and the 4 screws holding the layers together can be removed.

    Rowdy Bedsaul -

  4. The Dial's sick spinny action is used to full effect in disassembly, as well as every day use.
    • The Dial's sick spinny action is used to full effect in disassembly, as well as every day use.

    • The single access hole leaves more room for chips, and the smooth bearing lets us get to each of the T6 screws holding the body into the silver cover.

  5. mJBDuJAHDOI6JGOC
    mJBDuJAHDOI6JGOC
    h3PDPAXZnKARGk5B

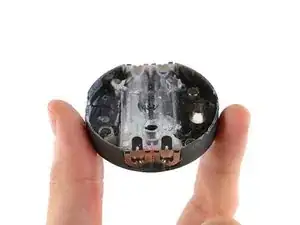

    • After our less-than-ideal entry into the device, we somewhat guiltily spy a hole under the battery compartment. Could this be the real way in?

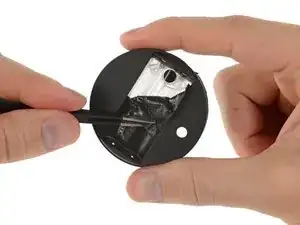

    • We peel up a sticker and...

    • The access hole that would line up with the three screws holding the Dial in its shell has been plugged up!

    • Minus any mysterious methods Microsoft may deign to share with us, our best recommendation for opening your Dial is to drill through this plug and access the three screws using the above turntable method.

    Aha! So I just managed to cleanly disassemble my Dial following this guide.

    The plug here just cleanly slipped out of the access port on my model - it looks like a separately melded insert, rather than any potting compound.

    It's actually pretty darn accessible!

    Tom Fleet -

  6. rcChPrUuSsR3MQX3
    rcChPrUuSsR3MQX3
    cPUBmty2yHtp6m1T
    • Back to your regularly scheduled teardown: Thanks to our spin and unscrew technique, we're able to separate the guts from the outer casing.

    • With the innards removed, we can see that the screws don't actually go through the bearing—just around it, grabbing it around the edge.

  7. VjDQcZEAJprnvcJc
    VjDQcZEAJprnvcJc
    JfTKJ5b5cqnVGCpK
    E1W1RXXOHmMIKJGx

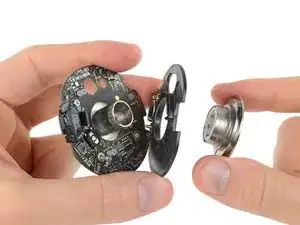

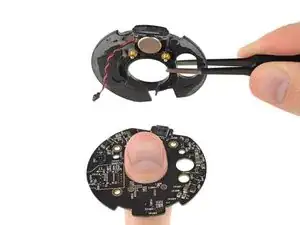

    • To get in any further, we have to pop the bearing apart. It's a little greasy, and features a plastic cage for the ball bearings—surely a special recipe designed to give the knob that luxurious, high-end slightly-resistant feel to it.

    • Lifting off the midframe reveals two springy posts opposite the switch. These springs even out the pressure so, no matter where you press, it feels the same.

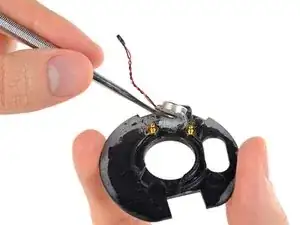

    • We also scrape out a pancake vibration motor, responsible for the buzzy feedback you get when spinning or clicking the Dial.

    • The bit of the midframe holding the vibrator has a rubber O-ring, presumably for vibration dampening.

  8. aXQBBRJhFfjNSEee
    aXQBBRJhFfjNSEee
    UWqWaAGWHBHd4LuT

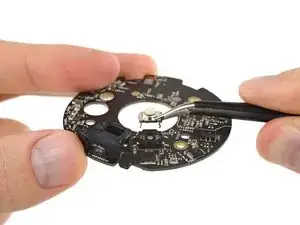

    • And now for the grand finale, the hardware responsible for all of the Surface Dial's many features. The clicky and the spinny.

    • This microswitch handles the Dial's click function.

    • As for the spinny function, this component looks awfully similar to the optical sensor in the Nest, that worked just like an optical mouse pointed at the inside wall of the metal casing.

    • Unlike in the Nest, we find a lightguide, that looks like it bends the light to and from the optical sensor 90 degrees, to avoid mounting the sensor on its own board, parallel to the case.

  9. WouUqlIU3xbePMra
    WouUqlIU3xbePMra
    TPW4ZDqXXXIJHpWS

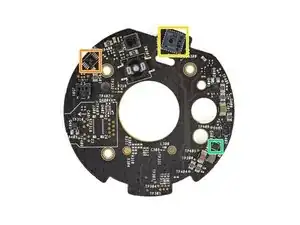

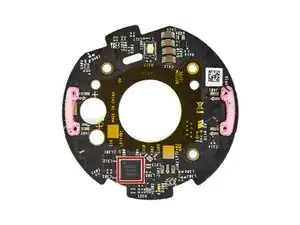

    • Such chips. Here it is.

    • Nordic Semiconductor nRF52832 Bluetooth Low Energy SoC

    • Texas Instruments DRV2604L Haptic Driver

    • Optical Sensor

    • DC-DC Converter

  10. cJFTmdSFbPjvIfIM

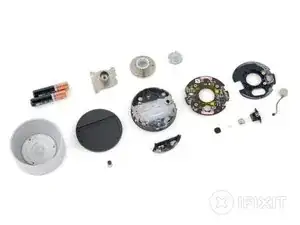

    • This Dial has us running in circles! Or at least laying the circles out. Here's a round up of all the circular bits and bobs that make this thing spin!

  11. PpB2OrLq22DCBQEq
    • The Surface Dial earns a 4 out of 10 on our repairability scale (10 is easiest to repair):

    • You can swap in ordinary rechargeable AAA batteries in seconds with no tools.

    • While it is durable, and repairs are unlikely, the components most likely to fail can't be replaced without damaging the device.

    • Haptic vibration motor is cemented down with some spectacularly tough glue.

    • You won't be servicing anything here without a guide and courage enough to drill out the plastic plug guarding the single, well-hidden access point.

Scott Havard

Mitglied seit: 28/06/16

48536 Reputation

10 Kommentare

What is the outside of the Surface Dial made out of? Is it aluminium?

cskjoedtrun -

I remember a surface engineer saying it was a magnesium aluminum alloy

Rowdy Bedsaul -

https://www.youtube.com/watch?v=JzqLCIwI...

You can watch this video and do a more detailed explanation.

废品箱 -

How do you reduce the tightness of the wheel and make it turn loosely/freely?

John Dusek -

It is not supposed to turn loose and freely. Try bugging logitech to make a similar device, but they would probably want to make it feel like the surface dial because most people love it for how it feels.

Rowdy Bedsaul -

You do NOT need to break apart the surface dial like that. You also do not need to "drill out" the access port. Simply remove the batteries and sticker to reveal the access port which can be pried open with your fingernail. I did this myself to clean up some dust from inside.

Sabas Padilla -

I thought so, this isn’t like a wiki where we can just update the page is it?

Rowdy Bedsaul -

Posted a duplicate since your answer didn’t show up to me initially. But you are absolutely correct

Santtu Kähkönen -

I lost the rubber foot/base to this thing and have been searching for a replacement for over a year… Any suggestions???

Heather -

As was correctly postulated later on in the video, If you open the battery case, take off the tape, there is indeed a hole underneath (might be initially filled with a black plastic cap) that reveals an opening that goes into the 3 torx T6H-screws holding the cover in.

Then of you rotate the surface, it will reveal the 3 torx in order for you to easily unscrew them and the cover basically falls away by itself with no force required.

Santtu Kähkönen -
