Einleitung

Teardown ist das Wort des Tages, und heute wollen wir in den Microsofts Surface Laptop eintauchen. Wird dieses plüschige Alcantara bezogene Laptop in unserem Teardown Studio herausragende Leistungen bringen? Die Macht liegt in unserer Hand. Kommen wir zum Punkt... Meine Damen und Herren, es ist Zeit für einen Teardown!

Und wo das herkommt gibt es noch mehr! Schau dir mal diesen Surface Pro 5 Teardown an, um noch mehr über neueste Microsoft Hardware zu erfahren.

Access und Windows gefällt dir? Du brauchst mehr Zugang zu Teardowns? Verpasste keine offenen Fenster und folge uns auf Facebook, Instagram, oder Twitter. Hier gibt es die neuesten Teardown Infos.

  1. OsWtKxKvPqqsHcT1
    OsWtKxKvPqqsHcT1
    hOKnhkkSBxVPOvoj

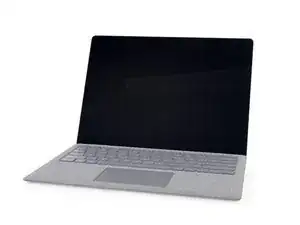

    • Also gut, das Surface Book ist ausgepackt und liegt auf unserem Hackklotz Teardown Tisch. Das wollen wir uns heute anschauen:

    • 13,5” IPS PixelSense™ Display mit einer Auflösung von 2256 × 1504 (201 PPI)

    • Intel Kaby Lake Core i5 (3M Cache, bis zu 3.10 GHz) oder Core i7 (4M Cache, 4.00 GHz) CPU

    • 4 GB/8 GB/16 GB RAM

    • 128 GB/256 GB/512 GB PCIe SSD Speicher

    • 720p Frontkamera mit Windows Hello sign-in

    • USB 3.0 Anschluss, Mini DisplayPort und SurfaceConnect Ladebuchse

    • 802.11ac Wi-Fi Funkvernetzung, IEEE 802.11 a/b/g/n kompatibel, Bluetooth Wireless 4.0

  2. mBIpPUsWcHCTQpgE
    mBIpPUsWcHCTQpgE
    JRl3tpYQEybmjUts

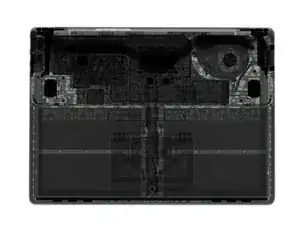

    • Bevor wir (vermutlich) in einen weiteren Reparatur-Alptraum eintauchen, verschaffen wir uns mit ein paar netten Röntgenbildern einen Überblick.

    • Dankeschön, Creative Electron!

    • Sieht nach einem fetten Akku, einem Lüfter und einem mächtigen Kühlkörper aus.

    • Und dazu noch einiges an Abschirmungen. Dieses Teil sieht schon ziemlich gruselig aus.

    Hi guys , use carburetor cleaner…ie xylene to dissolve glue …you must wait a few mins first for it to do its thing !!

    clive Besser -

  3. 4VaTJILa3wWZXkvw
    4VaTJILa3wWZXkvw
    AsJHsmAsnSlhKyqR

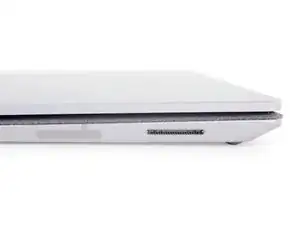

    AZYiAEAuYvNfaIMF

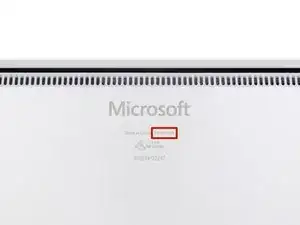

    • All die üblichen regulatorischen Aufschriften finden wir auf der Unterseite, zusammen mit der Modellnummer: 1769.

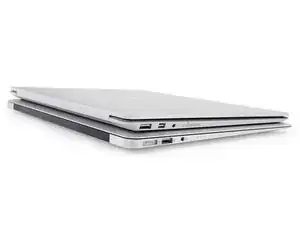

    • Wir stapeln den Surface Laptop auf ein MacBook Air und spielen "Suche den Unterschied"...

    • ...aber abgesehen vom Layout gibt es nicht so viele Unterschiede. Beide treten mit einer Kopfhörerbuchse, einer proprietären Ladebuchse, einem MiniDisplayPort Anschluss und mindestens einem USB 3.0 Anschluss an.

    • Als Unterschiede bei der Konnektivität finden wir einen SDXC Kartenleser und einen zweiten USB Anschluss beim Air.

    The air has a thunderbolt 2 port vs just a Mini DisplayPort connector?

    Luke Gould -

  4. wCHuvp2TT1GyebU2
    wCHuvp2TT1GyebU2
    4Fnx2RbdWOSVWvZt
    uSFCNXJA2xGuP4JJ

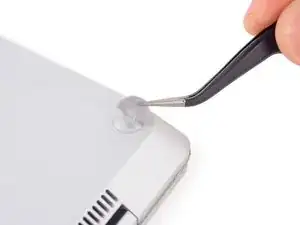

    • Wir gucken mal unter die verdächtigen Gummifüße, finden dort aber nur Metall statt der erhofften Schrauben.

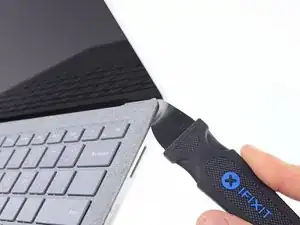

    • Sieht so aus, als ob wir dieses (fragwürdig luxuriöse) Alcantara ablösen müssten.

    • Mit dem Jimmy in der Hand beginnen wir Klammern und Klebstoff abzulösen. Vermutlich kriegen wir das nie mehr zusammen.

    • Wir versuchen die Stoffabdeckung zu entfernen, aber unterhalb der Tastatur geht das viel schwerer. Was ist da los?

    Did you try to use a heat blower for easing the fabric removal?

    Jeffo Moreira -

    We did! Unfortunately, it's secured with some extremely tough glue and dozens of plastic welds. (Side note: alcantara is very heat resistant, and is even used as a flame retardant in some applications.) So far as we can tell, there's no non-destructive way to get inside.

    Jeff Suovanen -

  5. nW3XGwppxrWETHAR
    nW3XGwppxrWETHAR
    mUVdmcDjuBjiJ45E
    Xb1wyFsy4aVxXSUx

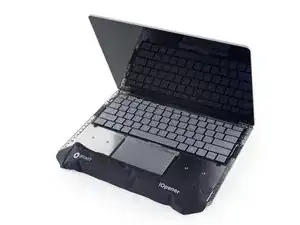

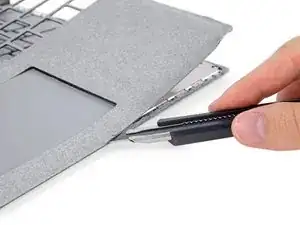

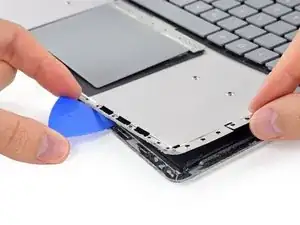

    • Wir müssen die großen Kanonen Cutter herausholen, um den restlichen Belag abzutrennen. Darunter finden wir das Fleisch im Surface Sandwich, nämlich die metallene Abschirmung.

    • Diese Abschirmung wird unten von noch mehr Klebstoff und Kunstoffklammern festgehalten, also feuern wir unseren iOpener wieder an und knacken weiter auf.

    • Dann sehen wir endlich die Plastikteile deutlich, das sind wirklich keine Klammern, die nochmal verwendet werden können. Was wir so durchgepflügt haben, wurde mit Ultraschall verschweißt. Das wird definitiv nie mehr ohne eine Rolle Klebeband zusammenhalten.

  6. Cl5sVOBMHJdcAvxP
    Cl5sVOBMHJdcAvxP
    IlOixBRnQDpxdvV3
    jr5YwlX5ZSywxPJx

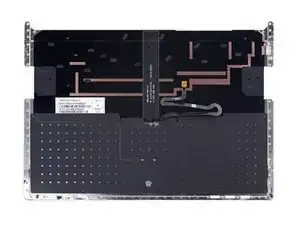

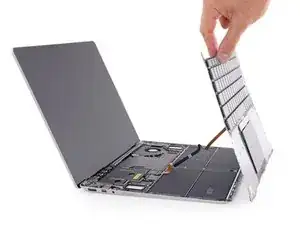

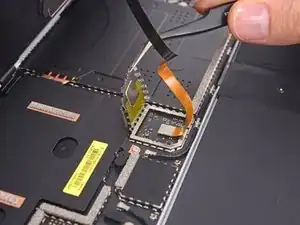

    • Endlich haben wir die Tastatur-Platte von ihren Kerkermeistern aus Kunstoff und Klebstoff befreit und freuen uns wenigstens über das lange Kabel, mit dem es am Gehäuse angeschlossen ist.

    • Unsere Freude währt nur kurz. Der Stecker ist unter einem aufgeclipsten Metallschutz auf dem Motherboard gefangen, was den Ausbau beträchtlich erschwert.

    • Überraschenderweise ist das an neueren Surface Modellen nicht so ungewöhnlich.

    • Mit ausgebauter Tastatur können wir uns auf die Suche nach dem Trackpad machen. Vermutlich ist es irgendwo da drin, folgen wir der Kabelspur!

  7. cDJGvLqEM4WeCuZr
    cDJGvLqEM4WeCuZr

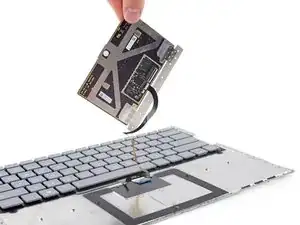

    gPturVOtTuqhJTfK
    IMxDnZu2dW12WRI1

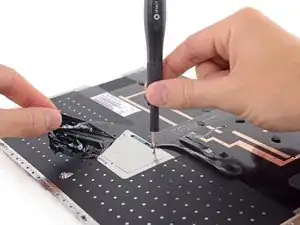

    • Das Trackpad ist mit Klebeband und einem Metallschutz eingesperrt, aber das haben wir ja schonmal gehabt.

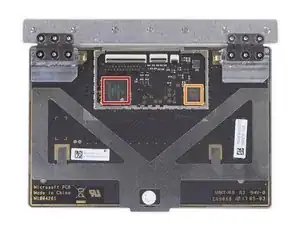

    • Wir halten einen Moment inne, um das Silizium zu sondieren, bevor wir das Trackpad freilassen:

    • NXP/Freescale MK22FN512 Kinetis K22-120 MHz ARM Cortex-M4 Core MCU

    • Synaptics S9101B Touch Controller (so wie beim Surface Book)

  8. BBJG6BV6iPUyUtUI
    BBJG6BV6iPUyUtUI
    OIREfnX6nxoLwtTs
    CLIGMDA3kdZfNWHO

    • Wie sehen uns nach einem Akkustecker zum Lösen um, finden aber nirgends einen. Sieht so aus, als würden wir das live machen müssen! Es ist an der Zeit, einige Teile herauszuholen!

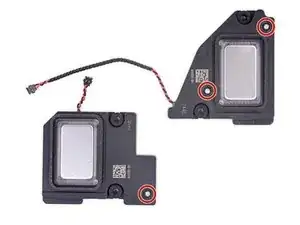

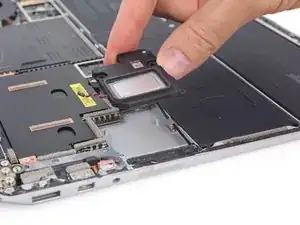

    • Zuerst die Lautprecher. Was ist zu denen zu sagen. Sehen so aus, als wären sie gut im Töne machen.

    • Genau wie im Surface Pro 4, sind sie nicht ganz symmetrisch. So wie im Surface Book, gibt es zwei von ihnen.

    • Auf den ersten Blick sehen diese weißen Punkte wie Feuchtigkeitsindikatoren aus. Bei näherem Hinsehen, sind sie in Wirklichkeit Abdeckungen über dem Dämmschaumstoff, mit denen das Bassvolumen der Lautsprecher akustisch vergrößert wird.

  9. oij31VPDteihGK1M
    oij31VPDteihGK1M
    kIIC1HJVFKLA1Lfm
    UYyDHlj1akHJYF6k

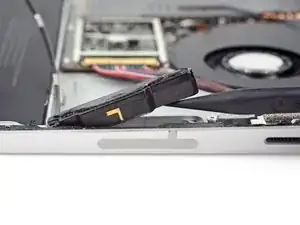

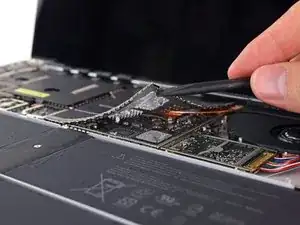

    • Es überrascht uns nicht, dass hinter der RF-Durchschleifung aus Plastik an der Gehäuseseite eine Antenne eingebaut ist.

    • Wir wenden uns wieder der Hauptplatine zu. Die vergnüglichen Teile sind unter Schutzschilden mit Wärmeleitpads versteckt. Es scheint so, als würde hier so einiges warm werden.

    • Wir müssen uns auf die Hitze einlassen, denn als nächstes kommt der Kühlkörper dran. Heraus mit ihm und auch seinem kleinen Lüfter.

  10. BgFhPyLVZCnsyPhK
    BgFhPyLVZCnsyPhK
    vYS6VH5WLK2fGOyL

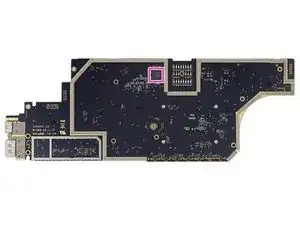

    kDSuGorJMIOa2dKd

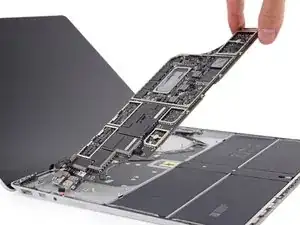

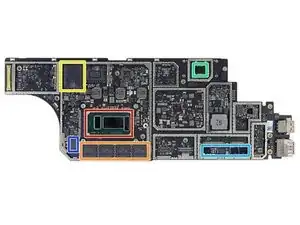

    • Stop. Zeit für die Hauptplatine!

    • Intel SR368 Core i7-7660U CPU

    • SK Hynix H9CCNNNBJTAL LPDDR3 RAM

    • Toshiba THNSND256GTYA 256 GB SSD

    • Marvell Avastar 88W8897 WLAN/BT/NFC SoC

    • Microsoft X904169 (x3) und X904163 Display Treiber ICs

    • Nuvoton NPCT650SBBWX TPM IC

    • Freescale/NXP M22J9VDC Kinetis K22F 512KB 120 MHz ARM Cortex-M4 Based MCU

    Hello tech people,

    Do you know what brand and model is the 1 TB solid state drive, installed in the Surface laptop (2)?

    I read today, that the M$ hardware engineers were installing two 512 GB SSD, creating 1 TB RAID in the first generation Surface laptop. (Obviously this moronic decision came from the greedy marketing department — to save money.)

    I hope the engineers will prevail over the marketing, and won't repeat the same mistake for Surface laptop 2. The 1 TB solid state drives are already cheaper than 2x512 GB...

    Emo Teofanov -

  11. oWSVV3JoHvskNGZE
    oWSVV3JoHvskNGZE
    yZF1DqQ2Di122vYC
    SYOJAHcUNjkffKaf

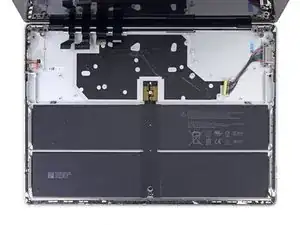

    • So sieht's aus, Leute: nach zehn Schritten ist der Akku endlich abgelöst!

    • Der Laptop ist mit einem 45,2 Wh Akku ausgestattet, in etwa die gleiche Kapazität wie beim letzten Surface Pro (45 Wh), und mehr als bei diesen beiden: iPad Pro 10,5" (31 Wh) und MacBook Retina (41 Wh).

    • Im Rückgehäuse ist ein zweites Wärmerohr (heat pipe) sichtbar, welches dabei hilft, die Wärme von beiden Seiten der Hauptplatine zu verteilen.

    • Der modulare Kopfhöreranschluss, wegen keinerlei Verbrechen angeklagt, kann mitsamt seiner Kontakte und allem frei gehen.

    • Kein Surface Produkt ist ohne ein Scharnier, dieses sieht aber ein wenig prosaisch aus, verglichen mit den anderen Angeboten. Und damit ist das Display dann auch schon aus seinem Scharnier gelöst.

  12. cQTEJNyYGaEJB1lU

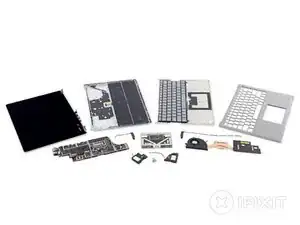

    • Der Surface Laptop ist endlich niedergerungen zerlegt!

    • Das Urteil: Der Surface Laptop ist kein Laptop. Er ist eine klebstoffgefüllte Monstrosität. Nichts an ihm lässt sich aufrüsten, nichts ist auf Dauerbenutzung angelegt und er lässt sich buchstäblich nicht öffnen, ohne ihn zu zerstören. (Microsoft, zeig uns wie es geht, wir hätten nämlich gerne unrecht.)

    • Nur zum Angucken: Die Teile, die nie mehr zueinander finden werden...

    • Für noch noch mehr Surface Teardowns, schau mal nach dem 2017 Surface Pro Teardown!

  13. 5mExEV2xVFbqEILw

    • Microsoft Surface Laptop Reparierbarkeits-Wertung: 0 von 10 (10 ist am einfachsten zu reparieren)

    • Dieser Laptop wurde nicht gebaut, um geöffnet oder repariert zu werden; er lässt sich nicht öffnen ohne großen Schaden anzurichten.

    • Die CPU, der RAM und die Festplatte sind auf das Motherboard aufgelötet und machen damit ein Upgrade unmöglich.

    • Der Kopfhörerausgang kann, obwohl er modular ist, nur erreicht werden, wenn der Kühlkörper, der Lüfter, das Display und das Motherboard entfernt wurden.

    • Den Akku auszutauschen ist schwer und gefährlich. Damit hat das Gerät nur eine begrenzte Lebensdauer.
