Microsoft Surface Pro 2 Teardown

Geschrieben von: Sam Goldheart
Veröffentlicht: 23/10/13
  • Kommentare: 36

Microsoft Surface Pro 2 Teardown

Veröffentlicht: 23/10/13

Teardown

Einleitung

Today, Microsoft adds a new surface to their tablet line. No, not a third dimension—leave those 3D glasses at the theater. Instead, let your friends at iFixit break out the X-ray specs and show you what's inside the new Surface Pro 2.

Want to take a look-see into more iFixit fun? Peer into our Facebook, look through our rose-tinted Instagram lens, or peek at our Twitter.

  1. DDASMv3jFFOPIUCZ
    DDASMv3jFFOPIUCZ
    CjfaHGruUdCNmJZA

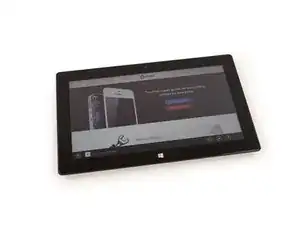

    • What's beneath the surface of Microsoft's latest tablet? A fair number of puns, but also some familiar, and improved, hardware:

    • 10.6 inch ClearType Full HD Display with a resolution of 1920 x 1080

    • 4th generation Intel® Core™ i5 Processor

    • Wi-Fi (802.11a/b/g/n) + Bluetooth 4.0 Low Energy technology

    • 64/128 GB or 256/512 GB storage capacity

    • 4 GB RAM (models with 64/128 GB storage) or 8 GB RAM (models with 256/512 GB storage)

    • Two 720p HD cameras, front and rear-facing

    • Full-size USB 3.0, Mini DisplayPort, and microSDXC card reader

  2. SoTitk4eH4HCCFIK
    SoTitk4eH4HCCFIK
    kCWrOacNbVdKBEtx
    MEqvpOgsnqKDasAZ

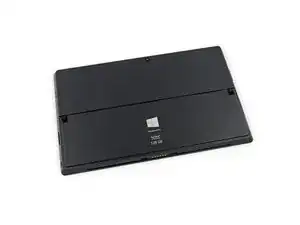

    • The Surface Pro 2 sports a 2-stage kickstand, with options for a 24 or 40-degree viewing angle.

    • Oh, how kickstands have progressed since we were kids …

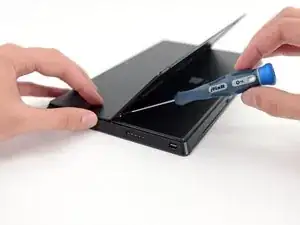

    • The kickstand is secured with two screws. Happily, our new Pro Tech Screwdriver Set includes the perfect T5 Torx driver to reach in and get this teardown started.

    • The kickstand comes off with little fuss, but if the previous model is any indication, repairability issues will soon begin to … show themselves.

  3. hBle2tvMWTgwacCW
    hBle2tvMWTgwacCW
    Z6GM2yRAedPLgmIV
    SBhStJbSqoHOFhTC

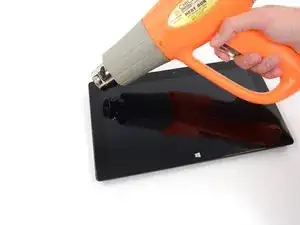

    • As pacifists, we prefer our trusty iOpener. But when pushed, we're not afraid to push back with the big (heat) guns.

    • Time to poke a plethora of picks under the now-molten adhesive. The use of oodles of dainty picks over brute force ensures our ribbon cables' protection.

    • Let the record show that you can fit at least 21 iFixit Opening Picks under the display of the Surface Pro 2.

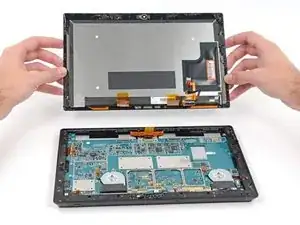

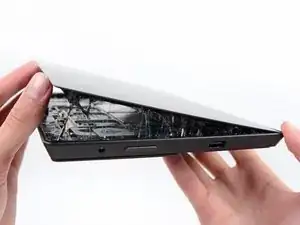

    • We slowly but surely free the Surface Pro 2's display, trapped like a baby diplodocus in a treacherous tar pit of black adhesive.

    Well, that looks incredibly gross.

    satidragon -

  4. ISqBSSEK35SutNcL
    ISqBSSEK35SutNcL
    FuvLgPLf5X6WQqvJ
    F2KSZLUEswfd3MNr

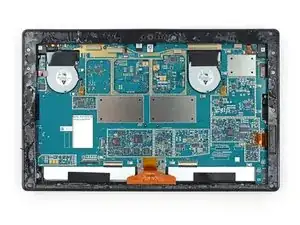

    • We flick aside four ribbon cables, and with that, this tablet's internals are revealed to the world.

    • At first glance things look eerily similar to last time, although the motherboard is a pretty new shade of ...blue? Green?

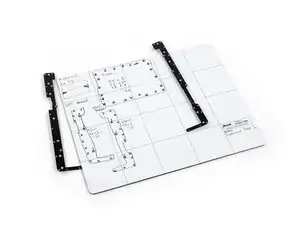

    • Before we can poke or prod any components, we'll first have to extract the dozens of screws holding this sucker together.

    • And whaddya know—it's the same 52 screws (of 3 different sizes) seen in the previous generation, holding in a plastic bezel and two metal brackets.

    • As much as we love screws, 52 seems like overkill, and we've only just scratched the...exterior of this device.

    Beware of two ribbon cables secured by adhesive to the frame that are connected to the screen as well. These are for the digitizer and I broke mine

    Dave Siu -

    I bought the ifixit Minnow tool set that comes with T5, T4, and T3 torx…and these T3 do NOT fit. Ya might have better luck with T2.

    Paul Peavyhouse -

    What do you mean "flick aside"? Show me how the cables are secured to the motherboard. I broke the tab on the center cable.

    Kent Burel -

  5. AEyhtEc4LPBvBIro
    AEyhtEc4LPBvBIro
    4CEaIrQritsSDEM3
    pJ5LUoALji3dgKts

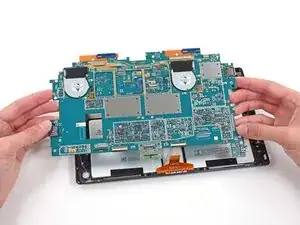

    • Finally, the motherboard is free and we can get at the fun stuff.

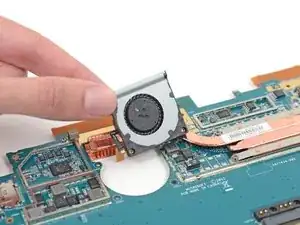

    • Changes to the cooling methods from the original Surface Pro are strictly software-based: the fans remain the same, but run less frequently to minimize power usage.

    • If you fancy a little copper with your tablet, the Surface Pro 2 has it: a notebook-worthy heat sink rounds out the cooling.

    The one I’m working on has 10 different sized screws, requiring 3 different sized torx bits. The batteries in this swelled up so big they popped the screen off. It’s a little annoying that they want you to adopt something as a replacement for a traditional PC that’s only going to last as long as the buried in battery. I would not recommend fixing this hardware in the future. Like most things these days, unfortunately, throwing it away may well be the best option.

    Kyle Legg -

  6. 6EKeEemCxG2XGGL4
    6EKeEemCxG2XGGL4
    FJF5snZQroCSEVHG
    g3TSEtLy4aJAOeov

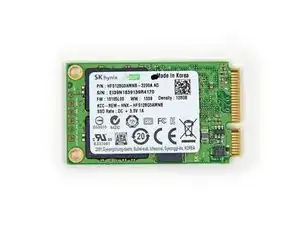

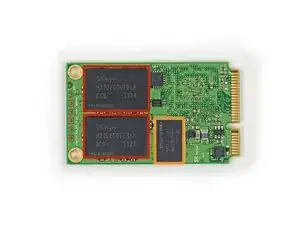

    • We've got storage! This time around, Microsoft shifts from a Micron/Marvell combination to one single IC manufacturer, SK Hynix.

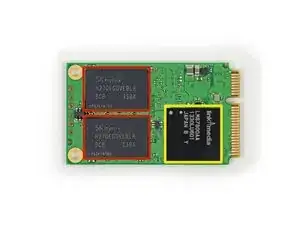

    • SK Hynix HFS128G3AMNB 128 GB mSATA 6.0 Gbps SSD, using:

    • SK Hynix H27QEGDVEBLR 32 GB NAND Flash (four ICs for 128 GB total)

    • SK Hynix H5PS2G63JMR 32 MB DDR2 SDRAM

    • Link A Media LM87800AA SSD Controller

  7. MtAMmHIbSkp4nXtM

    • The ICs on the front side of the motherboard may look like little black squares on the (ahem) outside, but underneath they house some high-tech brainpower:

    • SK Hynix H9CCNNN8JTML 8 Gb (1 GB) LPDDR3 RAM (total of 4 * 1 GB = 4 GB)

    • Atmel MXT154E Touchscreen Controllers

    • Atmel UC256L3U 256KB Flash, 32-bit AVR Microcontroller

    • Winbond 25X40CL1G 4M-bit Serial Flash

    • Parade PS6625

    • Realtek ALC3230 Audio Codec

    • Atmel U1320J

    Does anyone know what the product number for the 8GB Ram Memory for the Surface Pro 2 or better yet the Logic Board Number? TIA!

    Teogenes B Diores Jr -

  8. ZMCBmnR2YWkmyTBd

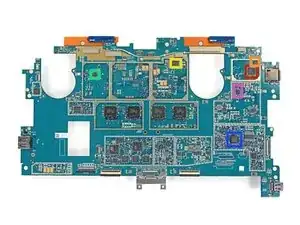

    • Yet more ICs adorn this side of the motherboard:

    • Realtek RTS5304

    • MXIC MX25L4006EZNI 4Mbit SPI (Serial Peripheral Interface) Flash

    • Novatek NT96132QG

    • Texas Instruments TPS5162 (ACTIVE) 2-Phase DCAP+ Step-Down Controller

    • ITE IT8528VG

    • Texas Instruments TPS51367 Integrated FET Converter with Ultra-Low Quiescent

  9. pyysiaSBiXC5g4ft

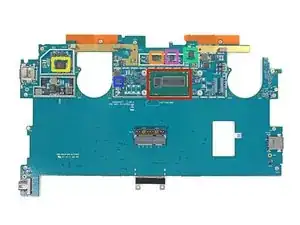

    • The ICy party continues on the back side of the motherboard:

    • Intel Core i5-4200U Processor

    • Novatek NT96132QG

    • Marvell Avastar 88W8797 Integrated 2x2 WLAN/Bluetooth/FM Single-Chip SoC

    • Winbond 25Q128FVSQ Serial Flash presumably the next generation of the previous 25Q64FV

    • Texas Instruments TPS51367 Integrated FET Converter with Ultra-Low Quiescent

    • Winbond 25X05CL Serial Flash

    Is there any indication that they updated / changed the MicroSDXC slot vs. the Surface RT? Like adding extra pins to read UHS-1 / 2 cards at faster speeds?

    somedorque -

    I agree, any news about this?

    Raphael Nocherier -

    "The display assembly consists of a fused glass panel and LCD, and is extremely difficult to remove and replace."

    LOL! That's a good thing. It's called an optically bonded screen, and it's vastly preferable to a non-bonded screen, for obvious reasons.

    Besides, what idiot would try and repair his tablet. Send the thing in and get it fixed.

    Hubert Hammack -

    do you guys have any idea what kind of protocol the (cover) connector has?

    tfBullet -

    @Hubert Hammack. How long lasts a battery? 2-3 years! So I should throw away my surface, just the battery is damaged? Or I have to pay 300$ or more. I'm quite sure, that in 3 years, I can buy a new surface for that money. So we are just wasting again the resources of earth.

    And why the !@#$ I can't change the SSD. Of course, so that I have to pay 1800$ to get the biggest 512GB SDD, instead of 899$ for 64GB. 900$ for 512GB SSD??? There is no excuse for this. It is just stupid and greedy. When MS is able to use 52 screws, why the !@#$, they can't use 4 of then for dismounting the display?!

    Helli Hellsfoul -

    Samsung 840 EVO 1TB mSATA SSD is only $859.

    Double capacity. Same price.

    Ronnie -

    Hi guys,

    I noticed the default SSD is a 1.8" mSATA, but, for instance, the Samsung 840 EVO is a 2.0" mSATA. Do you happen to know if a 2" one would fit (haven't open the Surface Pro 2 yet)?

    Adi V -

    I use my Surface Pro 2 with an mSATA Samsung 850 EVO ever since the original Liteonit SSD fried. Works like a charm.

    lubarts -

    Hi,

    Who manufactured rear camera and what is the model?

    marcin -

  10. K2niAACEarnaRhVG
    K2niAACEarnaRhVG
    5FcgVpg64ssBc5MX
    n2uPi6YnlWZ3n4aU

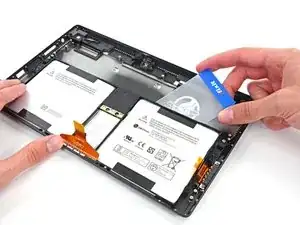

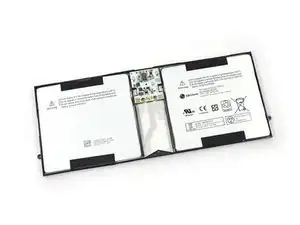

    • Microsoft still adheres the battery to the rear case and still warns users not to remove it.

    • Pretty ironic, considering they clearly know their way around a user-friendly means of securing a battery—screws.

    • If you're looking for the secret of the Surface Pro 2's juiced-up battery life, look elsewhere: this is the exact same "Escalade" 42 Wh battery we saw earlier this year.

    • Instead, look to better power management and the Haswell i5 chip, which ensures that the tablet drinks in moderation.

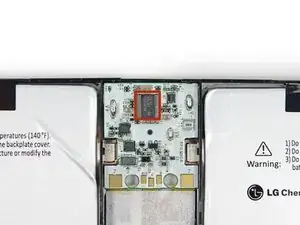

    • The two battery cells are wrangled by a Texas Instruments BQ30Z55 cowpoke battery pack manager.

  11. 6nAUMgJTq364IiXu
    6nAUMgJTq364IiXu
    aomGWGZYvGLkPdUR
    GqsskmBNnIUrRU2I

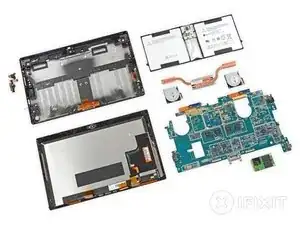

    • Microsoft Surface Pro 2 Repairability Score: 1 out of 10 (10 is easiest to repair)

    • The battery is not soldered to the motherboard—so it can be replaced without soldering, if not without great difficulty.

    • The SSD can be replaced, but not without first risking damage to the tablet simply by opening it.

    • There are over 90 screws inside this device. Mechanical fasteners are great, but frankly, we draw the line at 89.

    • The display assembly consists of a fused glass panel and LCD, and is extremely difficult to remove and replace.

    • Tons of adhesive hold everything in place, including the display and battery.

    • The delicate and arduous opening procedure leaves no room for mistakes: one slip-up, and you'll likely shear one of the four ribbon cables in the edge of the display.
