Mophie PowerStation 5X Teardown

Geschrieben von: Larry Chen
Veröffentlicht: 06/03/16
  • Kommentare: 4

Mophie PowerStation 5X Teardown

Veröffentlicht: 06/03/16

Teardown

Einleitung

Open and disassemble the power pack for repair purposes. More details:

https://www.facebook.com/notes/larry-che...

  1. RgOirZlrRjmRGgoZ
    RgOirZlrRjmRGgoZ
    wYh1eQunSlSftgZS
    aUqNlees3WUSLLad

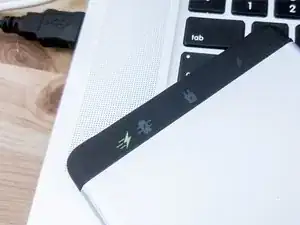

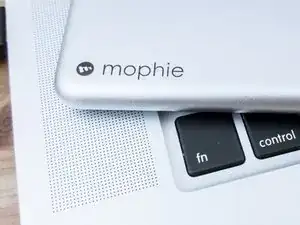

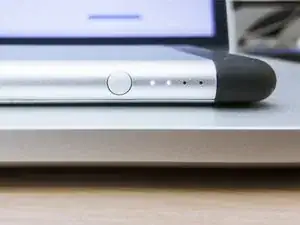

    • The device.

  2. LrfNgkmAgA3tuklN
    LrfNgkmAgA3tuklN
    MELsAfKcOMqP44Q3

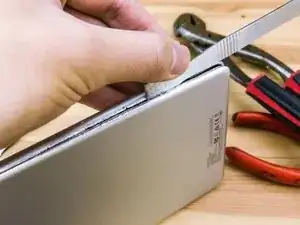

    • Open the device using a flat head screwdriver and pry the lid up from the middle carefully.

    • Use a metal spudger along the side to open the lid.

    • Don't push inside too much.

    • This will damage the metal case.

    • The lid is glued to the plastic in the front.

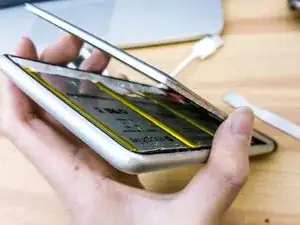

    Batteries are also glued to the lid. You will need to use something blunt like a butter knife to separate the glue from the battery to prevent damage before opening the case too far.

    jlhrstv -

  3. N1ItOJRVxJOAATiU

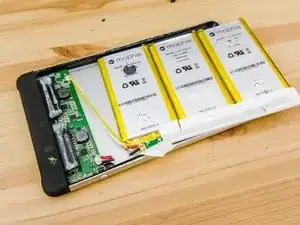

    • Disconnect the battery pack.

    • If you're having problems with the device, disconnect the battery and then reconnect it. That solved the no output problem for me.

  4. 3ryO53rtFdcMEoqD
    3ryO53rtFdcMEoqD
    pASAwdT3NjeeVuIe
    QKJrYHRXoj4wANsh

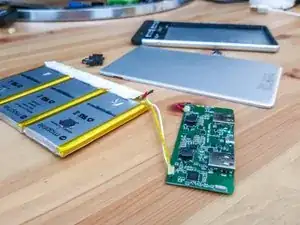

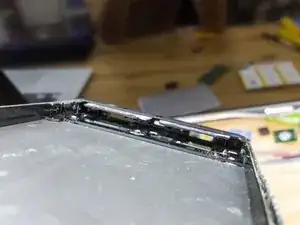

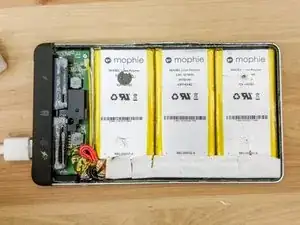

    • Photos of interior.

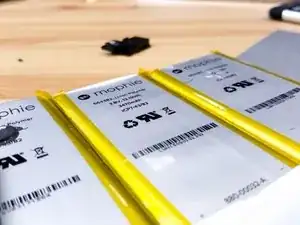

    • Battery is lightly glued.

  5. D4CXWbHHvJ1IDO4t
    D4CXWbHHvJ1IDO4t
    dHAjLfapyUOF5wxS
    yPgwVdXNZmEaSPAE

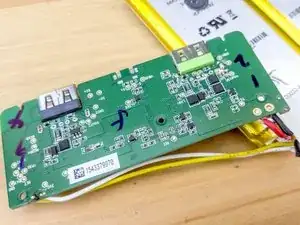

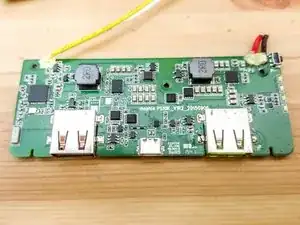

    • More images

  6. bLgOXZEaI6CME1K5
    bLgOXZEaI6CME1K5
    WQJWtOoKDjHFNoRY
    4XO24RSsm5GZFCMP

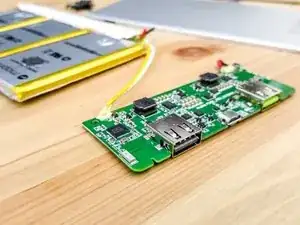

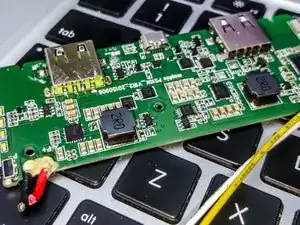

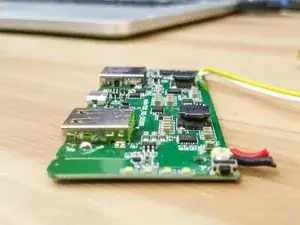

    • More photos

  7. rcohimYVjoBjHHXS
    rcohimYVjoBjHHXS
    1PIvtLO2L6aYGuSE
    ntBMZuysWlgbpvf5

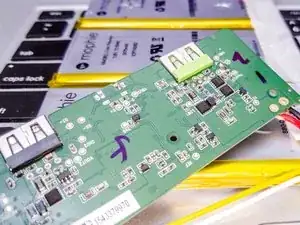

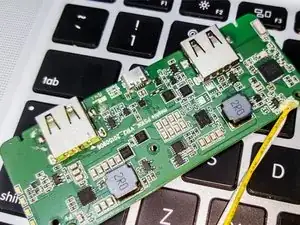

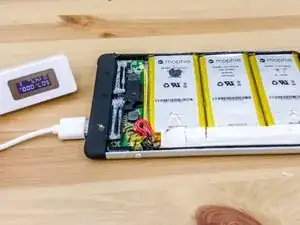

    • More images

  8. aknVCT1dgIqG2Ifi
    aknVCT1dgIqG2Ifi
    LnY6Au6cp3VpUx2V
    vi1wqXSKPF2XtDHR

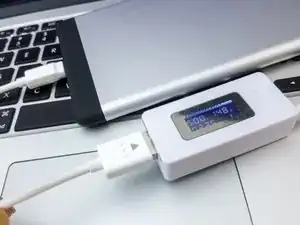

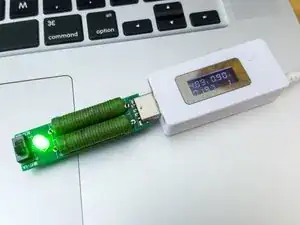

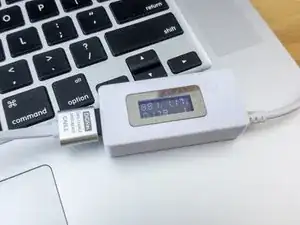

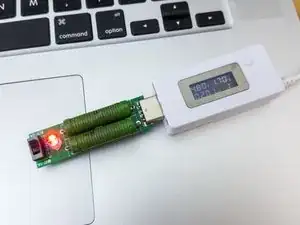

    • Power and current measurements. Red light is 2A load, green is 1A load. Max. power draw of Galaxy Note5 connected to fastcharge port is 1.62A.

    • Charge current measured at 5V and 9V.

  9. mH5iXJEFnRUyQHMB
    mH5iXJEFnRUyQHMB
    glHuCpghol5DxSMF
    HLnMqgckU5BOPBMs

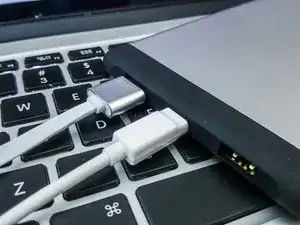

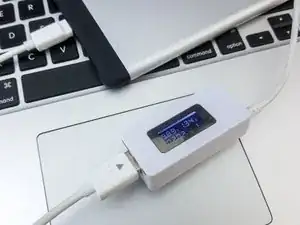

    • simultaneous input and output supported.

  10. j6sYZpJYcLieGcGW

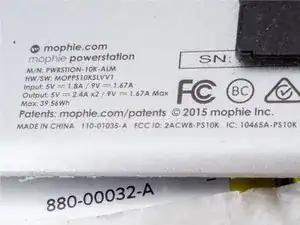

    • ratings

Tinte & Feder

Larry Chen

Mitglied seit: 23/04/13

904 Reputation

3 Kommentare
