Einleitung

  1. JyEHAvueJLMDbdjT
    JyEHAvueJLMDbdjT
    BSKli2yourPZ6CiD
    LE15OZKVkxtWjPPo
    • Begin by flipping your phone over so that the back cover is facing up.

    • Apply force to the back cover and simultaneously slide the cover down.

    • Note: Applying pressure on the ridges will make it easier to remove the cover.

  2. tVrukq4QakiQOSLb
    tVrukq4QakiQOSLb
    XssDmJCVDyDpiVDS
    ekSWaUHmYKWjAccX
    • Press the button labeled "PUSH" located at the bottom back of the phone. This will release the battery.

    • Lift and remove the battery.

  3. sHuHbIlNIwUhTpOB
    sHuHbIlNIwUhTpOB
    lVMXphKvhROwHKaP
    bPVauDPfe2YUQC5c
    • Do not bend or scratch the SIM card. In addition, keep it away from static electricity, dust, and water.

    • Gently slide the SIM card out and lift to remove it from the phone.

  4. dlLyk4It4LZdxP2S
    dlLyk4It4LZdxP2S
    DFf5R2hq6p1nNGeZ
    6CXwCZr5Ki3bMC6k
    • Use a Torx T-5 screwdriver to remove the screws on the back of the phone.

    • The screws are 6.86 mm long and 1.61 mm in diameter.

  5. Un1KlODsiWVdCmjj
    Un1KlODsiWVdCmjj
    AKYqnbwJuUJCGSYc
    mv26AkUwKEBrDgpW
    • Slide a pry tool underneath the adhesive rubber stip and peel it back away from the phone.

    • Repeat for the other side.

  6. 2DyHHOFOA54Cev1c
    2DyHHOFOA54Cev1c
    nvMkcXYwAHutuIy1
    exTlvsIPVC4NxNgB
    • Insert the pry tool in the slit on the side of the phone and slide it down until you hear an audible click and the phone bottom loosens from the top.

    • Use the pry tool to release the two hooks on each side and the two hooks at the top holding the case together.

    • Release a total of six hooks from the sides and top to free the phone into two halves.

  7. DyfICCaYLuPaGPpY
    DyfICCaYLuPaGPpY
    t4MwvPvnMQpoNMHQ
    ZMMG3QsGPpuRlKZx
    • Using a Torx T-5 screwdriver remove the screws at the top of the phone.

    • The screws are 6.86 mm long and 1.61mm in diameter.

  8. uLOlVMhRlXyBIWJ1
    uLOlVMhRlXyBIWJ1
    sSK2MSAFZglRwAOa
    ABJtXSIGYDkgbPWr
    • Use plastic opening tools to free the circuit board from the case.

    • There are two hooks (one on each side) holding the circuit board into the case.

    • Then grip the circuit board and lift to remove the circuit board from the case.

  9. pixyPtVSwg32iHoM
    pixyPtVSwg32iHoM
    U1wTPLZbG3IAkeaG
    • On the top half of the phone push downwards on the number keys to free the keypad from the top of the phone.

  10. oufjBp515CHsUZxG
    oufjBp515CHsUZxG
    CHUui5XBHDJayZoc
    4uEmYHoBkndsrfU1
    • Unhook the antenna by releasing the two hooks, one on each side of the phone.

    • Detach the antenna from the back of the circuit board

    • This small black rubber cover may detach.

  11. iAIhQjJ3jCSUCFvo
    iAIhQjJ3jCSUCFvo
    ZKaILlqsXgRHyLHa
    • Using your hands or the pry tool, gently lift the vibration mechanism out of the rear casing.

  12. ANrVECMfKWjbZIf4
    ANrVECMfKWjbZIf4
    Mlxtwmxq6LNnMZJD
    QhAPKoPxAaptDcqa

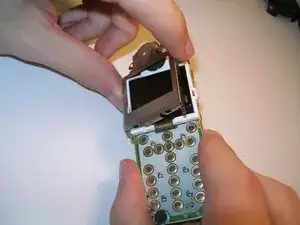

    • Unhook the 10 clips holding the metal screen cover in place and pull up to detach it from the logic board.

    • There are four clips at the top, two along each side, and two clips at the bottom of the metal cover.

  13. HlkM5ypWTAn4wdhM
    HlkM5ypWTAn4wdhM
    xKoCLbtqRFpB2BGm

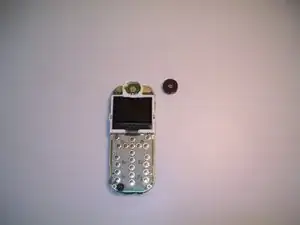

    • Lift to remove the speaker from its contact point on the logic board.

  14. p6B63hlijKLoJspS
    • List of Parts: Battery, SIM Card, Vibration mechanism, back cover, Front Case, Back Case, 2x rubber sides, 4x Screws, Antenna, Speaker, Keypad, Metal screen cover.
