This is Pic of the Device from Arris Website. Arris Group Acquired Motorola Mobility's Home Unit From Google for $2.35 billion on December 19, 2012

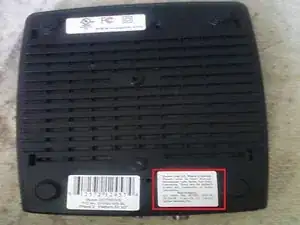

Here is the Bottom the Set Top Box, There Two Screws and a Few Clips Holding the Box to Two Gether

Red: This Sticker Lists off Patents 4,631,603 , 4,577,216 , 4,819,098

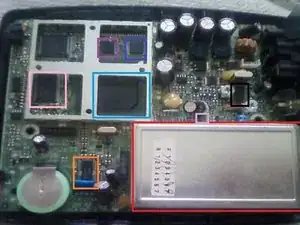

Red: TDER1-001A High Quality TV Tuner from Wansheng Electronic

Light Blue: CX24462-11 Cable TV Decoder from Conexant Systems

Purple: CY62137CVSL-70BAI 2M (128K x 16) Static RAM from Cypress

Pink: HY5DU281622ET-5 128M(8Mx16) GDDR SDRAM from Hynix Semiconductor

Blue: F320C380 3 Volt 32-MBIT Flash Memory from Intel

Orange: LA7784 Downconverter for Digital CATV from Sanyo

Light Purple: MAX3510 Upstream CATV Amplifier from Maxim Integrated Products

Back: MC44BC375U PLL Tuned VHF Audio / Video Modulator from Freescale Semiconductor

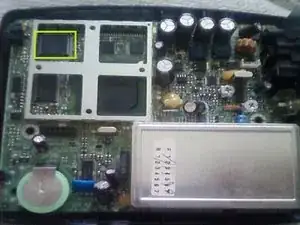

Green: Now Here's Something Interesting, It's Custom Designed IC, Possibly Made by Motorola and Manufactured by Three or More Companies. This IC Can be Seen Many Set Top Boxes, What This IC Does Exactly is Unknown But Its Thought to be Scrambler and Descrambler

My Only Source of Information is This Web Site: http://id-discussions.com/forum/showthre...
