Motorola Defy Teardown

Geschrieben von: Jared
Veröffentlicht: 05/12/11
  • Kommentare: 7

Motorola Defy Teardown

Veröffentlicht: 05/12/11

Teardown

Einleitung

This disassembly will show you how to remove the logic board as well as the lcd.

  1. LwBCwpOFanD1cWn6

    • Power down the phone

  2. EWHVgZAWTD122Zi5
    EWHVgZAWTD122Zi5
    2qhMHlxQNSaUYDdB

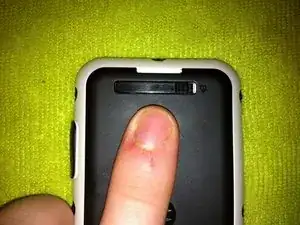

    • On the back there is a slider that locks the back cover on slide this over to unlock it.

  3. FeqIbi54cOTWEnCJ

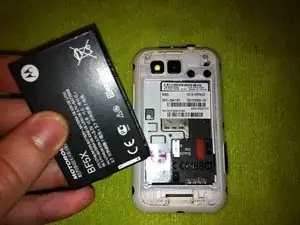

    • Remove the battery and sim card as well as the micro sd if one.

  4. S3bJjvkIwVTCZQAN

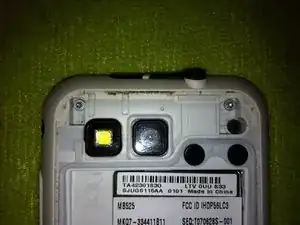

    • Remove the two torx screws in each corner.

  5. 3bLZxOkMEKxZpi3m
    3bLZxOkMEKxZpi3m
    E2Sd55JjktMshreJ

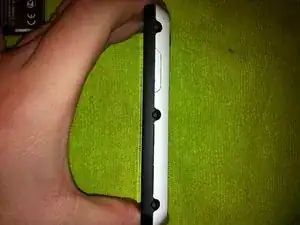

    • Remove the 3 torx screws on both sides.

    • Now remove one more torx screw on the bottom.

  6. axPfHajoYI2otLiS

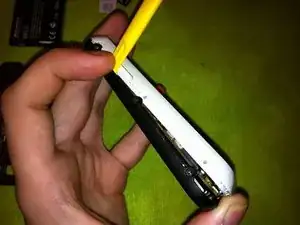

    • Use the pry tool and insert in between the black and white plastic. Slide across all sides to unlock the clips holding it together.

  7. HxaWISkKfoBhlFaL
    HxaWISkKfoBhlFaL
    NWmTsxTMM2cT35PB
    yjGEgX2NbHwpnPky

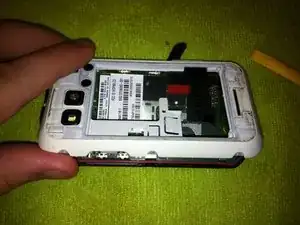

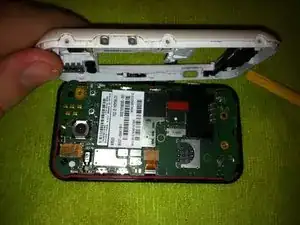

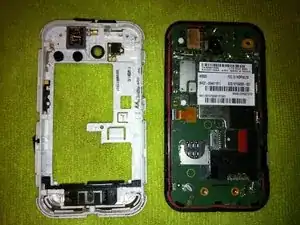

    • Remove the the back case (white section) revealing the logic board.

  8. VNvsW5EUgCUoY1x5
    VNvsW5EUgCUoY1x5
    1Kw1Nl63ooSttUsZ
    5EpEpN5wLOaV1PON

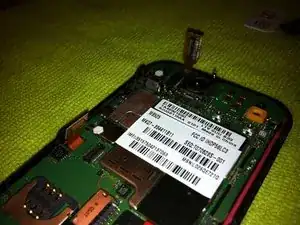

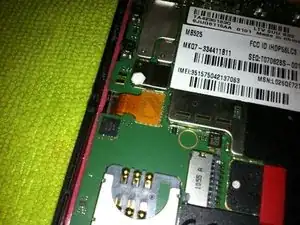

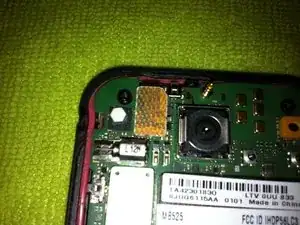

    • Use the pry tool and detach the digitizer cable and LCD cable from the board.

  9. wAXiTDPSZaG2mGQd

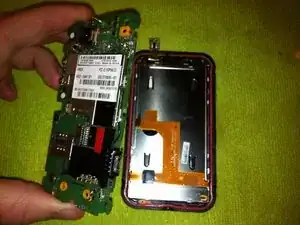

    • Lift the logic board out of the phone revealing the LCD.

  10. QvUWT3PtuEEKSFdc

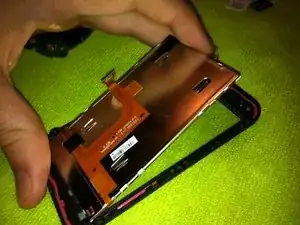

    • Use pry tool to gently lift the LCD out of the phone revealing the digitizer.

    i would like to reuse LCD, does anyone know how connect and what to send to the display

    lub -

  11. WJJpgNwtcqds2KXu

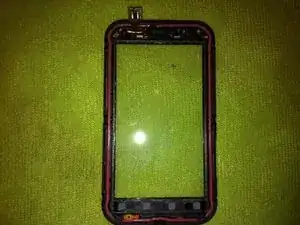

    • Now all that is left is the digitizer frame holding the digitizer.

    • To remove a broken digitizer heat the front edges of this frame to soften the digitizer adhesive and pry away from the frame.

  12. a5uLjWdTWCMB4OH1

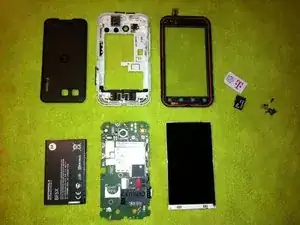

    • Thats it now just follow these steps in reverse to put your phone back together.

    CAUTION: Be sure not to touch the LCD screen or the back side of the digitizer after removing the protective plastic. If you do, you will see finger prints that you cannot remove after reassembling the phone.
