Motorola Moto G 2nd Generation Teardown

Geschrieben von: Sophia
Veröffentlicht: 05/02/15
  • Kommentare: 18

Motorola Moto G 2nd Generation Teardown

Veröffentlicht: 05/02/15

Teardown

Einleitung

  1. dbjmhVWR6WjpJR46
    dbjmhVWR6WjpJR46
    RKVSKsKlESC2rVau

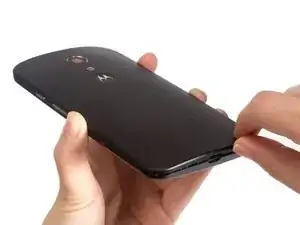

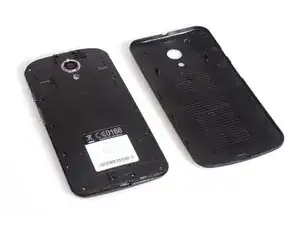

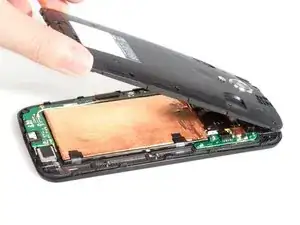

    • Remove back cover. It's easy, no adhesive and no screws.

    Also remove the SIM and SDCard!

    Ben Low -

  2. nVALMGgJNAKIyWxJ
    nVALMGgJNAKIyWxJ
    wuXxhB4dbtSGAoiK
    21yPIrUjk2GdUhxu

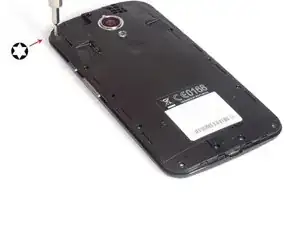

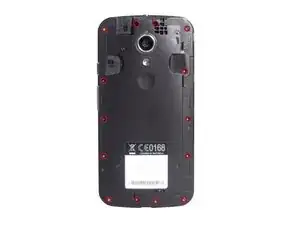

    • Twist off all 14 screws together and remove the back frame easily. But the screws feature different lengths, you'd better remember their positions.

    "You'd better remember their positions" Can't you make full guides on all your devices?

    Glaceau Clara -

    Hi there! This is a teardown, not a repair guide, check the full manual to see more complete guides, here for instance is a detailed screw removal step.

    Sam Goldheart -

    Just for completion as I made the same mistake today.

    The longer screws are at the top and the bottom (2x4 screws) and the shorter ones (2x3) at the left and right side of the case.

    Took me some time to find out which one goes to which position.

    Sebastian Schwägerl -

  3. gFmR3hZiAmTssrW6
    gFmR3hZiAmTssrW6
    hEWiQ2rwZDlxGVYP

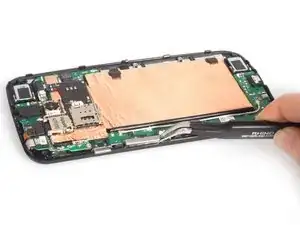

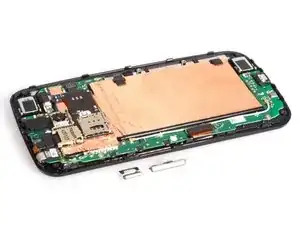

    • Take away the volume button and power button.

  4. kOoJWPWZ1XCFqpLH
    kOoJWPWZ1XCFqpLH
    IMQlrAZL3ILYhS6y
    uMLYFbrC5ZexLXUW

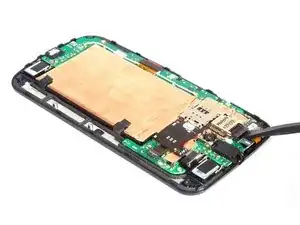

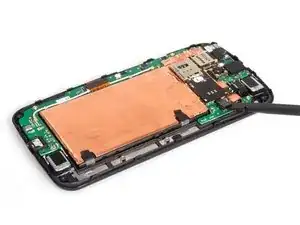

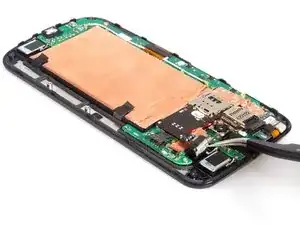

    • Release SIM&SD card reader connector and battery connector. And get the vibrator motor free from adhesive.

    Can u explain little detailed about this step. Unable to release sim connector.

    Goutham Ram -

  5. FyPp2ooaEMqhgMH5
    FyPp2ooaEMqhgMH5
    cM5MAIerYxAC15rh
    u3DjiqWsG3wnYjNA

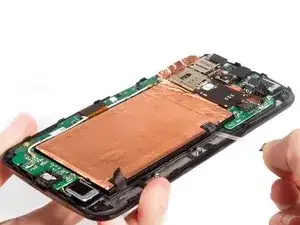

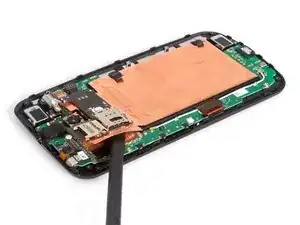

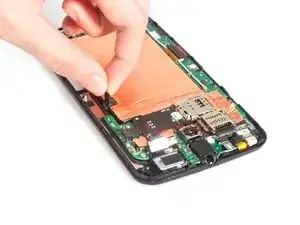

    • Loosen the platinum foil under SIM & SD card reader from plate. And then drag the stickers out which fix the battery.

  6. xT2lnIQFwQrrvH1C

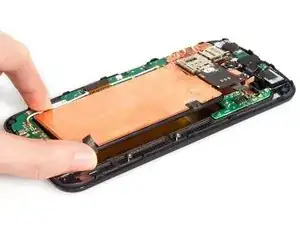

    • At that time, remove the battery with SIM & SD card reader assembly together.

  7. LQvIYA2KbkiDelBC
    LQvIYA2KbkiDelBC
    yFAUXMxbrMc5Q5N5
    gt4R3OgsJKVsNEsj

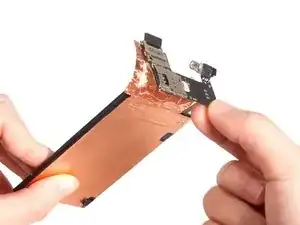

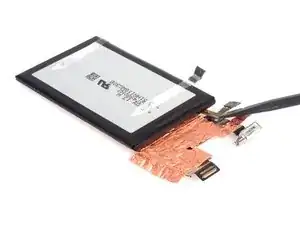

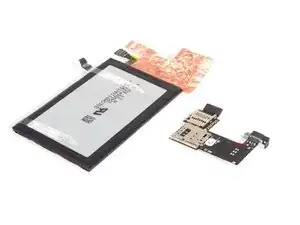

    • Separate battery and SIM & SD card reader assembly.

  8. 6V4tQWxOMSleBAME
    6V4tQWxOMSleBAME
    UklJdY5uUaZwDXXo
    3bH1KjJvxHFZokIc

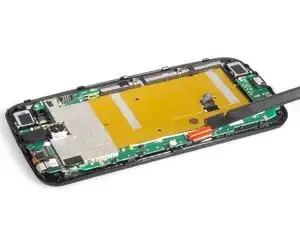

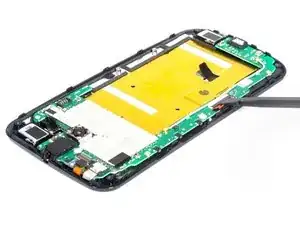

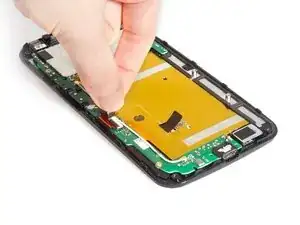

    • Release LCD screen connector from motherboard.

  9. DvjQUHfW6MgtJCkb
    DvjQUHfW6MgtJCkb
    YbBbHLmjgjBq2U1V

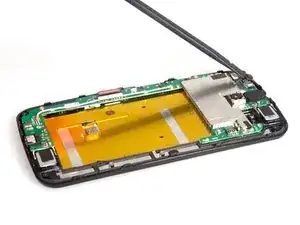

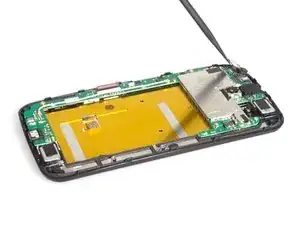

    • Release sensor flex connector and front camera connector respectively.

  10. NCutCxfN6YwK2GMf
    NCutCxfN6YwK2GMf
    RNMCfRCuCyKknOEx
    tEKiSY13HxpZMrF4

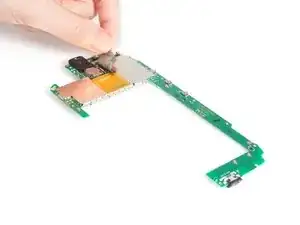

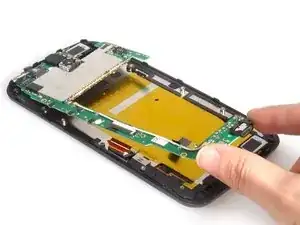

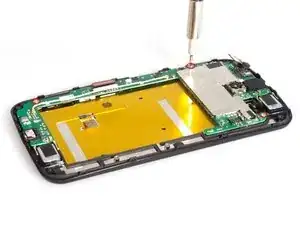

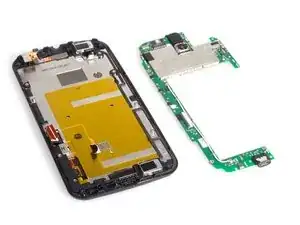

    • Remove screws on the motherboard and the motherboard can be removed easily.

  11. TmgqReXIxurdD4wZ
    TmgqReXIxurdD4wZ
    aYGFNH4u3mAGZaWM
    JYApv2XLW6UkJ3nK

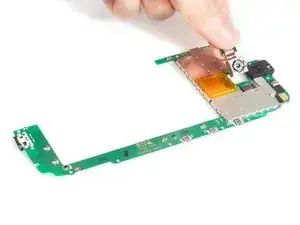

    • Remove rear camera.

  12. RLZA1XG1Xnx1TS6G
    RLZA1XG1Xnx1TS6G
    24jKUqsJJPXPPyBL
    CN4uqxKwGT1EHJuU

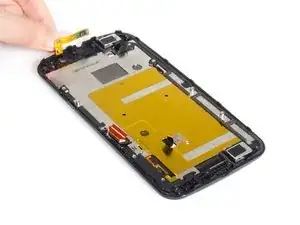

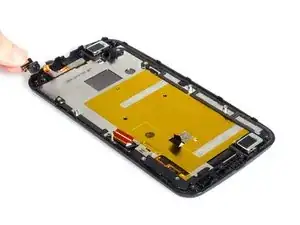

    • Remove front camera and sensor cable.

  13. lDnRtAS24yNibhK1
    lDnRtAS24yNibhK1
    GAKsZQMB3IBuHTKT

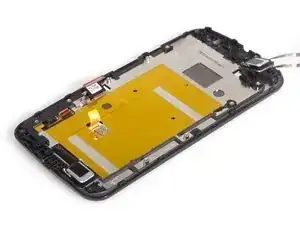

    • Remove earpiece and loudspeaker.

  14. F2uPsrBKrRqWvN45

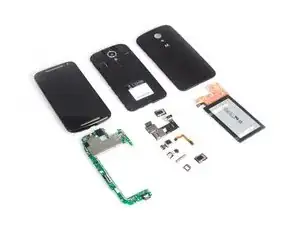

    • Done.
