Motorola Moto G3 Teardown

Geschrieben von: Witrigs
  • Kommentare: 9
Motorola Moto G3 Teardown

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

25 Minuten

Einleitung

  1. EtEWPiPdiH34R4CZ
    EtEWPiPdiH34R4CZ
    1w5QHrvlhHcK2rU5

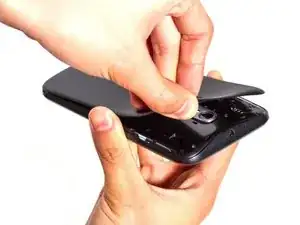

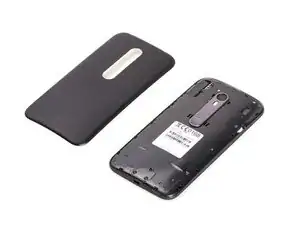

    • Remove back cover.

    • Moto G3 plastic panel can be easily removed with the fingernails.

  2. MN4VykH5I5Mf4iwt
    MN4VykH5I5Mf4iwt
    qmExj2MHKTukqCFB

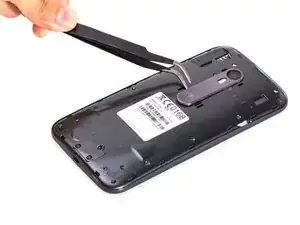

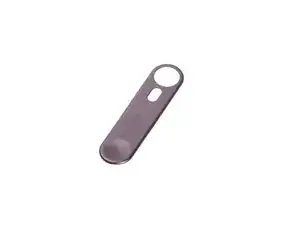

    • Remove camera&flashlight metal cover. Use tweezers to cut strong adhesives underneath.

  3. ZEr1XUSDfU66JBgX
    ZEr1XUSDfU66JBgX
    53om1vP6PiQsEBcC

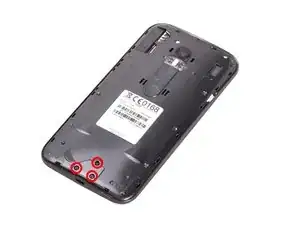

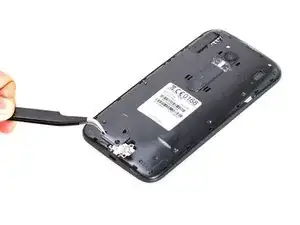

    • Undo 3 screws by T4 Torx screwdriver.

    • Take away plastic securing part.

  4. gDC3TcVHHdO6NCpK
    gDC3TcVHHdO6NCpK
    RZJmqsiYn2l5XCjO
    lohvVxqVXPb4twxi

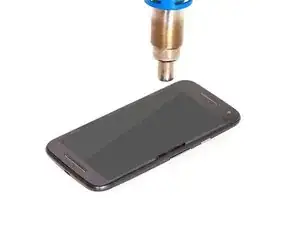

    • Heat up the LCD screen for a while.

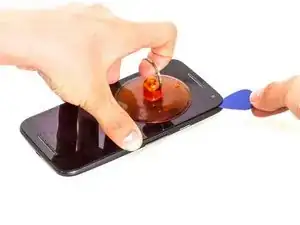

    • Then with the help of suction cup, insert guitar picks to open a gap. Slide guitar picks or plastic opening tool to cut strong adhesives.

    • There is LCD screen connector on the left side, so be careful to slide guitar picks.

    start prying the screen off from the top corners very gently. I started from the bottom and shattered the glass

    Bob Mcroy -

    A que temperatura debe estar el aire caliente? Durante cuánto tiempo?

    Luis -

  5. joOXcgbjlFNp4YiN
    joOXcgbjlFNp4YiN
    dLGLpGmuNHMBExP4
    DTVo2BaB6ImKy1xE

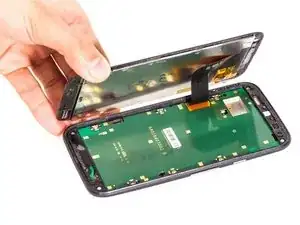

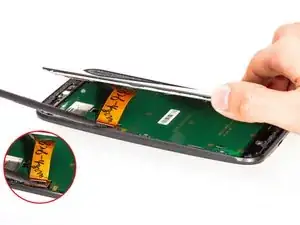

    • Release LCD screen connector firstly.

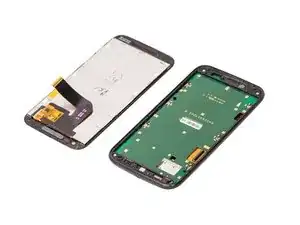

    • Remove LCD screen.

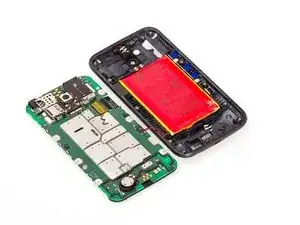

  6. DxUmMQQlFmtYYGc4
    DxUmMQQlFmtYYGc4
    IgnBWbOtRDyxyykF
    Yr6mp24boT3bl2mB

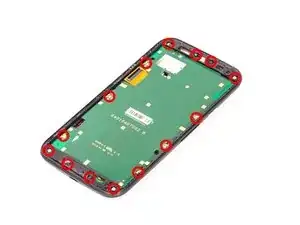

    • Undo 14 screws by T4 Torx screwdriver

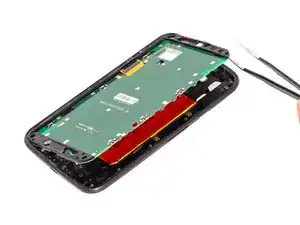

    • Pry up motherboard assembly.

    • Battery flex connector is connected with motherboard, so be careful to pry the assembly up.

  7. iLaR2pr1UnZEVZZm
    iLaR2pr1UnZEVZZm
    VxLvMNHroQ3YEONB

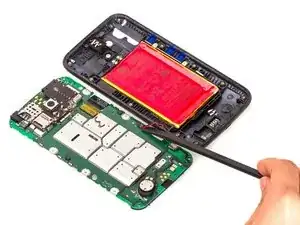

    • Release battery flex connector.

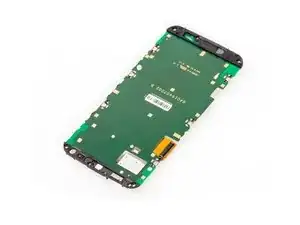

    • Separate motherboard assembly from back cover assembly.

  8. SnnAKNDaX1gIYblQ
    SnnAKNDaX1gIYblQ
    M2GcAS35rucBwiwt
    IThdtHg6RDBQQGYi

    • Undo 3 screws here.

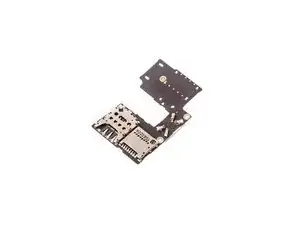

    • Use spudger to cut adhesives and pry the SIM&SD card reader board, then remove it.

  9. khpugwpDtNkYBLpe
    khpugwpDtNkYBLpe
    ASJpjBQ2MOUN3nXC

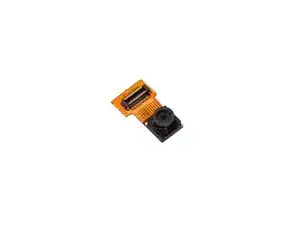

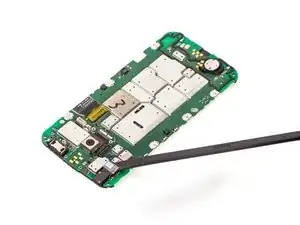

    • Remove front-facing camera.

  10. cW44s6VaDU2OV1YV
    cW44s6VaDU2OV1YV
    OGpPPOGgJSsx5XoT
    Pgf4JZ52PGrDFdaI

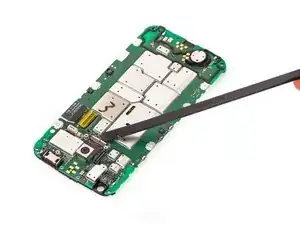

    • Remove rear camera.

  11. nTZxNZ3t3fsaKNXY
    nTZxNZ3t3fsaKNXY
    vMtXMKVxQnfdrZOP

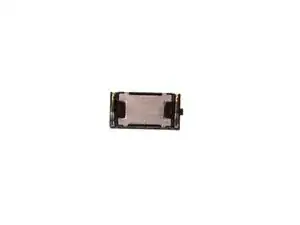

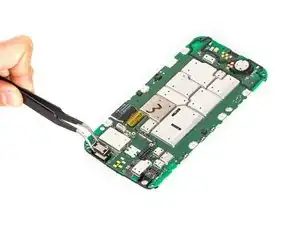

    • Remove earpiece.

  12. LQXD22XlfZVWpSXP
    LQXD22XlfZVWpSXP
    GHSYRD6EERlPTfPX

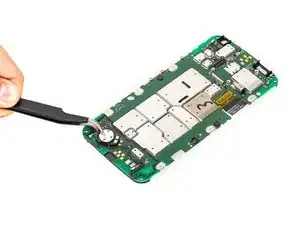

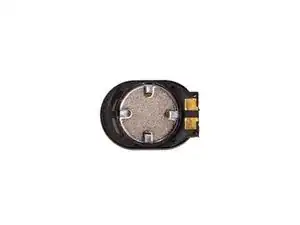

    • Remove loudspeaker.

  13. CZef4a3NCKSPTG4R
    CZef4a3NCKSPTG4R
    IQWxL6bG1BHEykeB

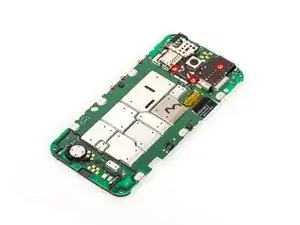

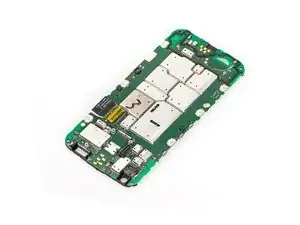

    • Here is the motherboard.

  14. euaAxKSHAywdhdBx
    euaAxKSHAywdhdBx
    leF1FvEppYu36TmS

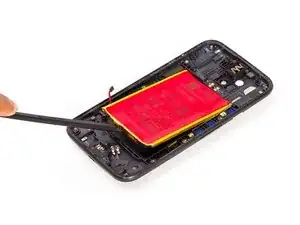

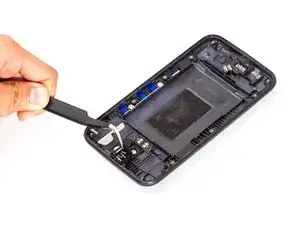

    • Use spudger to cut adhesive and pry the battery up.

  15. wAkayc1XmwJJvcxv
    wAkayc1XmwJJvcxv
    hHTE2DlnABN2ho6w
    Oa16L1Tib3bpKAH1

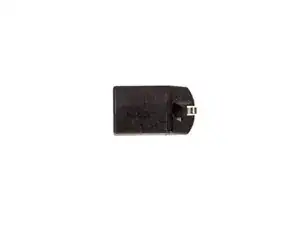

    • Take away headphone jack.

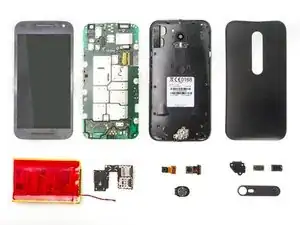

  16. rhActJTaOk5XdugW

    • Done
