Motorola Moto X Force Teardown

Geschrieben von: Witrigs
Veröffentlicht: 01/03/16
  • Kommentare: 10

Motorola Moto X Force Teardown

Veröffentlicht: 01/03/16

Teardown

Einleitung

Wanna know how to disassemble Motorola Moto X Force? Here show detailed steps.

  1. qg52REsMwMjWiLKs
    qg52REsMwMjWiLKs
    BZquskjW6kKAZWI2

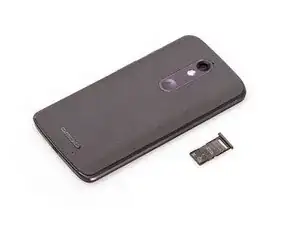

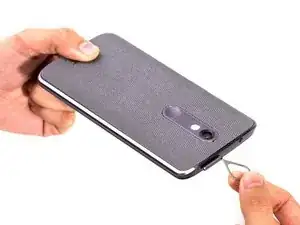

    • Remove it or it will be a barrier to remove motherboard.

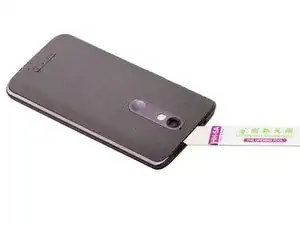

  2. YXKs6ewAZtqJ3d5N
    YXKs6ewAZtqJ3d5N
    YmBcuJe25LgOVqBH
    5aZpmjbyxJMGStXr

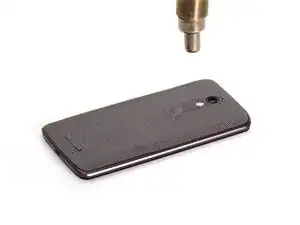

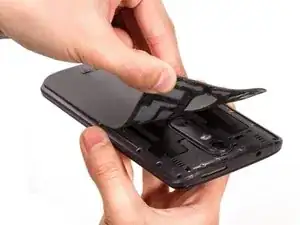

    • Use heat gun to heat up back cover firstly.

    • Insert metal opening tool to open a gap and cut adhesives around.

    • Take care when sliding tool under the back cover, there are delicate antenna and other components that could be damaged by your glue slicing tool

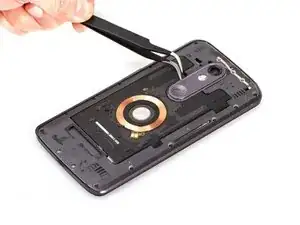

  3. HfnrAxJH5CaT3Ole
    HfnrAxJH5CaT3Ole
    UOcVCFJoDoGrf5bx

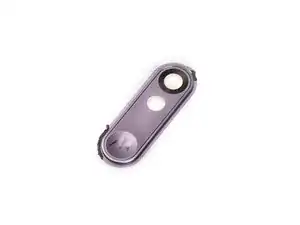

    • Use tweezers to cut adhesives underneath.

  4. ZUkxHFwCbsnOmVQ4
    ZUkxHFwCbsnOmVQ4

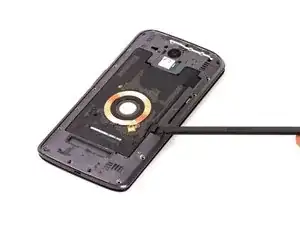

    6fybhQrXcguhbSLD
    DwyhBxaEd3xKcCR5

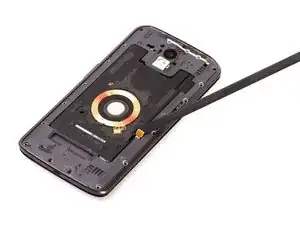

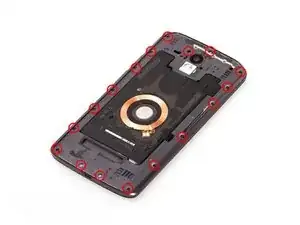

    • Twist off 17 screws by T3 Torx screwdriver.

    • Take away rubber bracket securing NFC antenna and release NFC antenna connector.

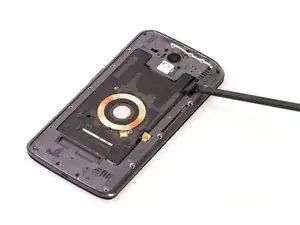

  5. nDs2gWiXxVXLxlrN
    nDs2gWiXxVXLxlrN
    SCt3lWb2yj64REsA
    PrOR2C3UHfQplLjo

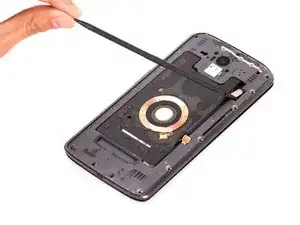

    • Take away rubber bracket securing MIC flex and release microphone flex cable connector.

  6. lOBAfY2kA3CJDeMS

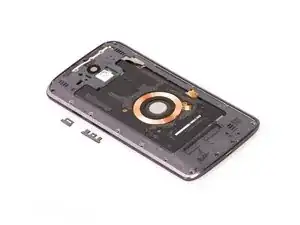

    • After middle frame's separating from the rest of parts, side buttons are loose and easy to remove.

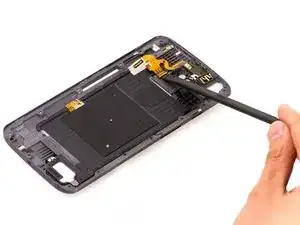

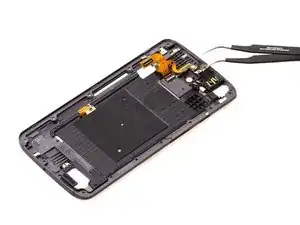

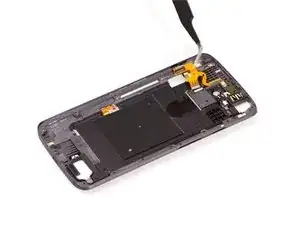

  7. KdwTSJLfJxQts1vP
    KdwTSJLfJxQts1vP
    kylL6thgwaYWRJwg
    BwNcXqBeVlWCmvAq

    • Release MIC connector.

    • There are adhesives existed underneath.

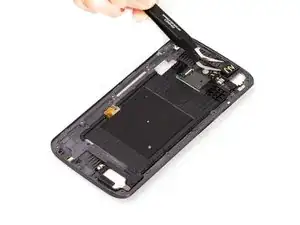

  8. pWdNLlIwk5DAK26T
    pWdNLlIwk5DAK26T
    4skETdKdNvAwOKpt

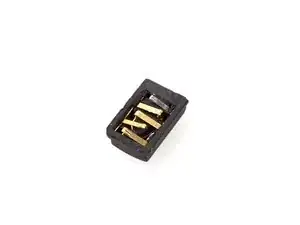

    • Use tweezers to pry this part up.

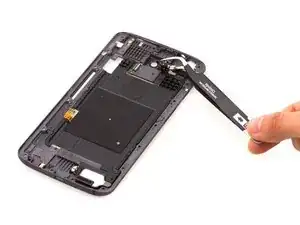

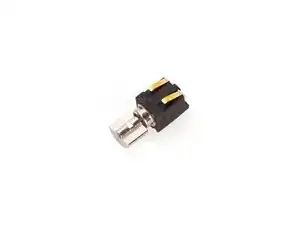

  9. lJMgxVkRTknwXZQe
    lJMgxVkRTknwXZQe
    PuO4bdKRFA6efWIk

    • The vibrator is only fastened by the plastic bracket.

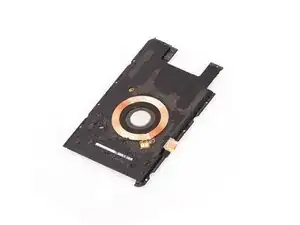

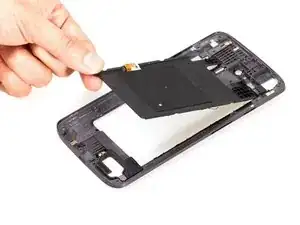

  10. rNqgIXMLtxyy3Sk5
    rNqgIXMLtxyy3Sk5
    Vp265S1akmIISlyV

    • There are a little bit adhesives around, but you can peel this part easily.

  11. hLCmBbokmItBQwHK
    hLCmBbokmItBQwHK
    l62Yx3nIifSkmlFf

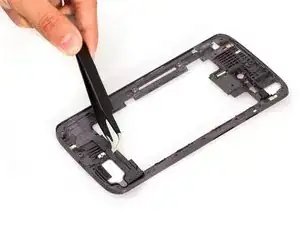

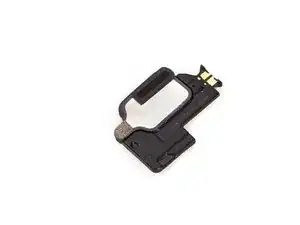

    • Pry this part up.

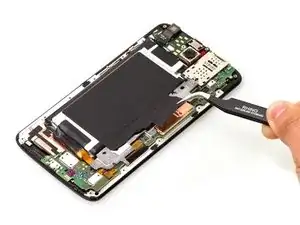

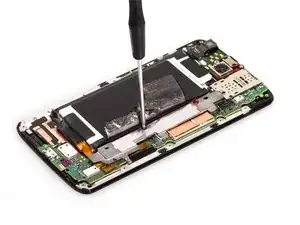

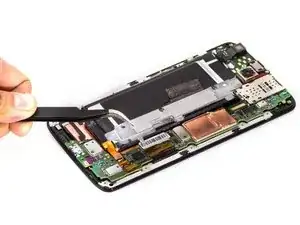

  12. 4kdHSEp6LVdKPoEv
    4kdHSEp6LVdKPoEv
    chhTEUHwXAc5UHey
    1Avf61nCSEgyyDBM

    • Peel off the tape.

    • Twist off 2 screws.

    • Take care not to apply any lateral force to the motherboard to metal bracket electrical connector when removing the motherboard bracket. If abused, the tiny spring could break off at a later date and causing short circuits within the phone. The connector is to the right of the side button connector and above the copper film screened component.

    The motherboard bracket is electrically connected to the motherboard by a very delicate spring connector. Any lateral force on the connector will snap it off the motherboard. Take care not to apply any lateral force to the connector when removing the motherboard bracket. Any damage to the connector could result in it breaking off at a later date and causing short circuits in other components within the phone. The connector is to the right of the side button connector and above the copper film covered component.

    OuterSpaceHoppa -

  13. NbBSf5rZlXcRThj3

    • Release this two connectors carefully.

  14. OZPfeUXhfNmKLKBa
    OZPfeUXhfNmKLKBa
    ROEXKEGPYrVtsp1P

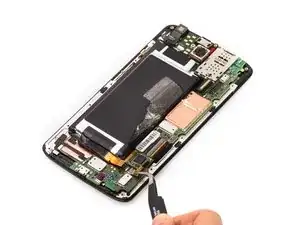

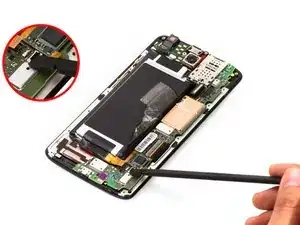

    • The LCD assembly has two connectors, here is touchscreen connector.

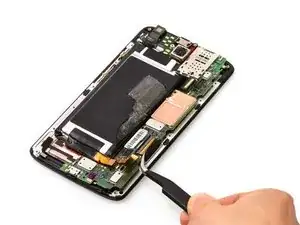

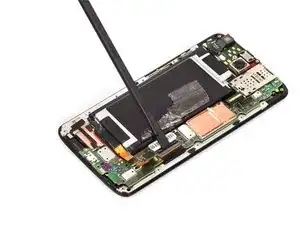

  15. sNnlbw6bcr4YCht1
    sNnlbw6bcr4YCht1
    jjibcRPlJ2cONhPd

    • This one is display connector.

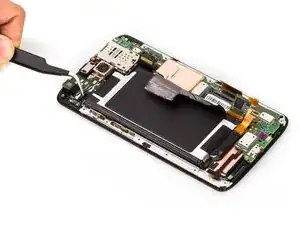

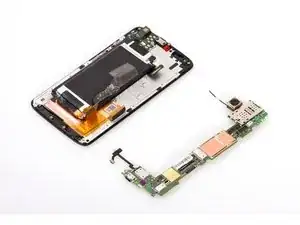

  16. oMFoPwQFNpvEHyIG
    oMFoPwQFNpvEHyIG
    sscRTnBW5IUuqXqf
    5iHQQI5GYpxU1O1G

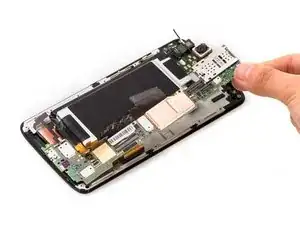

    • Release signal cable connector.

    • Pry the motherboard assembly up.

  17. WsGqweFGHGYT56uX
    WsGqweFGHGYT56uX
    yCiGstt23gvuMfO5

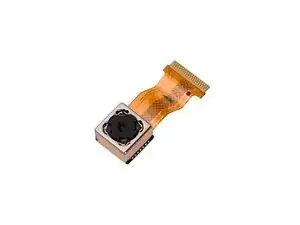

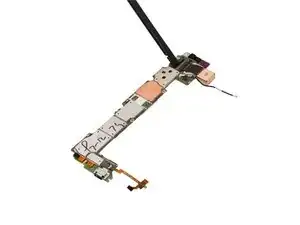

    • Moto X Force packs a 21-megapixel primary camera on the rear.

  18. 23nnNmFKg4gTIeD5
    23nnNmFKg4gTIeD5
    yBE3HX5vf5KCMFdE

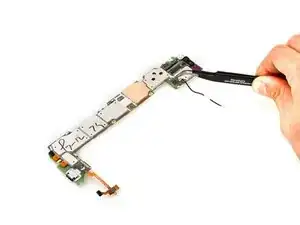

    • Use tweezers to release the connector.

  19. NFRfYKkTK2Tykl4x
    NFRfYKkTK2Tykl4x
    1EewsdyU4Ir4ErXC

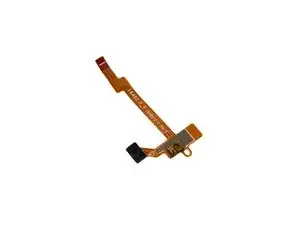

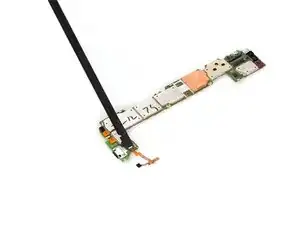

    • With this sensor flex, you can wave your hand on the top of the screen to wake up the screen.

  20. onQiikZw4DGfvOoT
    onQiikZw4DGfvOoT
    bYpJxZdXDlrnJESZ

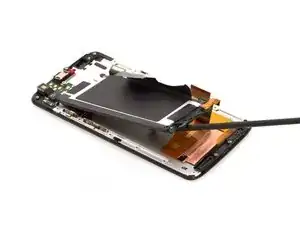

    • Non-removable Li-Ion 3760 mAh battery.

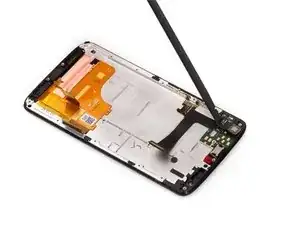

  21. mHqJZseBsOHbCuW6
    mHqJZseBsOHbCuW6
    DLW4pXgYri1hxWSy

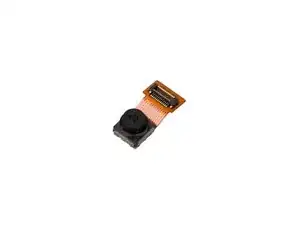

    • A 5-megapixel front shooter for selfies.

  22. BeBwpjnYC2RbsXeY
    BeBwpjnYC2RbsXeY
    freeGHBhvXdqVmaC

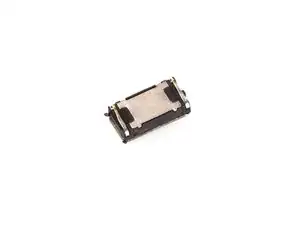

    • Be careful to pry this part up, because it tends to fall apart easily.

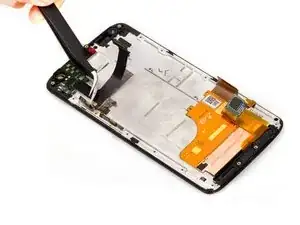

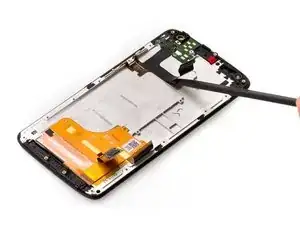

  23. mSFSGN3UVC4CIKnb
    mSFSGN3UVC4CIKnb
    1JK5PvpZWDKtHGJk
    OhEGG4ZPvhRJGO22

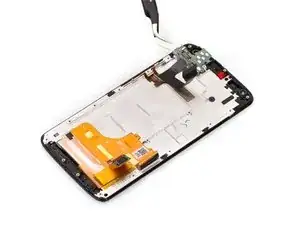

    • Use tweezers to cut adhesives underneath.

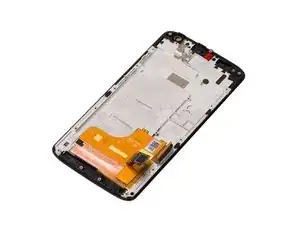

  24. 4mTtGCMUnmmc2SnH
    4mTtGCMUnmmc2SnH
    iIkBqVQRWSPQgQoF

    • Here is LCD screen with LCD supporting frame. They are attached tightly, so we haven't separate them.

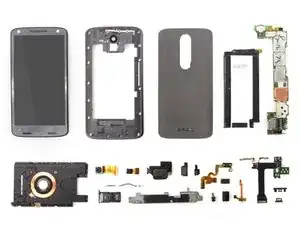

  25. l1hqREiqNPx1s6nB

    • Done.
