Einleitung

I will be showing you what is inside the Navig8r Navsport 1080p sportscam.

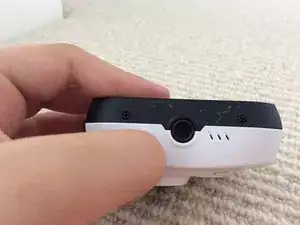

  1. nBTPKk1B5ZSR6Q51
    • Peel off the sticker under the camera, it will reveal 2 Phillip - Headed screws.

    • Peeling off the sticker below will void your warranty, please do this at your own risk.

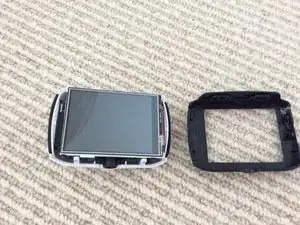

  2. JKV2myZGIj3TRJJf
    • Once done unscrewing them, carefully take off the black outline of the screen.

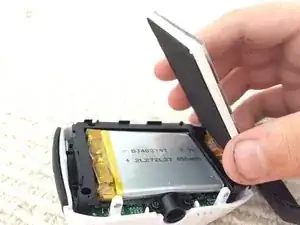

  3. MpKHSDqmCub2e4yl
    • Once you have done that, slowly take off the screen, there will be 4 Phillip - Head screws.

    • The top left screw is the hardest one to take off.

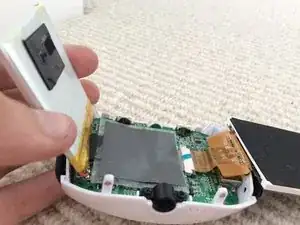

  4. oNuIDsJU4MrmMQwY
    • Once you've done that, take off that and you will see the motherboard.

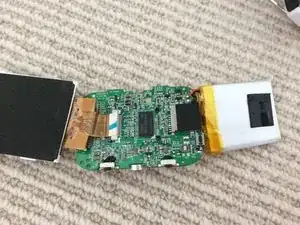

  5. 4rrg6RdxscYgpaJA
    • Take that black sticker off and we can now see the entire motherboard.

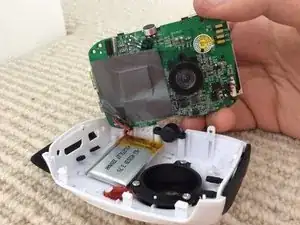

  6. fEPXA3ORB6F3Mn3g
    fEPXA3ORB6F3Mn3g

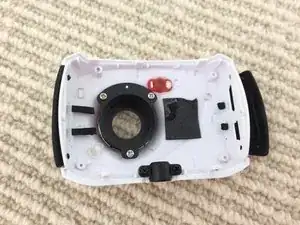

    HAyXNa4qyLTAY2Oo
    • Now we can take off the motherboard, revealing the front of the motherboard.

    • There seems to be a second battery on the front of the motherboard, I do not know what it does nor is used for.

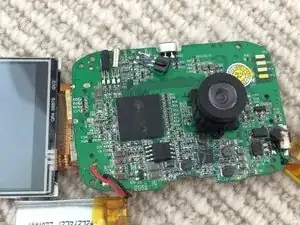

  7. NX1taQriO6bm1QWV
    • Here is the front of the Motherboard.

  8. oQUhapd6EmP3CtUS
    • ...and that sums up our teardown!
