Einleitung

NeXT Computer was founded in October of 1985 when Steve Jobs was forced out of Apple by John Scully. He started NeXT as a high-end computer company targeted at the University/Scientist/Computing Industry. NeXT only ever released , the NeXTStation, and The NeXTCube, in different variations. NeXT computers were high-end workstation computers, and only a few thousand were ever sold. The NeXTStation featured a, though the Turbo NeXTStation featured a68040. There were color and non-color variations of the NeXTStation. The world's first web server was created by Tim Berners-Lee, at CERN on a NeXTCube. NeXT computers were used to make games like Doom, and Wolfenstein. This is my&W NeXTStation. Mac OS X Is based off of NeXTStep, the NeXT OS.

  1. SF52VDulaDKjnjyf
    SF52VDulaDKjnjyf
    lwRTeKLAnGoQhPUj
    ofnL54mlplrSUDqx

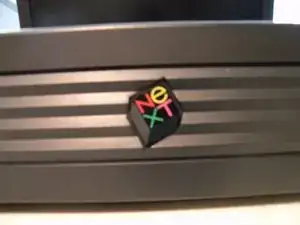

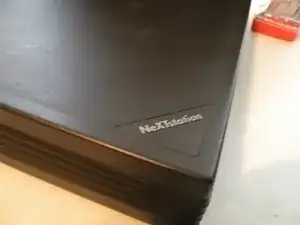

    • The NeXTStation, this is a great addition to any computer collection.

  2. tLk2gojVIGbLGLVX
    tLk2gojVIGbLGLVX
    RRutJ11U24Ik4GeG
    4mjgG5deFwTBJF6m

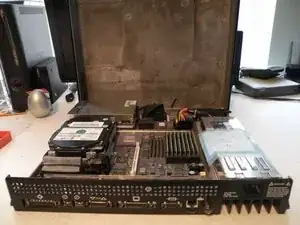

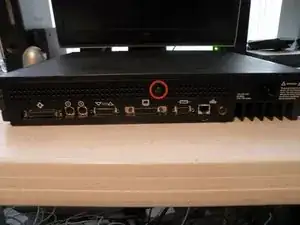

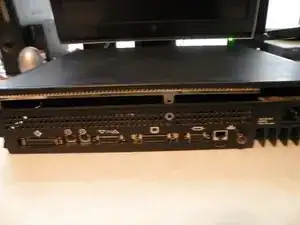

    • Turn the NeXTStation around, and remove this screw:

    • Then, lift the top cover of the computer. This will reveal the guts.

    • The ports from left to right: SCSI2, Keyboard & Mouse, DSP Port, DB-19(MegaPixel Display), DB-9(Serial), RJ-45(Ethernet), Coaxial (10b2 Ethernet), Power

    • I find notes in everything!

    " Keyboard & Mouse"

    Nope! Those are serial ports. The keyboard plugs into the monitor, and the mouse plugs into the keyboard.

    Also the DB-9 is the printer port, by which the NeXT laser printer was attached. I don't think it could be used for general serial communications. On the other hand, if I recall correctly the DSP port *was* usable for high-speed serial communications.

    jonhendry -

  3. UvVJPpR2b5O5pT3l
    UvVJPpR2b5O5pT3l
    nATBMDoXoEZtNYqH

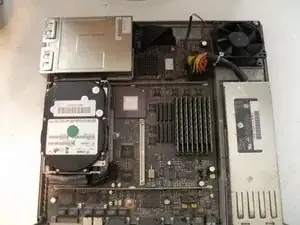

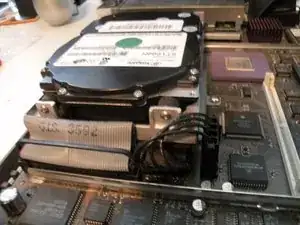

    • Removing the hard drive:

    • The NeXTStation uses a 50-Pin SCSI Hard Drive up to 4GB.

    • Remove all of the cables from the logic board.

    It's incredible how modern this board looks, despite its being so dated.

    tabormeister -

    Zitat von tabormeister:

    It's incredible how modern this board looks, despite its being so dated.

    Yep, this was one fast of a workstation back in 90"

    Chris Green -

  4. yCZSObAkDFfBYgji
    yCZSObAkDFfBYgji
    3hFteWHfuLHDRWOu
    aj4ZCDcs4QOU1KOK

    • Then remove this screw.

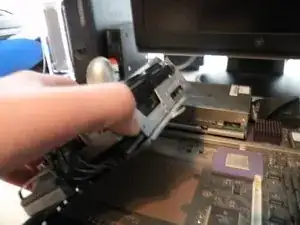

    • Once the screw is removed, pivot the drive up on a 45 Degree angle, then slide it out.

    Wow, it is so easy to take everything out!!! Now there are milions of screws and connectors, turning devices around and so on... I'm amazed of the simplicity!

    jakub004 -

  5. ZhLYFJktfdWtTm2E

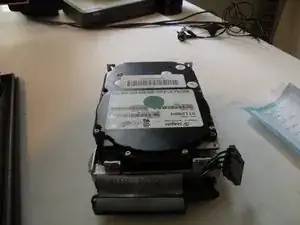

    • The Hard Drive & Caddy

  6. F3Z3nQ4LOOEswZns
    F3Z3nQ4LOOEswZns
    Pxwap22nONKDnUY3
    vWJQO42T2RJwVjtI

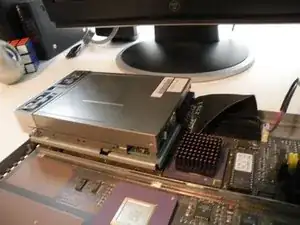

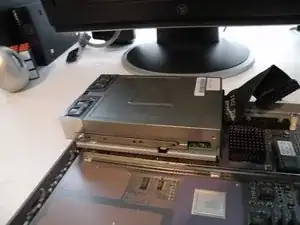

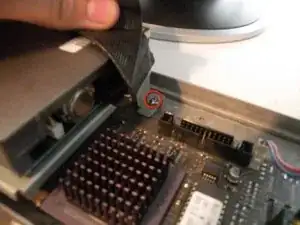

    • Removing the floppy disk drive:

    • The NeXTStation uses a non-standard 2.88MB 3.5" floppy drive, though it uses the standard floppy connector.

    • Remove the floppy cable.

    • Then, remove this screw.

  7. wZaAjkTkUxKpBCFK
    wZaAjkTkUxKpBCFK
    UuJMAHXtlQYnic6q
    4T5KP1FKGjt3GJYB

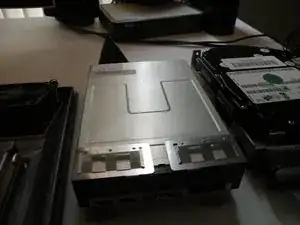

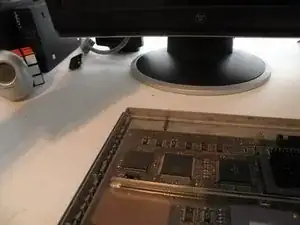

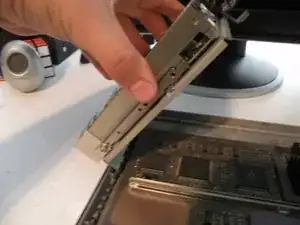

    • Then, just like the hard drive, pivot the drive up 45 degrees, and pull it out.

  8. 3EqgmAvVddRChsXF
    3EqgmAvVddRChsXF
    6ZLsJfakKvcgDkPw
    I4rBFMaoW56FCOhc

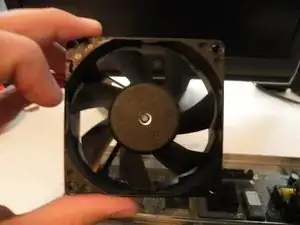

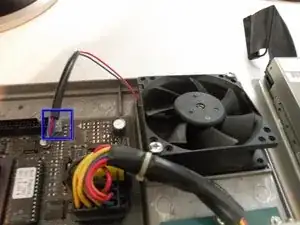

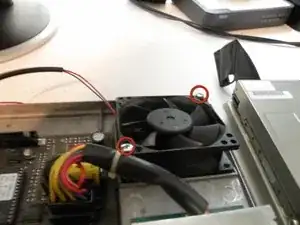

    • Removing the fan:

    • Remove this connector.

    • Remove these screws.

    • Remove the fan.

  9. tNdUJthhP1vLEtEk
    tNdUJthhP1vLEtEk
    Esy1TFtPhJgVhGbW
    RrGINQbHuNPfQKVb

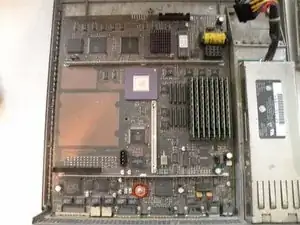

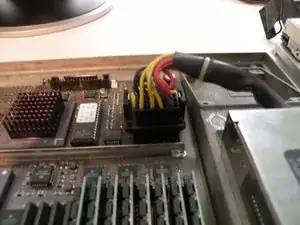

    • Removing the logic board:

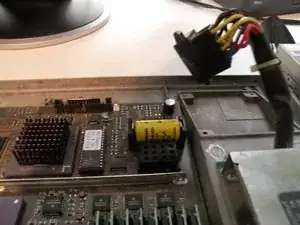

    • Remove the power supply connector. Just lift it straight up, and it should come free.

    • Remove this screw.

  10. FOLORpYmFJpUeUIN
    FOLORpYmFJpUeUIN
    uw6BsxhFwIYV1ayy
    nADKUZ4pXnoXVFNX

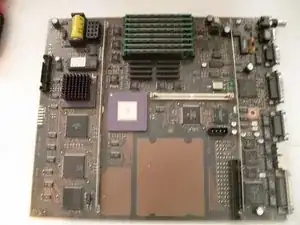

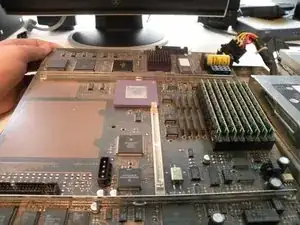

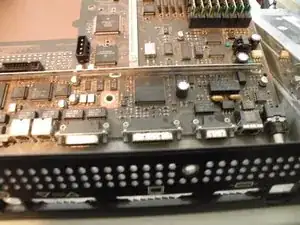

    • Lift the end of the logic board(away from the ports), and slide it away from the ports.

    • Now, set the board aside.

  11. BWb3ZoCsE2EjtC56
    BWb3ZoCsE2EjtC56
    CO6Y3OvCdvKn4rNf
    tr25dpqlJUynIZmd

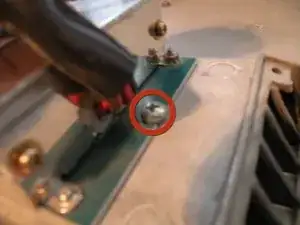

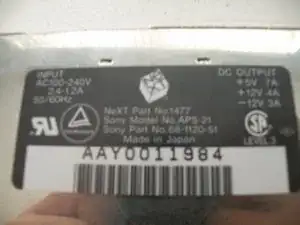

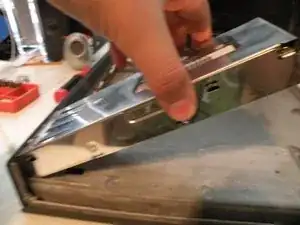

    • Power Supply:

    • Remove this screw.

    • Lift the power supply up, and out.

    The power supply is the (only?) weak spot on this beauty! It is always the MOSFETs which burn out. So make sure you use heat sink compound when you re-assemble it!

    If it is broken, maybe this page can help: http://heller.no-ip.org/~heller/NeXT/pow...

    Helmut Heller -

  12. hR1R1pHdgDIRKE42

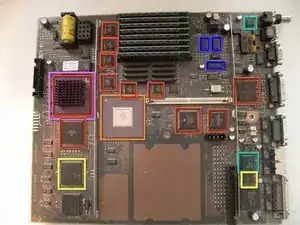

    • The Logic Board Overview:

    • The Board has a 25Mhz Motorola 68040 CPU, This board features a ton of chips for something made nearly 20 years ago.

    • The CPU: Motorola XC68040RC25

    • The Co-Procesor: MB610313

    • Motorola Chips

    • Intel Chips

    • AMD Chips (Intel and AMD In the same computer?)

    • Fujitsu Chips

    I think the MB610313 is a DMA controller ASIC.

    jonhendry -

  13. ngTFMxCaRgmV21qa
    ngTFMxCaRgmV21qa
    GUwUwtJXPaxcvNZK
    Rdxj4wnHVhIvsj2U

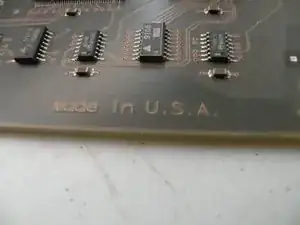

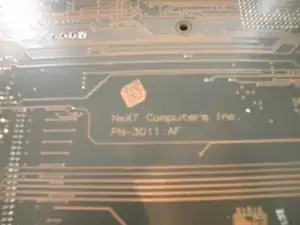

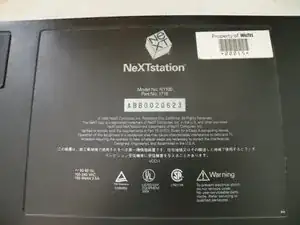

    • Made in the USA, you don't see this anymore.

    • The Serial #

    • Looks like my NeXTStation came from WilTel.

    • It is model # N1100

Tinte & Feder

Chris Green

Mitglied seit: 11/10/09

35608 Reputation

3 Kommentare

http://www.youtube.com/watch?v=jhfUKEu7s...

The Machine to Build the Machines:

Watch NeXT's revolutionary computer controlled (NeXT Cubes - no less) assembly line in action!

Juddy -

Zitat von Juddy:

http://www.youtube.com/watch?v=jhfUKEu7s... The Machine to Build the Machines: Watch NeXT's revolutionary computer controlled (NeXT Cubes - no less) assembly line in action!

Amazing!

Chris Green -

MB610313 - ICP (Integrated Channel Processor). Basically DMA on steroids for almost all of the main sub components of the system. I believe that the cube, or at least the 25Mhz 030/040 cubes, had two of these.

HotelCoralEssex -
