Netgear WNDR3700 Teardown

Geschrieben von: anythingtoostup
Veröffentlicht: 12/01/10
  • Kommentare: 0

Netgear WNDR3700 Teardown

Veröffentlicht: 12/01/10

Teardown

Einleitung

New gigabit router simultaneous dual N-band from Netgear.

This product includes software code subject to the GPL or LGPL.

I'm hopeful for future OPEN-implementations.

  1. ZRN1AYRURg4vP5pC
    ZRN1AYRURg4vP5pC

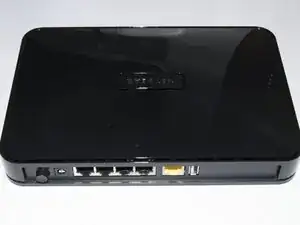

    3Z3lCUyZHfu4Gmbj

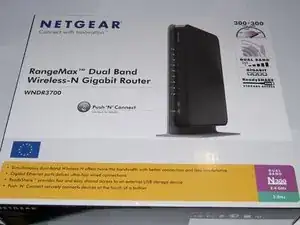

    6SySej5FSdRw1xsH

    • Unpackage.

  2. fprmGgmDiH6J2wXY
    fprmGgmDiH6J2wXY

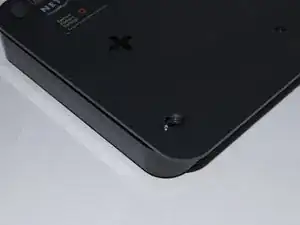

    WGoBIjgQTKsxOqa6
    fmTMJa3nvygKfjZk

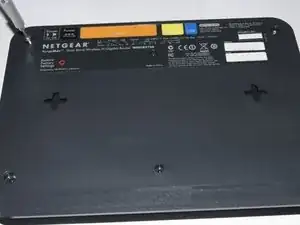

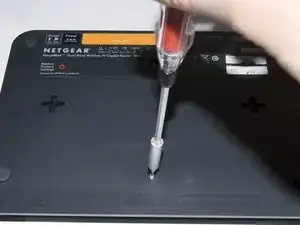

    • remove 4 caps.

    • remove 6 screws.

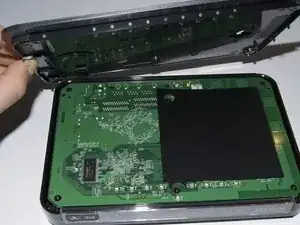

  3. e14hXJnvet6ErDPo
    e14hXJnvet6ErDPo

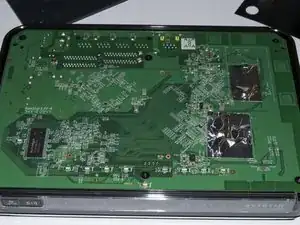

    BNHtr1RKNFtKIXWo
    N3Aob56tRkNXZ3ZR

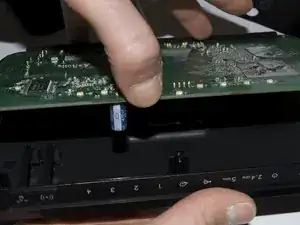

    • gently open the lid.

    • uplift the board. this step is very easy!!

  4. 2C5e6BqKSSGusbNh
    2C5e6BqKSSGusbNh

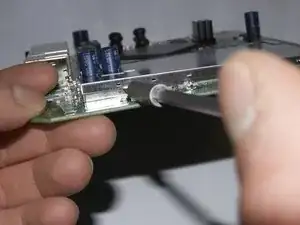

    tkAF345dSj2NUEHD

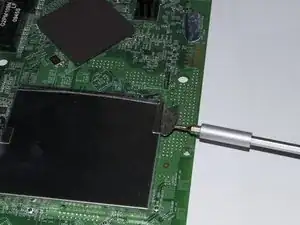

    nYNiByri6CEhQfD4

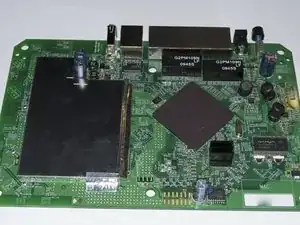

    • Remove the shield for microwaves circuit

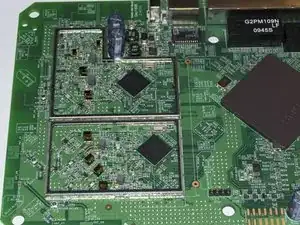

  5. tUW4tKBIGT4nInKB

    • We can see 8 stand-offs to keep the covers from pressing down on the actual circuits.

    • Look to the left, outside the shielding and see 4 mini connectors, then follow those to the square pads on the PCB... These are the antennas.
