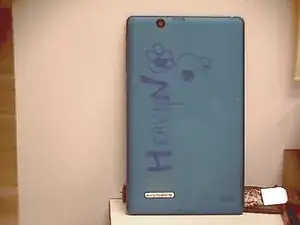

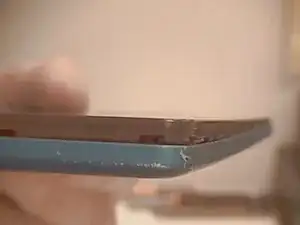

Wedge between the frame and back cover with an isesamo and separate all of the retaining clips
-
-
-

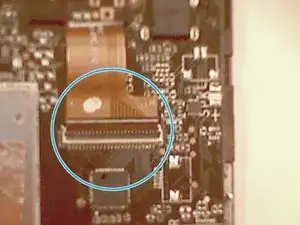

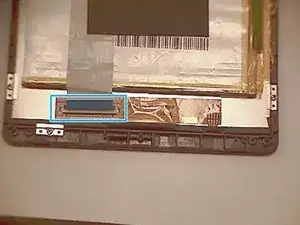

The connector slides out towards the outside of the device, and mine was pretty sticky so be careful.
-
-
-
Disconnect the LCD ribbon cable from the top and bottom of the battery. It is unnecessary to peel it off of the battery.
-

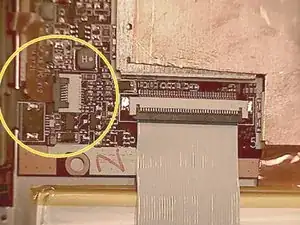

Disconnect the digi cable from the top right of the back of the device.
-
-
-

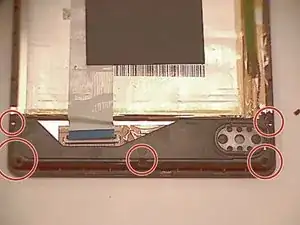

Remove the 5 speaker assembly screws and pry off the assembly
-

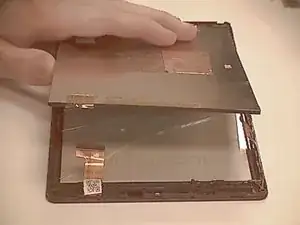

At this point you can also lightly pull the battery away from the back of the LCD. There isn't much adhesive holding it in place.
-
-
-

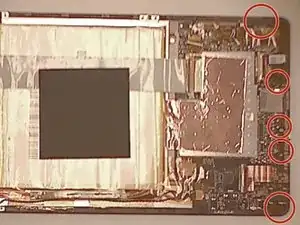

Remove the 5 motherboard screws and gently separate it from the back of the lcd.
-

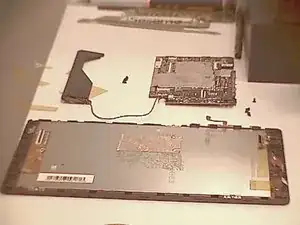

At this point, the only thing left should be the display assembly
-
-
-

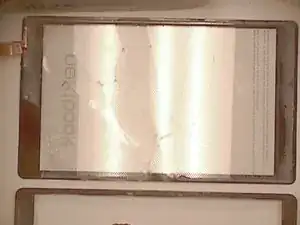

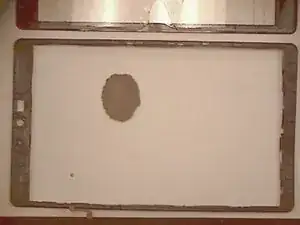

Use a heat gun or hot plate to separate the digitzer and glass from the frame
-

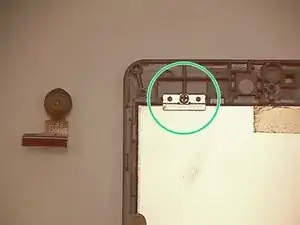

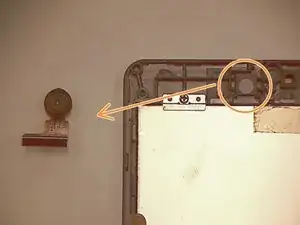

Before heating the frame its a good idea to remove the camera from the frame so it's not damaged.
-
To reassemble your device, follow these instructions in reverse order.
