Here is the disassembly for a Nikon Coolpix 3200 digital camera.

  1. V6ZQJORaGjo3HgPB
    • Use a small Philips screwdriver to remove the screws from the base of the camera.

  2. rAWw6LNfQcLTDYZS
    • Use a small Philips screwdriver to remove the screws from the side of the camera where the computer lead is.

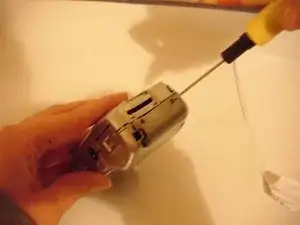

  3. GgEoZrsfcfvM2hnp
    • Use a small Philips screwdriver to remove the two screws from the side of the camera where the card reader is.

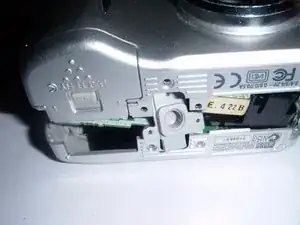

  4. EQNOWZZUDvR6gsAK
    • Pry apart the outer casing. A gray plastic threaded piece (used to attach camera to a tripod) will fall out.

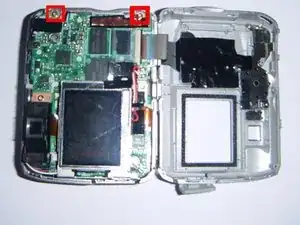

  5. nflRiJdrPbj5HLLp
    • Use a Phillips screwdriver to remove the two silver screws that connect the circuit board to the outer front casing.

  6. qVhLpKMjHGbp3bWF
    • Pry apart the front outer casing from the circuit board. The camera will now be in three pieces.

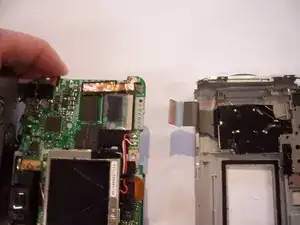

  7. WMbdMCily3FDCZnl
    WMbdMCily3FDCZnl
    joEcmvEFBGHRkHRh
    • Pull the connecting strip on the circuit board which connects it to the back outer casing.

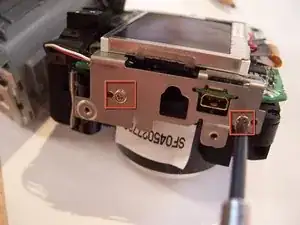

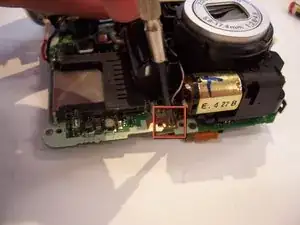

  8. ICo4sedQV5YHv6yG
    ICo4sedQV5YHv6yG
    xKpMhH2PE6we1swW
    • Use a Philips screwdriver to remove the two screws next to the computer port and the brass screw on the circuit board.

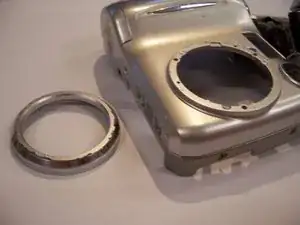

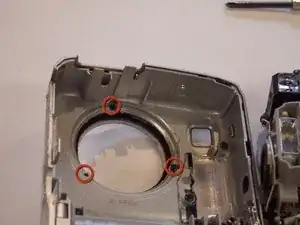

  9. SLvHEXvG3RJqpl4y
    SLvHEXvG3RJqpl4y
    f1LilcraQYVPPtTn
    • Use a Phillips screwdriver to unscrew the three screws that connect the outer lens rim to the front casing.

  10. F6EMpiYGm5RKZvuv
    F6EMpiYGm5RKZvuv

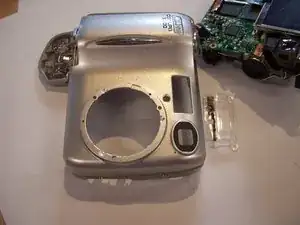

    rEAAyDt1XekhKYB2
    • Use a Philips screwdriver to remove the three screws that hold the flash cover to the outer front casing.

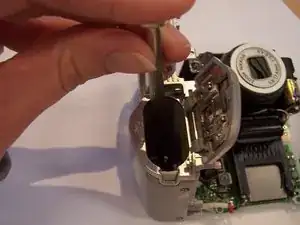

  11. FaOfNDgkVqVFDHev
    • Open the lid of the battery compartment and use a Philips screwdriver to remove the two screws at the bottom.

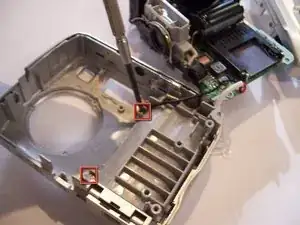

  12. 6hyamH41bHWMSsfd
    • Use a Phillips screwdriver to unscrew the two screws that connect the inside battery casing to the front of the outer casing.

  13. Mlr3QaNVPmJAOken
    • Pull off the battery casing from the inside of the outer front casing. The circuit board, battery casing, and front outer casing will be attached by a connecting strip along with red and black wires.

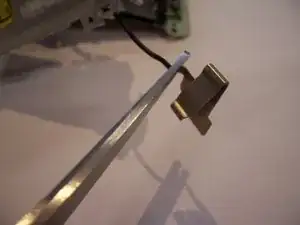

  14. 2uWeVQcVZhgMwp3a
    • Use scissors to cut the red and black wires away from the battery points of contact.

  15. QbH2mRXDnfCj3FQe
    • Pull the connecting strip away from the circuit board to separate it from the front casing.

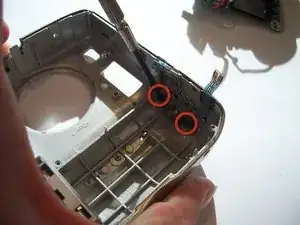

  16. PeHG5YQIpVoMrICq
    • Use a Philips screwdriver to unscrew the two screws that connect the photo button to the outer front casing.

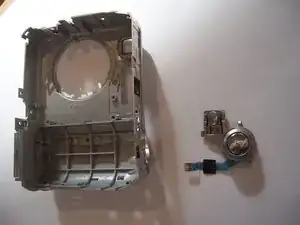

  17. NRqRPvQ1YgeeMSBZ
    • Firmly press on the photo button and this component will pop out.

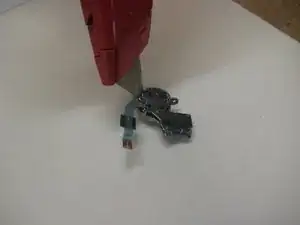

  18. exhPrUMsGhitOLFx
    exhPrUMsGhitOLFx
    qstpOxuvvVMTQCGM
    • Use a scalpel to pry apart the metal inner part of the button from the plastic outer piece.

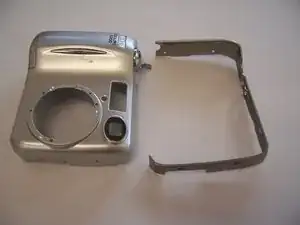

  19. CDYITRB2PgPrPNuV
    CDYITRB2PgPrPNuV
    bljFrtCUpAEP56Zc
    • Use your fingernails to peel the outer rim from the front casing.

    • Pull the connecting strip out of the circuit board to separate it from the LCD screen.

    • Use your fingernails to pry apart the back metal piece of the screen (covered by a black plastic film) from the front section of the screen.

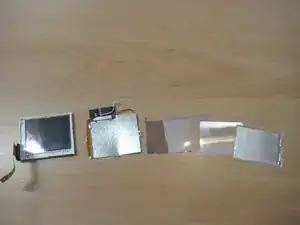

  20. BZ2micS3tUI5Zr6L
    • Pry apart the back black piece and front white piece of the screen. Inside the screen there are four sheets of plastic: one opaque, two mirrored, and one thicker plastic sheet which has a foil piece attached to it.

    • Use a hammer and chisel to separate the lens piece of the camera from the circuit board.

    • Use your fingernails to pry off the motor, motor cover, and flash piece from the lens piece of the camera.
