A teardown of the Nikon Coolpix 3500.

  1. NEg2vhODM5egl3Qm
    • Remove the battery cover.

    • Remove the battery.

  2. eZNsbKSbfSVLdsBs

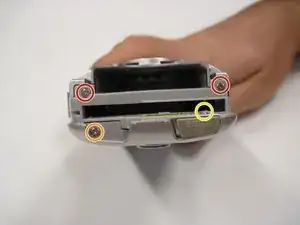

    • Remove two 4.5 mm screws next to the battery slot.

    • Remove one 3 mm screw above the CF memory card slot.

    • Remove one 4.5 mm screw next to the CF memory card slot.

  3. tIwkv4TEwhDcmlfe

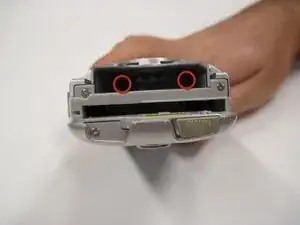

    • Remove two 4.5 mm screws from inside the battery slot.

  4. mL2FdYLQgEPyWG2D

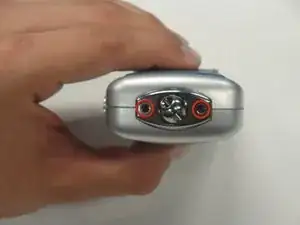

    • Remove two 5 mm screws from the opposite end of the battery slot.

  5. lImmIobcCFjFOPKZ

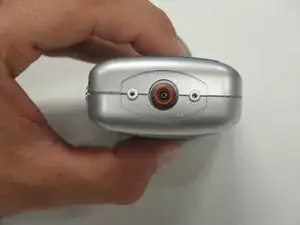

    • Remove the plastic cap and the 5 mm screw underneath.

  6. ZBQhZbudyjS3kTTa

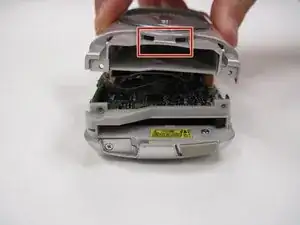

    • Remove the five 3.5 mm screws from the bottom of the camera.

    • Gently pry off the grey faceplate.

    • Do not pull hard; there are two wires connecting the faceplate to the motherboard.

  7. IRrJcIl6uhvG4cTI
    IRrJcIl6uhvG4cTI
    K2aALyDsl4GsbpgD
    SIBi5SUyCKFAnLDD

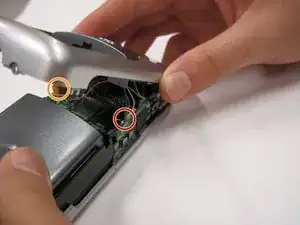

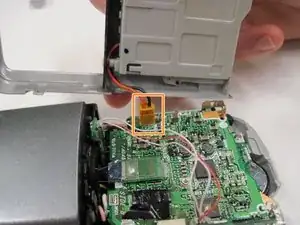

    • Use a spudger to disconnect the white-capped wire at the bottom of the camera.

    • Use a spudger to disconnect the orange-capped wire at the bottom of the camera and set the faceplate aside.

  8. OiWTrubWwBaOWVsH
    • Disconnect the grey-capped wires from the motherboard.

    • Disconnect the blue wire attached to the green chip from the center of the motherboard.

  9. ErW12uOyjWuwcHPC
    ErW12uOyjWuwcHPC
    ZfwBHLQWvGuJfhI3

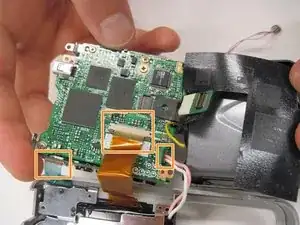

    • Remove the 3.5 mm screw from the motherboard next to the rotating lens.

    • Flip the motherboard and lens over to access the three wires on the back that connect to the LED screen.

  10. ptVH6EkXvYKCjkeI
    ptVH6EkXvYKCjkeI
    yrkJJ5R4SXqTKh5N

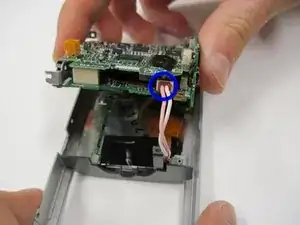

    • Disconnect the blue wire connecting the motherboard to the LED screen.

    • Disconnect the orange wire using a spudger while pushing out horizontally.

    • Disconnect the red capped wire from the motherboard.

    • Lift the motherboard and lens (still connected) out of the back case.

  11. mlKVlotkLNopncni

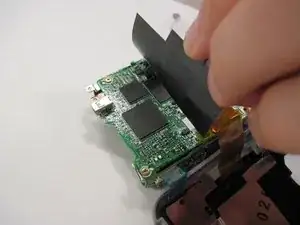

    • Lift up on the black covering and remove the orange wire connecting the lens to the motherboard.

  12. OYHAjpUUkhqAldNq

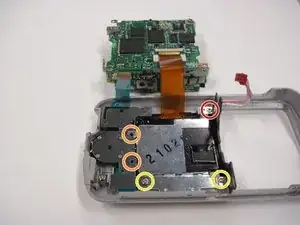

    • Remove the 2.5 mm screw next to the red capped wire.

    • Remove the two 3.4 mm screws on the back of the directional buttons.

    • Remove the two 4.4 mm screws in the metal plate across from the orange wire.

  13. xgSCyOc6VhGZTpNa
    xgSCyOc6VhGZTpNa
    xqDjPtthTwGH5yQY

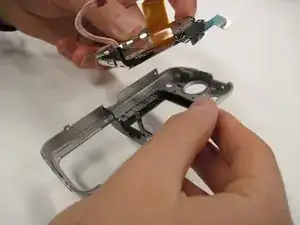

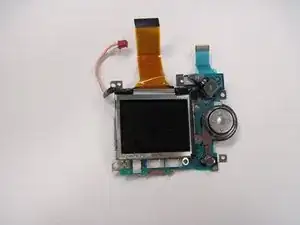

    • Gently lift the LED screen out of the remaining casing and set it aside.

    • Be careful not to let the rubber backing of the buttons fall out of place.
