Einleitung

It seems as though all the hot new electronics these days are tablet-this, phone-that. Frankly, our engineers had enough. Their spudgers were getting soft; we needed to do something that would present a *challenge* and get them sharp again -- none of the take-off-a-display-to-find-a-motherboard baloney.

We knew exactly where to turn. We've done a set of Nikon D70 repair guides in the past, and we saw how difficult it was to take apart an SLR. What better way to infuse a bit of fun in our teardowns than taking apart another SLR?

So, in the name of science and all that is right in this world, let's see what's inside the brand-new Nikon D5100!

  1. OgVvkdFCI3gAuoqr
    • We here at iFixit are very fond of cameras. It is our pleasure to provide our fans with what we believe will be an amazing teardown. Without any further ado, we present the D5100 teardown.

    • The first thing we noticed about the D5100 was that the body was nowhere near the same heft as our standard workhorse camera, the D90. It just felt... punier.

    • And then we took some photos with it.

    • The photos came out amazing. The colors were crisp, and we could even get away with usable (albeit super-grainy) ISO 6400 shots, which is certainly not the case with the D90's ISO 3200.

    • For those who need a brush up on the definition of ISO, click here.

  2. bQEavqIHPIwHoZro
    bQEavqIHPIwHoZro
    y5JqXLNgLIZNjTTY

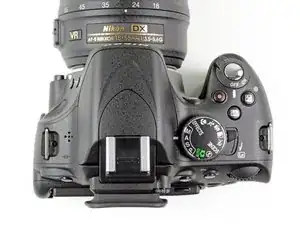

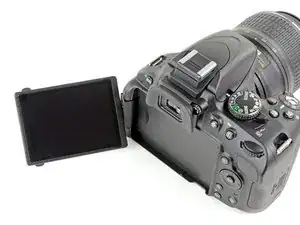

    • The flippy rotating screen is very useful -- especially if you're trying to record yourself for YouTube.

    • Unlike the D90, the top of the camera does not include an informational LCD. Instead, we get the rotating mode selector on the right.

    • The specs:

    • 16.2 MP DX-format CMOS sensor

    • 4 FPS continuous shooting

    • 3.0 inch, 921,000-dot display

    • 1920x1080 recording at up to 30 FPS

    • 11-point AF (auto-focus) system

    How do you remove the rotating screen? I recently came across a camera from a flood and trying to get the condensation out of the screen. I removed the side screws but it doe not come off.

    kavon K -

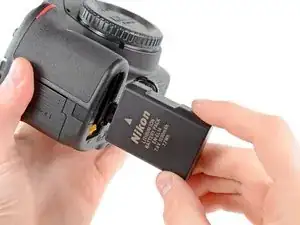

  3. NTMX22yHNoRhGcVP
    • First thing's first: take out the battery. We don't want any electric juice running through the D5100's veins while we're taking it apart.

    • Especially not to the large-and-in-charge 330µF flash capacitor.

    • The 7.4 V 1030 mAh EN-EL14 Li-ion battery is used by the D5100, D3100, and the COOLPIX P700. Sadly, it's not compatible with other cameras in the Nikon lineup, such as the D90 and D7000.

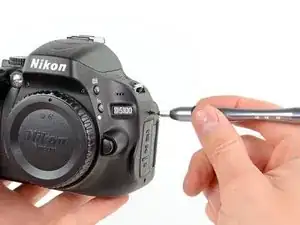

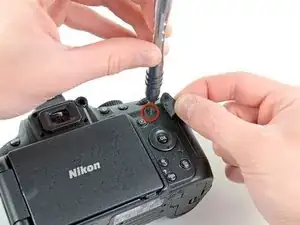

  4. phVJH2b16Ok6uVZJ
    phVJH2b16Ok6uVZJ
    GotlCNMMcmF2sLjI
    taHqf1OQwDYReLYH

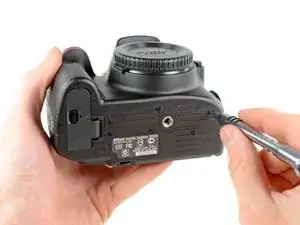

    • The camera has roughly 4 billion screws holding it together. We'll be skipping a lot of the "unscrewing this screw" pictures (like the ones shown in this step) in order to keep the teardown interesting.

    • Trust us, after the 50th screw, it gets boring.

    • As if exposed screws weren't enough, Nikon also chose to hide screws underneath covers and the rubberized thumb grip.

    I need to see the screw removal around the viewfinder. This information needs to be shown boring or not please.

    wade -

    This was tricky for me too. It turns out the +/- on the view finder focus knob is actually a sticker. Peal it away to find the forth screw.

    Doug -

    I’m not able to find all the screws; have searched for hours… Could you provide a more detailed (pictured) description of all the hidden screws?

    Thank you!!!

    Andrea -

    Hi Andrea, this is a teardown meant for entertainment purposes, not repair, check out our D5100 service manual and check out the relevant guides to get step-by-step instructions!

    Sam Goldheart -

  5. xKjYoVVJaGko3v2S
    xKjYoVVJaGko3v2S
    6AUdxsN2WGbjetHM

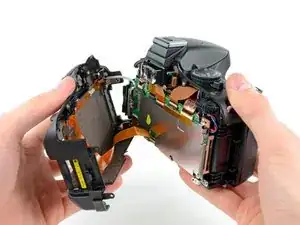

    • After a good twenty #00 Phillips screws were removed from the perimeter of the device, we managed to separate the rear cover.

    • A ribbon cable for the rear control buttons and a hefty 40 pin cable responsible for transmitting information to the rear display still attached the rear cover to the rest of the camera.

    • Fun fact: to eliminate the complexities of a slip ring on the rotating rear display, its motion is limited to 180 degrees.

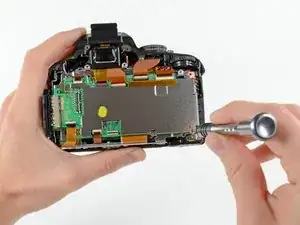

  6. j2FKPJOLwgFHNqIs
    j2FKPJOLwgFHNqIs
    CaMKgEsNLEWxfyZI
    4wYKwrYfLGZfiYhd

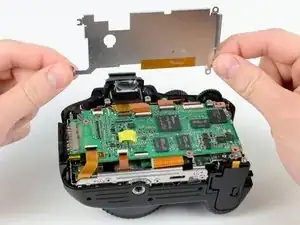

    • After removing a couple more screws, the protective steel shield was removed from the motherboard.

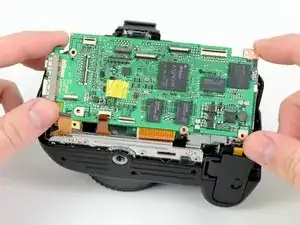

    • Then we had the pleasure of disconnecting nine cables (not all can be seen) and de-soldering a few wires; finally, the motherboard was lifted out of its home.

  7. 2aCnRjdYLHXR6fBs
    2aCnRjdYLHXR6fBs
    kARnLJKSyjFBkGDX

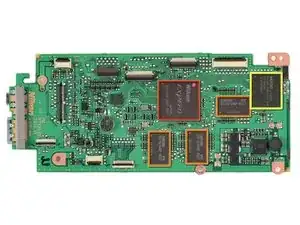

    • Front view of the motherboard. (High-res version of the motherboard, click here):

    • Nikon EXPEED 2 EI-154 1051 Z05 image processor

    • Samsung K4T1G164QF-BCE7 1Gb DDR2-800 SDRAM (total of 3 Gb = 384 MB)

    • MXIC MX29GL128EHXFI-90G 128 Mb parallel flash memory

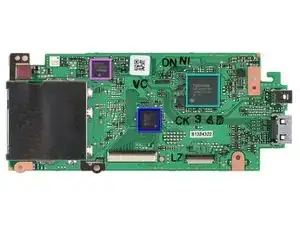

    • Rear view of the motherboard. (High-res version, click here):

    • Toshiba TMP19A44FEXBG low-power microcontroller

    • Nikon EI-155 M4L1BA00 00151044

    • Nikon NHHS-2 049M8

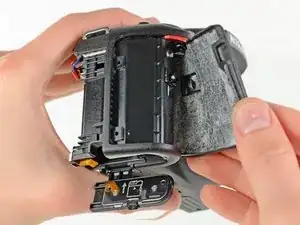

  8. xPYuEMiPLAAocgmw
    xPYuEMiPLAAocgmw
    NvQmQXchBAseNHqO

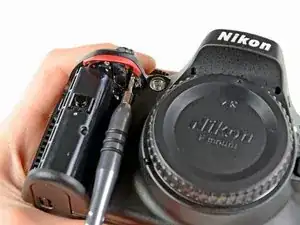

    • After much time spent hunting around to figure out how the front cover was attached, we decided to peel off the rubber grip beneath the shutter button.

    • And we found the answer. To remove the front cover, a bunch more creatively-placed screws had to be removed.

    Is the ruber grip glued to the front cover? If i peel it off afterwards i need some special glue to put it back? or it goes back in place whitouth a problem?

    Lori -

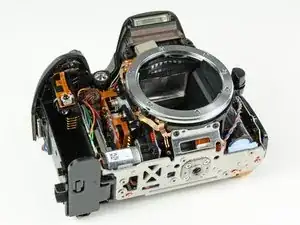

  9. X6JKOMwZ6t1MXfAU
    X6JKOMwZ6t1MXfAU
    rkjqUsUIW41tKBv2
    IQxJgPSMoeKD2nQq

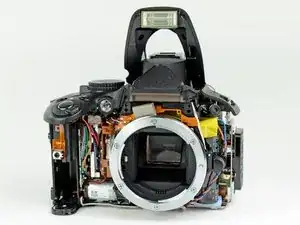

    • And just like that, the front cover can be pulled off the camera body.

    • With it gone, you can get a good look at most of the components that make the D5100 roar.

    • An electric motor (presumably linked to the shutter) can be seen next to the battery door, and the gigantic flash capacitor is housed right behind the lens release button.

    • The light blue pad wedged between the end of the flash capacitor and the bottom frame conducts heat away from the capacitor to cool it down during flash-intensive shooting.

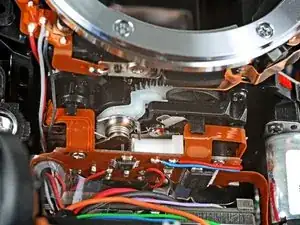

  10. tVXARXx2VLdK5lKg
    tVXARXx2VLdK5lKg
    NSkppC1glIvEWrKP

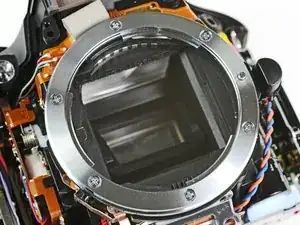

    • Nothing to explain here. We're just amazed by the dizzying amount of electromechanical systems contained within a mid-priced SLR camera. Just look at all that stuff!

    • Feel free to use these photos as wallpapers. Check them out in full size: Photo 1 and Photo 2

  11. 3vqPSDAEGuxRRlWs
    3vqPSDAEGuxRRlWs
    E6HnY2kmxceGUntJ

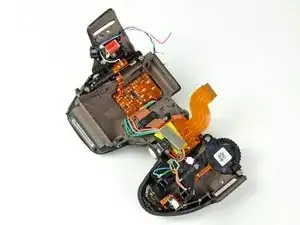

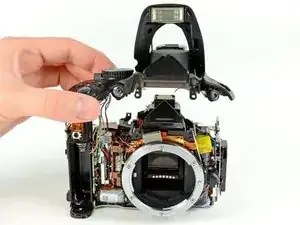

    • The top cover is a feat of engineering by itself. Within its walls are contained:

    • Main control wheel, shutter/aperture control wheel, live view lever, On/Off switch, "info" button, record button, shutter button, exposure compensation button, IR sensor, AF lamp, flash, flash control circuitry, flash actuator, and the microphone.

    • The flash is actuated by a linear solenoid that pushes on a lever to release the spring-loaded flash -- either automatically if the sensor detects a low-light situation, or when the flash button is depressed.

    Could the linear solenoid be the culprit for the flash not popping up? The camera senses low-light but this doesn’t make the flash activate. The manual release button does nothing. Is this solenoid replaceable?

    ianjosef -

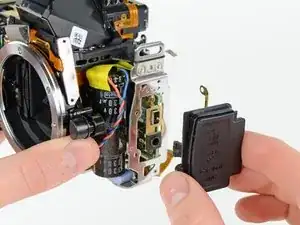

  12. aHDQGbsL3dwJVVLD
    aHDQGbsL3dwJVVLD
    YMKBcZuTBNQPOXVA

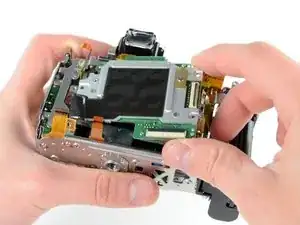

    • It's time to take a look at the D5100's sensor. To get to it, we have to first remove the side cover for the ports, as well as the frame surrounding the ports.

    • With a couple more twists of a screwdriver, and a couple more cables disconnected, the sensor board comes out!

  13. WLYSvKbyGSpyIxlv
    WLYSvKbyGSpyIxlv
    w6dDnUj1FSdoZD13
    tyJGNeLKxIjOmSub

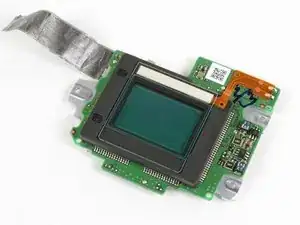

    • The D5100 utilizes a 16.2 megapixel DX format CMOS sensor to capture images.

    • This sensor has the same specs of the sensor used by the Nikon D7000.

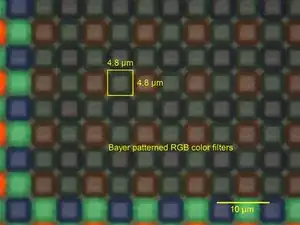

    • Chipworks reports that each pixel is 4.8 µm wide. That's about half the diameter of a red blood cell!

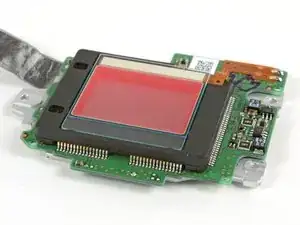

    • The sensor has a special glass cover that turns red when viewed at an angle. Neat! (This is the "hot mirror," which filters out the infrared spectrum.)

    The special glass cover on the lens is the infra-red filter/low pass filter.

    smatele -

    The glass in front of the sensor is probably an infra-red rensor preventing infrared photos with the Nikon D5100. Can anyone confirm ? Thanks

    Vincent RAMPAL -

    The red tinted glass is a light filter known as a "hot mirror". The image sensor in digital still cameras is sensitive to the near-infrared spectrum (720nm or so). The hot mirror filters out this near infrared light so that it doesn't cause odd tints in your pictures. Incidentally, cameras which have been converted for IR photography have this filter replaced with one that does the opposite, so that only infrared light will reach the sensor.

    Travis Reed -

    Despite this “hot mirror” in front of the sensor, the D5100 is still capable of shooting IR images with a Hoya R72. It just requires a long exposure of anything between 10 -30 seconds or so. Its not as strong in keeping out IR wavelengths as you think it is.

    Jane Cotton -

  14. IxTGKOAiuRYtcrTK
    IxTGKOAiuRYtcrTK
    RjC1yIMOdRUJYjQJ

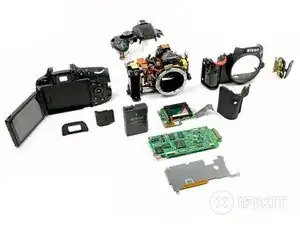

    • Nikon D5100 Repairability Score: 2 out of 10 (10 is easiest to repair)

    • The battery can be easily replaced by opening the compartment with your thumbnail.

    • The rear cover comes off with minimal unscrewing/desoldering (for this kind of device), allowing you to access the motherboard.

    • The D5100 has several wires that need to be desoldered in order to take it apart.

    • Approximately 4 billion screws hold the device together.

    • Components are very tightly packed, making it more difficult to disconnect and remove them.

    • For absolute safety, you need to discharge the flash capacitor, otherwise you risk accidentally killing your camera.
