Nintendo DS Lite Teardown

Geschrieben von: Isabella Sandoval
Veröffentlicht: 10/11/16
  • Kommentare: 1

Nintendo DS Lite Teardown

Veröffentlicht: 10/11/16

Teardown

Einleitung

This guide will show you how to tear down a Nintendo DS Lite.

  1. jOsSPRkL2rwGYLnj

    • Your first step would be to unscrew all all screws on the back and take the case off. You take the case off by placing a spudger on the line edges , and then place it inward, forcing it to separate the two parts.

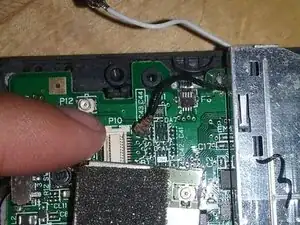

  2. tRA4BKfUxPibPKPT

    • You first remove the gabbles by gently pulling them and do the same for the WI-FI board

  3. sxLODyXWSTZXfcYB

    • You take the mother board off by flipping the upside-down and the screen should pop right off.

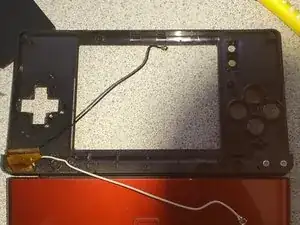

  4. MHOSLAcvuPXcKqHl

    • Unscrew and gently slide wires through frame

  5. rj2ftqO3HQlPR6P6

    • The DS should look like this and to put the DS back together simply follow steps back wards.
