Nokia 6108 Teardown

Veröffentlicht: 04/03/11

Teardown

Einleitung

I'm going to open my old Nokia phone to have a look.But I only have very limited English writing skills and I hope you'll understand what I'm talking about.

  1. Pwm5KNLiN5MbCAbF

    • Hello,I'm going to open my phone for some fun.

    • Be careful not to drop any screws or parts when you're opening your phone.This may render your phone not usuable.Open your phone at your own risk.

  2. WBQJy1gIQjscmKrE
    WBQJy1gIQjscmKrE
    dONTNIphWCQFulQu

    • Remove the following parts.

    • Battery cover

    • Battery

    • SIM card

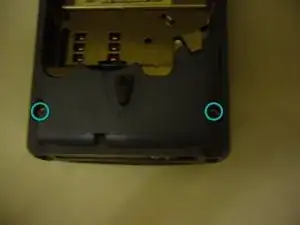

    • Remove two trox screws marked in figure 2.

  3. HSXnJl1Ve2QATVkS
    HSXnJl1Ve2QATVkS
    dfhoxMW5FFX1bvgO

    • Remove the front panel by pulling it or using an

    • I don't have a opening tool.So I used a flathead screw driver instead.

    • Be careful not the damage the number pad connector(highlighted in red).If you break it.You'll have to replace the entre front panel.

  4. DYMouBHT5aNwHoF4
    DYMouBHT5aNwHoF4
    M2s4j1ZuEkQCXVww

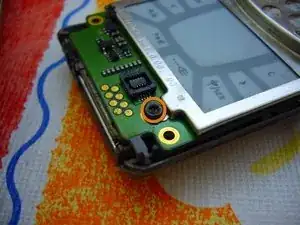

    • Remove 5 trox screws that are holding the screen and the touch pad.

  5. xDevcjM5ORDEKANL
    xDevcjM5ORDEKANL
    VXFRyU4eVKMZJTvI

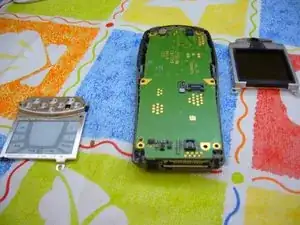

    • After removing the touch pad and the screen.You can remove the logic board from the case.

    • The board seem don't want to leave its cozy home.

  6. JCqhEamwL1AsTcMG

    • Let's start removing the parts under the logic board.

    • Parts need to be removed.

    • A motor

    • Charger connector

    • A speaker

  7. AfXWiVGygP6ErmLK

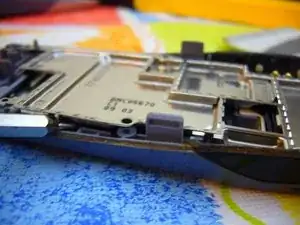

    • Removing the EMI shield.Pry around the edge of the shield to remove it.

  8. CbteFgCTLpYTNdhy
    CbteFgCTLpYTNdhy
    XFttPyX4t5WqArud

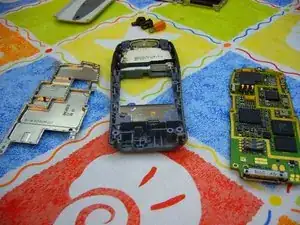

    • Nothing under the EMI shield.

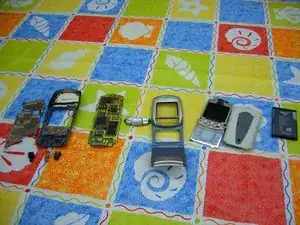

    • I think we should stop here right now.There are pictures for all parts.
