Einleitung

Teardown !! this guide will teach you how to disassemble your phone :)

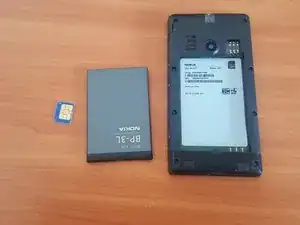

  1. VBNZQWEZkiwAeyVf
    VBNZQWEZkiwAeyVf
    hDS3JxWXASbldutE
    • Remove the back cover

    • Remove the battery and the sim card

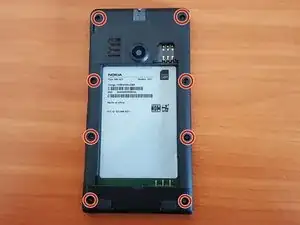

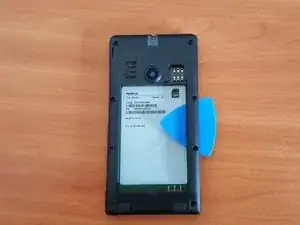

  2. IgvgSTREmv2bJlRG
    IgvgSTREmv2bJlRG
    FNO2lZhegyBOPGtR
    EtVP4gOqquDJkDVm
    • Remove the 8 Torx T5 screws

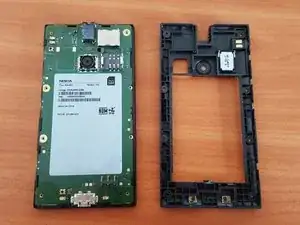

    • Insert a guitar pick between the frame of the phone

    • You have to pry until the frame separates

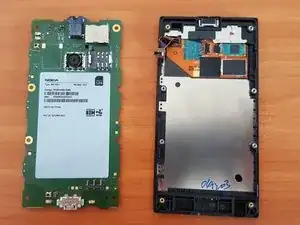

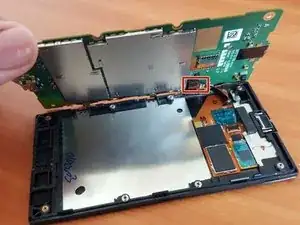

  3. k4nmUUaXS5BuKEMO
    k4nmUUaXS5BuKEMO
    DnI2BKiBWdYjwS2n
    ZSMT1JK5QNspMKYr

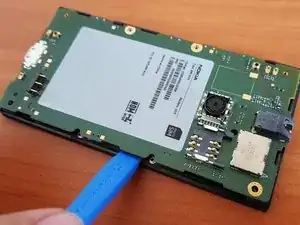

    • Pry on the right side to remove the Motherboard

    • Do not remove it from the whole as it is still connected to the screen

    • remove the cable by pushing it down

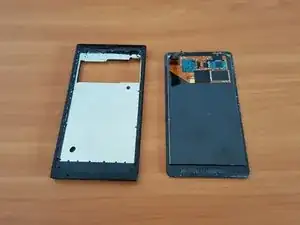

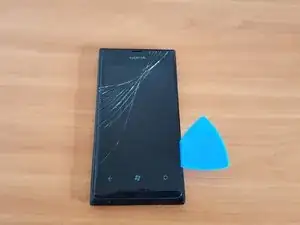

  4. vN5cjZvQSjwqJOBu
    vN5cjZvQSjwqJOBu
    xUGiMrBswxBfRIxb
    qUiBQPhxKMq5BFDa

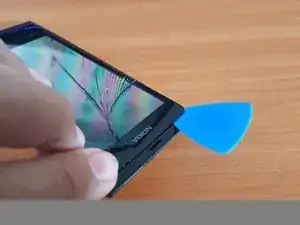

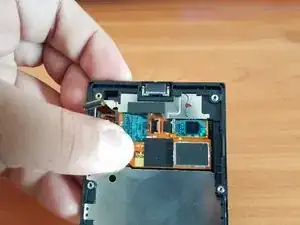

    • to remove the screen we will have to push it from the inside out

    • since we push it, a space will be created between the screen and the frame, there we will put a guitar pick

    • the next thing is to move the pua around the frame to separate the screen

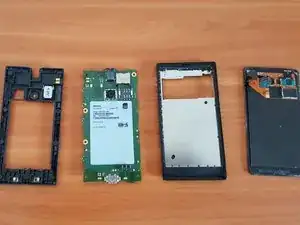

  5. BWunsDvL4gPLQcmF
    BWunsDvL4gPLQcmF
    U3ZbEDBRuDmSWONx
    • Ready
