In this guide we will walk you through taking apart the phone piece by piece, while giving tips and advice on how to take apart the phone and techniques.

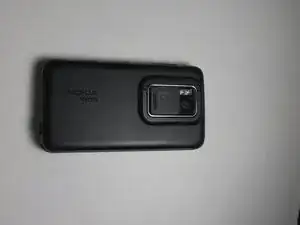

  1. GQywhYTEs2RlxXOA
    • First flip the phone so the back is up.

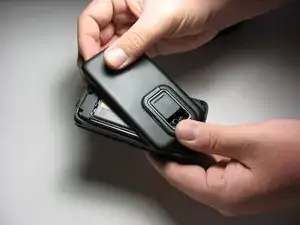

  2. LKvHF5TNTxMAVZZL
    • Then locate the slit on the side of the phone so that you can remove the back cover

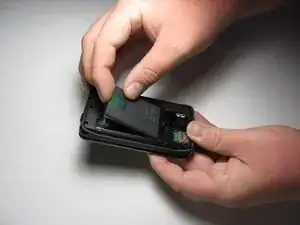

  3. ANWDr16VIKlIPjAO
    • remove the battery

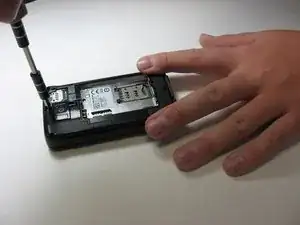

  4. OOe5In2sw5ODxAfk
    • Use a screw driver to unscrew all six screws in the back of the phone the 26 Bit Driver kit available through iFixit has the necessary bits.

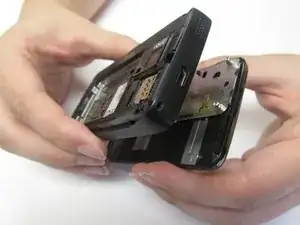

  5. SMpDSJBkOdwEVCoN
    • Now that all six screws have been taken out you can now pull the phone apart gently into two pieces

    Be aware when doing this step as the LCD flat-flex cable is still connected to the mainboard, disconnect the cable first before pulling it apart!

    Leonard Putra -

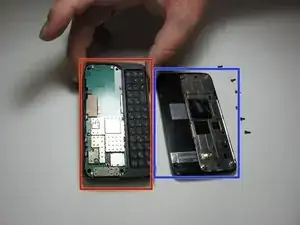

  6. IaSGgWjHFk3JW3HW
    • Now you should be able to split the phone in two.

    • The screen half

    • The back of the phone

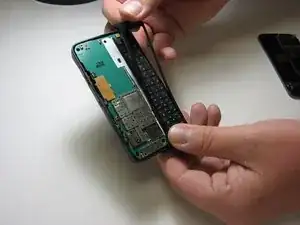

  7. ENXqVNfwQTiNdiUB
    • Remove the qwerty key mat. It will come right off.

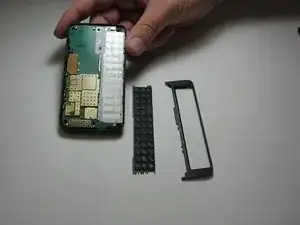

  8. b1gtPYgO5TWCeock
    • Now this half of your phone will be in three pieces.

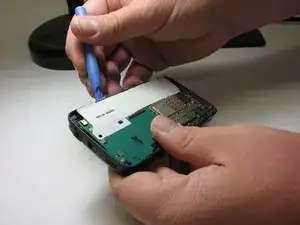

  9. cXubjFTqNDJpMhD2
    • You can use the blue opening tool to pry out the green motherboard.

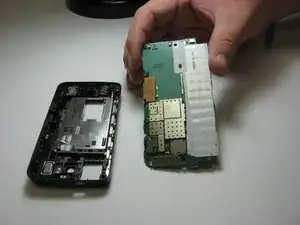

  10. 5XOOioatCK15cixP
    • Now there will be two pieces that look this.

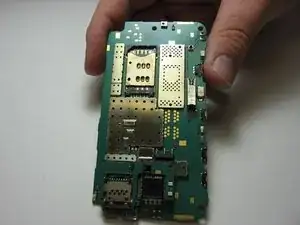

  11. bANrIleAIv1mJnE2
    • Here is a closer look at the motherboard.

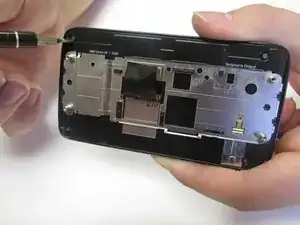

  12. JEj1Zgwu1o6BOTtB
    • Now on the back of the touchscreen half of the phone use the screw driver to take out all six screws.

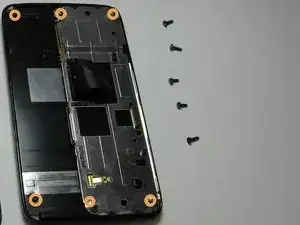

  13. NIXaF4GURVc6FyVU
    • Now that we have taken the whole back apart. We will tear down the touch screen.

    • You will need to take the screw driver and unscrew all six screws in the back of the touchscreen.

    • Six screws

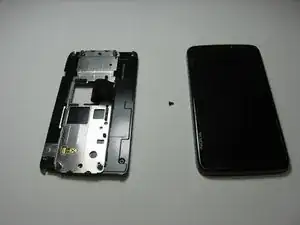

  14. YJSINpsJy3CSScIe
    • You should now have two pieces

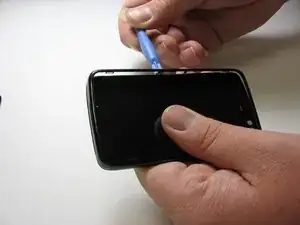

  15. vrYRXcUCLEccnOjy
    • Now that you have removed the touch screen from the keyboard slider you can remove the cover of the screen by using the plastic blue opening tools.

    • I would advise taking one side off at a time

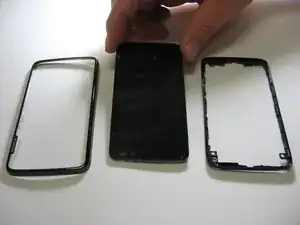

  16. FWQBEJJjSEQVwaOP
    • Now the screen and one more cover will come right off and you have officially completed tearing down the nokia n900

Juan Haro

Mitglied seit: 13/03/14

284 Reputation

Ein Kommentar

Looks like the LCD flex cable ripped off on this teardown, ouch!

Leonard Putra -
