Overview of the Nokia N95 hardware with circuit diagrams and labeled chips. See www.phoneWreck.com for more detailed information on the Nokia N95 and other devices.

Nokia produced this disassembly guide, which you can also use to help disassemble your phone.

  1. gUyiMURMFZ4Q31dn
    • It should be noted that this model is the N95-1 with the expandable MicroSD card storage.

    • The N95 was a tough one to crack open since there were more mechanical parts than a traditional smartphone, with dual-sliding modes. This one was totally worth it though, as we were treated to a bevy of ICs, resistors, and the whole lot of circuitry.

  2. kL1NpokYERMVy3fF
    kL1NpokYERMVy3fF
    i5VYcPLg6IVr1QQx

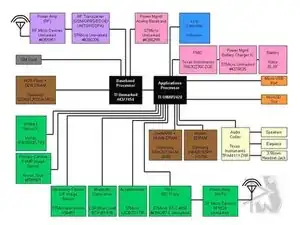

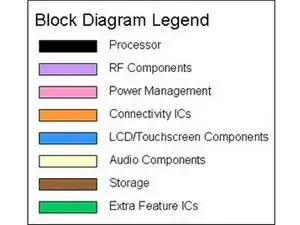

    • It’s got three different memory units, one Spansion and two Samsungs, which we’ve made logical guesses as to which processor they served.

    • It runs an unmarked TI baseband processor and a TI OMAP2420 apps processor.

    • The dual processor makes for relatively complex circuitry, but the performance capabilities of the N95 really demonstrate the prowess of having an extra applications processor to do the dirty work.

  3. TFEesZBxbFiHGtlZ

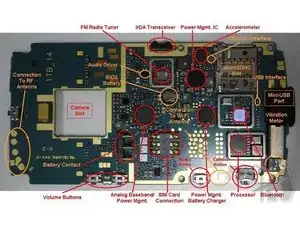

    • The back of the main PCB is shown below. The primary IC diagram can be found here.

    • The interesting thing about the N95 is that since the screen is on a separate mount, both sides of the PCB can be used. This, however, does cause the device to be a little bulkier than its candybar-form-factored friends.

    primary ic diagram image isnt there....link is dead..

    Auston Barboza -

  4. nN6bgACsaMnahFx3
    nN6bgACsaMnahFx3
    3vNcRh2iKXGXpXQg
    pFTCMro3K4YHJTKQ

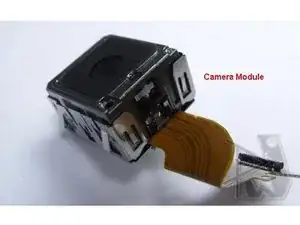

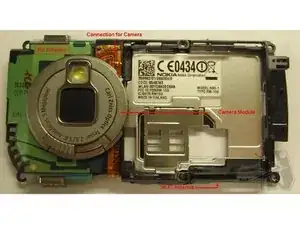

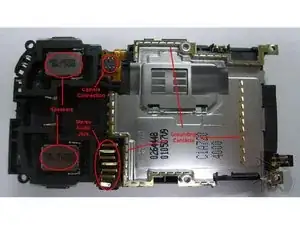

    • Finally, the camera module. This 5.0MP camera, with the image sensor developed by Micron Technologies, was the leading cameraphone back in the day, and its beastly size definitely attests to that.

    • For a full bill of materials and even more pictures, visit the Nokia N95 wiki page.
