Einleitung

Welcome to my 3rd teardown! today I will tear down an Osram Lightify.

  1. cWvINhuQnRHrPpDs

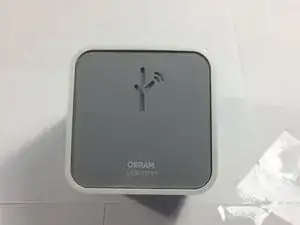

    • This is the Osram Lightify. This is a broken unit that does not sync to the app properly. I got a free replacement due to that.

    • Ooh... Shiny! you can see my iPhone 5s in it!

    • No more chit-chat. Time to dig in!

  2. qv5CUFNTbAvTKULd
    qv5CUFNTbAvTKULd
    AbHyqO5gbBfZHl1P

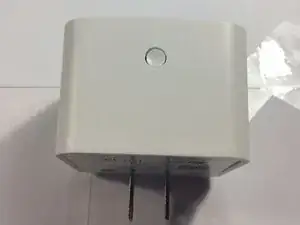

    • A mysterious unlabeled button. sadly, not red.

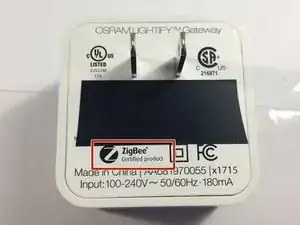

    • The info for the device, Zigbee certified. Zigbee tries to turn all the different wireless control apps and stuff into one app.

    • It almost seems like someone taped over the device's unique ID to control it...

  3. Time to <del><a href="../../home/not_yet_available?url=/Teardown/Rapoo%252BE6700%252BBluetooth%252BTouch%252BKeyboard%252BTeardown/44276" target="_blank">RIP IT APART!!!!</a></del> open it up with my tools.

  4. 4d4k2CjtLJdb6MbR
    4d4k2CjtLJdb6MbR
    INKqn4WSZXZJmbny
    aFFisBZIfIH4BG4E

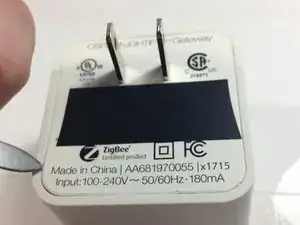

    • Hmmm... No give. maybe not that side.

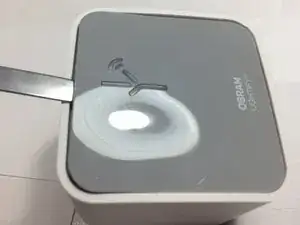

    • When it goes back in, it gives a nice deafening POP.

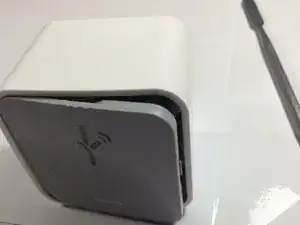

    • Finally. now we are getting somewhere.

  5. BF1JcUJ4U3Z332fO
    BF1JcUJ4U3Z332fO
    4KvKA1LQ44DliWfv
    cTyyxBC4Qbc1uCpH

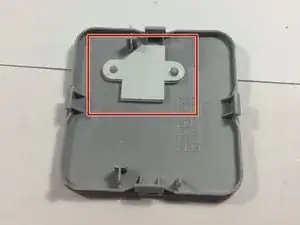

    • The white thing seems to let light through, but not let you see through to the inside.

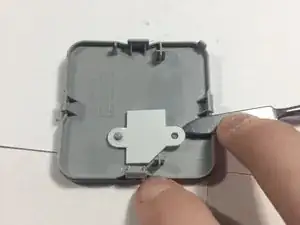

    • Seems to just pop right off. This is pretty easy so far!

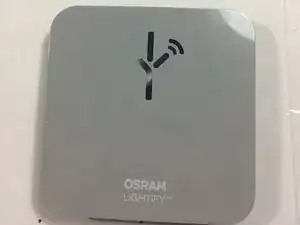

    • You can now see right through it.

  6. bhkcovmIovPxowsm
    bhkcovmIovPxowsm
    JMDiD5qWsuGchggL

    • Its now open!

    • With no option in sight, we keep on prying.

  7. uDGJSZVugCsKiPsX
    uDGJSZVugCsKiPsX
    RNfcLEWWMHVaPk2y
    2cSv5BM5MBExgJFK

    • Not much to see here...

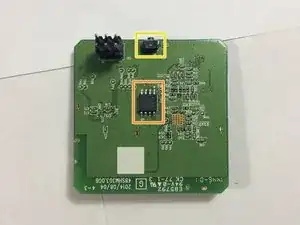

    • These Appear to be antennas...

    • The only interesting thing so far: Some flash memory, at a whopping 32 megabits the spiflash 25Q32FVSIG . Wow.

    • There has to be something under these plates...

    • Prying was no help. these plates seem to be mounted with... SOLDER

    • Commence desoldering.

  9. NCdcfMOPwPcIqNcV

    • After a good amount of prying and a small nick on my thumb, We get back to work.

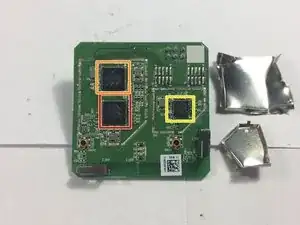

    • Time for some chip identification!

    • This one appears to be WLAN SoC. its a Marvell 88W8782.

    • The brains of it all, the Micro controller. A Marvell 88MC200

    • And on the smaller side, (what I think is) a Zigbee gateway. a Marvell MZ100

    • Lets dig deeper!

  10. TCaodxkdsoLThfiL
    TCaodxkdsoLThfiL
    rFK2DvLQAOI56FmF
    2DYiRYL1o1brpZqJ

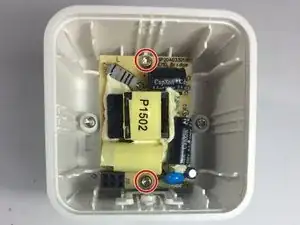

    • Oh goodie! the first screws!

    • there are 2 Torx T9 screws holding in what looks like the power supply.

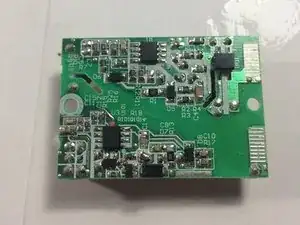

    • yep, that's the power supply.

  11. 6wiggxPTSBWXbZlA
    6wiggxPTSBWXbZlA
    QyJf6RNesU4oCxDE
    Dte1h3ag6sGg1wOb

    • The prongs that plug into the wall, are not actually soldered to the board, but are just connected by contacting. interesting...

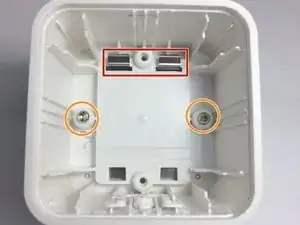

    • There are 2 more Torx T9 screws holding in the cover. most likely after removal of the cover the prongs can also be removed.

    • The 4 screws are all the same, so you can mix and match to your heart's desire!

    • Nope, not individually removable.

  12. DSF5FtofIAb152pA

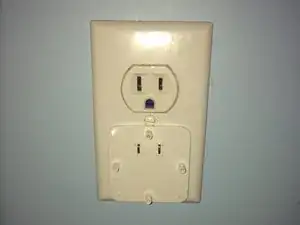

    • I actually highly advise against doing this.

  13. BuOG1nX2dZIBXIOX
    BuOG1nX2dZIBXIOX
    2cCVtktXLU5Xw5MO
    31hCQRSf2kykYEId

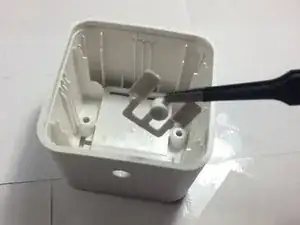

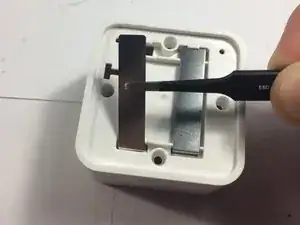

    • On the back we have two long metal sheets.

    • Removal is pretty straightforward.

    • And on the front again, the button slides right out.

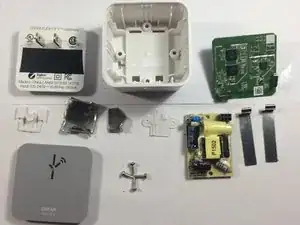

  14. TUGnB4sqcyTRtBEF

    • I'd give this a 9 out of 10.

    • All screws and tabs.

    • Easily repaired without much knowledge of repair.

    • main board slides right out of the power connections.

    • Tiny bit of adhesive on the logo holding it in place, so it will not securely fit in after removal. although it will still fit snugly and not come out without rough handling. This is an unlikely repair anyway.
