If you are reading this in order to learn how to repair your controller, don't this will only be a guide of how to TEAR IT DOWN not disassemble.

  1. OKB12FAIgqcvbYPD
    • Flip the controller upside down.

    • Unscrew the 5 screws (marked out in orange in the picture).

    Sorry! Meant to be 5 screws.

    Imad Knight -

    What size are the screws? I’m trying to get a replacement set and it does me no good to not have a definite answer

    Aiodensghost -

    How to unscrew a screw without a screwdriver ?

    Redwan Noor -

    The case doesn't open by itself, though. To open it, one has to push a flap inside the housing which is located at the front between the two analog sticks. https://www.youtube.com/watch?v=-jdXGtda... shows how it's done.

    randomuser456 -

  2. XeYndYOabssDR3au
    XeYndYOabssDR3au
    W5PFwZfYnD1vNWbM
    Lx6iZWD4BEOA6kQK

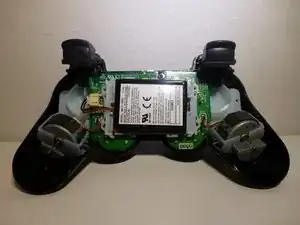

    • Once the cover is off, the controller should look like this. Follow the red and black wire(s) from the battery to the connector.

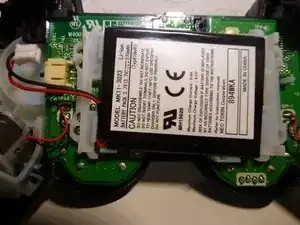

    • Take a pair of small pliers and unhook the battery (refer to picture 2 of this step to see it unhooked).

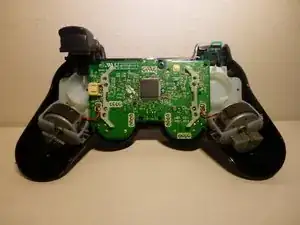

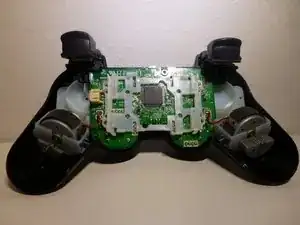

    • The battery will simply lift out revealing the motherboard (refer to picture 3 ots).

    • From here, the plastic holding the battery will be able to lifted out.

  3. KuTGRYQrVIRh14Mk
    KuTGRYQrVIRh14Mk
    wJeQG52txMirONvU
    • This will be the step where you teardown the controller not take it apart.

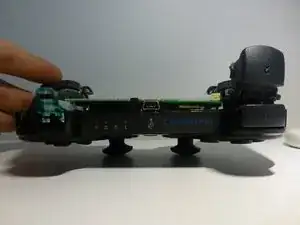

    • To remove the 4 buttons (2 on each side), first lift out the R1 (or L1) button. This may require you to wiggle the button.

    • From here, you will have to apply force to tear out the R2 (or L2) button and the plastic it is connected to. In the 2 pictures (ots) you can see one side taken apart and the other as it normally is.

  4. 54ZGUUmMcHyo3lGV
    54ZGUUmMcHyo3lGV
    aCtiuYCkyLbOMeWu
    • For this step, you will need to de-solder the wires that connect the motors to motherboard. Or, if you are like me and don't have a solder, you can attempt to rip the wires of.

    • First of, lift the whole motor out of the plastic mount. This may take some force as it is glued in.

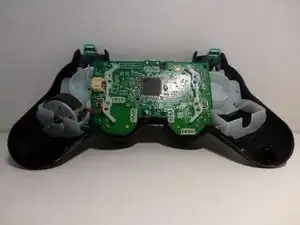

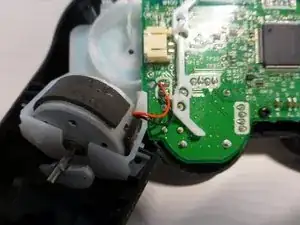

    • After that, simply cut the cable off of the motherboard, or de-solder it. In the first picture you can see what your controller will look like with one motor missing.

    • Repeat the same on the other side.

    De-soldering is recommended though, since ripping the wires away with brute force could tear off the pads connecting the wires to the motherboard's circuitry.

    trystan hope -

    Yeah, I agree with you completely. But since this was a teardown and I had no intention of putting it back together (and I don't have a solder), I just ripped it off.

    Imad Knight -

  5. Dr5hedCaHu1PrJVs
    Dr5hedCaHu1PrJVs
    OPNLDWRihBQIPvRu
    aWbfbe6tPkCDTkoL

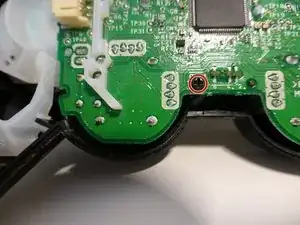

    • First off, unscrwew the single screw that holds the motherboard onto the plastic (marked out in orange in the first and second picture ots).

    • With that screw removed, the whole motherboard (along with the 2 joysticks) can be simply lifted right out.

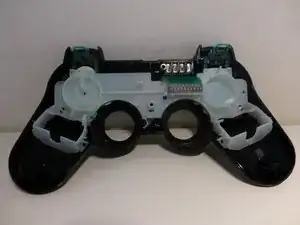

    • Pictures 2 and 3 show the case without the motherboard and joysticks.

  6. Hgc3A1YJAGNnCvtC
    Hgc3A1YJAGNnCvtC
    KDYefXKAMjhbLVAH
    RflPBPPJFCandeD1

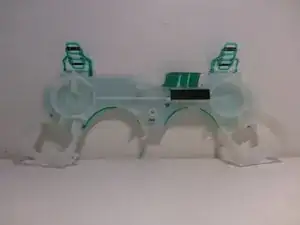

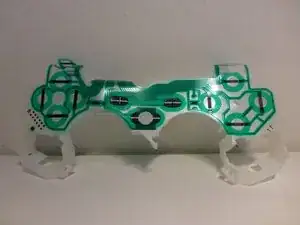

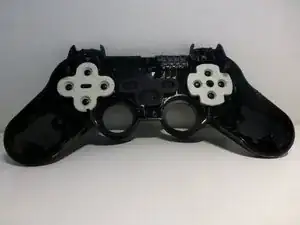

    • To remove the white plastic, simply lift it out of the controller. There are no screws,clips or glue holding it in.

    • Pictures 2 and 3 show the plastic by itself.

  7. ZNHjZP42pRKoSKLG
    ZNHjZP42pRKoSKLG
    15ALd1SJQNKGheIi
    INUkstKdlKVANWWN

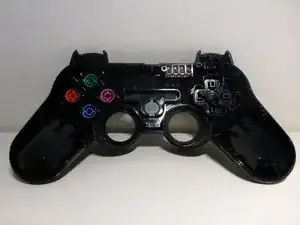

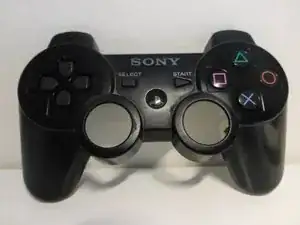

    • First of, remove the 2 white pieces or rubber on the sides and the middle, grey piece too. The first picture shows you what this will look like.

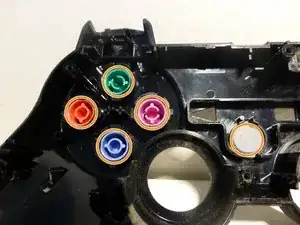

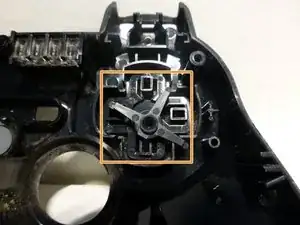

    • Then simply "pop" the buttons out (marked out in orange in picture 2) from the other side (the front). You can also remove the "Play Station" logo button.

    • For the other side, remove the top plastic and then the 4 buttons (made of one piece of plastic).

  8. AQHwdiBf6dUGBIQt
    AQHwdiBf6dUGBIQt
    GGAGwJEqQMpMeVPq
    yZOmnKVJdFEpasnR

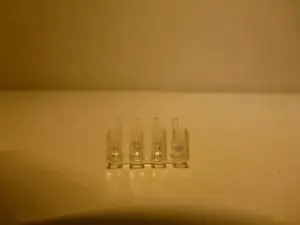

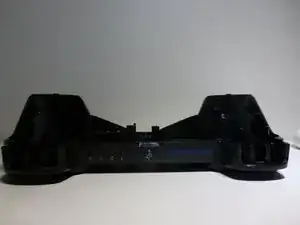

    • The final piece to remove is the plastic battery level light cover.

    • This is done by simply pressing in the 4 (slightly protruding) pieces of plastic.

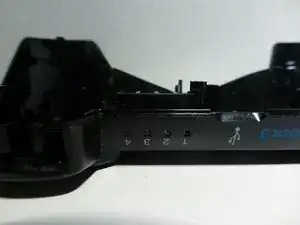

    • The 3 pictures show the the case completely stripped out.

    • And thats that. If you have been following the guide, you now have a completely stripped down PS3 controller. If you have read this for entertainment, you now know what it takes to strip down a PS3 controller. Thank you for reading.
