iFixit is proud to present the Sony PSP Go teardown once again! Enjoy. Also check out the YouTube video slideshow!

  1. hIIeGm4x6hkOSPiL
    hIIeGm4x6hkOSPiL
    VbC3QJuNYUyxJcqY

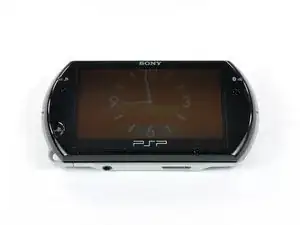

    • Oh joy! Oh joy! Guess what we got our hands on this time! Its the brand spanking new Sony PSP Go!

    • Although the design of the PSP Go is different from previous PSP models, the PSP Go is not intended to replace its much loved older brother, the PSP 3000.

    Also this is how you replace the Start and Select Buttons:

    https://imgur.com/gallery/JRRsJku

    Player -

  2. amlV6XI2ejbQXTZX
    amlV6XI2ejbQXTZX
    svssDPQW5fFJWBxf
    EMIPn5qkNP3fIZlK

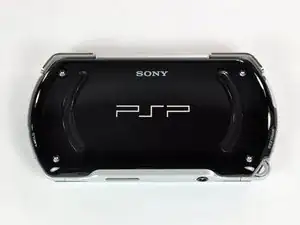

    • Such an elegant backside... But where is the UMD drive? Let's have a moment of silence. R.I.P. UMD drive, we hardly knew ye.

    • The PSP Go measures at 128 x 16.5 x 69 mm and weighs in at 5.6 oz (including the internal battery).

    • Unlike previous PSP models, the PSP Go makes do with 16 GB of internal flash memory.

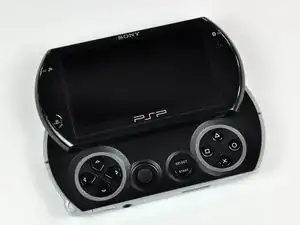

    • Oooooh it slides up to reveal the gamepad!

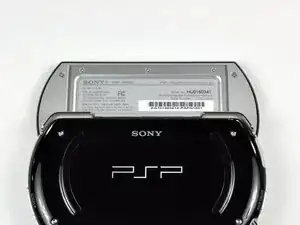

    • The product label has the usual power requirements and FCC warnings. It appears even Japanese companies have their products manufactured in China.

    there're rumors saying PSP GO is manufactured by Foxconn,

    no wonder it's made in China.

    also, most previously models of PSP are made in China, too.

    GeekFox -

    Can't u open the battery and go through the components? :)

    jim mij -

  3. LpG3IBJ46nRBFIED
    LpG3IBJ46nRBFIED
    eXUXFMBVEVffQDYA

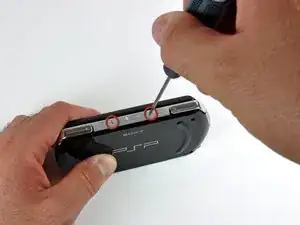

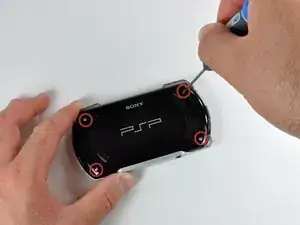

    • Removing the necessary screws required to gain access into the innards of the PSP Go.

    • On this device, all screws are readily accessible and use a common Phillips #0 head. No hidden tabs or tri-wing screws here.

    • With a non-soldered battery and Phillips head screws, why doesn't Sony approve of DIY battery replacement?

    • We can think of only one reason: it starts with "cha," and ends with "ching." That's right, the sound of the cash register.

  4. nt2BcKYYTWoRc4MV
    nt2BcKYYTWoRc4MV
    kkMH4kkOOWPBfSTj
    jeCUIPxoofbQirh3

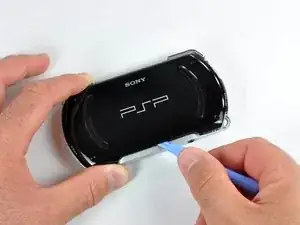

    • A simple flick of a PSP opening tool and presto!

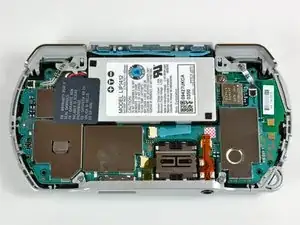

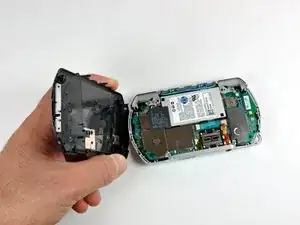

    • Ladies and Gentlemen, behold! The inside of the PSP Go.

    • Unlike the Zune HD or the iPod Classic, the Go uses no metal internal framework. In fact, it has no internal framework; all structural integrity is provided by the plastic outer cases.

  5. E3WGkaBpjXM1fJ1x
    E3WGkaBpjXM1fJ1x
    swQNR15xBJvUUfnA

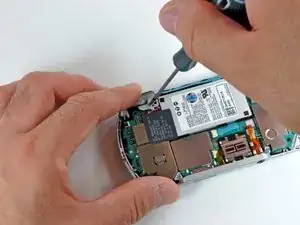

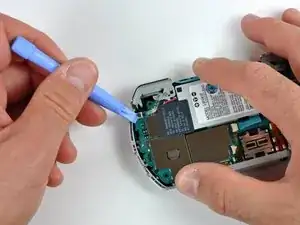

    • We begin our dissection by disconnecting a few connectors and removing a couple screws.

    • It was clear the board wouldn't come out without first removing the triggers. So we decided to start with the left trigger button.

    • The trigger button ribbon cables are connected to the board with ZIF connectors; a careful flick with the PSP opening tool released the clamp and freed the ribbon cable.

  6. oSAsHxSVJYfRgMVA
    oSAsHxSVJYfRgMVA
    PMMmcYOCiWMggJ4D

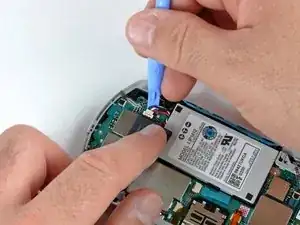

    • Firmly stuck to the battery is a trilingual Warranty Void seal. They really covered all bases with this one, as long as you know English, French, or Spanish.

    • Good news: the battery is not soldered to the board.

    • Bad news: unfortunately, you have to peel the warranty sticker back to remove the battery.

    • But more good news: if you're careful, you can remove the battery without disturbing the "VOID" portion of the seal, but we didn't tell you that.

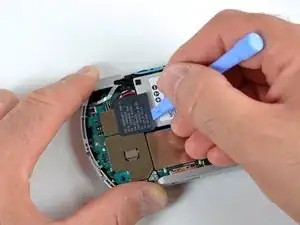

    • Just slide a PSP opening tool in between the battery and sticker. Work your way gently side-to-side, until the battery is free from the sticker. Presto-changeo!

  7. ADSNeBragdKJoWvk
    • The battery's a Li-ion 3.7V, 930 mAh, 3.5Wh unit.

    • Here's how the three major handheld gaming devices stack up in the battery department:

    • PSP Go: 930 mAh, unofficially user replaceable

    • DSi: 840 mAh, officially user replaceable

    • iPod touch 3rd Gen: 789 mAh, unofficially user replacable, requires difficult soldering

    • The PSP wins on capacity, and the DSi wins on serviceability. The touch, well, if you can't say something nice...

  8. XuHimb6Egyk3JaWb
    XuHimb6Egyk3JaWb
    sEjGq5eSUsWO23Cd

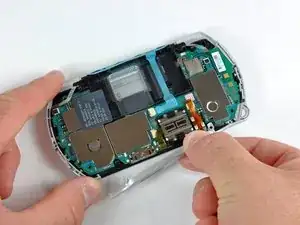

    • Pull the cosmetic cover away from the bottom edge of the Go, near the audio jack.

    • Two additional screws secure the joystick to the Go.

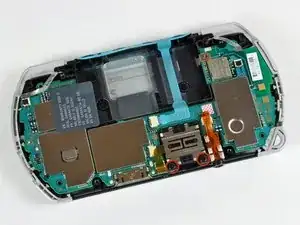

    • Steel covers were placed over the majority of the chips to guard them from electromagnetic interference.

  9. pQk22MTqhD2vmjPP
    pQk22MTqhD2vmjPP
    HrtWdBvyVRnDAODs
    AsFQLeGjsVv45ROp

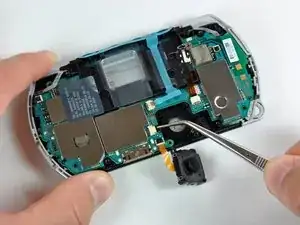

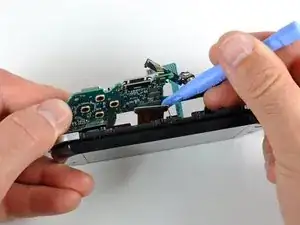

    • After disconnecting the Select/Start button, volume buttons, and the headphone jack, the logic board simply lifts out of the case.

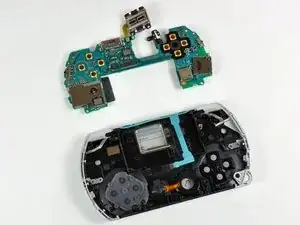

    • The analog joystick comes right out with the logic board.

    Minor typo on the second part of the sentence in step 9:

    "the logic board simply lifts out of the The analog joystick comes right out with the logic board." :D

    Since both the iPod Touch and the PSP Go don't have internal chassis, how would you compare the rigidity/sturdiness between the two products? Yes I know, strange question.....

    DUSTmurph -

    Zitat von DUSTmurph:

    Since both the iPod Touch and the PSP Go don't have internal chassis, how would you compare the rigidity/sturdiness between the two products? Yes I know, strange question.....

    The iPod Touch is much more rigid than the Go because the rear case of an iPod touch is made of stainless steel, and the front glass panel increases its rigidity. It is very slim and compact so most of the internal components add to its rigidity. The case of the PSP go is almost entirely plastic, so when it is in the open position you can flex it pretty easily. When it is closed the rigidity obviously increases, but you can't play games with the device closed ;).

    Andrew Bookholt -

    I changed the analog with 2 different new analogs but its still drifting. I play hours with no problem then all of a sudden in a different game which I start its drifting, surprisingly its usually happening on the same games.

    I dont understand whether its a software or hardware problem.

    Ali Aslan -

    any idea how to take out the start select ribbon cable out? my one is faulty and replacing to a new one. But could not think how to take it off…

    Farhan Dahari -

    figured it out. carve the start slect button from the front.. turns out its glued to the front chasis. took out the start select button from there…

    Farhan Dahari -

  10. 2gbxdiEpuZBqTITP
    2gbxdiEpuZBqTITP
    M4kufYZXxWTXFBjB
    • With the board out, we can continue tearing into the Go.

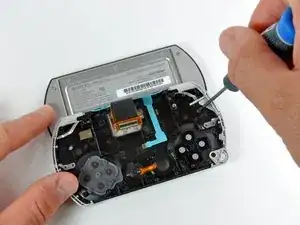

    • A couple screws must be removed to separate the display assembly from the lower case.

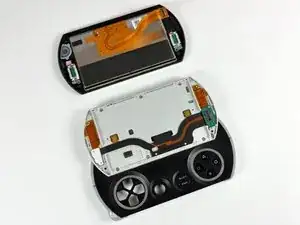

    • With the lower case and logic board gone, you can see the details of the metal slider mechanism. That display ribbon cable must be designed for wear from millions of opening/closing cycles.

    So how do we replace the flex ribbon for the start and select?

    Anddy Ayala -

  11. WusOgPOM4sEDIWGv
    WusOgPOM4sEDIWGv
    KvMUZwoQ6vc6ArHP
    GcrUMZkXKcNHiSIo

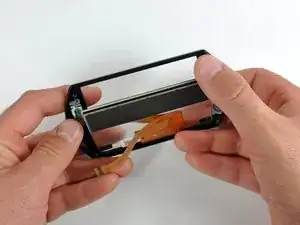

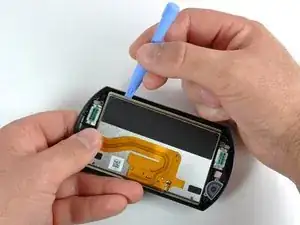

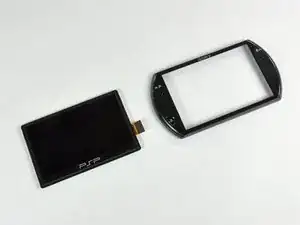

    • We used a PSP opening tool to lift the LCD display panel out of the sliding upper case.

    • Two small speakers (with the mint green labels) stream sound from the front of the Go. They are printed with the serial number:

    • EAS1D129A VNXG9618V17a

  12. 1WgWJ4sBeRsB5wqP
    1WgWJ4sBeRsB5wqP
    2kNfp6qrTtbADyBX

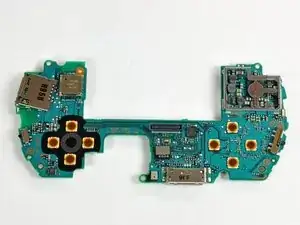

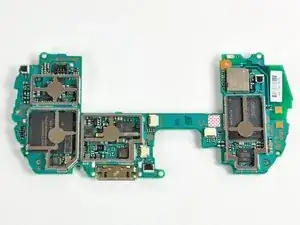

    • The backside and the frontside of the PSP Go logic board, with joystick still attached.

    • Now we will turn our attention to identifying the many chips that make the Go... well... go.

    • The sheer number of chips and EMI covers is amazing. The device certainly has a large number of dedicated-function chips, as opposed to having a few large multi-tasking chips.

  13. ijQtSCmDV3fZSEPI
    ijQtSCmDV3fZSEPI
    X1mo4ddRMhxERHOq

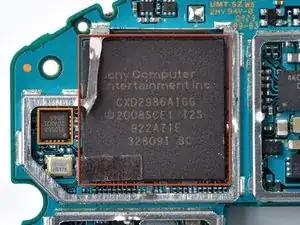

    • The first picture includes:

    • Sony Computer Entertainment CXD2986A1GG

    • 9110563 20AK2L 0846

    • In the second picture:

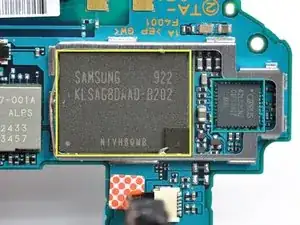

    • SAMSUNG 922 KLSAG8DAAD-B202 flash memory provides 16GB of internal storage.

    • CIRRUS 42L52CNZ CF1S0917 low power, stereo codec with headphone and speaker amps.

    why, it looks like something was cut off?

    GeekFox -

    any idea where the PSP Go teardown has gone?

    bcsyn -

    It will be back very soon.

    Kyle Wiens -

    Can you take the cover off the Alps module. Thanks

    BCBC -

  14. oOpQuUaCCRQjRrJJ
    oOpQuUaCCRQjRrJJ
    Qb5TfNHNmmptQKSq
    whSqIPJXQevUdGWo
    • The first picture includes:

    • SHARP 0923 7y LR388G1 TFT-LCD controller for video out.

    • OKI L86V7657 9175902J

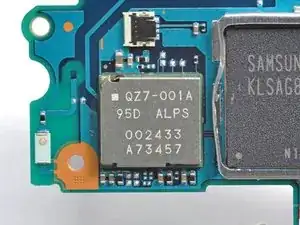

    • The second picture is of the QZ7-001A 95D ALPS 002433 A73457 Bluetooth communication chip.

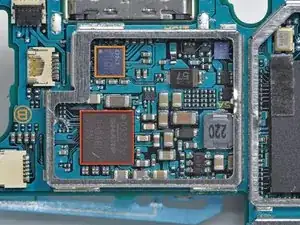

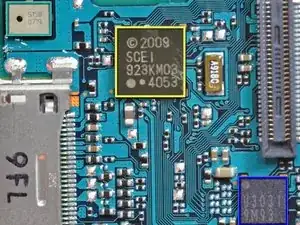

    • For the third picture:

    • SCEI 923KMO3 4053

    • U3031 9M93

    • The small object highlighted in green on the third picture is the surface mounted microphone.

  15. IHVuEVLgoGc3fJup
    IHVuEVLgoGc3fJup
    cWVHoGbEk2VIfMEv

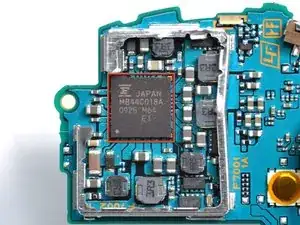

    • Highlighted in red on the first picture is the Fujitsu power processing module with serial number:

    • Fujitsu LTD MB44C018A 0925 M64 E1

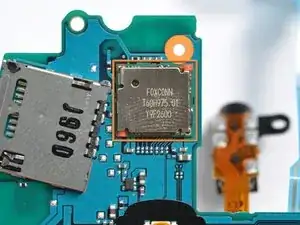

    • Shown in the second picture, the FOXCONN T60H975 wireless chip provides 802.11b WLAN support.

    • Still no G or N support...

    You're kidding me; they haven't added in even N support yet? I know that most routers these days are at least G/B compatible but even so...talk about cheapskates.

    MD5Hash -

  16. qM3surfAkothHxdg

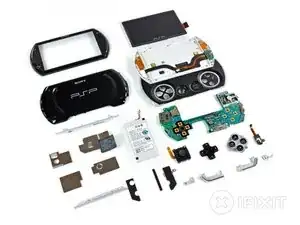

    • And there you have it: the Go in pieces.

    • Curious how the PSP stacks up the the handheld gaming competition on the inside? We have both a DSi teardown and an iPod touch teardown.

    • Be sure to keep an eye on our teardown page for an inside look at the latest gadgets!

    haha, your warranty is still good!

    Arkanoid0 -

    Cool teardown. I'm a late adopter. It's nice to see what I'm buying. Thanks ifixit! The battery guide will come in handy.

    Redsyrup -

    Is there an ability to connect a umd drive I am hoping to make a home console from a PSP go as I can use a ps3 control on it, I have found a circuit board to convert the m2 to SD/micro SD

    Aaron Smith -

Miroslav Djuric

156735 Reputation

5 Kommentare

Is there a way to remove the start & select buttons on the GO? If so can some add pictures on how to do this. Thanks in advance.

Pat -

I'd say you can follow this guide and just push the buttons out of the front case.

Andrew Bookholt -

Is there anyway to connect a umd drive from any of the other PSP preferred 1000 as I am planing to making a PSP console hopefully from a PSP go as this has the Bluetooth in it to connect a ps3 controller I know you may think it's pointless but it's something I like to do

Aaron Smith -

What are the psp go's tft screen pinouts?

Jonathan Nunez -

what is the Name of IC on Step13 first picture number starting with 44C01 and also what is the name of circuit, in my psp go that IC Heating when putting a battery also not turn on its dead, please help to find a fault to my console

MUTHU M -
