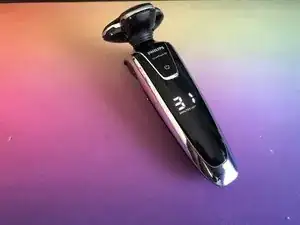

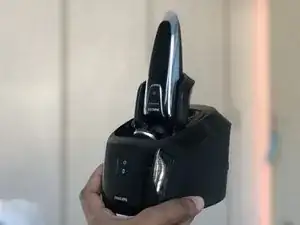

Philips - Norelco RQ1280 SensoTouch 3D

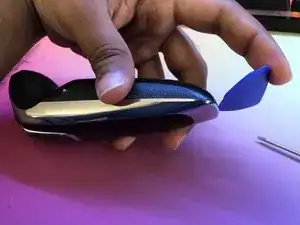

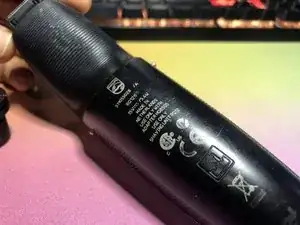

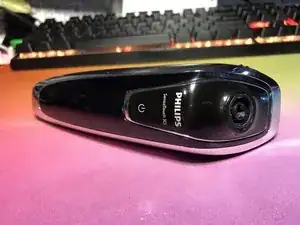

With no visible screws or clips, the only other method is to pry away at the seam.

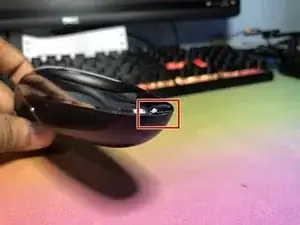

The drain hole provided the necessary gap to insert the pick and begin prying.

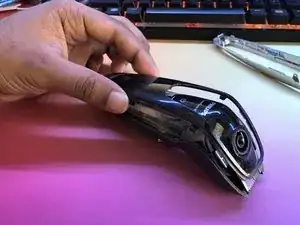

Once the pick is worked around the seam, the frame unclips.

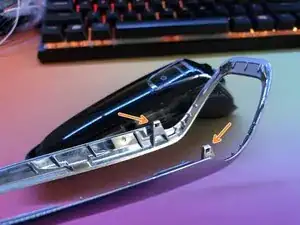

There are 4 clips holding the frame to the shaver body.

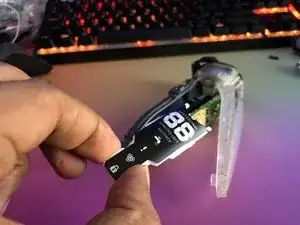

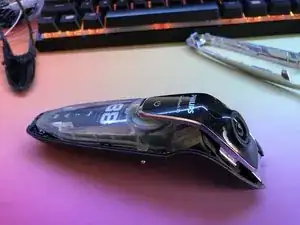

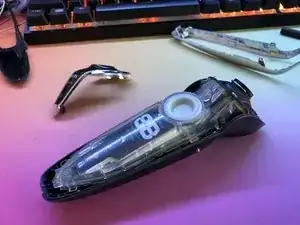

With the frame removed, the top case and button easily lift off.

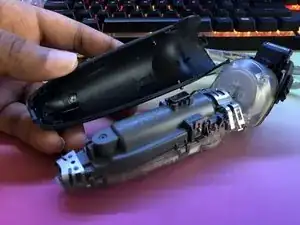

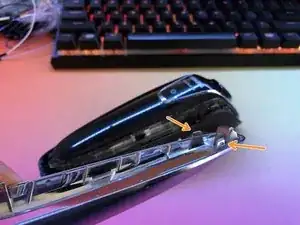

The rear case is removed by gently squeezing the metal tabs away from the case.

The metal tabs act like compression springs to hold against the rear case.

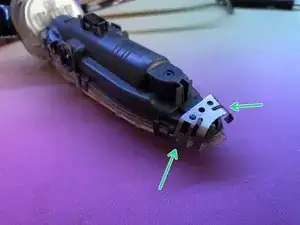

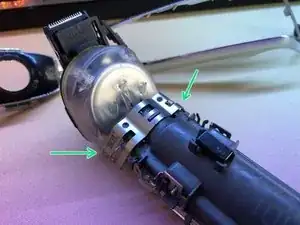

The metal tabs mentioned in Step 3 are better visualised here.

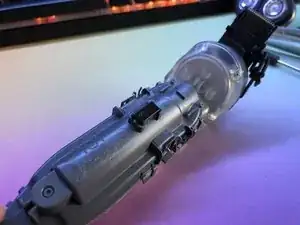

The main electronics are housed within a waterproof enclosure.

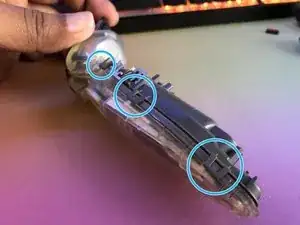

A series of 6 clips hold the enclosure together.

The motor is easily disconnected with a single plug.

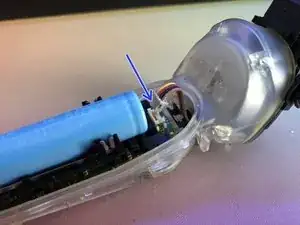

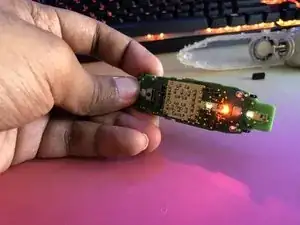

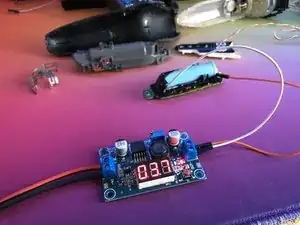

The board powers to life after holding the battery at 3.7V.

Follow the steps in reverse to assemble the shaver.
