Einleitung

How to open the device and what you'll find inside.

  1. hFKXbuSH1gPeCxur
    hFKXbuSH1gPeCxur
    n52mjYFRPUYMHRGo
    v3eQMZgoQDhKkIqL

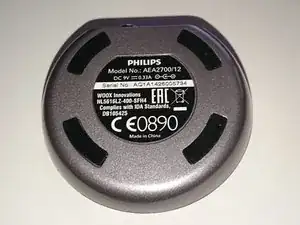

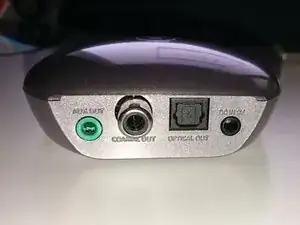

    • here you can see the view from the top, the bottom and the backface - device is really tiny: only 7,5cm in diameter!

  2. 4dkERUUXEjRDpRZL
    4dkERUUXEjRDpRZL
    SCGy3CxYStmHUPcI

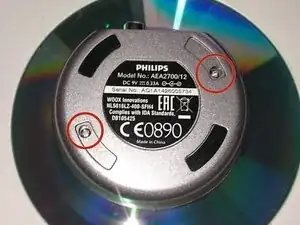

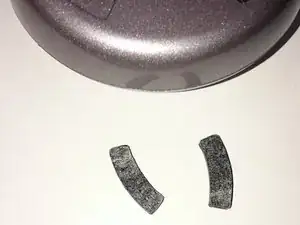

    • Remove 2 of the rubbers on the bottom side - you'll find 2 screws afterwards>> unscrew them ;)

  3. x6ZSCqDmpRDFdn6F
    • now simply remove the top cover.

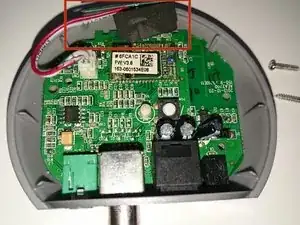

  4. sSBQbnvAUUcMTDNA
    • there's only one external component connected by cable: the NFC tag

    • it's easily possible to remove the circuit

    • lift it on the front side of the device

    • and pull it this direction - it helps to push at the cinch connector!

  5. qLHPFcLbQrqwdmlj
    qLHPFcLbQrqwdmlj
    eRPwUXw3lLNS1LSF

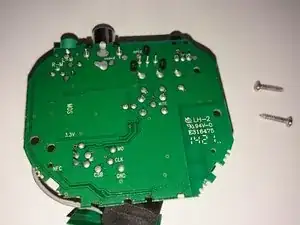

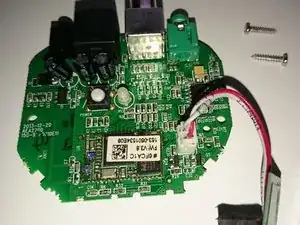

    • Front- and backview of the circuit

  6. aO5urcr2wwIFlVXg

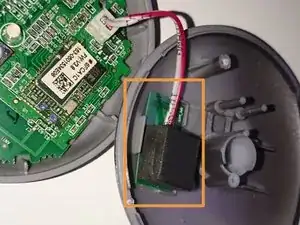

    • when reassembling take care to stick the NFC tag to the correct location in the cover
