Using this guide you will be able to take part and build back the Philips Xenium W832 smartphone, so you can replace any parts along the way.

  1. 4gZ56fpXcxwIxLVR
    • Make sure your workspace is clean. You might need to separate the screen from the digitizer, and you do not want dust getting in between the two.

    • Make sure you have all the tools you need. No adhesives are used in this phone, but do not try to improvise; things like using a knife as a screwdriver: you might damage your device.

  2. VIPErFYIpHmGdkH2
    VIPErFYIpHmGdkH2
    GSvqUTsTXJVXnbXb

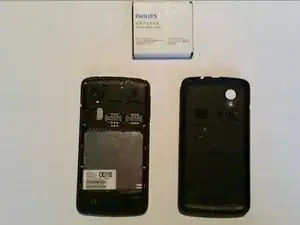

    • Remove the battery cover, and the battery. Also you will need to remove the SD and SIM cards.

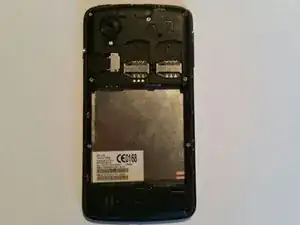

    • There are 9 screws around the edges of the phone that you will need to remove. Make sure to label them, and keep them somewhere safe.

    • Removing any screw will most likely void your warranty.

    • This phone has two screws missing. Someone serviced this badly. You will have 9 screws.

  3. yFmLKSNK5PTQlwxj

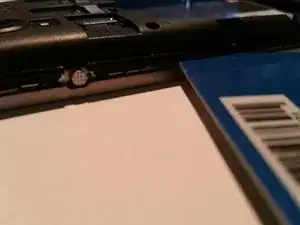

    • Use your plastic card to release the clips and separate the plastic cover from the metal frame.

    • It's best to start by the Power Saving Switch, and move along the edges.

    • Do not insert the card too deep, as you risk damaging some cables.

  4. BYMFXJTxm2HqddgB
    BYMFXJTxm2HqddgB
    tFmXO1veeNetgW4o

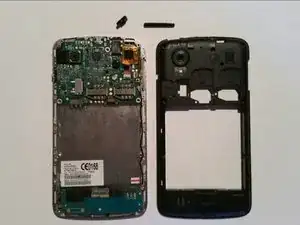

    • Gently lift the back cover away from the phone. Do not worry if the buttons fall out, you can easily put them back later.

    • In order to remove the logic board, start disconnecting any cable from the board.

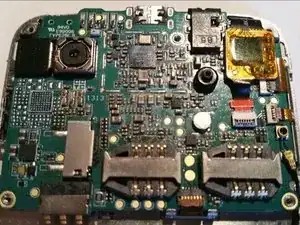

    • Be careful: the ribbon cables are fragile. Do not hurry. You need to remove every single one in order to be able to lift the board out. Start with the big, black camera connector, as the camera is not mounted on the logic board, but on the shielding underneath it.

  5. yrRujjswSVOwBXuu
    yrRujjswSVOwBXuu
    yYJbhcjOYLXIElJF

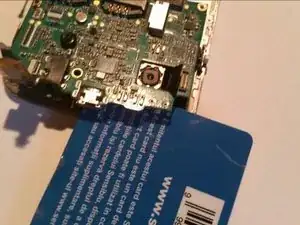

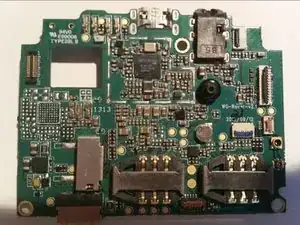

    • After all cables have been released we can remove the logic board, by gently prying it up with our card.

    • Make sure all cables have been released before removing the board from the farme.

  6. TJQeWxjfKXWYuMYp

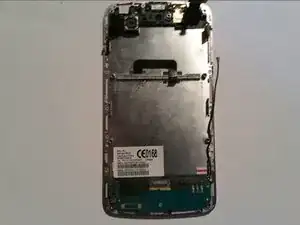

    • Remove the black antenna cable from the phone.

    • Just keep removing any screw you see. There will be 10 in total.

    • Keep your screws labeled and safe.

  7. aVBpUByKnd12BXEQ
    • You can just grab it by the clips on the side, or pry it apart with your card.

    • You may now replace the earpiece.

    • It's best to lift the shield by the top part.

  8. mZdHEmFe5C4U4ZKY

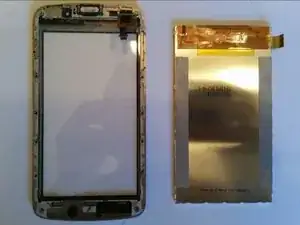

    • You may now replace the display or the digitizer.

    • Try not to get any dust on the display or on the digitizer.

    • The display is fragile. Handle it carefully.

    • If your glass and/or display are cracked, you may encounter shards of glass. Be really careful not to cut yourself. Use a pair of gloves for this step if you have a shattered digitiser or display.

  9. yqVwpRGM3jskUHFr
    yqVwpRGM3jskUHFr
    jTxHrdOjcCKMCJgD

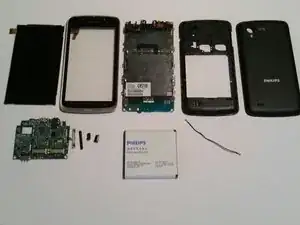

    • We've come to the end of our teardown, so it's time to talk repairability:

    • Philips Xenium W832 Repairability Score: 9 out of 10 (10 is easiest to repair)

    • There are no adhesives used inside the phone.

    • Components are modular, making replacing a faulty component straight forward.

    • Only standard Phillips screws are used.

    • There are a lot of cables that might get damaged when you put the phone back together, and forgetting to route one cable through it's hole can cause major hadaches.
