Plasma Ball Teardown

Geschrieben von: Payton Harty

Veröffentlicht: 07/11/16

Kommentare: 17

Plasma Ball Teardown

Veröffentlicht: 07/11/16

Teardown

Einleitung

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

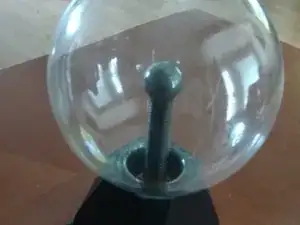

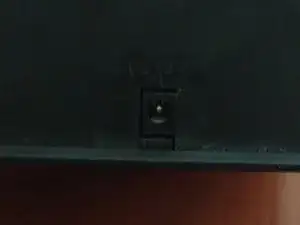

Obtain your plasma ball and unplug the wire (If battery operated take out battery's).

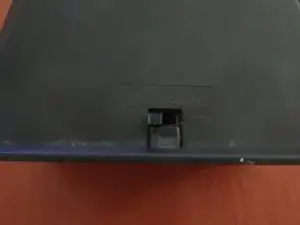

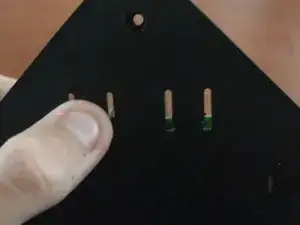

Turn the Off/On/Sound switch to Off.

Schritt 2

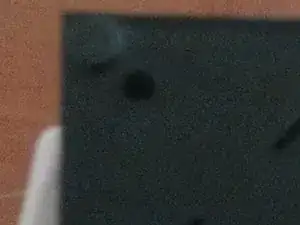

Flip over the plasma ball ( Be careful if putting on a table, its glass its easily broken)

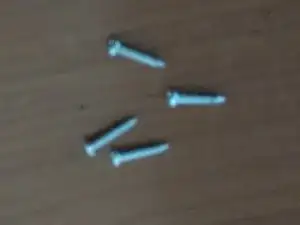

Unscrew the 4 screws, one in each corner of the mechanism.

Schritt 3

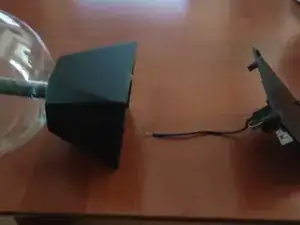

Carefully pull apart the base from the main body,

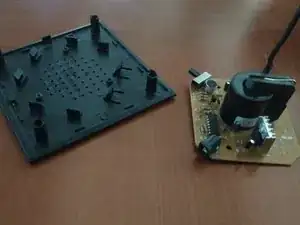

Now we have the base and the main panel.

Schritt 4

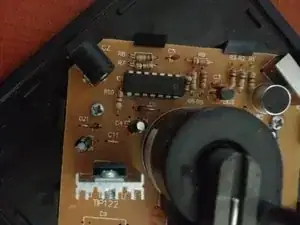

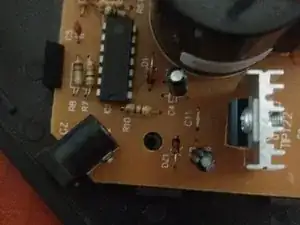

Unscrew the two screws that hold the base to the control center.

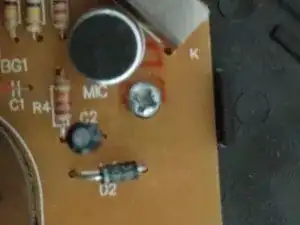

Why does the %#*@ thing have a microphone a mic on it up by the switch

Sweet Hart -

Schritt 5

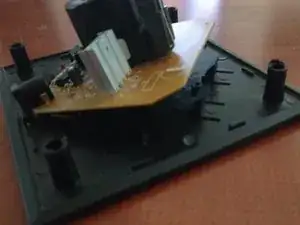

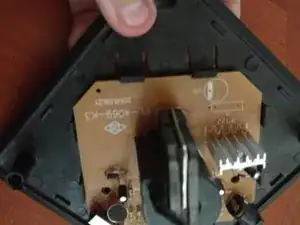

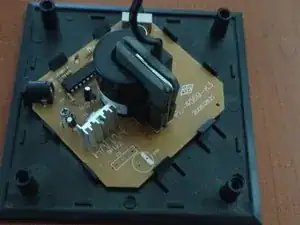

Next pop out the control center by pushing on these two plastic holders.

Schritt 6

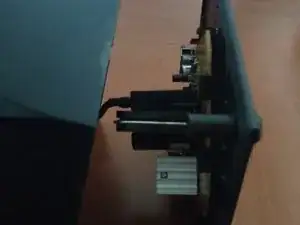

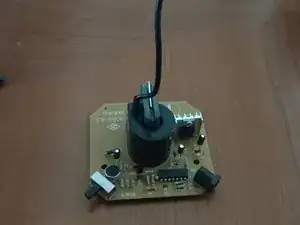

Pull the control center off the base and you are done with the teardown
To rebuild the Plasma Ball do all the steps in reverse order.
