PlayStation 2 Slimline Teardown

Geschrieben von: kempc8
Veröffentlicht: 23/01/16
  • Kommentare: 4

PlayStation 2 Slimline Teardown

Veröffentlicht: 23/01/16

Teardown

Einleitung

This guide will walk you through the steps of disassembling and reassembling a playstation 2 slim. A step by step guide with pictures.

  1. hFmGLPu3EBNUNZHN

    • Start with the console upside down.

  2. hlFwiQaJsMerwJ1X
    hlFwiQaJsMerwJ1X
    JWa26dypjds1f1FY

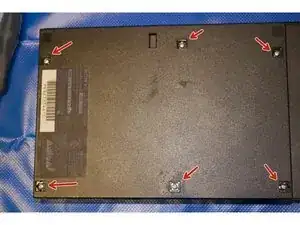

    • Remove the six screw covers and place on project mat.

    • Remove the six 4.0 mm screws on the base of the PS2. (Place on your project mat.)

  3. OxTvNnyFGNUDrtSt
    OxTvNnyFGNUDrtSt
    3CRBnFvhP1sHLXoT
    BBHcFBqHUIUxuVyr

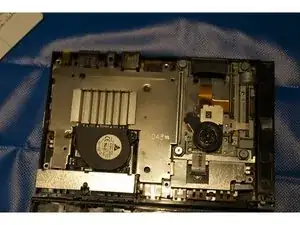

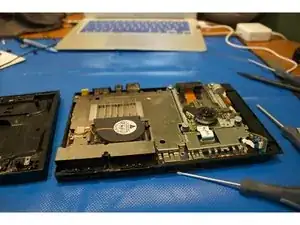

    • Separate the bottom of PS2 from the top. Place to the side.

  4. mT1XTvkM2dsoOfiT

    • ''This PS2 that I am tearing down has no clock battery!!"

    • Locate the clock battery. Take tweezers and gently disconnect from motherboard. (Place on project mat)

  5. ZFkHsKShHYnmfsI4
    ZFkHsKShHYnmfsI4
    UUTstiHwWOX3EjdT

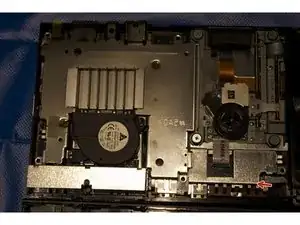

    • IR sensor on the motherboard.

    • Gently use a spudger to release the blue/ white ribbon from motherboard, (Place IR sensor on project mat)

  6. cdIWGHDgLovAOHDK
    cdIWGHDgLovAOHDK
    yRFoaisVAOkbfRcu
    WIMJ3bAcZ6CdlrUP

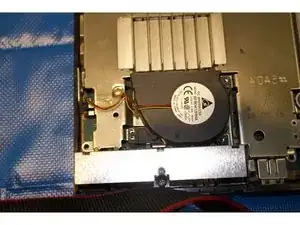

    • Fan has red, black, and yellow wires under hold down tape. Remove the tape gently.

    • Release the connector gently from motherboard.

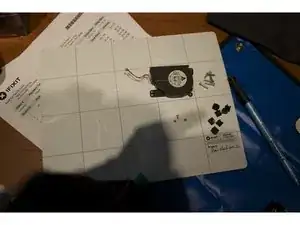

    • There three 1.6 mm screws around the base of the fan. Place both fan and screws on your project mat.

  7. AdNCw3DFCRhGBUOp
    AdNCw3DFCRhGBUOp
    nxxIn2ELasM5rGbQ
    mfjXYRNIMTg5vqiS

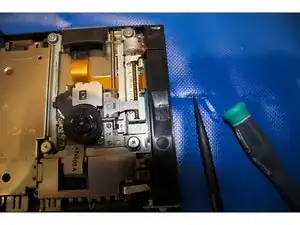

    • Optical drive on the motherboard

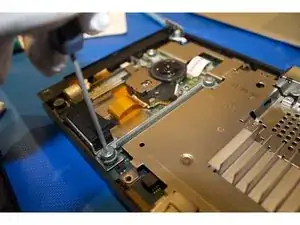

    • There are four 4.0 mm screws holding the optical drive.

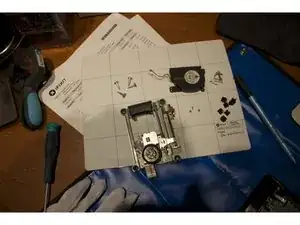

    • Remove the four screws and place the optical drive with it's screws on your project mat.

  8. NWcx3LqeVcJ1mXi4

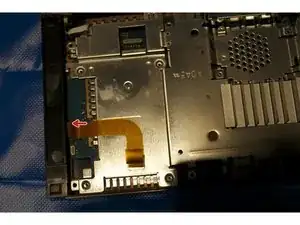

    • There is a ribbon attached to the motherboard here. With your spudger, gently detach the ribbon from the motherboard's connection.

  9. LmLoxvDW1ckh3ZE1

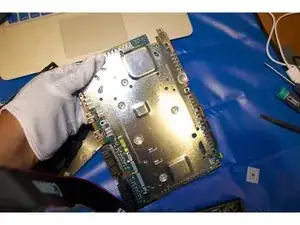

    • Remove the single 2.4 mm screw located on the metal casing at the top of the motherboard.

  10. kFcWUm4jt1LC2tjG
    kFcWUm4jt1LC2tjG
    pyRw5TkAl12R1fnN

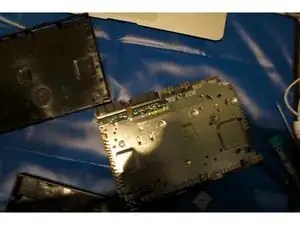

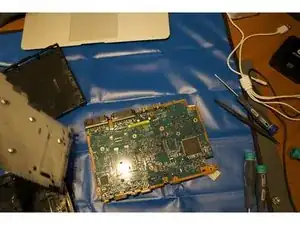

    • Gently lift the metal casing from the motherboard. Place it to the side.

    Model 77k has rivets and you cannot take the case off without breaking them

    Raziel -

  11. somsam3NFKCyWGQK

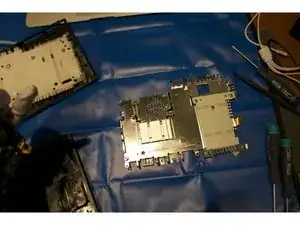

    • Flip the motherboard over and remove the five screws of the second metal casing.

    • Place screws on project mat and casing to the side,

  12. bjCKNgAGFwv3sIOB
    bjCKNgAGFwv3sIOB
    1HHf2NfQ2W22im3R

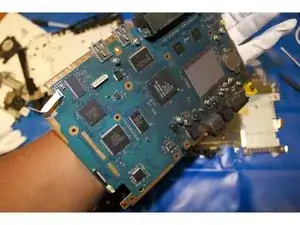

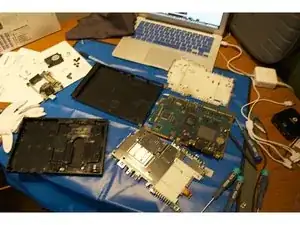

    • Motherboard of PS2

    • Thank you for reading through this PS2 tear down. I hope this was helpful,
