PlayStation 3 CECHH01 Teardown

Geschrieben von: knyrii

Kommentare: 43

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

45 Minuten - 2 Stunden

Einleitung

Hatte Hitzeprobleme und daher beschloss ich, sie zu reinigen. Diese Schritte habe ich unternommen.

Werkzeuge

Schritt 1

Mit einem Fingernagel oder Spudger die Abdeckung entfernen.

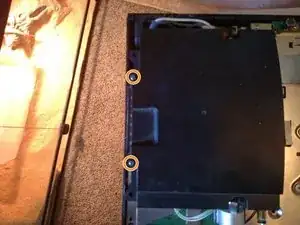

Die PH1 Schraube entfernen.

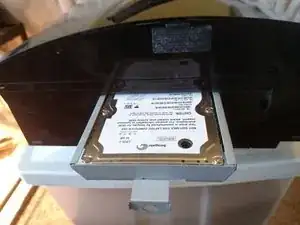

Festplatte herausziehen.

Schritt 2

Entferne den Aufkleber und die darunterliegende Gummiabdeckung.

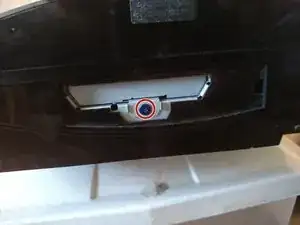

Entferne die T8 Sicherheitsschraube
Ziehe die Abdeckung zu dir hin und entferne sie.

Slide the cover towards the screw opening would have been a better instruction as people may do this repair with the system on its side. Also, a picture showing that sliding it is how you take it off not “pulling it” would have been perfect.

Dylan Y - 16/03/18

It's T8 or T9 ?

Sebastien Plante - 13/07/20

I confirm it's a T8 security torx.

Sebastien Plante - 13/07/20

Schritt 3

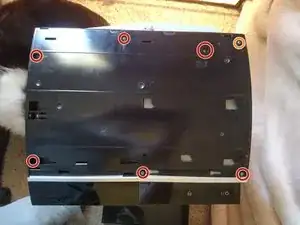

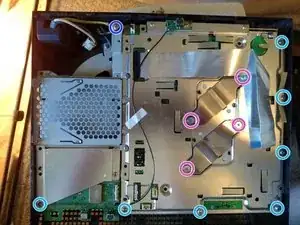

Entferne die 6 langen Schrauben.
Entferne die mittelgroßen Schrauben. Diese Schrauben sind netterweise mit einem S markiert, falls man vergessen haben sollte, was wohin gehört.
Das BluRay Laufwerk ist NICHT festgeschraubt. Kippe die Konsole nicht!

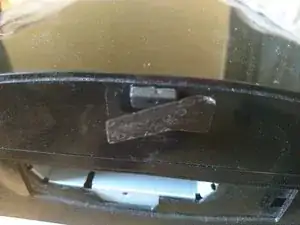

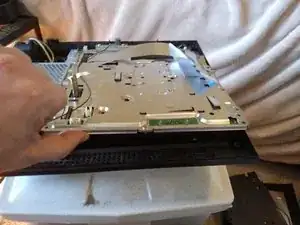

Benutze einen Finger, um auf die Lasche neben der mittelgroßen Schraube zu drücken und hebe sie an. Das Gehäuse dreht sich an der Vorderseite.
Beim Zusammenbau, erst die Front einsetzen, und dann nach hinten klappen. Die Schrauben drücken alles zurück an seinen Platz.

Schritt 4

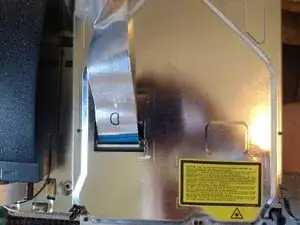

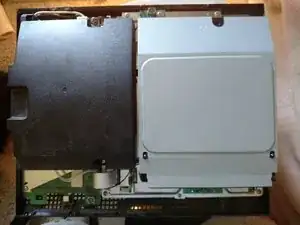

Drehe das BluRay Laufwerk um, und hebe die schwarze Lasche an, um das Flachbandkabel zu entfernen.

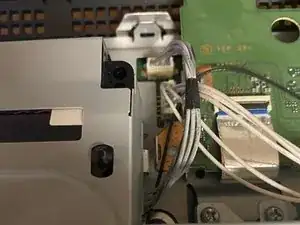

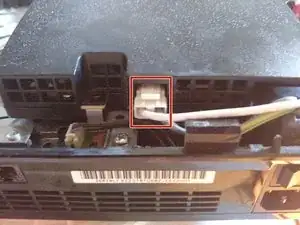

Entferne das vieradrige Kabel vom BluRay-Laufwerk.

Mine had a label covering the entry to the Blu-ray casing, so I needed to remove the power supply and disconnect the Blu-ray ribbon cable from the motherboard instead.

Bil - 15/01/18

Mine also has a 4-pin cable on the side that also has to be detached

gordonhamachi - 13/04/21

Schritt 5

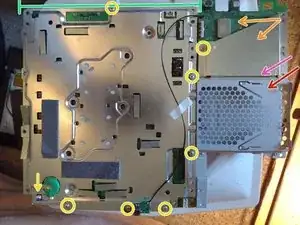

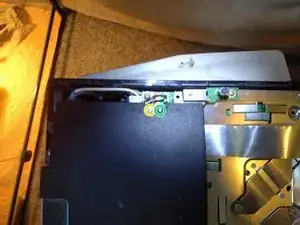

Entferne die M Schraube.
Entferne die mittelgroßen Schrauben.
Entferne die langen M Schrauben.
Für den Zusammenbau sind die Metallschrauben mit feinem Gewinde mit M markiert.

Schritt 6

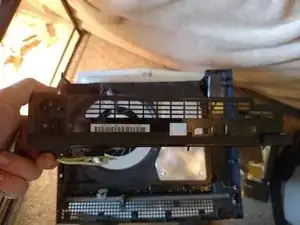

Auf die Lasche drücken und gerade herausziehen.
Gerade herausziehen.

Where does that ribbon cable on the second pic on step 6 go?! kinda confused on how to take it out..(that Rainbow shaped wire thing)

kevinpaulenriquez - 01/12/15

That connects the front peripherals to the main board. There should be a brown tab on each side that you just flip down. Then just lift the ribbon cable up.

knyrii - 02/12/15

how many pin that ribbon cable which connect to front usb ?

Adirose Axl - 13/12/17

Schritt 7

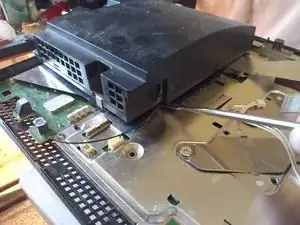

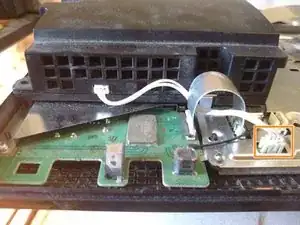

Verwende keinen Metallspudger! Es gibt herausstehende Kontakte, die kurzgeschlossen werden können, oder einen elektrischen Schock verursachen. Ich wusste das nicht, als ich das gemacht habe.
Mit einem nicht leitenden Spatel diese Ecke anheben, um den Ausbau zu vereinfachen.
Gerade nach oben ziehen, um das Netzteil zu entfernen.

Schritt 8

Die kurzen Schrauben entfernen.

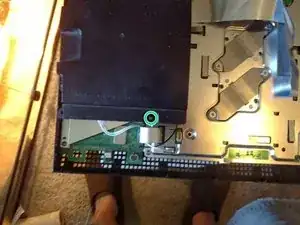

Die Erdungsschraube entfernen.
Die Kühlkörperschrauben und Klammern entfernen.
Zum Entfernen die Front anheben.
Langsam vorgehen. Die Kühlkörper sind nicht festgeschraubt und die Kühlrippen können beschädigt werden, wenn man zuviel Kraft anwendet.
Das ist das zweite mal, dass ich sie zerlegt habe. Daher ist keine Wärmeleitpaste auf den Chips. Sie tun Paste darauf, meiner Meinung nach viel zu viel.
Beim Zusammenbau haben alle Schraubenlöcher Markierungen. Wenn ein Loch keine Markierung hat, stecke keine Schraube hinein.

Base not brace right?

Kajus Slekys - 16/04/19

Ground screw wouldn't go in through the ground wire no matter what I tried. It would if I screwed it straight into the brace, but not if I put it through the ground wire first. Ended up stripping it.

Joe Mama - 21/01/21

You wrote that if the hole doesn’t have a marker, then don’t put a screw in there, but shouldn’t there be two screws in the bottom-right? I also noticed that you marked the screw on the bottom, second from the right, twice. It’s marked in this image and the next one. Also, the number of screws I have left over seems to suggest I’m right and a second screw should go near that bottom-right screw where there is no circle. Did I screw up?

Cole Fudge - 07/06/21

I did screw up. I missed one screw for the USB and WiFi controller. The screw hole I was talking about is filled by one of the long screws that goes through the cover and past the disk drive. My bad!

Cole Fudge - 07/06/21

Please how do i know of the heatsink fin is spoilt?

Abiodun -

Schritt 9

Löse die M Schrauben und trenne den Platinen-Akku ab. Die PS3 hat jetzt weder Uhr noch Datum.
Ich habe beim Zusammenbau einen Fehler gemacht. Die Abschirmung gehört unter die obere Hälfte des Festplattenkäfigs.
Hebe diese Seite des Festplattenkäfigs und wackle etwas. Die Pins sind etwas kompliziert.
Entferne die Abschirmung über dem USB und WiFi Controller.
Entferne den USB und WiFi Controller. Er kann einfach angehoben werden. Entferne das weiße Klebeband.
Von dieser Seite anheben, um die Motherboard Abschirmung zu entfernen.

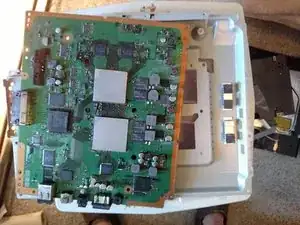

Das Motherboard kann einfach herausgehoben werden.

I need help i cant get that battery with the yellow arrow, do i just pull it out?

The_Sinkre - 21/04/21

The battery is spring loaded: just pull it out.

Daniele Carminati - 21/04/21

Schritt 10

Ok, ich habe vergessen vor dem Entfernen der Schrauben ein Foto zu machen. Es gibt 4 kleine Schrauben.

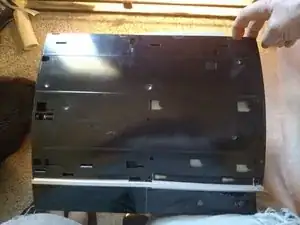

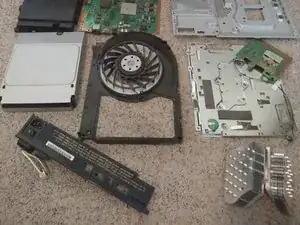

Die Rückseite kann abgehoben werden.

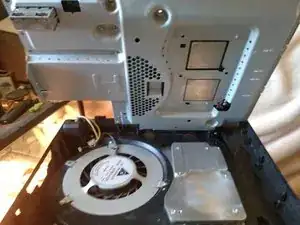

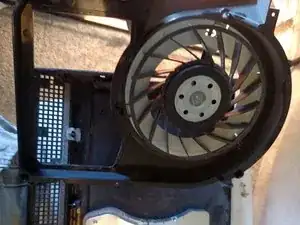

Der Lüfter und die Abdeckung können abgehoben werden.
Die Kühlkörper sind nicht festgeschraubt und können abgehoben werden.

Schritt 11

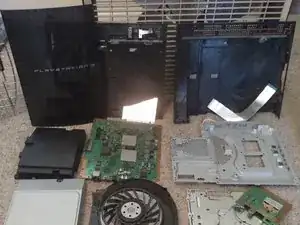

Fertig!

Very nice and extremely time saving, without you guidance I would be at the pawn shop replacing the one that is in 1,000,000 pieces because "it accidentally fell."

Jeffrey Geisenberger - 05/05/17

I need the bottom @knyrii

Kajus Slekys - 17/04/19

Lo felicito por su ordenado, detallado, sintético, claro e ilustrado tutorial. Gracias por las imágenes, que ayudan enormemente, y por las explicaciones resumidas (sin palabras de más). Mil gracias por el tiempo que se ha tomado para poder compartir su conocimiento con nosotros tal que realmente podamos entenderlo.

mimimoni - 13/08/20
