PlayStation 3 Teardown

Veröffentlicht: 24/10/09

Teardown

Einleitung

This is a teardown of an original launch 60GB PlayStation 3 system. One of the best units out there that had backwards compatibility and the card readers. Sadly this unit has a GPU a problem so it's broken.

Edit: Nickname fix, formerly Karasumachitose. Apologies to any inconvenience this causes.

Werkzeuge

Schritt 1

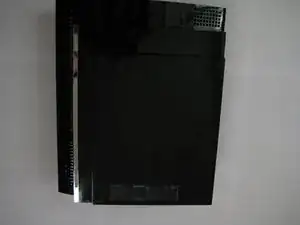

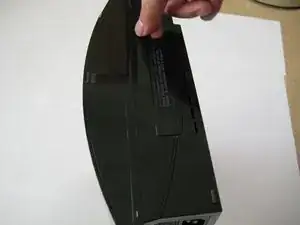

There she is, one of the two original PS3 models available at launch (60GB).
It's got PS2/PS1 backwards compatibility and a multi-card reader. The current PS3 Slim doesn't have the card reader. The other launch model lacked the card reader and WiFi (20GB).

I turn it On and it just automatically shuts off ok Google

Timothy Thompson - 07/05/20

Schritt 2

Let's get started!

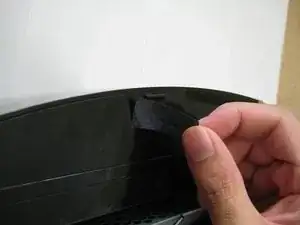

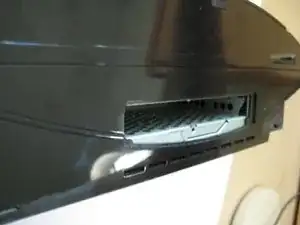

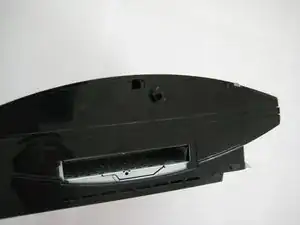

Remove the hard drive access cover from the bottom of the PS3.

Schritt 3

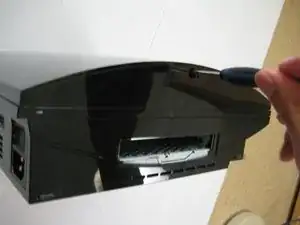

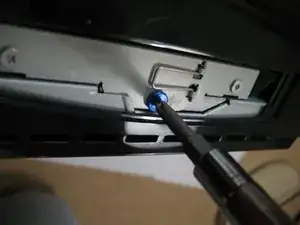

Use the Phillips screwdriver #1 to remove the blue screw.

Schritt 4

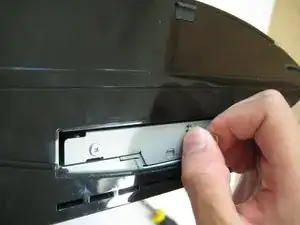

Lift up the metal lever.

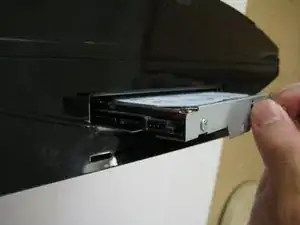

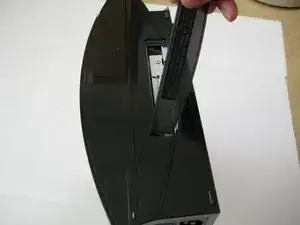

Slide the hard drive towards the front of the case.
Pull it straight up and out of the unit.
This is all you need to do to access the PS3's hard drive.

Schritt 5

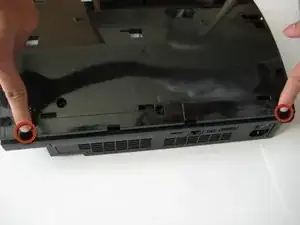

Remove the warranty sticker.
Obviously this voids your warranty. You have been warned.

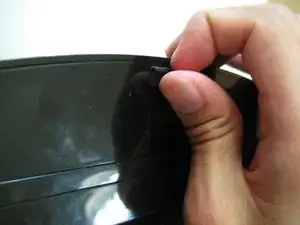

Use your fingers and pry up and remove the foot underneath the sticker.

Schritt 6

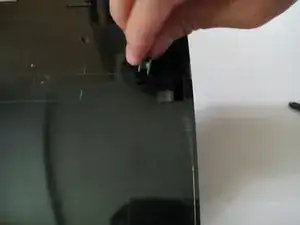

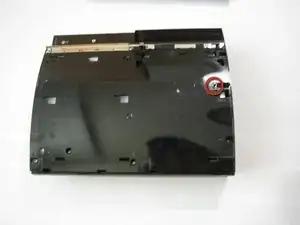

Use the Torx Screwdriver (T8 or T10) to remove the torx screw from the space behind the rubber foot.
This screw has a security bit but most are able to remove it successfully with a normal Torx driver.

Mine was a T10

Zach Tharp -

this screw came out using a phillips #1or#2 with no issue.

turtlefresh -

A 1/8 flathead screwdriver fit perfectly for me on this screw.

Nathan H - 22/04/20

Schritt 7

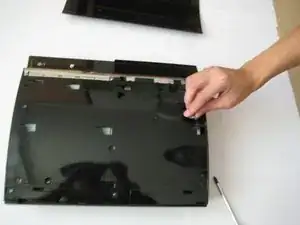

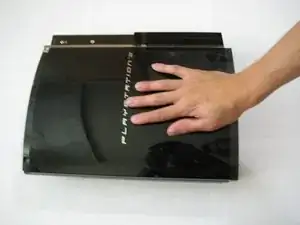

Place PlayStation face up such that "PlayStation 3" is oriented so you can read it.

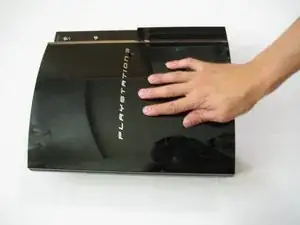

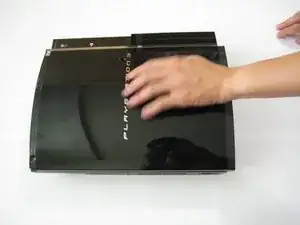

Place your palm on the PlayStation 3 logo and slide the plastic front cover towards you and off of the outer plastic shell. Set it aside.

How Do you open

dantdm numor - 25/05/18

My case is still stuck, and refusing to budge… I removed the screw and HDD already.

Logan Stevens - 28/05/19

Schritt 8

Remove the metal receiver that held the torx screw you just removed.

Some PlayStation3 gen 1 consoles do not have a removable receiver. If yours does not, just skip this step.

Joshua Law - 31/03/18

No people. Ignore that last guy. Stick to your guns and hold your ground. Even if your specific console does not HAVE the removable receiver, remove it anyways. :|

Freaking GENIUSES up in here.

Gary Hall - 12/08/18

Schritt 9

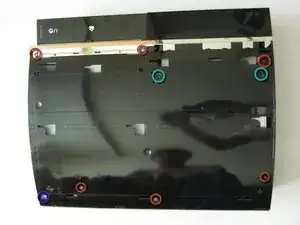

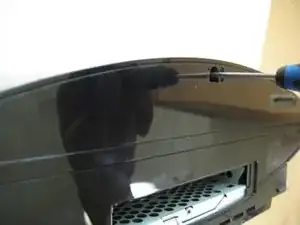

Remove the 9 screws from the outer plastic shell using a #2 Philips driver.
6 large screws
1 medium screw
2 small screws

The annotation on the photo in Step 9 is inaccurate. The blue circle should be aqua/cyan coloured, while the two cyan/aqua coloured circles should be blue. No biggie, great disassembly otherwise.

paulius -

Zitat von paulius:

The annotation on the photo in Step 9 is inaccurate. The blue circle should be aqua/cyan coloured, while the two cyan/aqua coloured circles should be blue. No biggie, great disassembly otherwise.

I double checked it, it should be correct. There is only one medium screw and two small screws.

Mint137 -

If you leave the two small screws until after you remove the top (they aren't attached) it will make things easier because the card readers will stay down and there will be no ribbon cable to deal with when removing the top.

Julian Turner -

I have found the same. It can be a mess otherwise.

Joshua Law - 31/03/18

Schritt 10

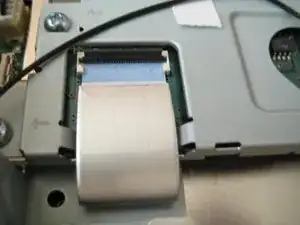

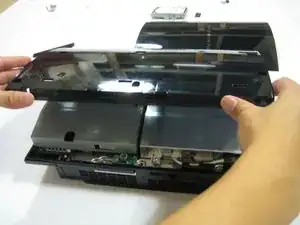

READ THIS ENTIRE STEP AND THE NEXT ONE BEFORE PROCEEDING. Locate the two locking tabs on the back of the PS3. Push them in simultaneously and lift the outer plastic shell off of the main board but BE CAREFUL as there is a ribbon cable connecting the shell to other hardware.
Ribbon cables are very fragile. Take care when removing or inserting ribbon cables.

Schritt 11

Disconnect the ribbon cable and set the shell aside.
If you want to remove the plastic card reader, locate its two locking plastic tabs that hold the card reader to the shell, spread them, and lift the card reader off of the shell.

Schritt 12

To remove the plastic card reader, locate its two locking plastic tabs that hold the card reader to the shell, spread them, and lift the card reader off of the shell.

Schritt 13

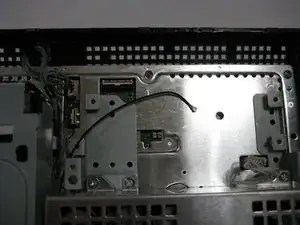

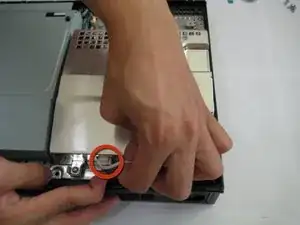

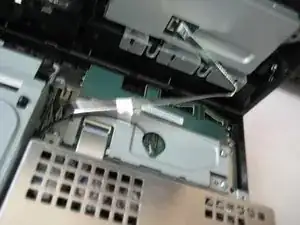

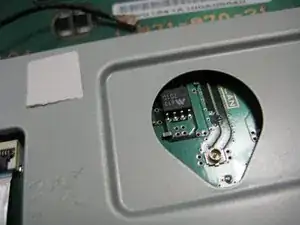

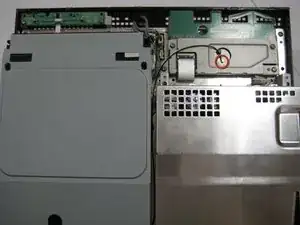

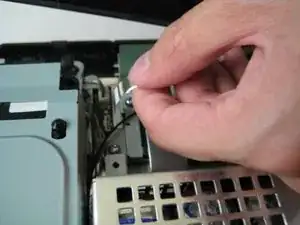

Working on the main unit, lift up on and disconnect the black RF wire from the wireless assembly using a spudger.

Schritt 14

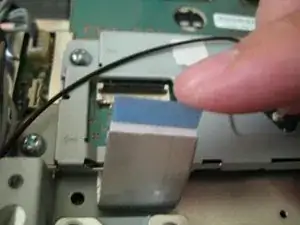

Remove the flat ribbon cable from the wireless assembly.

Schritt 15

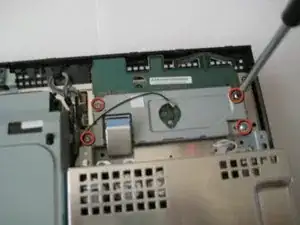

Remove the four Philips #2 screws from the top of the wireless assembly.

Schritt 16

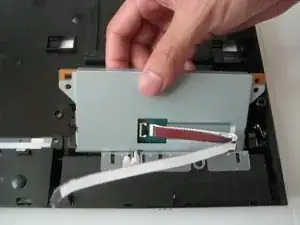

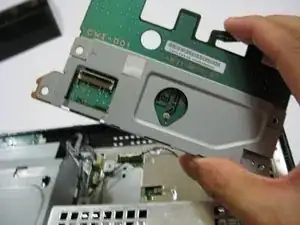

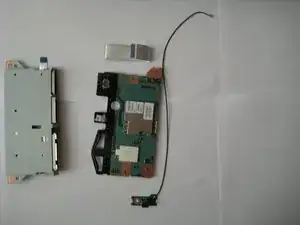

Lift the wireless assembly off the main board and set it aside.
Disconnect the ribbon cable from the main board and place it with the wireless assembly.

Schritt 17

Locate the other wireless assembly which the black RF wire is connected to.
Remove the one Philips #2 screw retaining it to the main board and lift off the assembly and set it aside.

The black wire is taped in, so make sure you do not use force if it’s not coming out.

N7 RiZe - 21/02/19

Schritt 18

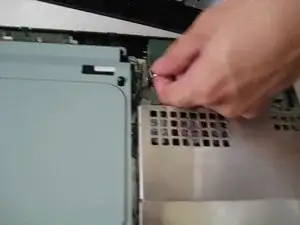

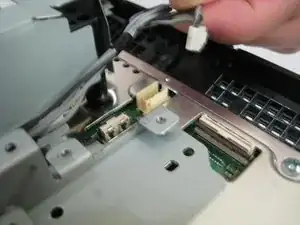

Remove the cables that attach the power supply to the main board.
Remove the AC connector from the power supply.

Power connector on my 20gig launch unit was epoxied. If this is the case with yours be VERY careful. Mine popped off the board, now searching for a fix.

Ryan Burns -

Schritt 19

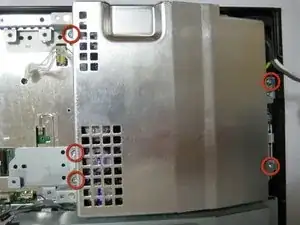

Remove the 5 screws using a Philips #2 from the power supply, and lift the power supply straight up and off of the main body. Set it aside.
There are 2 power pins connecting the motherboard to the power supply as you remove it.

Schritt 20

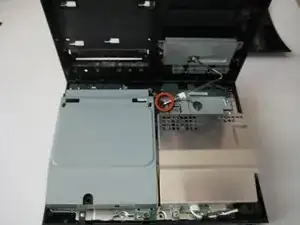

The screws holding the blu-ray drive to the main board have already been removed in a previous step.

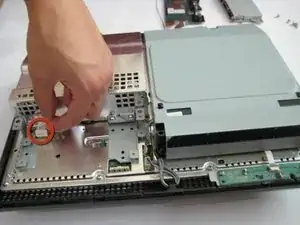

Unplug the power connector (gray) on the side of the player.

Schritt 21

READ THIS ENTIRE STEP BEFORE PROCEEDING. Lift the player up slowly to expose the folded ribbon cable beneath it.
Remove that ribbon cable from the main board and set the drive/cable aside.

Remove the ribbon cable from the drive end, not the motherboard end. The clip holding the ribbon cable to the motherboard is difficult to reattach and will often snap. It does make it a bit more difficult to disassemble but far safer.

Root Ginger -

I had to use two spudgers to pry the clip UP on the motherboard to release the cable.

Andrew Hathaway - 24/06/17

If you do break the clip on the motherboard side, just clip the ends off the broken clip and, using the thin side, push it in the remaining motherboard recess so it keeps the ribbon connection in place. There are multiple youtube vids if you need additional info. Had to do mine and worked like a charm.

lemoyce78 - 05/06/18

Schritt 22

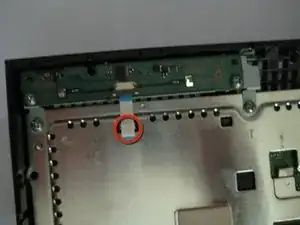

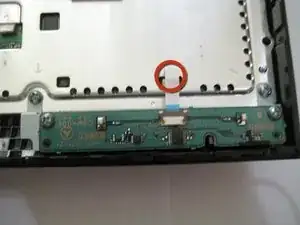

Remove the ribbon cable attaching the on/off and eject switch circuit board to the main board.

This just broke my PS3 permanently.

TheTank20 -

Schritt 23

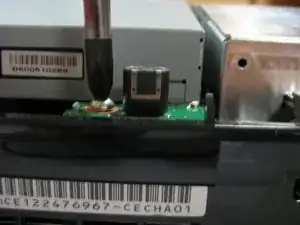

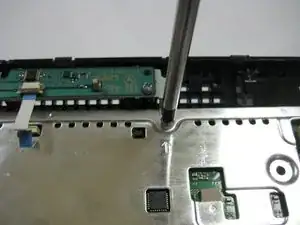

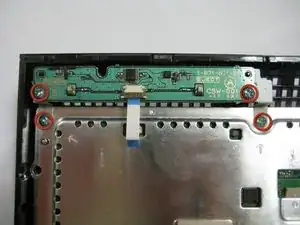

Remove the 4 Philips #2 screws retaining the circuit board to the case.
Remove the circuit board from the case.
These screws are medium length, different from most of the other Phillips #2 screws.

Schritt 24

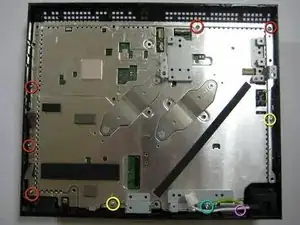

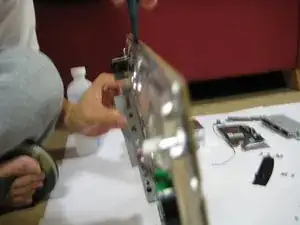

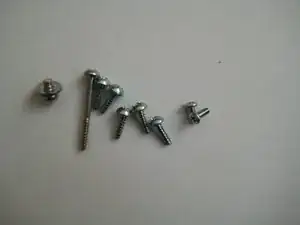

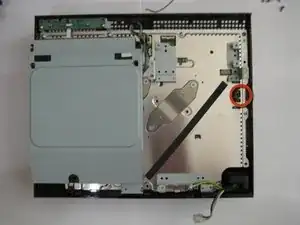

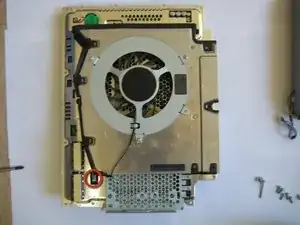

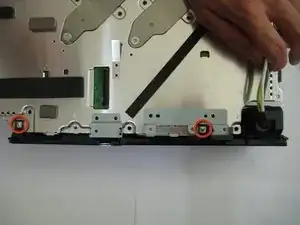

Remove the 9 screws from the main body.
5 Medium Philips #2 Screws
2 Small Philips #1 Screws
1 Ground Philips Screw with Washer
1 Bolt Philips Screw (under AC cord)

There seems to be a significant flaw in the design here where a screw can damage the USB port power traces on the motherboard. For some reason they ran the traces right under the screw holes. Should there not be nothing there (better situation would be a hole).

Temi B - 16/06/14

What does the bolt philips screw look like?

mglmoncraft - 31/03/19

Schritt 25

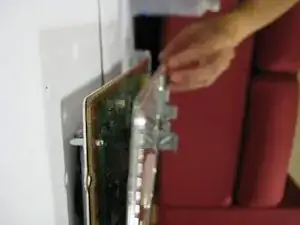

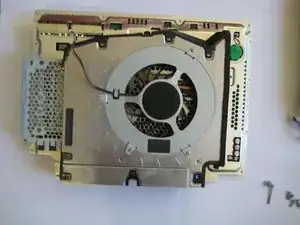

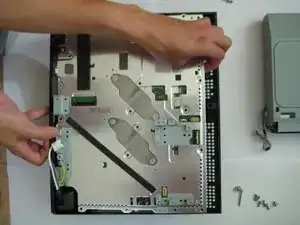

Grab the main board at the locations shown in the picture and lift the main board off of the back casing.

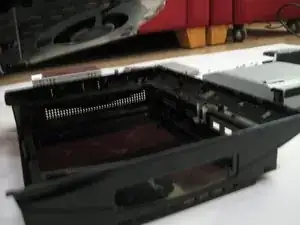

Set aside the black shell.

Schritt 26

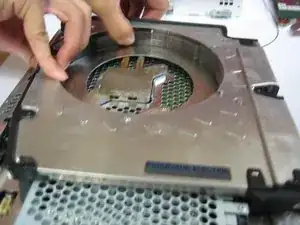

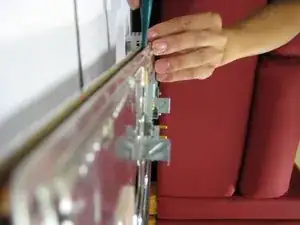

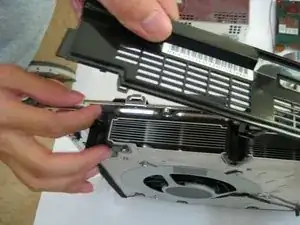

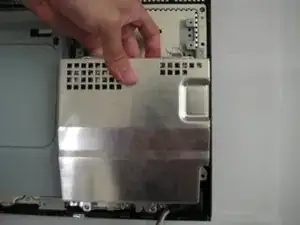

On the main body, locate the 5 plastic locking tabs holding the rear plastic I/O shield to the main body.
Pry the tabs away from the body and lift the rear shield away.

Schritt 27

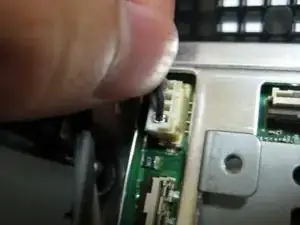

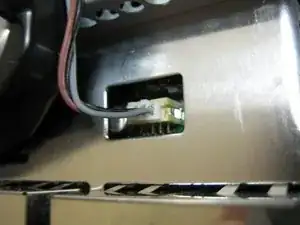

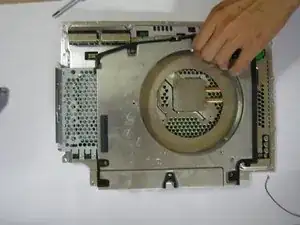

Remove the fan power connector.

Schritt 28

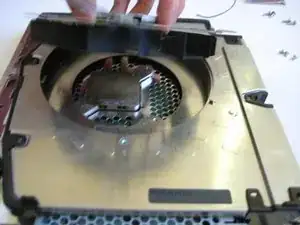

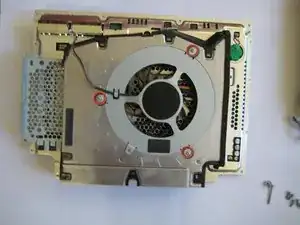

Remove the 3 Philips #2 screws holding the fan to the main body.
These are extra small screws

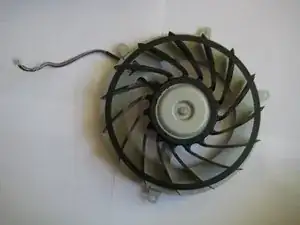

Lift the fan straight up and out of the body.
Check out the size of this thing.

Schritt 29

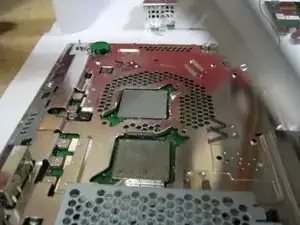

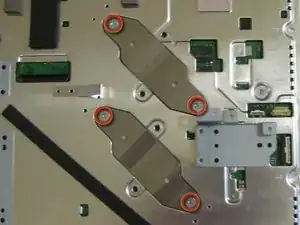

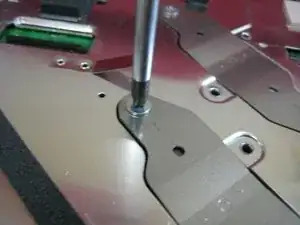

On the top of the mainboard, EVENLY remove the four large Philips #2 screws holding the heat sink.
Removing them evenly reduces strain on the GPU and CPU.

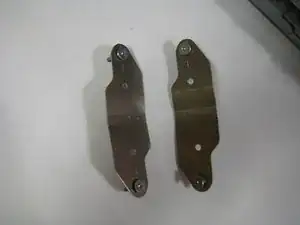

Remove the plates and the screws from the main board.

I broke off one of these screws, 'Philips #2 screw' has not gotten me a correct screw from google.

Any clue what exact screw this would be?

I have an idea how I could remove the broken screw, but any suggestions?

R zaiD -

Search on Ebay under PS3 Screw there are some on there with clamps.

Root Ginger -

Schritt 30

Flip the main board over.
Lift (or pry with fingers) the heat sink straight off of the mainboard and processors.
Force will be required as the thermal paste "glues" the heat sink to the processor.
Note: If new thermal paste is readily available, clean the old paste off well and apply new thermal paste at the time of reassembly. If new thermal paste is not available or you are cheap, do not disturb the "old" thermal paste.

Looks to me if your goal is to replace the thermal paste, this is as far as you need to go. Apply the new paste and begin reassembly. Here's a video showing how to apply the paste: http://www.youtube.com/watch?v=EyXLu1Ms-...

objbuilder -

Wich is the best way to apply the paste and what brand do you reccomend?

roblyons39 - 28/08/15

Just use a small dot, not bigger than a pea right in the middle. Let the heatsink spread it out.

Randy Laird - 17/08/16

DO NOT DO THIS IF YOU DO HAVE THERMAL PASTE!!!

If the thermal paste is disturbed you MUST remove all the old paste and apply new (unless you are okay with destroying your processors). To remove the old paste, cotton swabs work best. Once you have removed as much as you can, dampen a cotton swab with rubbing alcohol and carefully clean the processor surface AND the heat sink surface using small circular motions, being careful to not allow any alcohol to contact the main board. Do this until ALL traces of the old compound are COMPLETELY removed. Once removed, allow a short amount of time for the alcohol to completely evaporate. Once the alcohol is evaporated, place a SMALL amount of new compound (I use Arctic Silver) directly onto the processor (about the size of a pea OR LESS). Using a straight edge (such as a credit or ID card) carefully spread the compound into an even, thin layer which completely covers the surface of the processor.

Gary Hall - 12/08/18

This is not as hard as it sounds. Just take your time and get it as even as you can. And gaps in the paste will result in “hot spots”, which can easily damage your processor (this is why just “letting the heat sink spread it out” is such a bad idea). The layer should only be about 1/64” (0.016”) to 1/32” (0.031”) thick. For reference, a common sheet of paper is about 0.004” thick, so roughly 4 to 8 sheets of paper thick. Do remember that this is NOT as critical as I am making it out to be. It is simply a reference for “a thin layer of compound”. Don’t overthink it.

Gary Hall - 12/08/18

Now that your fresh compound has been applied, reinstall the CLEAN heat sink as evenly and gently as possible. Install the fasteners and tighten, tightening and alternating n SMALL INCREMENTS. The idea here is to tighten the heat sink in as even a fashion as possible. This helps to ensure the most even distribution of thermal compound as possible.

I have repaired many Xbox 360s and PS3s in my time, and have never had this method fail, and as en electrical engineer would encourage anyone to follow these procedures when replacing any thermal compounds.

Gary Hall - 12/08/18

Schritt 31

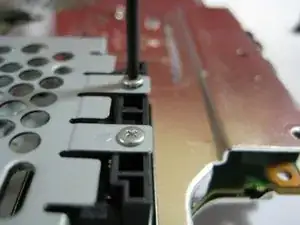

Remove the 2 Phillips #0 screws from the hard drive enclosure.

Schritt 32

To expose the mainboard, remove the watch battery from the mainboard.

Schritt 33

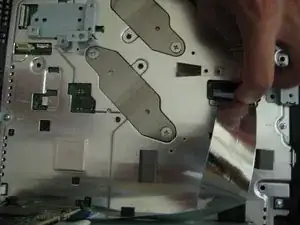

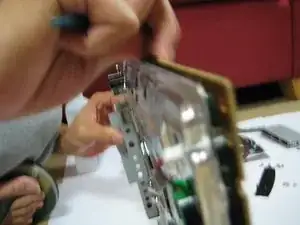

Using spudger, carefully pry the metal shielding away from and off of the top of motherboard.

Schritt 34

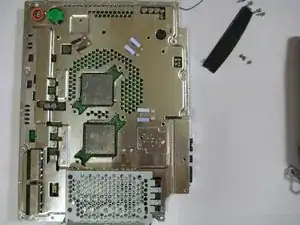

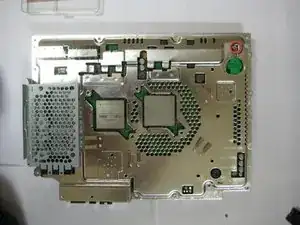

Turn the motherboard over and remove the metal shielding on the opposite side. Pry with a spudger or with your fingers.

Schritt 35

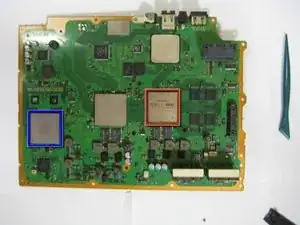

Check out all the chips with heatspreaders on this thing.

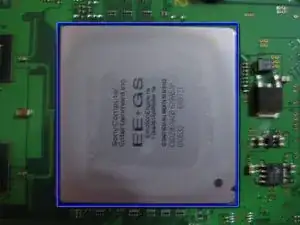

There's the Emotion Engine chip and Graphics Synthesis chip that allows the sweet backwards compatibility.
IBM Cell processor... This CPU has 9 cores, 10 threads and it runs @ 3.2GHz .

i have a SERIOUS PROBLEM. i put my ribbon cable from my bluray drive into my ps3 while it was on and i heard a pop. the drive was no loner able to recieve power and i saw someone else had the same problem but on a differnt ps3. they said it was the ic chip on the daughter board and i dont even know where that is.... im only 16 and i plan on being an electronic engineer can anyone please help me because im a SEMI-noob future genius noob now.

Isaac King -

Advice- Next time make sure the system does NOT have power.

aarongeister - 11/02/15

Schritt 36

More Chips!

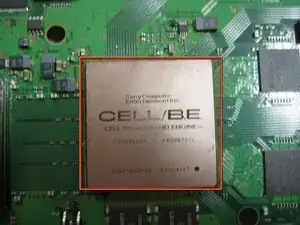

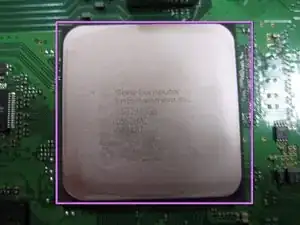

IBM Cell CPU

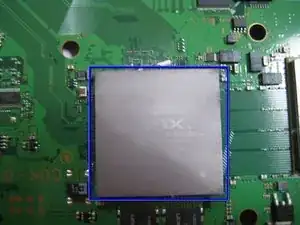

Nvidia RSX GPU

How do I remove the RSX chip so I can see if it's the issue

David Staffen -

Schritt 37

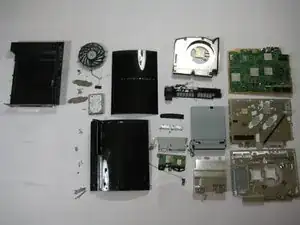

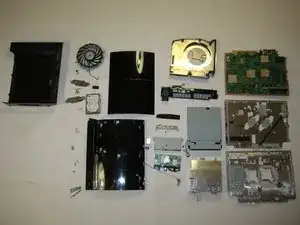

Consider your PS3 disassembled.
